About this product
- Materials: plastic.metal
- Color: gray
- Exports to: Southeast Asia, South Asia, USA and Canada, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
About this product
- Materials: plastic.metal
- Color: gray
- Exports to: Southeast Asia, South Asia, USA and Canada, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
Product details
| Materials | plastic.metal |
|---|---|
| Color | gray |
From the supplier
Features

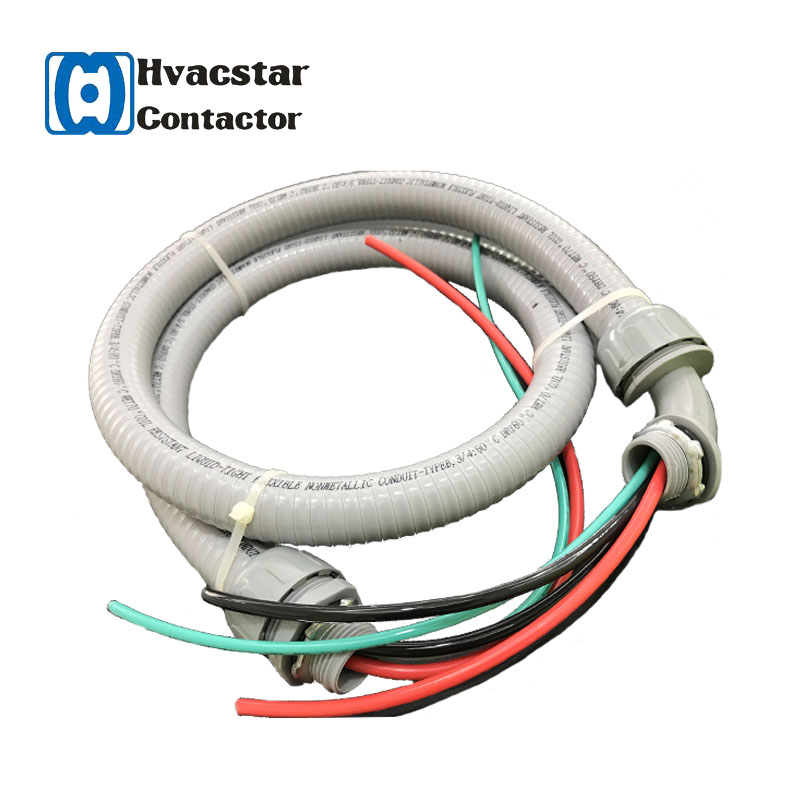

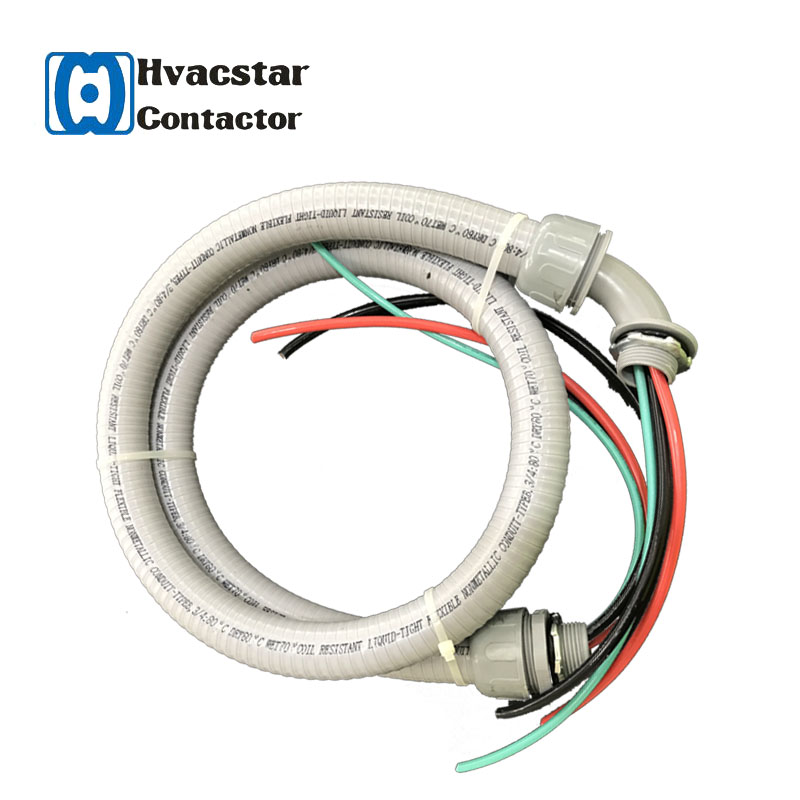

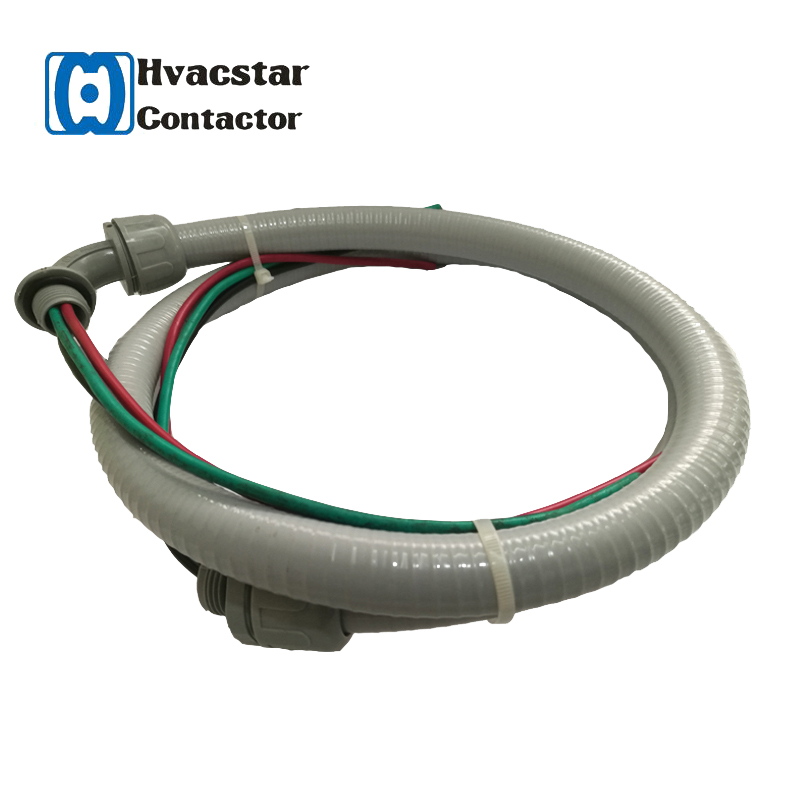

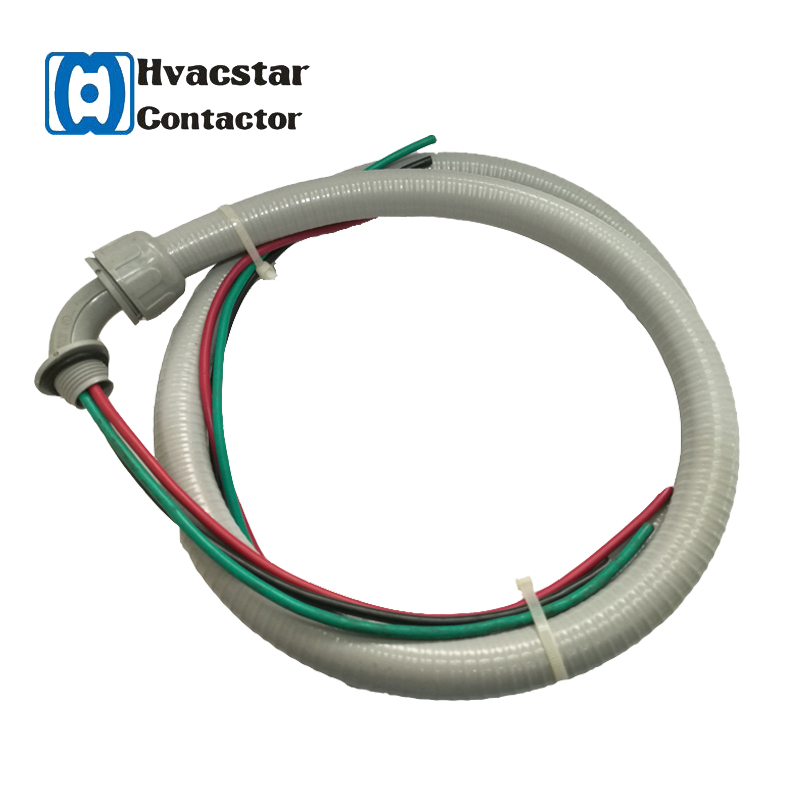

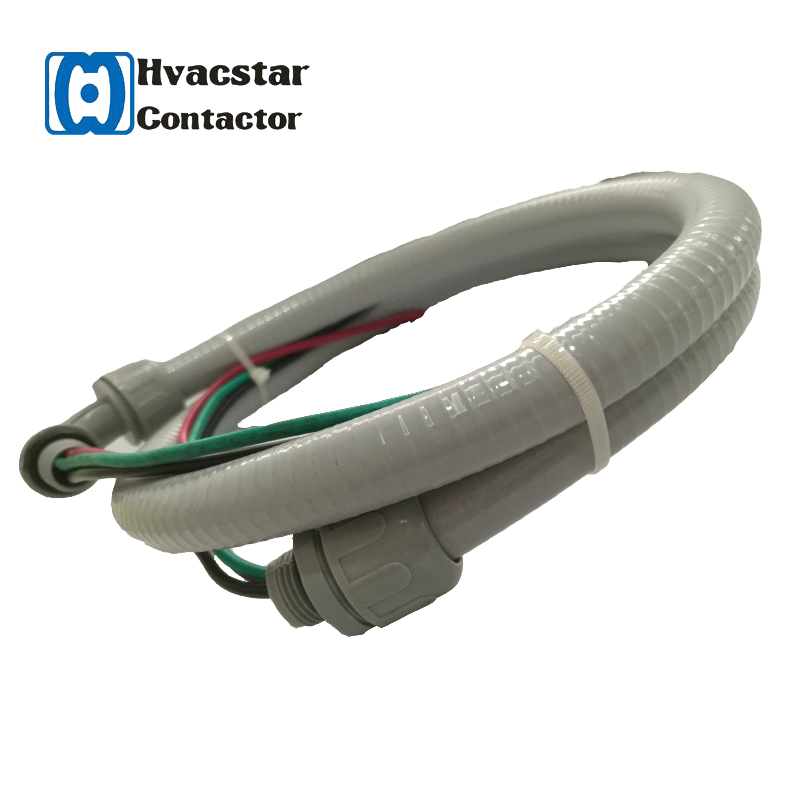

Air Conditioner whips consists of Ul listed flexible non-metallic conduit,onemetallic straight connector and one nonmetallic 90°connector one metallic straight connector and metallic 90°connector
•Connection between outside air conditioning unit and electrical power
•Cable consists of insulated conductors inserted into a non-metallic conduit with a metal or PVC connectors.
•Air Conditioner Whips include one (1) Straight, one (1) 90º Connector and two (2) Reducing Washers.. Three (3) Conductors are included with either 1/2″ or 3/4″ Non-Metallic Liquid Tight Conduit using either 8 or 10 AWG THHN Conductors.
•AC Whips are designed for reliable use as a connection between air conditioning unit and electrical power source. Recommended for use to connect compressor to AC disconnect box.Easy to install 4 and 6 foot lengths; resistant to damage from oil, water & sunlight. UL listed.
Quick Details
Place of Origin:
China
Conductor:
10 AWG Bare Copper
Stranding:
19 Strand
Conduit dia:
1/2 Inch
Connector Type:
1-Straight PVC /1-90 Degree PVC
Temperature Rating:
-20OC to 90OC
Operating Voltage:
600 Volts Max RMS
Ampacity
40 Amps per NEC Table 310-16 for 10ga THHN
DC Resistance per Conductor
20.58 Ohms/1M' Nom
Conduit Color:
Gray
Supply Ability
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package or as your requirement
Port
Shanghai
Our Service
At each of our customer touchpoints, we take service very seriously. It begins with the relationships built and fostered by our sales professionals all the way to our responsive and courteous customer service team. We strive to make it easy for you to work with us - whether it’s by phone, fax, online or in-person.
Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life.
18-year manufacturing &export experience
Do business with world famous company
Attending more than 8 kinds of international exhibition every year
Product Detail
•UL Listed.
•Meets the requirements of the 2017 National Electrical Code: Articles 310.10(C)(H)(2) and (4), Table 310.15(B)(2)(A), 356.10(1), (2) and (3), 350.22(A), 350.30(A), 356.10, 356.20, 440.6 and 440.31.
•Labor and Time Savings! Cost effective Non-Metallic Whips save the Electrical Contractor money.
•Reducing Washers included.
•Convenient packaging of 6 AC Whips per Carton.
Non-Metallic Fittings

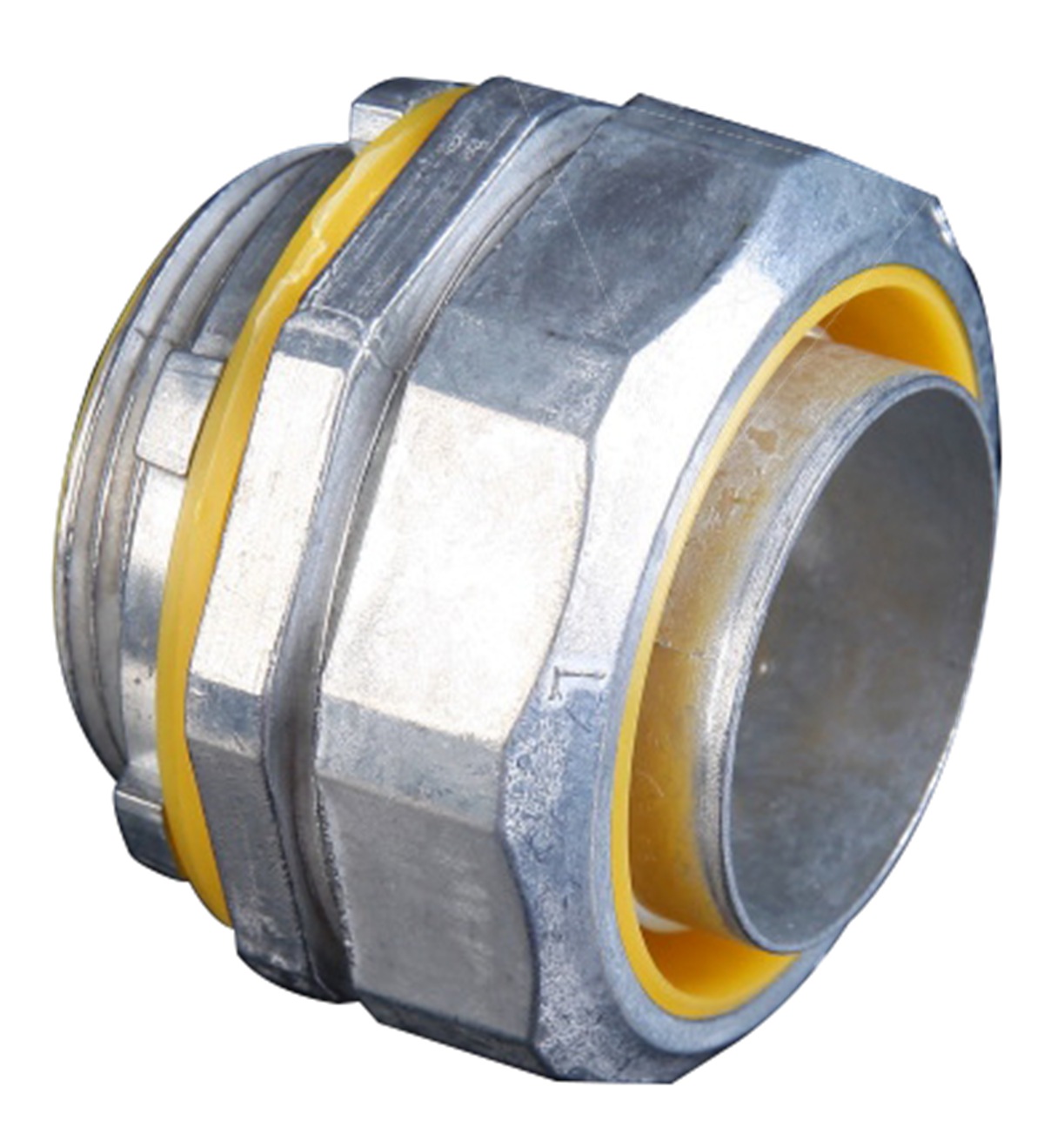

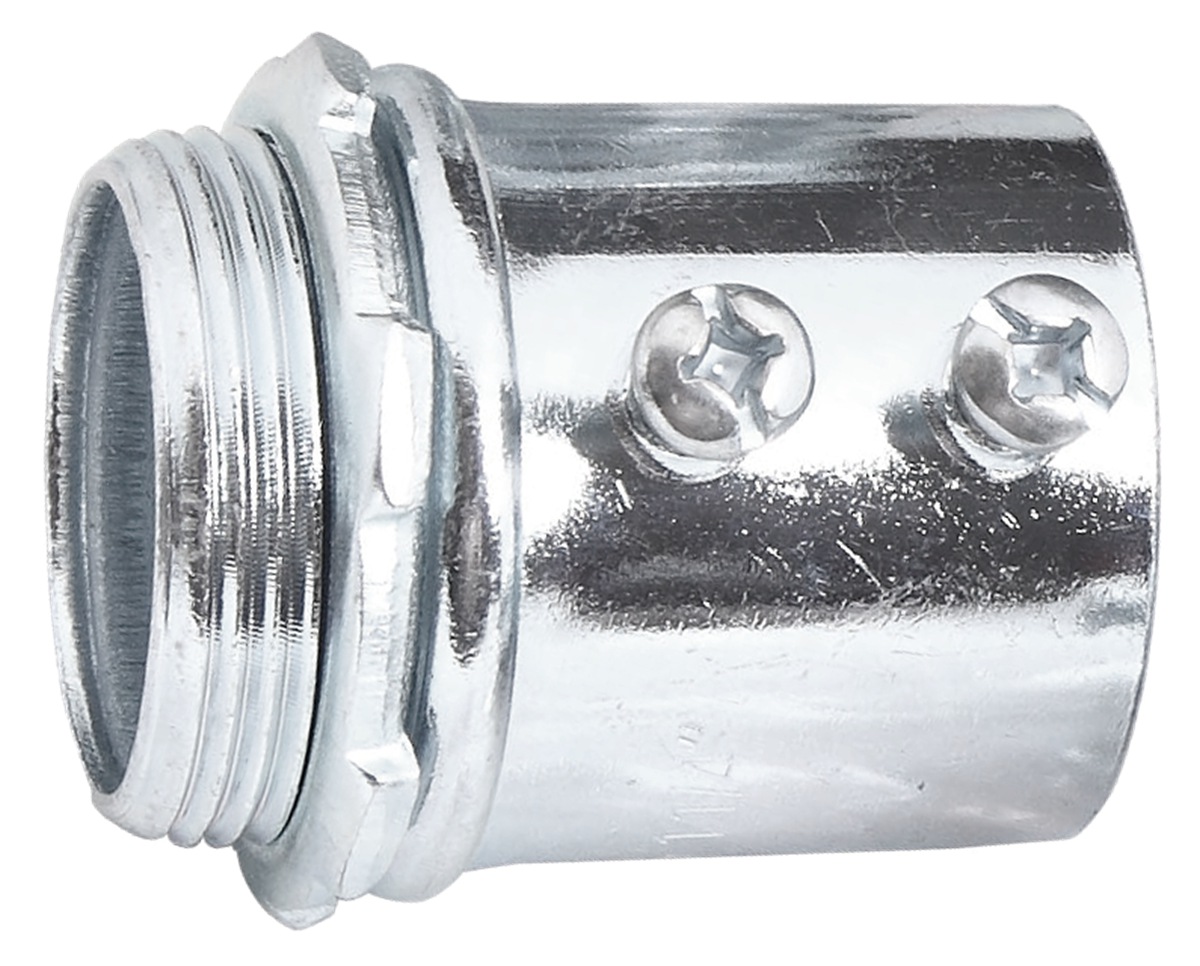

Metallic Fittings
About the supplier
Main products: Other electrical and electronic products
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2005
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2005
- Canton Fair Premium Supplier
