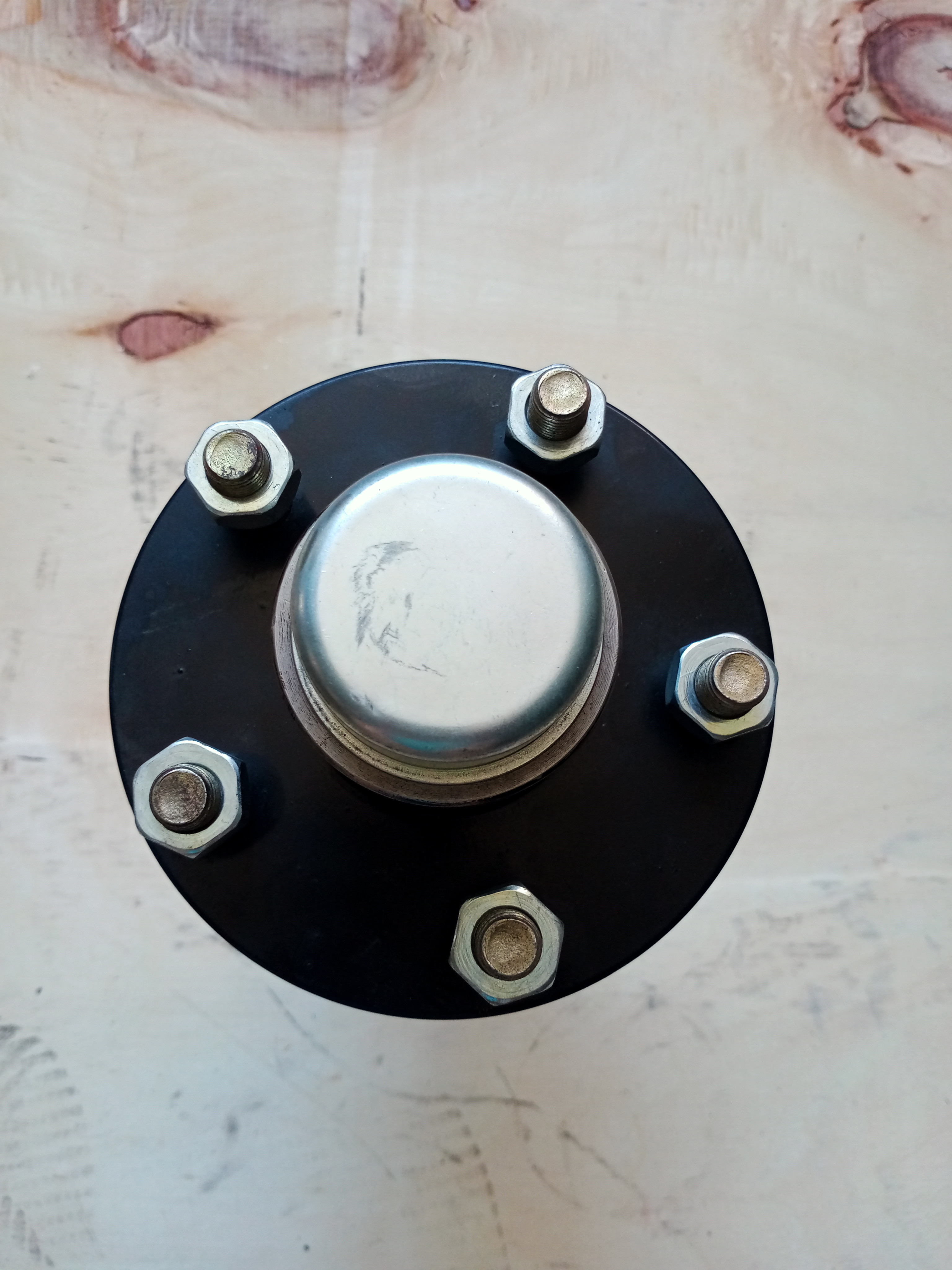

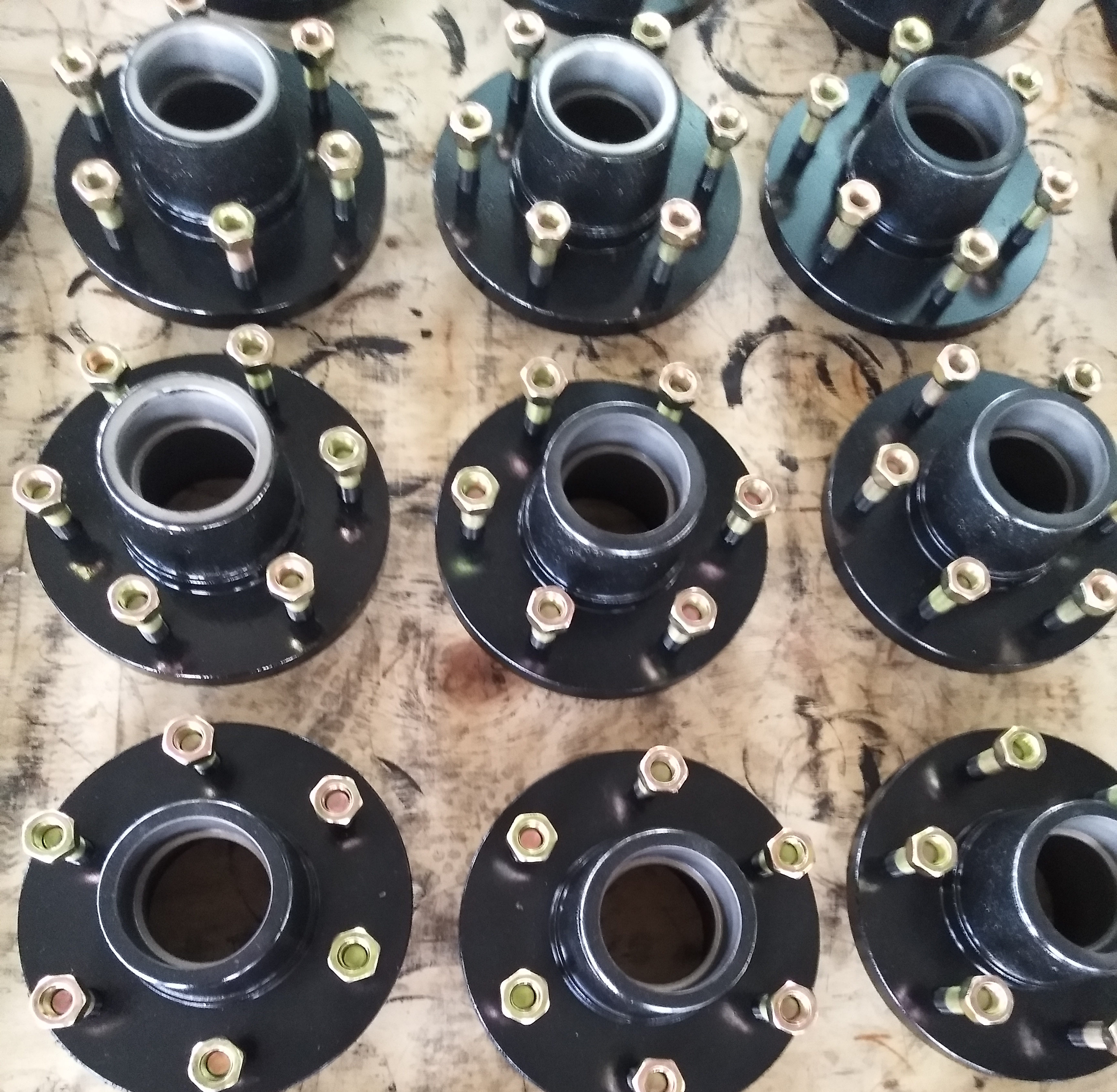

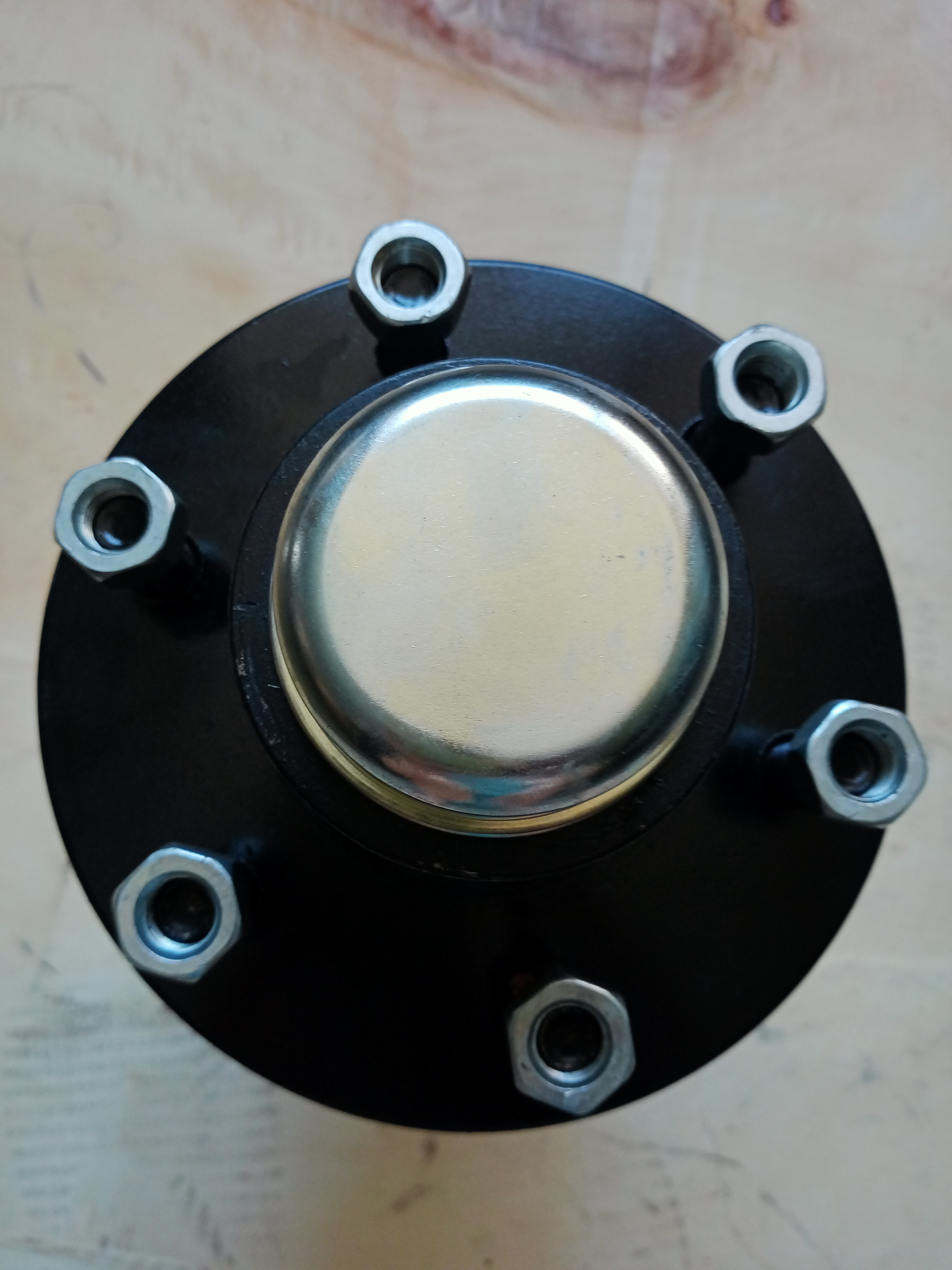

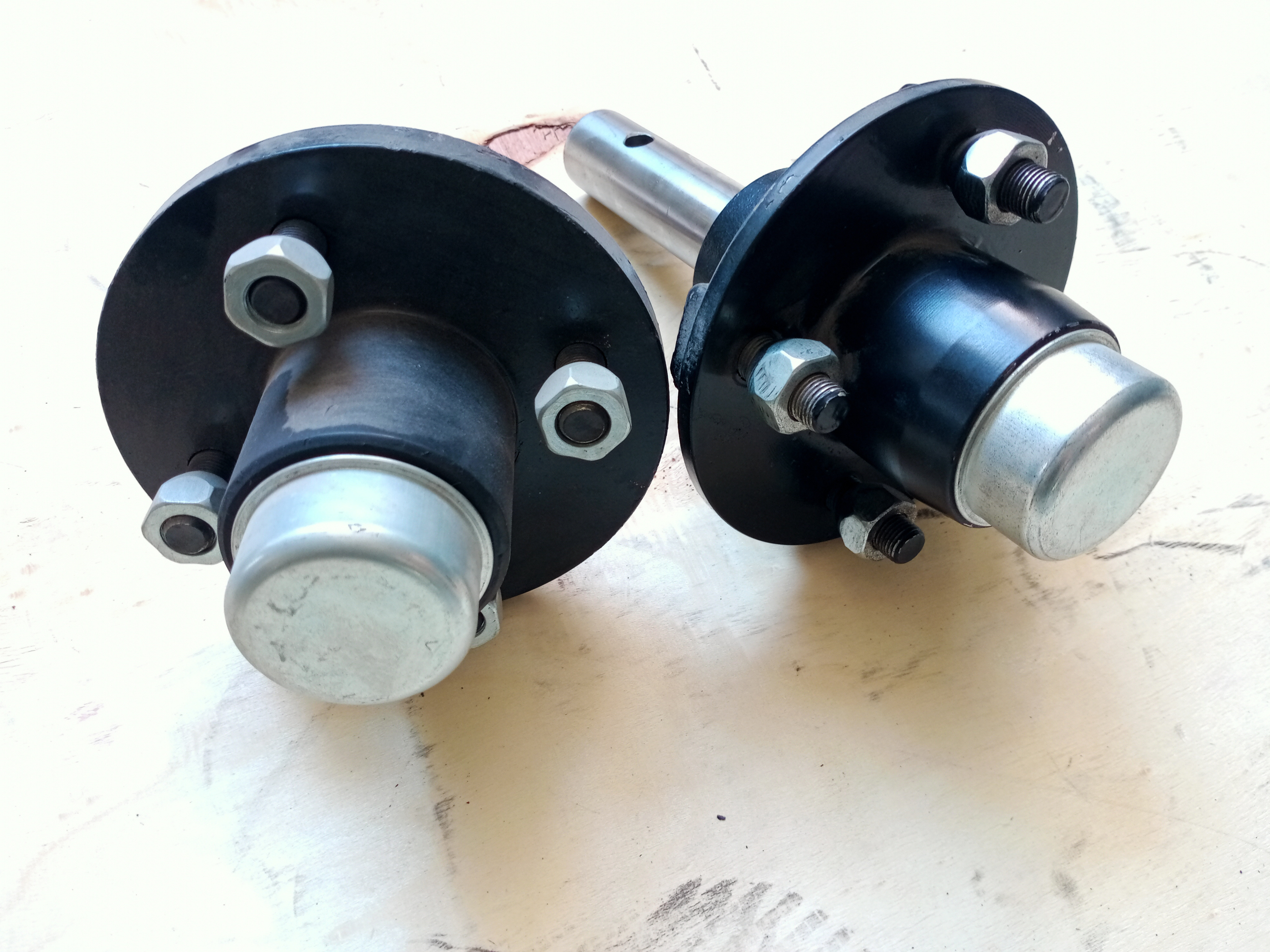

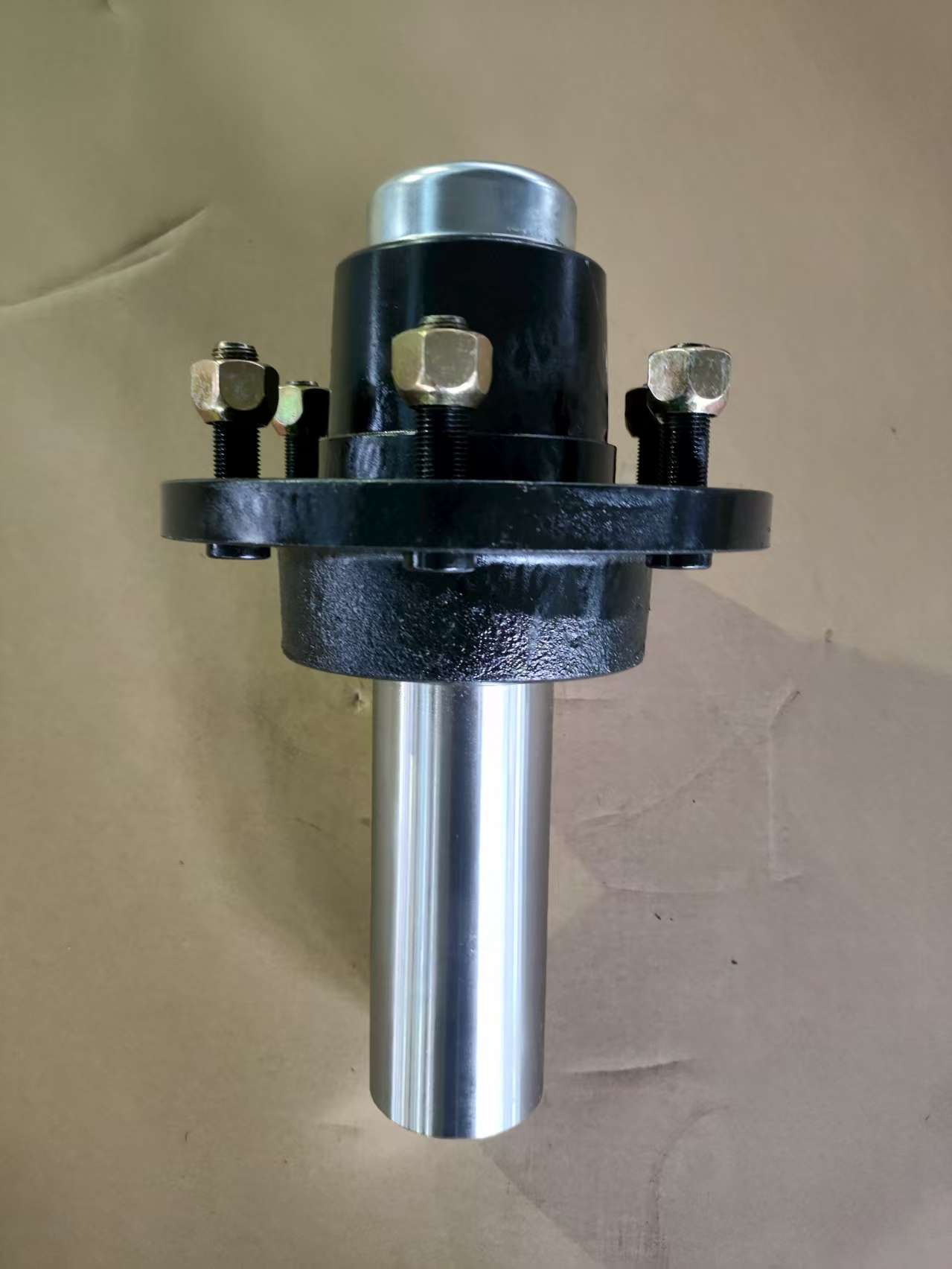

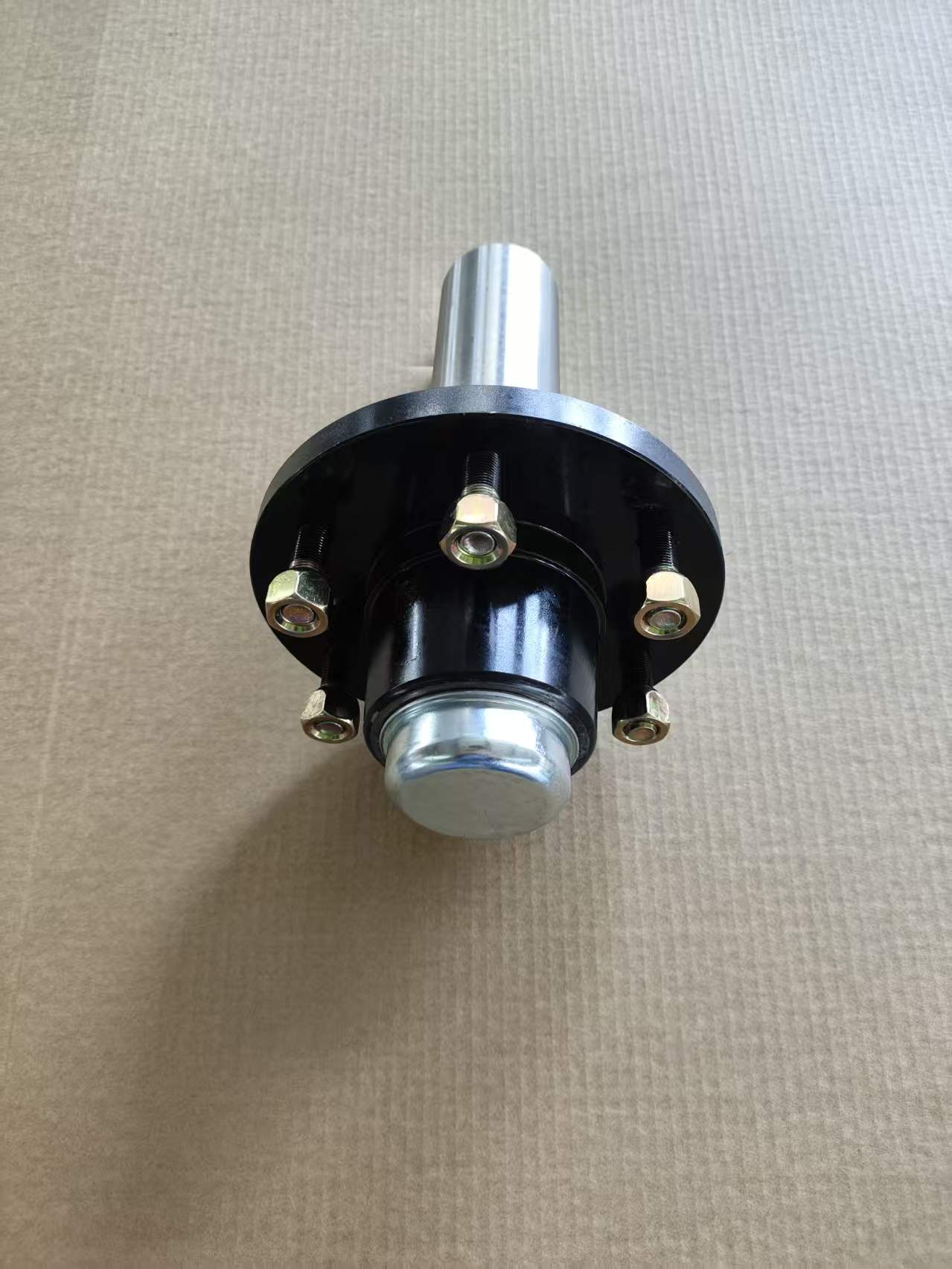

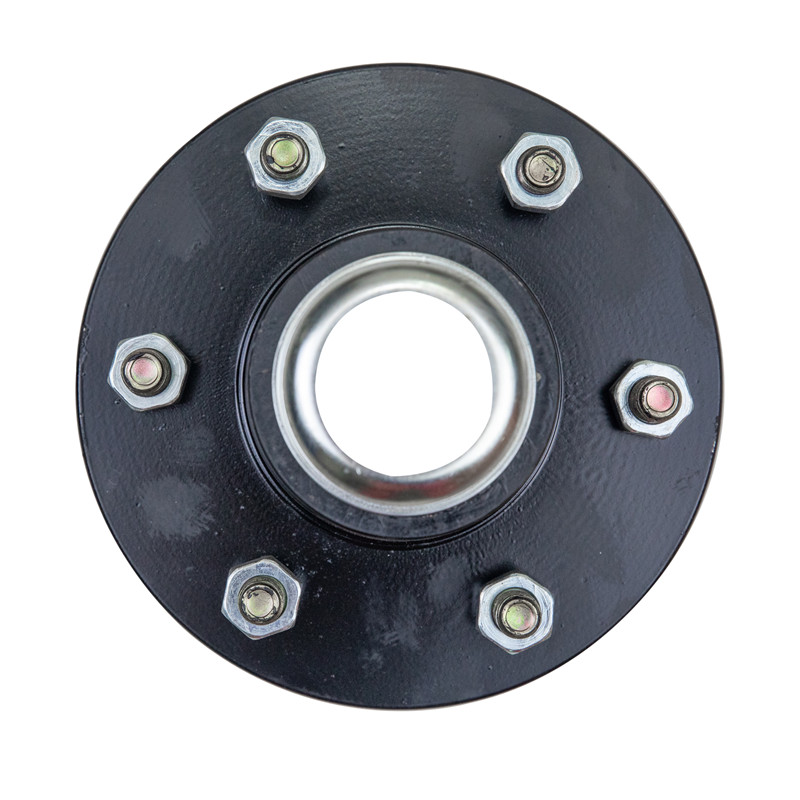

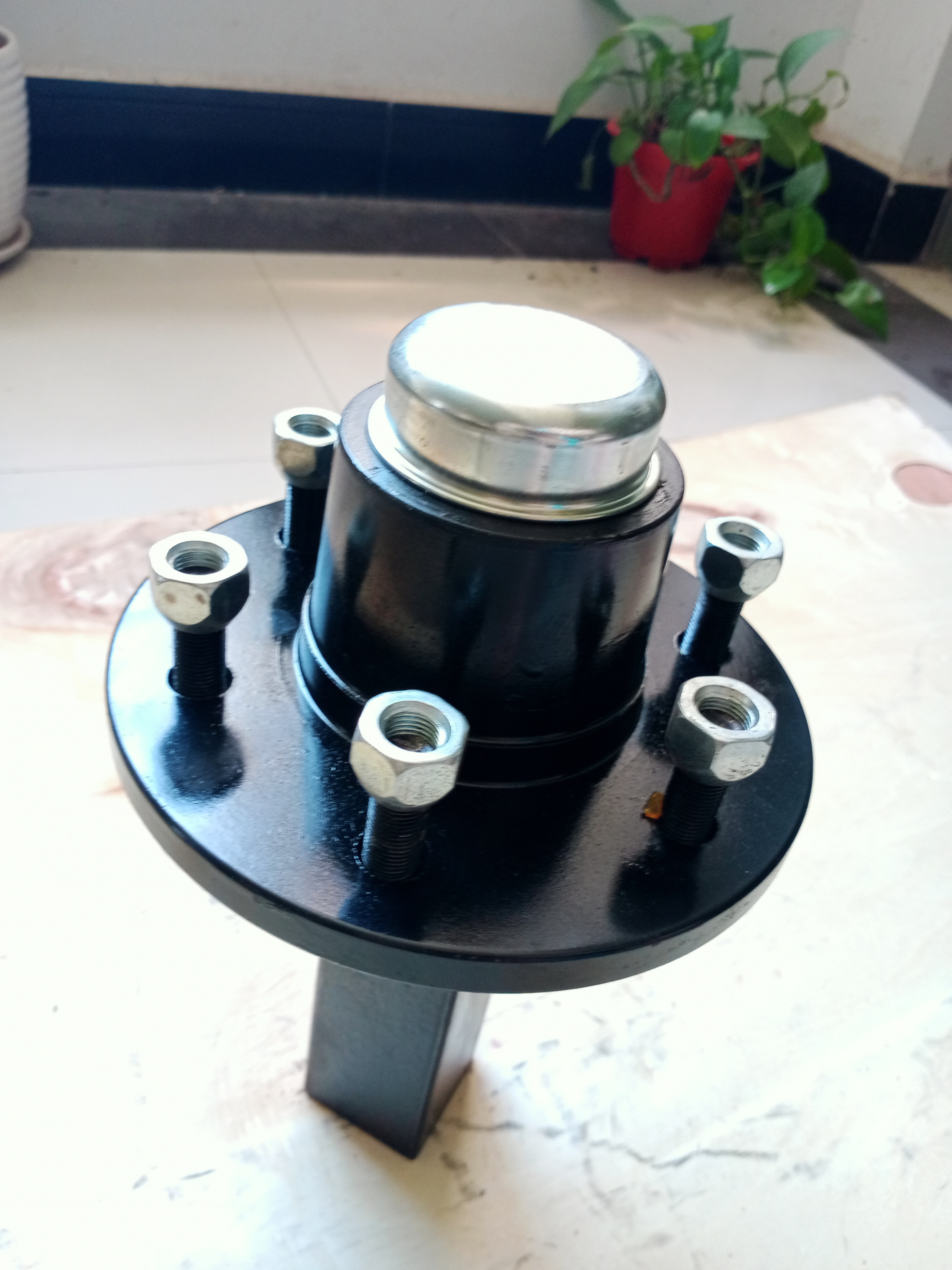

Wholesale Trailer Square Tube Half Axle With 6 Lug Idler Hub

Hubs and spindles come in a huge range of sizes, types and styles ranging from simple straight shaft axles suitable for very lightweight trailers to large taper roller bearing setups for heavy duty operations.

Just looking through a hub and spindle catalog and you will see there is quite a selection on offer and it pays to do your homework especially if you are considering upgrading or fitting brakes at a later date.

The most basic of axles is the straight shaft axle with a set of deep groove ball bearings which are retained within the wheel rim (no hub). The rim rests up against a shoulder on the shaft and the whole unit is locked into place with a castle nut and split pin.

Hub is designed for use on idler axles with agricultural applications. Fits 6,000-lb axles. Inner bearing (25580) and race, outer bearing (15123) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

Features:

Trailer hub assembly fits idler axles

Hub is for agricultural applications

Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included

Sturdy iron construction

Hub and drum are made in China

Specs:

Application: 6,000-lb trailer axles

Bolt pattern: 6 on 5.5"

Grease cap flange diameter: 2.44"

Weight capacity: 3,000 lbs

Description

QTY

Grease seal 2 1/4"

1

Bearing cone 25580(1.D.1.75")

1

Bearing cup 25520(O.D.2.875")

1

Bearing cup CA15245(O.D.2.441")

1

Bearing cone CA15123(1.D.1.25")

1

Grease cap for 5.2K & UTG

1

1/2"-20 pressed wheel stud

6

1/2"-20 cone nut head 13/16"

6

Hub/drum: 12x2",5.2K,6-5.50BC

1
