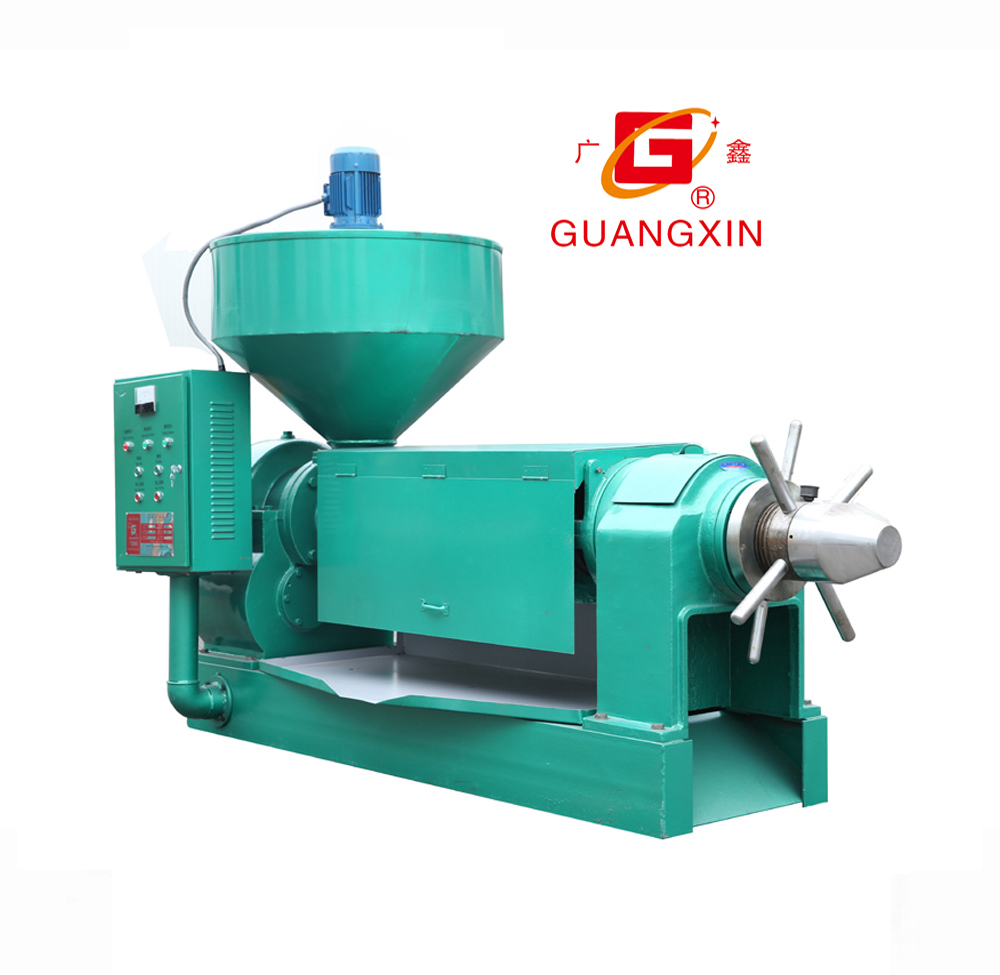

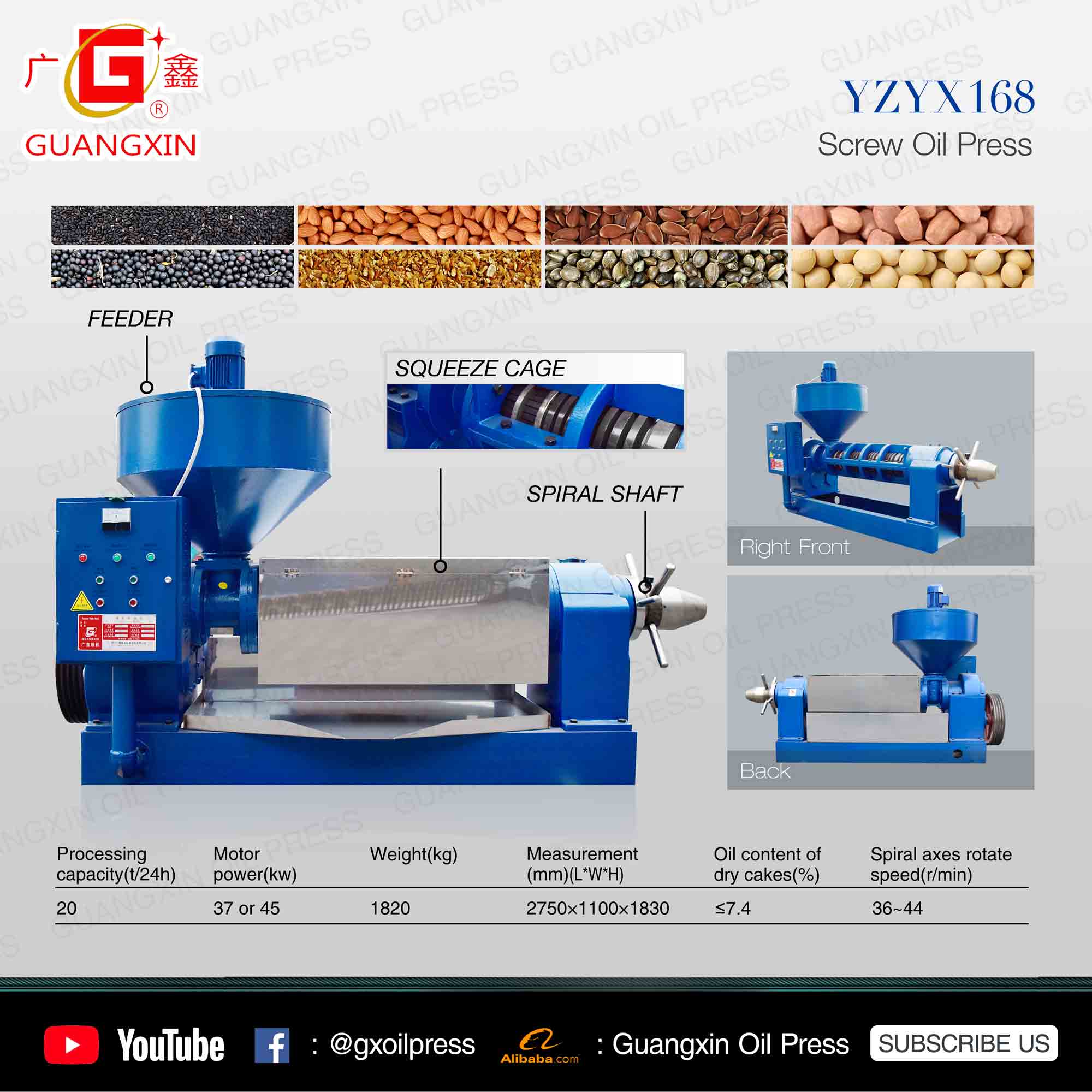

YZYX168 produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

YZYX168 is 4-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.

The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.

Main Features:

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.

Oil  Plants

Processing Capacity

Oil content of

Dry cakes (%)

Oil Yield Efficiency   (t/24h)

Electricity   Consumption (kw.h/t)

Rapeseed

≥20

≤7.4

≥84

≤34

Cotton seeds

≥20

≤6.3

≥80

≤54

Soybean

≥17

≤6.2

≥69

≤51

Peanut

≥20

≤6.3

≤92.5

≤34

Note:

① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.

Technical Specification:

ITEM

YZYX168B

YZYX168C、 YZYX168

Revolving speed of spiral axis (r/min)

32-38

Power required（kw）

37-45（6 pole）

Feeding power（kW）

0.55

Measurement (mm)

2500×1008×1726

2670×1008×1726

Weight (kg)

1800

Note:

This weight is without electro-motor’s weight.
