QUICK LOOK OF HOT-SELLING MACHINES

• PROFESSIONAL SERIES METAL TUBE FIBER LASER CUTTING MACHINE

【Lisa Huang / Overseas Director】

【+8615288866850 / lisa_huang@acmelaser.cn】

• •2020 New Design CNC Automatic Loading and Unloading Fiber Laser Cutting Machine/Laser Cutter(Factory Price)

•China Top 10 Auto-Feeding CNC Fiber Laser Cutter Cheap Factory Price for Metal Best Seller

•Fiber Laser Metal Tube Cutting Laser Steel Pipe Cutting Steel Tube Metal Pipe Laser Cutting Equipment

• Stainless steel tube&pipe, carbon steel tube&pipe, aluminum tube&pipe CNC Laser Cutter

• Copper tube&pipe, Brass tube&pipe,galvanized tube&pipe,Galvalume tube&pipe CNC Laser Cutter

•Automatic Feeding H Beam Steel,H Steel Laser Cutting Machine/Laser Cutter/ Laser Cutting Equipment

• Hot-selling C Beam Steel ,C Steel Fiber Laser Cutting Machine/Laser Cutter/Laser  Equipment

• Top 3 Channel Steel,Angel Steel,Special Shaped Steel Fiber Laser Cutter/Laser Cutting Equipment

•IPG Nlight Raycus Max 1000W 1500W 2000W 3000W 4000W 6000W 8000W 10000W 120000W……

MAIN FEATURES

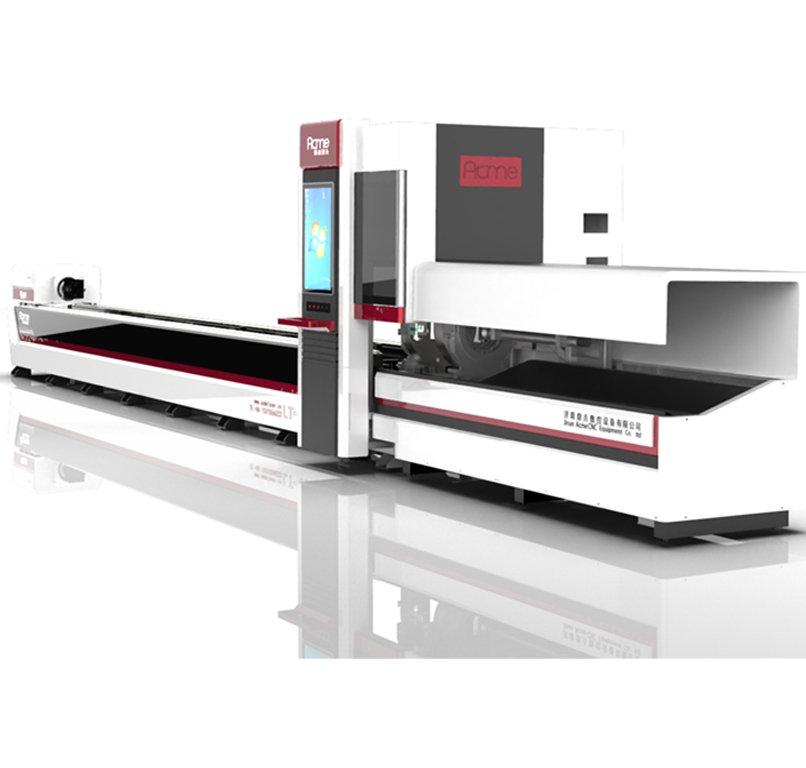

Automatic Loading and Unloading 3 Chucks Zero Tailing Metal Tube Laser Cutting Machine.

High precision fast steel tube and metal pipe processing.

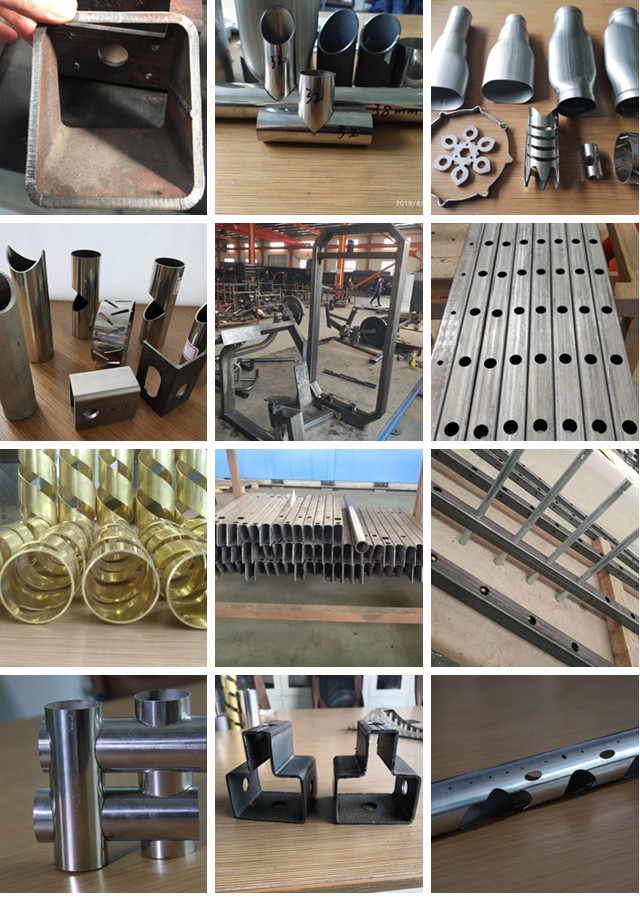

Efficient processing of Round, Rectangular, Square, Oval, Triangle, D shape and other shapes of metal tube.

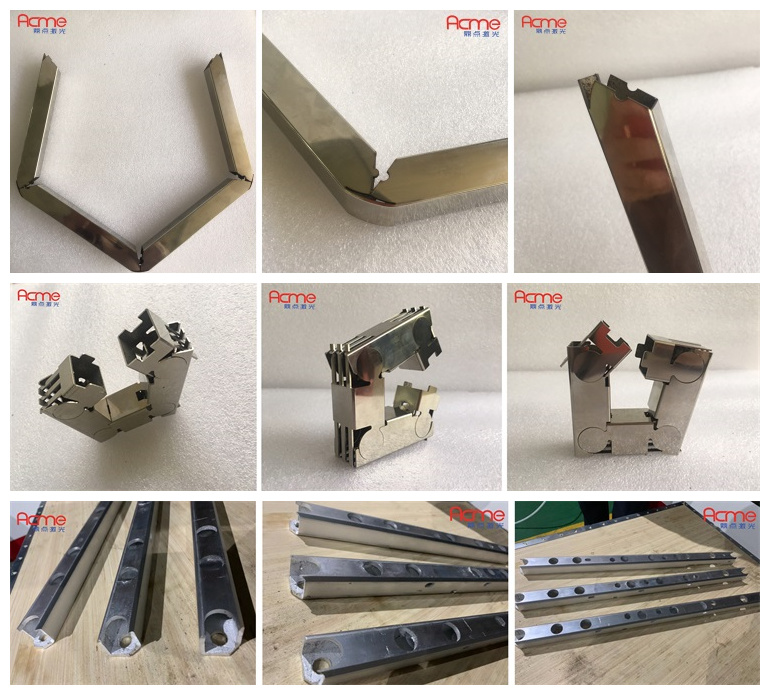

Even Angle steel and Channel steel also can be cut at optimal speed using a fiber laser.

The integration of leading-brand components assures you of top performance and high reliability.

It has all functions as a professional CNC laser pipe tube cutting machine but with economic price.

MAIN ADVANTAGES

1. 3 Chucks New Design, China's leading technology, cut small and long tube fastly ,no deformation and higher precision.
2. Zero Tailings Cutting, improve material utilization and save cost greatly.
3. Segmental automatic feeding and cutting, longer metal tube cutting are available , no tube vibration, better cutting effect.
4. Automatic loading and unloading system, higher degree of automation, saving labor.
5. Automatic centering large aperture chuck(patented technology), 10 mm -450 mm tubes are available.
6. Round pipe, square pipe, rectangular pipe, Angle steel, channel steel, H steel, C steel ,special shaped pipe etc are available.
7. World top fiber laser source,smaller focusing spot and better beam quality.
8. More fine cutting lines, smoother incision, no burr, no deformation, no need secondary polishing.
9.Top FSCUT 5000B (3-chuck 7-axis) control system, higher holing precision, faster tube corner cutting, better cutting quality.
10. Professional sixth generation of 3D cutting software and nesting software, more simple and convenient operation.

TECHNICAL PARAMETERS

No.

Item

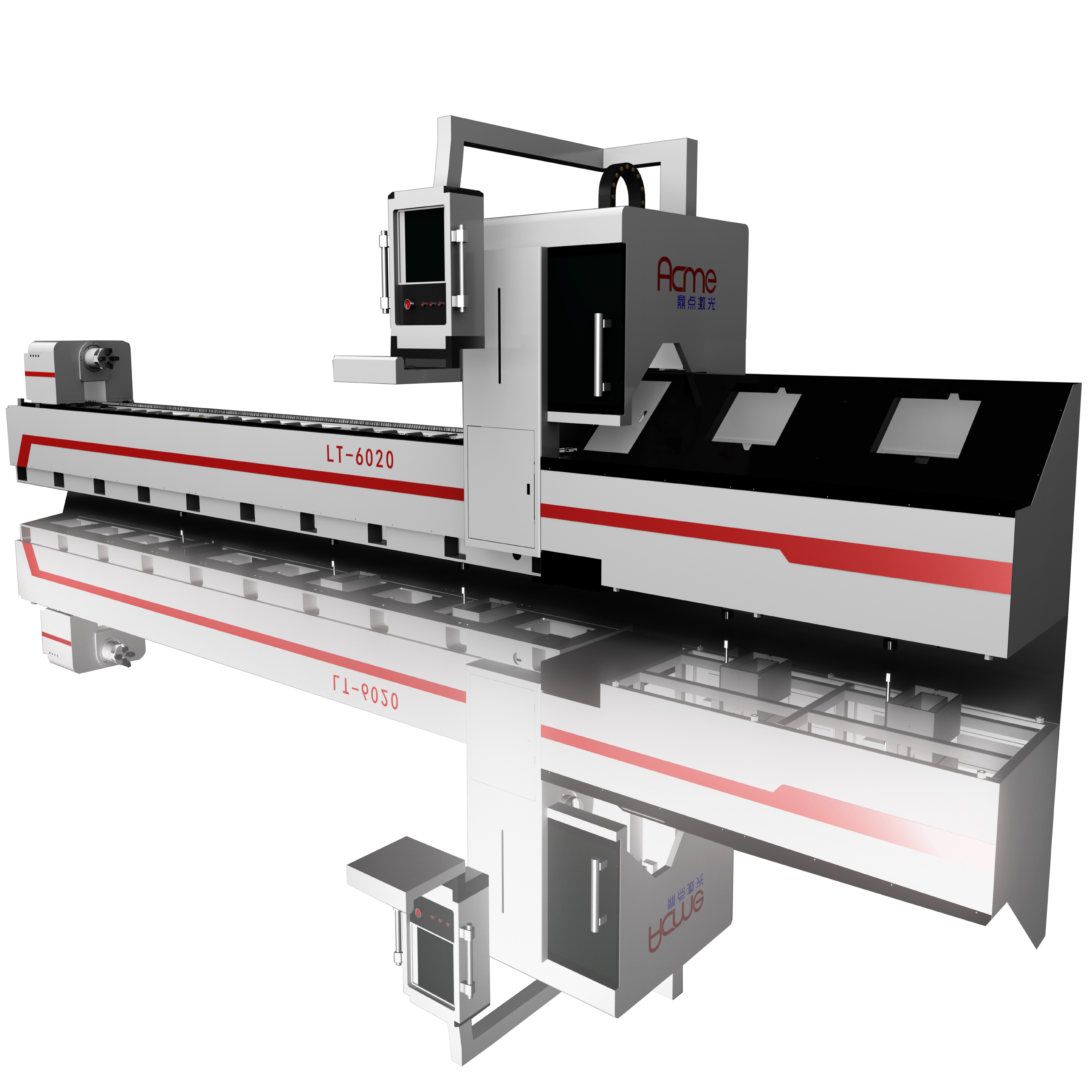

LT-6020

1

Control System

 Cypcut 3000S / Fuscut 3000S

2

Laser Source Power

 Germany IPG/China Raycus / China MAX/ USA Nlight

1000w/1500w/2000w/3000w/4000w/6000w/8000w

3

Laser Head

Germany Precitec/Switzerland Raytools

4

Water Chiller

Tongfei / Hanli

5

Servo Motor

Japan Yaskawa

6

Mahine body(bed)

Heavy Duty
 Enclosed or Open type

7

Chuck

Type

Three Automatic Self-Centering
 Pneumatic  Chucks

Diameter (mm)

φ10-φ450

Min. Waste Length (mm)

50

Rated Resolution (r/min)

50

Max. Resolution (r/min)

130

Weight Bearable (together)

500kg/customized

8

Rail Width

X-25mm, Y-35mm

9

Transmission

X-axis: Ball Screw
Y-Axis: Rack
 Z-axis: Ball Screw

10

Reducer

 Japan Shimpo

11

Positionning Accuracy

±0.03/1000mm

12

Repeat Positionning Accuracy

±0.015

13

Electrical Part

France Schneider

14

Pneumatic Part

Japan SMC

15

Dust Extraction System

Air Fan

16

Tube Support

Large Variable-Diameter Wheel

17

Loading

Automatic Loading from Side

18

Pipe Length

6m 8m 9m 10m 11m 12m 15m

MORE DETAILS

• Large visual touch screen, clearer interface, soft light protection eyes.

• More convenient operation,let laser cutting bring you more fun.

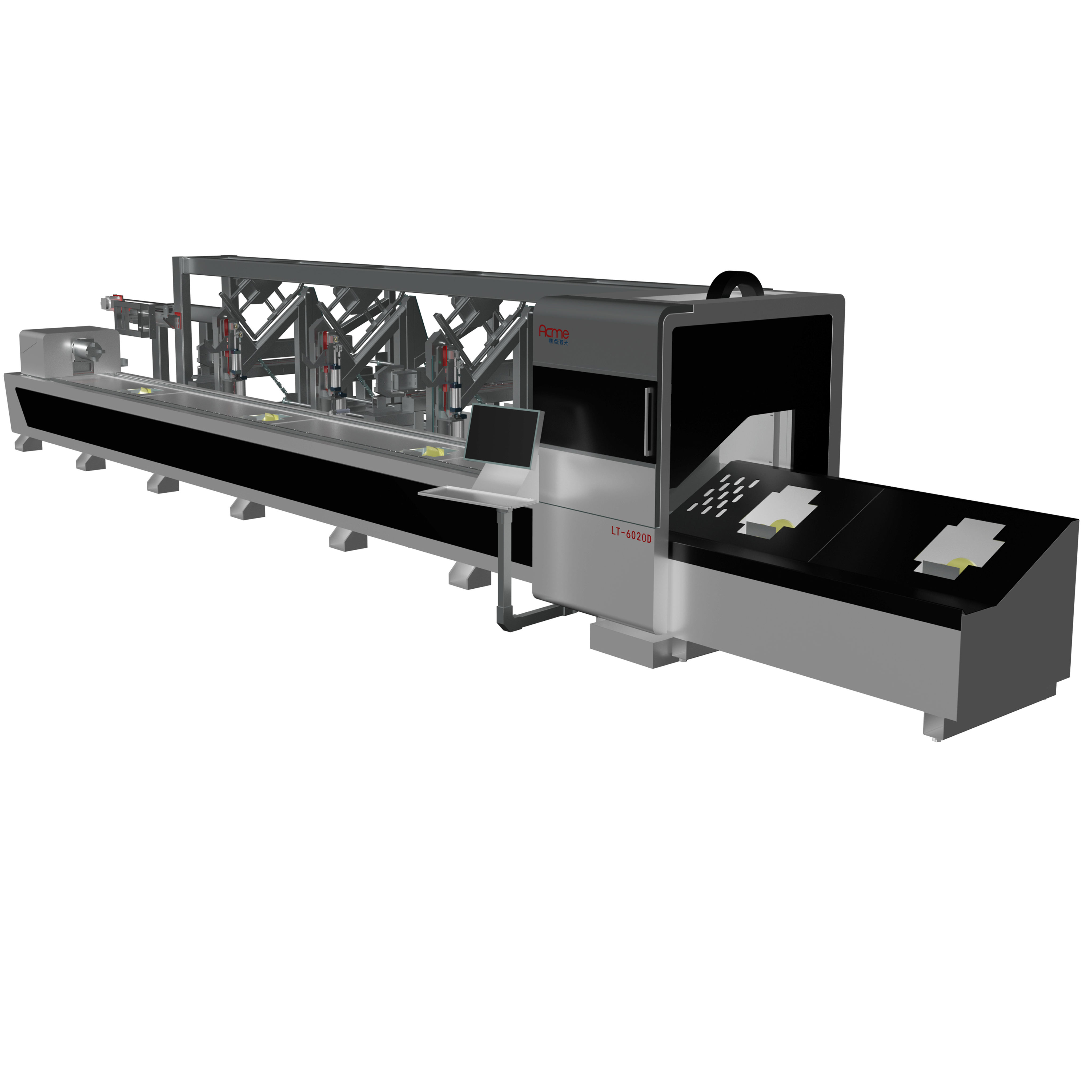

• 2020 new generation upgraded version of automatic loading and unloading device

• More perfect details, feeding more stable, easier, more efficient,help you save labor and create more profits.

• Patendted Square hole pneumatic full stroke chuck.(Acme Laser Patented Design)
• Easy clamping of various tube types from 10mm to 450mm in diameter.(450*450mm square tube is also available)
• The details are more optimized, the clamping pipe is more stable, and the failure rate is greatly reduced.

CERTIFICATION & PATENTS

CE / FDA  / SGS / ISO9001  CERTIFICATIONS

AFTERSALES SERVICE

1.  OEM&ODM services.
2. Two or Thrree years guarantee time.
3. Life-long free technical support.
4. Consumable parts continuous supply.
5. English Speaking Engineers available to overseas services.
6. Free Training on machine installation, commissioning, operation, maintenance, etc.


CUSTOMERS SHOW

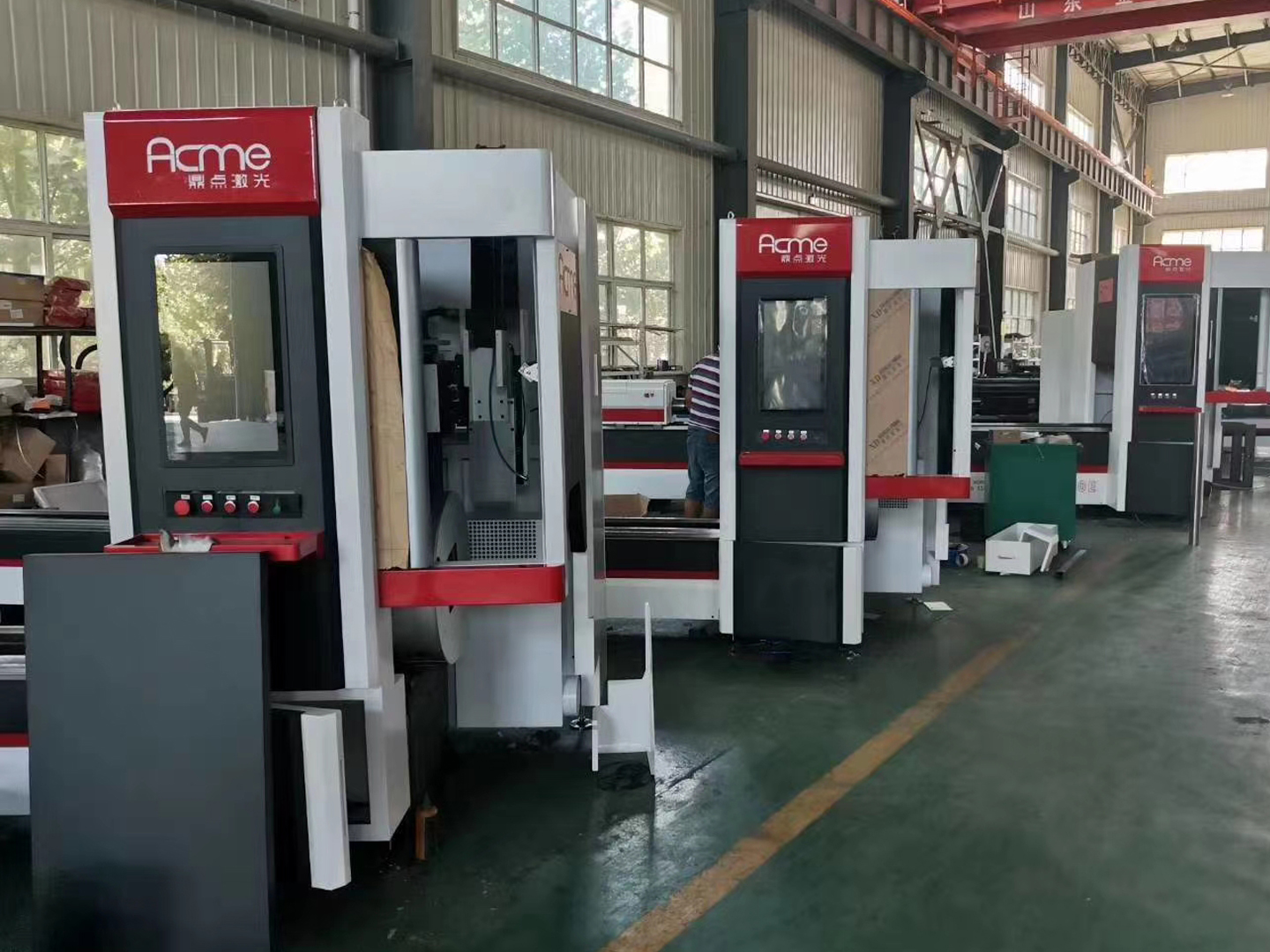

ABOUT FACTORY

Jinan Acme CNC Equipment Co., Ltd. (Acme Laser) was founded in 2016 and is a national high-tech enterprise integrating R&D, production and sales of laser cutting equipment. Based on customer needs, Acme Laser focuses on the R&D and production of laser pipe cutting machines, providing customers around the world with intelligent integrated solutions for laser pipe processing.

Our production base in Jinan covers an area of 45,000 square meters, with dozens of high-precision imported CNC machining centers and large-scale gantry milling machines. The total value of production equipment exceeds 3 million US dollars. It realizes independent research and development design and high-precision manufacturing of the core components of the cutting machine. The company has more than 200 talents of various types and has an annual production capacity of 1,000 fiber laser cutting machines, of which more than 1,200 laser pipe cutting machines have been sold in total, and the products are sold in more than 60 countries and regions around the world.

Our core team has more than 15 years of experience in the field of laser equipment, has core advantages in the field of laser tube cutting, and is committed to providing customers with cost-effective laser tube cutting equipment. We have obtained more than 80 product and technology patents, and more than 40 new patent applications in 2020. The company has passed ISO9001 quality system certification, and its products have obtained EU CE and US FDA certifications. We have a number of scientific research results.

The professional core R&D team of Acme Laser accounts for more than 15% of the company's total employees, including professional teams such as mechanical engineers, software engineers, electrical engineers, and industrial designers. The company has a comprehensive grasp of core technologies such as precision manufacturing of chucks, software cutting technology, and numerical control systems to ensure the stability and production efficiency of the equipment.

Acme Laser high efficiency customer service team, accounts for 20% of the company’s total employees, including professional teams such as pre-sales service, in-sale service, after-sales service, customer training, etc., from technical process consultation, incoming proofing reception, installation and commissioning, and free customers In terms of personnel induction training, equipment maintenance and repair, etc., we provide 24-hour all-round quick response services.

Our feteaured product laser pipe cutting machine is widely used in sports equipment, automobile manufacturing, steel and wood furniture, medical equipment, architectural decoration, mechanical equipment, electrical equipment, elevator equipment and other fields. Thanks to the good customer reputation and the continuous improvement of products, the market recognition of the our products is steadily increasing, and it is moving towards the goal of "becoming a global leading laser tube cutting machine manufacturer ".

Why Choose Fiber Laser?

More companies than ever before are investing in fiber lasers. While the automotive industry was undoubtedly the early adopter, this relatively new solution is being snapped up across the board and when you consider the advantages, it's easy to see why.

EXTRA SPEED

The sheer speed of fiber laser markers makes them the first choice for customers looking to increase efficiency. They're the fastest laser marking technology at their wavelength, delivering marking times of less than one second for some applications. While older, more established laser technology is available-including diode-pumped solid-state (DPSS) lasers, lamp-pumped lasers, and carbon dioxide (CO2) lasers-none can beat a fiber laser for combined mark speed and quality.

This means fiber lasers can break new ground. For example, one of Laser Lines' customers is an automotive component manufacturer that needs to mark serial codes exceptionally fast-in under half a second-which wouldn't be possible with any other type of laser.

ENERGY EFFECIENCY

Despite being faster, fiber lasers are energy-efficient compared to the alternatives. Not only does this result in reduced power consumption, but it also helps make the system simpler, smaller, and more reliable.

Fiber laser technology uses basic air cooling rather than an additional chiller unit, which would be costly and cumbersome. With many businesses finding both cash and floor space in short supply, compact and efficient fiber laser marking solutions are proving to be the right fit.

LONG LIFE

The life expectancy of a fiber laser far exceeds that of other laser solutions. In fact, the diode module in a fiber laser typically last three times longer than other technologies. Most lasers have a life of around 30,000 hours, which typically equates to about 15 years' use.

FAQ

Why should We choose ACME Laser ?

• We have been manufacturer for 12 years.
• We offer maintenance-free and technology support.
• Most of our products have CE,SGS,FDA,FCC certifications.
• Our products have quality warranty.
• We have own research room ,workshop and design team.
• ACME LASER has been exporting to more than 50 countries around the world.

This is first time buying this machine,how to use it?

• We have free training for 7 days.It is easy to learn.
• The best way is that we offer prefessional engineer to taech you face to face.
• If you couldn't come to our company, we will give you menu and video, our engineer teach you online.

How to maintain the machine?

• The environment needs be clear.
• The temperture can not be high.
• Our guide needs lubricating oil for 2-3 drops about.

If I have some problems ,what should I do ?

• You can contact our salesman directly ,our engineer will check the problem.
• During the warranty, maintainance is free.
• Although over the warranty,we also offer life-long technology support in free.
