About this product
- Materials: ceramic and metal parts
- Size: 285*120
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Hubei, China
About this product
- Materials: ceramic and metal parts
- Size: 285*120
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Hubei, China
Product details
| Materials | ceramic and metal parts |
|---|---|
| Size | 285*120 |
| Color | white |
Product details
| Materials | ceramic and metal parts |
|---|---|
| Size | 285*120 |
| Color | white |
From the supplier
Vacuum Interrupter (V.I) is a core part that composes the breaking part of high-voltage VCB.
Generally, it is a satisfactory conductor to supply power and it promptly interrupts the current in case of an overload and short circuit faults to ensure the insulation.
It is the most ideal, arc-extinguishing device.
Wuhan Feite Electric brand vacuum arc extinguishing chamber adopts a corrugated ceramic insulation shell, copper tungsten tungsten carbide alloy materials contact, using advanced one exhuast technology process makes the vacuum interrupter has the advantages of small volume, high insulating level, low closure value, long service lifetime, easy-maintenance, explosion-free, low noise,low maintenance costs, reliable operation and non-pollution etc.. The vacuum arc extinguishing chamber mainly been used in power transmission and distribution control system. It is also can be used in metallurgy, mine, petroleum, chemical industry, railway, broadcasting, communications, industrial high frequency heating power distribution system.

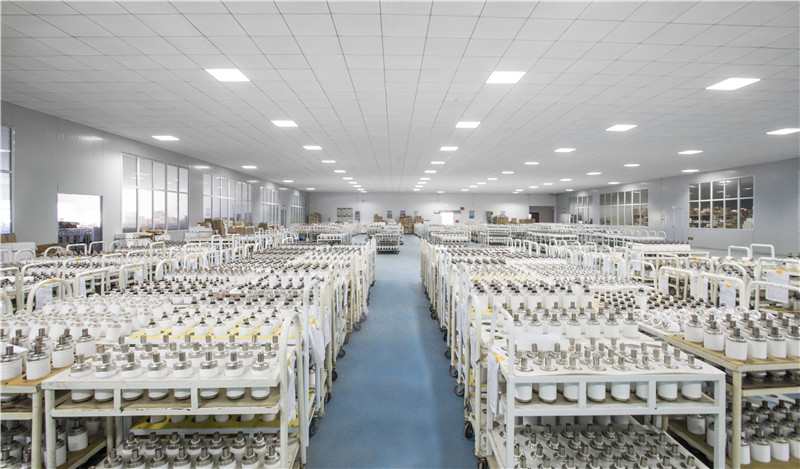

Wuhan Feite Electric’s annual production capability is 500,000 number of MV vacuum interrupter. It is a leading vacuum interrutper manufacturer in China.
Wuhan Feite Electric vacuum arc extinguishing chamber for outdoor circuit breaker rated voltage is 7.2KV~40.5kV, rated current is 630A~4000A, rated short circuit open fault current is 12.5KA~40kA.
Vacuum interrupter for indoor circuit breaker
VTD546GF
ZKTD 1600/40.5-25
ZKTD 2000/40.5-25
ZKTD 1600/40.5-31.5
ZKTD 2000/40.5-31.5
Product Parameters(English)
Main Technical Data
ELECTRICAL RATINGS(3PHASE) SYMMETRICAL BASIS
1.Rated Voltage
40.5KV
2.Rated Current
1600/2000A
3.Rated Frequency
50/60Hz
4.Rated Short-time Power Frequency Withstand Voltage(1min)
95KV
5.Rated Ligting Impulse Withstand Voltage
185KV
6.Rated Short-circuit Breaking Current
25/31.5KA
7.Rated Short-circuit Making Current(Peak)
63/80KA
8.Rated Operations of Short-circuit Breaking Current Interruption
20times
9.Rated Single Capacitor Bank Breaking Current*
400A
10.Rated Short-time Withstand current(3Phase Symmetrical Basis)
25/31.5KA
11.Rated Peak Withstand Current
63/80KA
12.Rated Duration of Short-circuit
4s
13.Mechanical Life
10,000Operations
14.Contact Closing Force due to Bellow and Atmospheric
250±50N
15.Force Required to Hold Contacts open at Full Stroke
330±60N
16.Circuit Resistance at Rated Contact Force
≤20Micro ohms
17.Shelf Life
20Years
18.Contact Erosion Limit
3mm
19.Moving Part Weight(Approx.)
≤4kg
MECHANICAL REQUIREMENTS(REF. VCB)
1.Contact Stroke
18±1 mm
2.Opening Speed(average)
1.6±0.2m/Sec
3.Closing Speed(average)
0.75±0.2m/Sec
4.Rated Contact Compressive Force
3100±200N
5.Maximum Contact Bounce Duration at closing operation
≤2ms
6.Contact Bouncing Bank Amplitude of Opening Operation
≤4mm
7.Closing and Opening non-simultaneity of three-phase Contacts
≤2ms
Notes:
1.Meets or exceeds the electrical endurance requirements of class E2 for autoreclosing duty per IEC 62271-100 and GB 8738-2008.
2.* Rated Characteristics to be given on request
