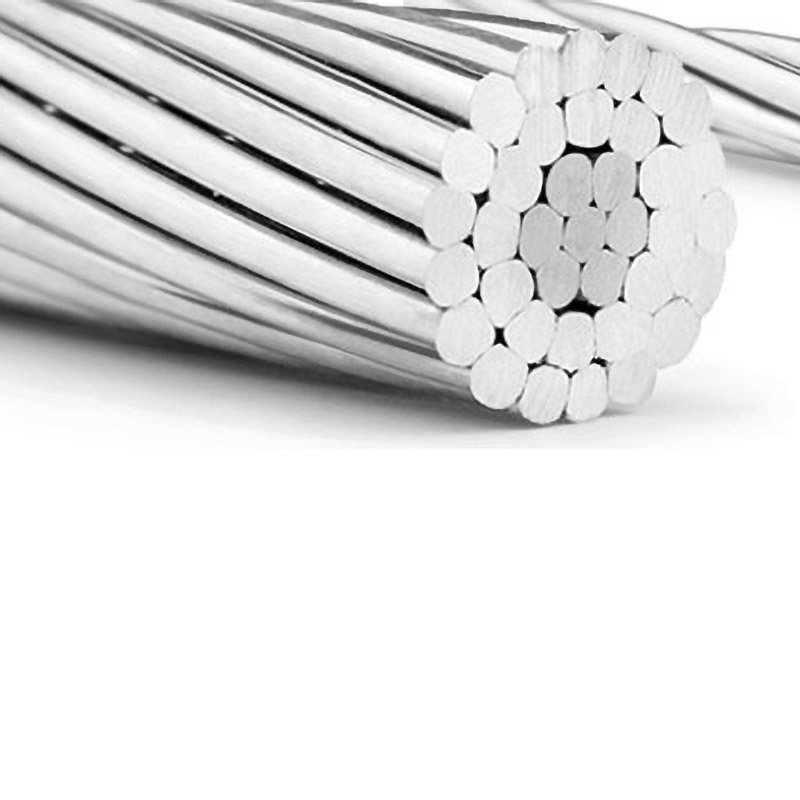

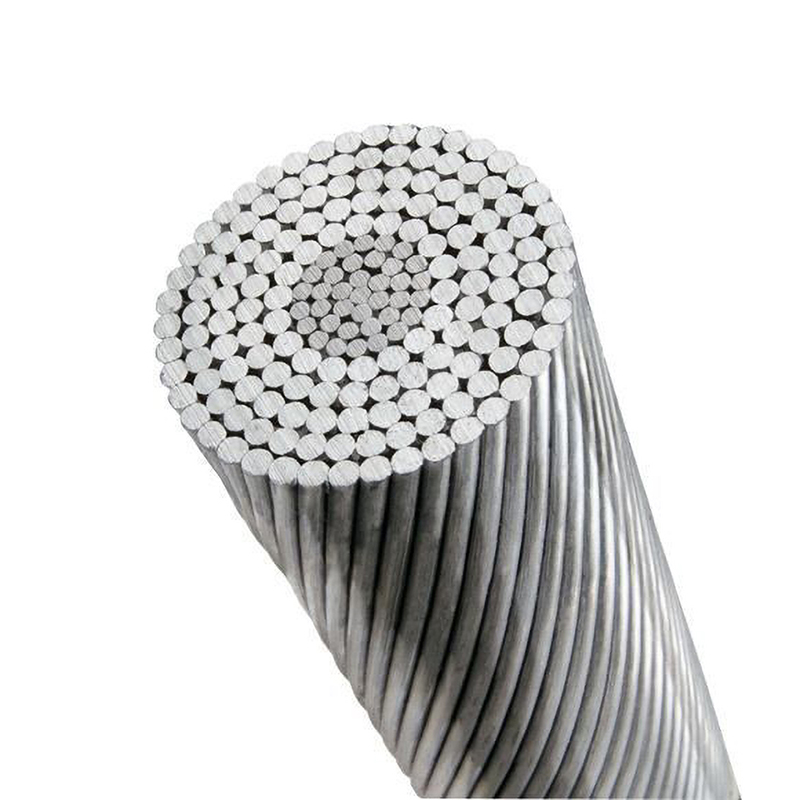

Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Steel core wire is available in Class A , B or Class C galvanization for corrosion protection. Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.

The proportion of steel and aluminium in an ACSR conductor can be selected based on the mechanical strength and current carrying capacity demanded by each application.

ACSR conductors are recognized for their record of economy, dependability and favourable strength / weight ratio. ACSR conductors combine the light weight and good conductivity of aluminium with the high tensile strength and ruggedness of steel. In line design, this can provide higher tensions, less sag, and longer span lengths than obtainable with most other types of overhead conductors.

Midal manufacture and supply ACSR on Non-Returnable wooden/steel reels or Returnable steel reels depending on customer requirement.

Features

• high Tensile strength
• better sag properties
• economic design
• best suited for transmission lines with long spans

Specifications

ACSR manufactured by huaxing cable  meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc



EN 50182  BS 215:1970











de NameCalculated AreaStranding and Wire Diameter.  Overall DiameterWeightNominal  Breaking LoadMax. D.C Resistance at 20 ºCNominal Alum.Alum.SteelTotalAlum.SteelAlum.Steel.Totalmm²mm²mm²mm²mmmmmmmmkg/kmkg/kmkg/kmknohm/kmMole1010.621.7712.396/1.501/1.504.52914434.142.076Squirrel2020.943.4924.436/2.111/2.116.335827857.881.368Gopher2526.254.3730.626/2.361/2.367.0872341069.611.093Weasel3031.615.2736.886/2.591/2.597.77874112811.450.9077Fox3536.666.1142.776/2.791/2.798.371014814913.20.7822Ferret4042.417.0749.486/3.001/3.0091175517215.20.6766Rabbit5052.888.8261.76/3.351/3.3510.051456921418.350.5426Mink6063.1810.5373.716/3.661/3.6610.981738225521.80.4545Skunk6063.2736.93100.312/2.597/2.5912.95175290465530.4567Beaver7074.8212.4787.296/3.991/3.9911.972059730225.70.3825Horse7073.3742.8116.1712/2.797/2.7913.9520333553861.20.3936Racoon7579.213.292.46/4.101/4.1012.321710332027.20.3622Otter8083.8813.9897.866/4.221/4.2212.6623010933928.80.3419Cat9095.415.9111.36/4.501/4.5013.526212438632.70.3007Hare10010517.5122.56/4.721/4.7214.16288137425360.2733Dog10010513.5118.66/4.727/1.5714.1528810639432.70.2733Hyena100105.820.44126.27/4.397/1.9314.5729016045040.90.2712Leopard125131.316.8148.16/5.287/1.7515.8136013249240.70.2184Cougar125130.37.25137.518/3.051/3.0515.253625741929.80.2189Tiger125131.130.6161.730/2.367/2.3616.52362240602580.2202Wolf15015836.9194.930/2.597/2.5918.1343728972669.20.1828Dingo150158.78.8167.518/3.251/3.3516.754376950635.70.1815Lynx175183.442.8226.230/2.797/2.7919.5350733584279.80.1576Caracal175184.210.3194.518/3.611/3.6118.055078058741.10.1563Lion225238.355.6294.230/3.187/3.1822.266594361095109.60.1212Bear25026461.6325.630/3.357/3.5523.457304831213111.10.1093Goat300324.375.740030/3.717/3.7125.978965931489135.70.08911Sheep350374.187.3461.430/3.997/3.9927.9310346841718155.90.07704Antelope350373.148.4421.554/2.977/2.9726.7310323791411118.20.07727Bison350381.849.5431.354/3.007/3.002710563881444120.90.07573Jaguar200210.611.7222.318/3.861/3.8619.35809167146.550.1367Deer400429.3100.2529.530/4.277/4.2729.8911867851971178.50.06726Zebra400428.955.6484.554/3.187/3.1828.6211864351621131.90.0674Elk450477111.3588.330/4.507/4.5031.513188722190198.20.06056Camel450475.261.6536.854/3.357/3.3530.1513144831797145.70.06073Moose500528.768.5597.254/3.537/3.5331.7714625371999161.10.0547
