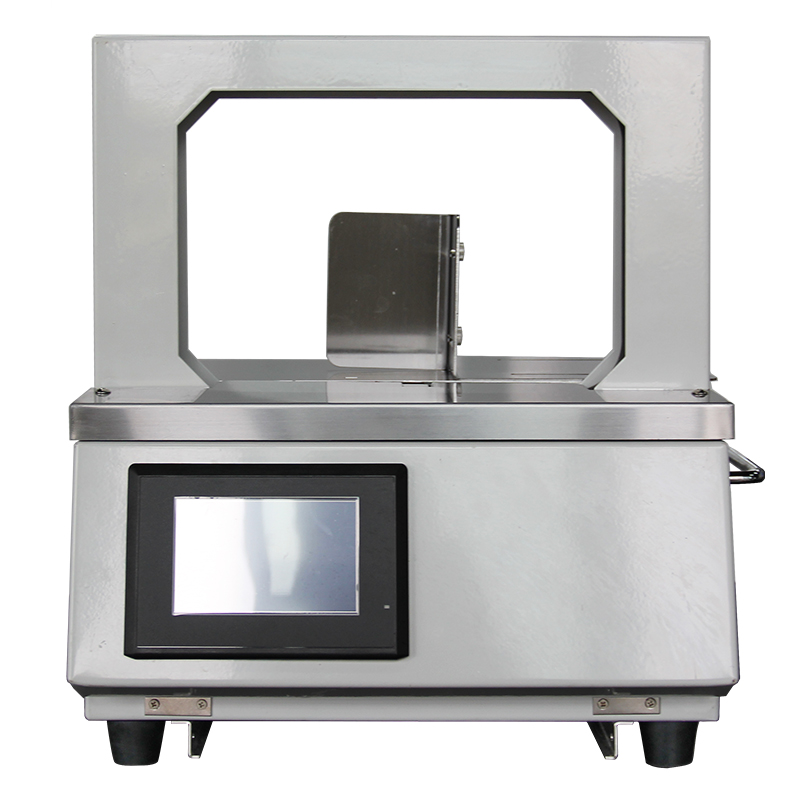

AG03 Banding Machine Film Automatic Banding Machine Strapping Machine PP Banding PP Machine
Hangzhou Youngsun Intelligent Equipment Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
AG03 Banding Machine Film Automatic Banding Machine Strapping Machine PP Banding PP Machine
Hangzhou Youngsun Intelligent Equipment Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Carbon steel
- Size: L 380mm x W 280mm x H415 mm L 520mm x W 280mm x H505 mm
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Carbon steel
- Size: L 380mm x W 280mm x H415 mm L 520mm x W 280mm x H505 mm
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Carbon steel |
|---|---|
| Size | L 380mm x W 280mm x H415 mm L 520mm x W 280mm x H505 mm |
| Color | White |
Product details
| Materials | Carbon steel |
|---|---|
| Size | L 380mm x W 280mm x H415 mm L 520mm x W 280mm x H505 mm |
| Color | White |
From the supplier
Machine characteristics：
1. Internal is DC 24V safe voltage.

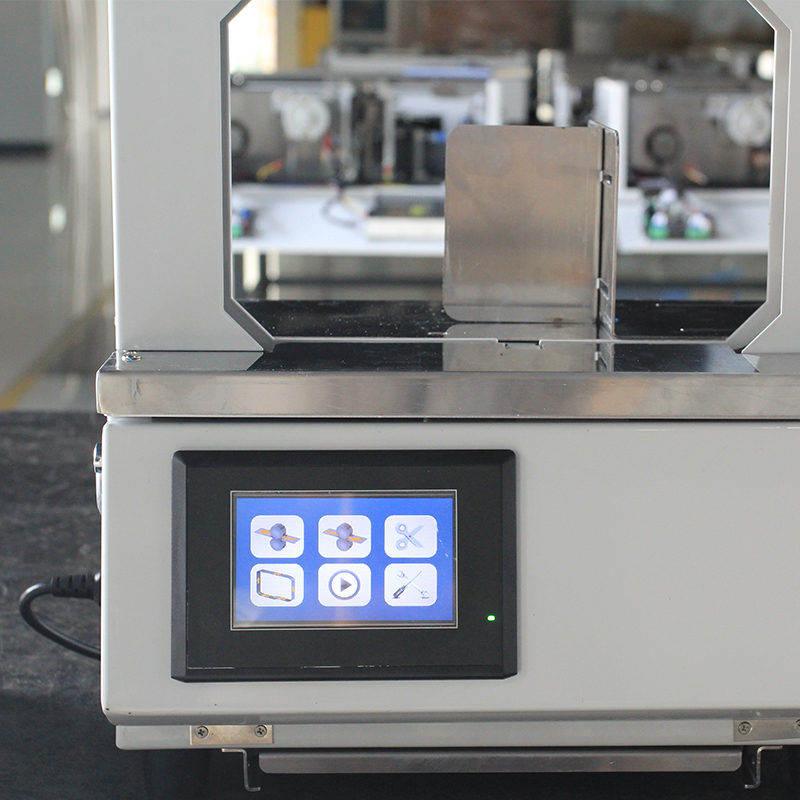

2. Parameters can be directly set up on the touch screen.
3. This machine has the function of each port detection.
4. This machine has the function of production record.
5. It can be accumulated and be cleared.
Specification
Specification
Model
AG03-12-220/170
AG03-12-360/260
Power source
AC110-120/200-240V,50/60Hz
1Ph,0.25kW,2.5A
AC110-120/200-240V,50/60Hz
1Ph,0.25kW,2.5A
Packing speed
26 cycles/min
22 cycles/min
Strapping Tension
≤5kg(adjustable）
≤5kg(adjustable）
Arch size
W220mm x H170mm
W360mm x H260mm

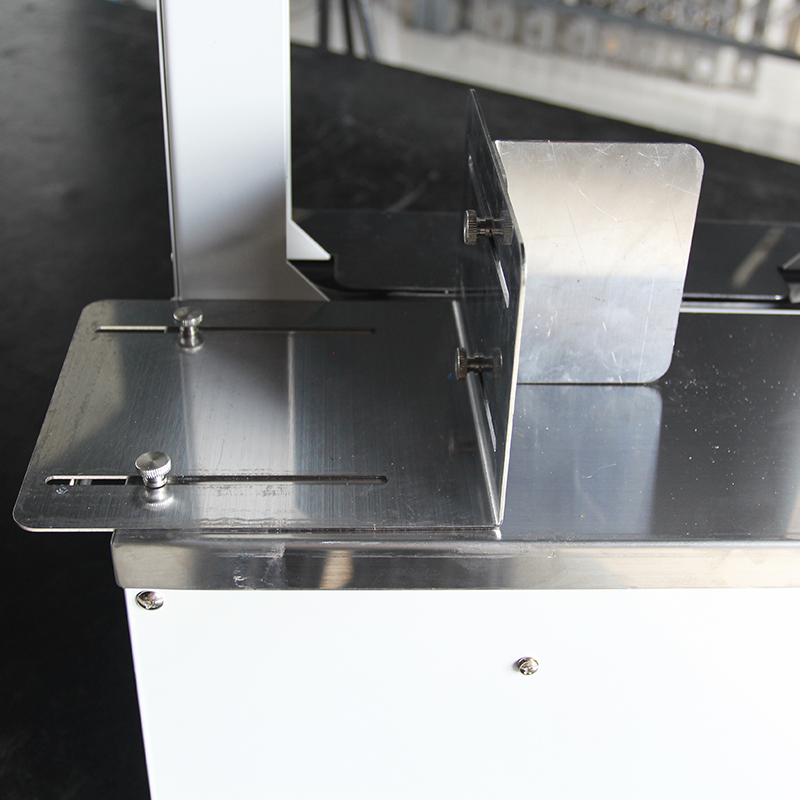

Working table height
215mm
215mm

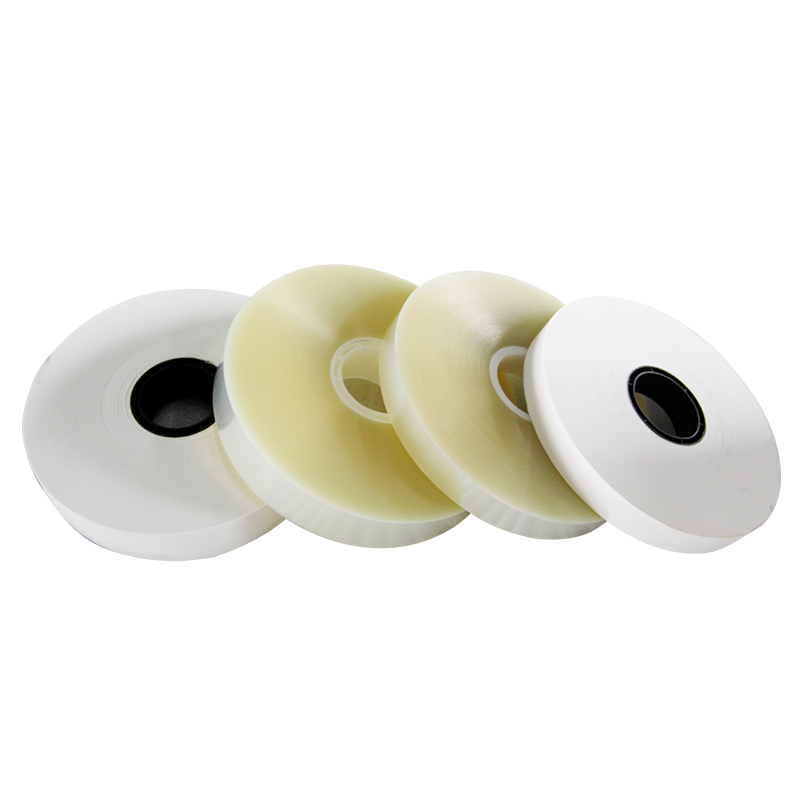

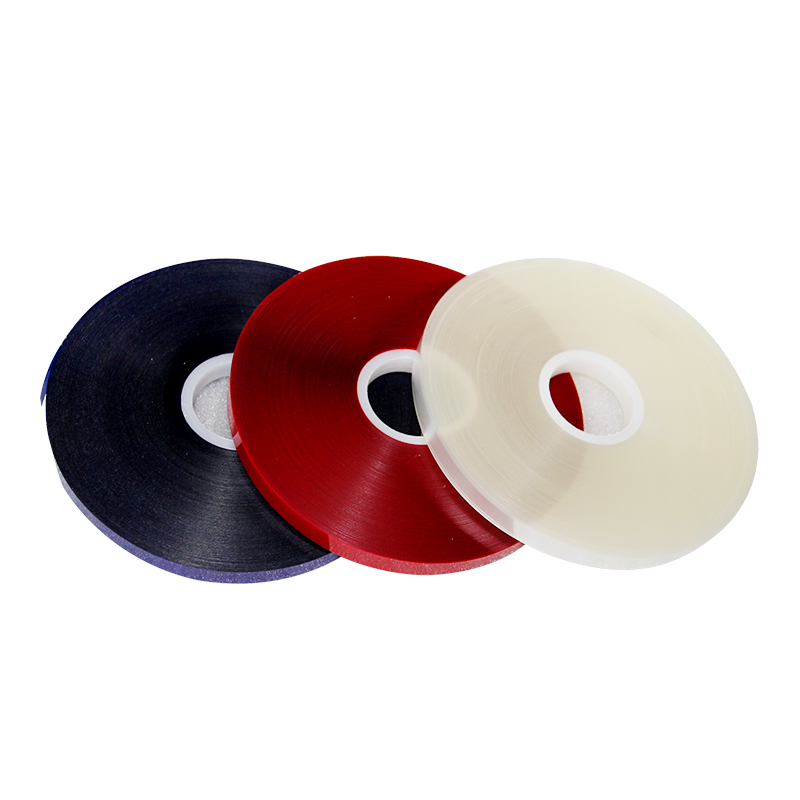

Suitable band
OPP film
OPP film
Suitable band width
standard 12mm
standard 12mm

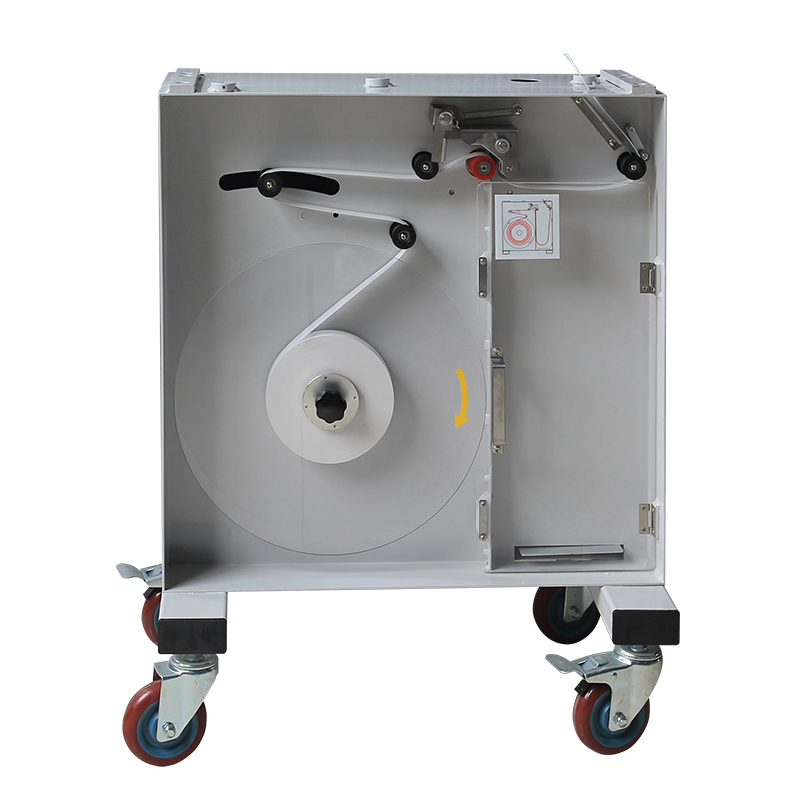

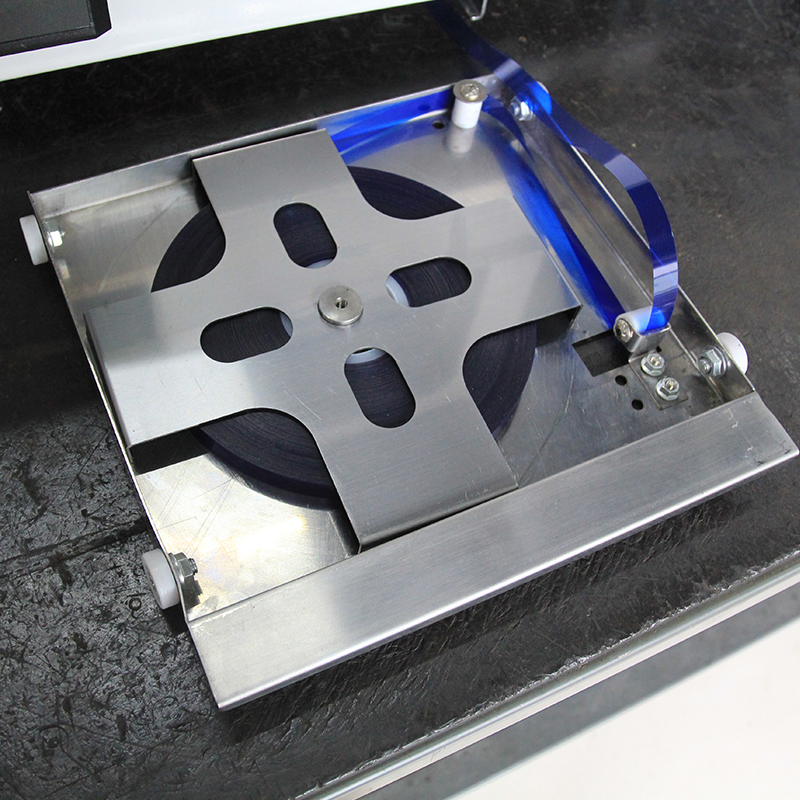

Suitable band spool
inner dia.:Φ40mm
outer dia.:Φ160mm,thickness 0.12mm
inner dia.:Φ40mm
outer dia.:Φ160mm,thickness0.12mm
Minimum packing object
W=15mm
W=15mm
Machine size
L 380mm x W 280mm x H415 mm
L 520mm x W 280mm x H505 mm
Shipping size
L440mm x W 340mm x H550 mm
L580mm x W 340mm x H640 mm
Weight
N.W:18kgs G.W:28kgs
N.W:22kgs G.W:35kgs
Please leave a message（WhatsApp No./WeChat/E-mail），I will be at your disposal if you need further information or assistance
Sincerely
Shiny
Tel: 0086-571- 87978016 , 85120117
Mobile：+8613989816698
E-mail: info@youngsunpack.com
Website: www.youngsunpack.com
From the supplier
Machine characteristics：
1. Internal is DC 24V safe voltage.
2. Parameters can be directly set up on the touch screen.
3. This machine has the function of each port detection.
4. This machine has the function of production record.
5. It can be accumulated and be cleared.
Specification
Specification
Model
AG03-12-220/170
AG03-12-360/260
Power source
AC110-120/200-240V,50/60Hz
1Ph,0.25kW,2.5A
AC110-120/200-240V,50/60Hz
1Ph,0.25kW,2.5A
Packing speed
26 cycles/min
22 cycles/min
Strapping Tension
≤5kg(adjustable）
≤5kg(adjustable）
Arch size
W220mm x H170mm
W360mm x H260mm
Working table height
215mm
215mm
Suitable band
OPP film
OPP film
Suitable band width
standard 12mm
standard 12mm
Suitable band spool
inner dia.:Φ40mm
outer dia.:Φ160mm,thickness 0.12mm
inner dia.:Φ40mm
outer dia.:Φ160mm,thickness0.12mm
Minimum packing object
W=15mm
W=15mm
Machine size
L 380mm x W 280mm x H415 mm
L 520mm x W 280mm x H505 mm
Shipping size
L440mm x W 340mm x H550 mm
L580mm x W 340mm x H640 mm
Weight
N.W:18kgs G.W:28kgs
N.W:22kgs G.W:35kgs
Please leave a message（WhatsApp No./WeChat/E-mail），I will be at your disposal if you need further information or assistance
Sincerely
Shiny
Tel: 0086-571- 87978016 , 85120117
Mobile：+8613989816698
E-mail: info@youngsunpack.com
Website: www.youngsunpack.com
