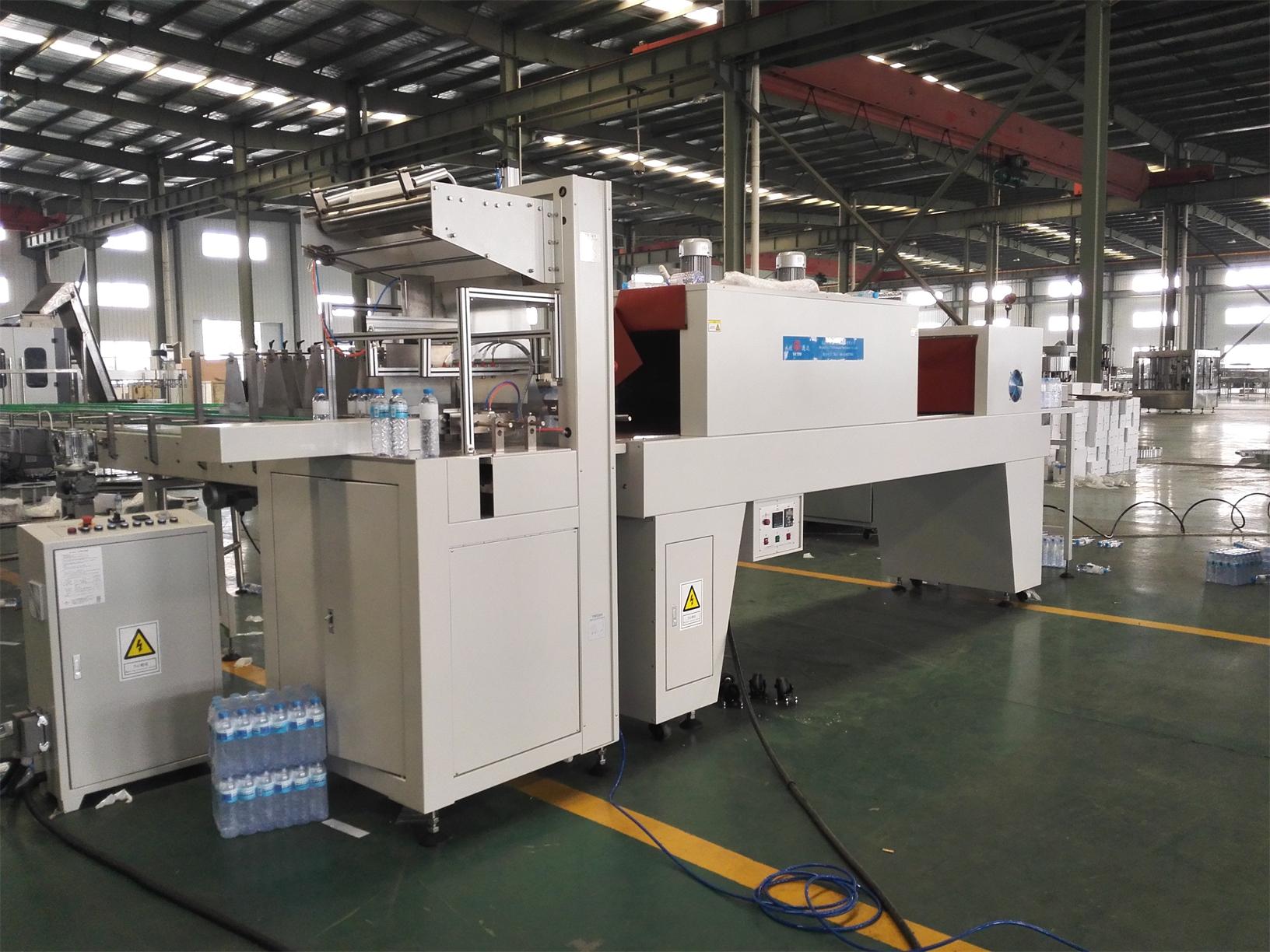

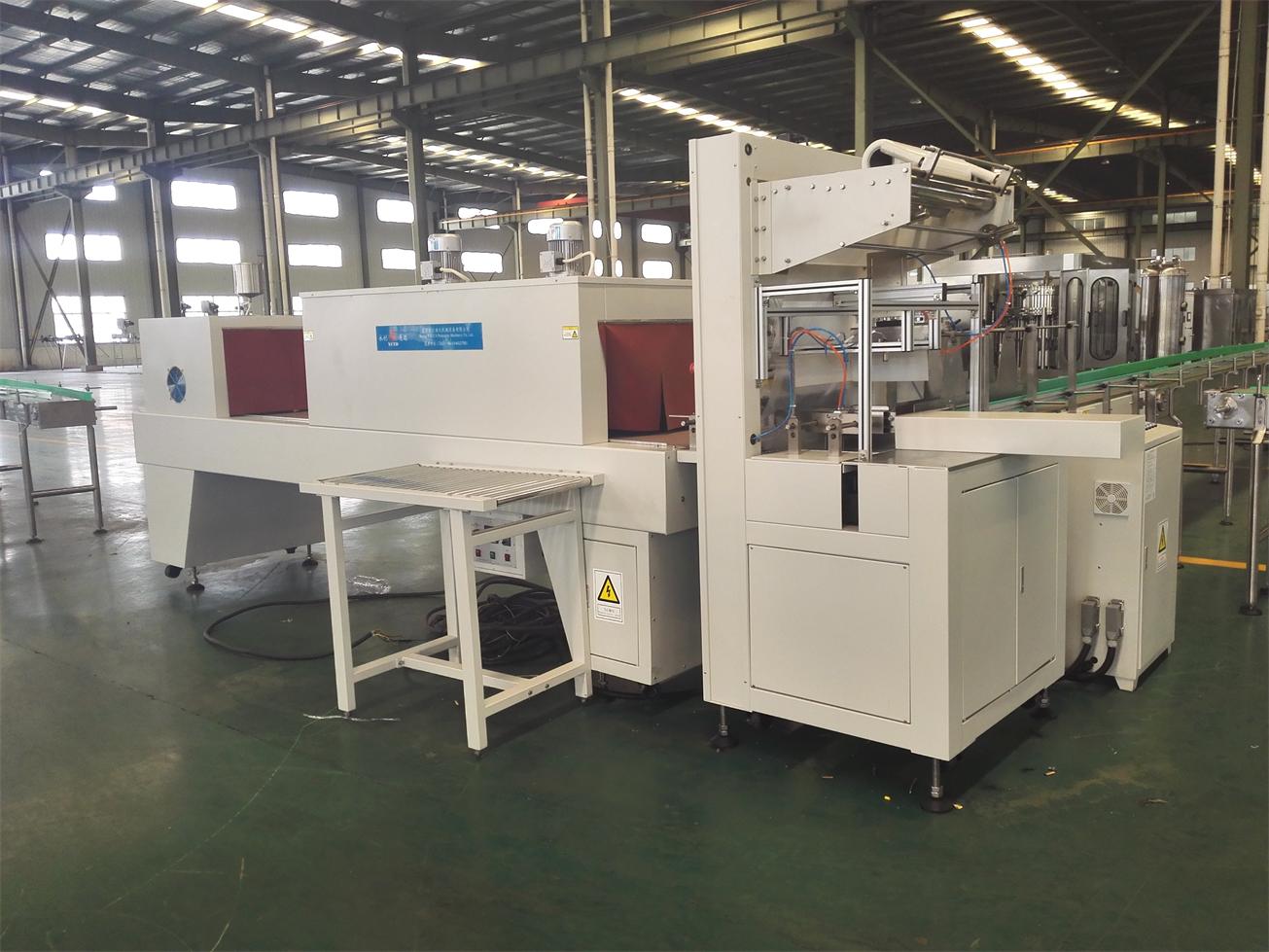

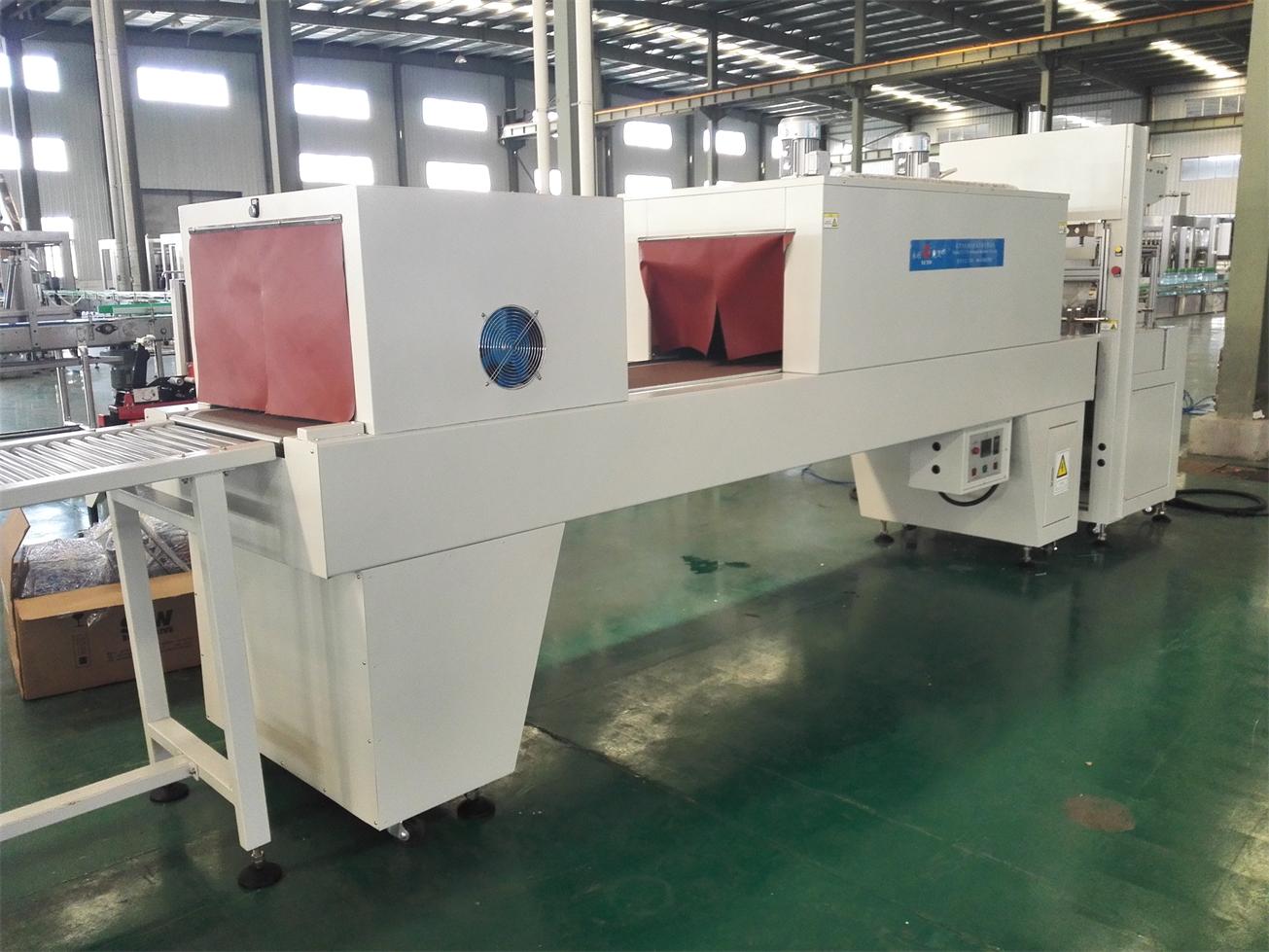

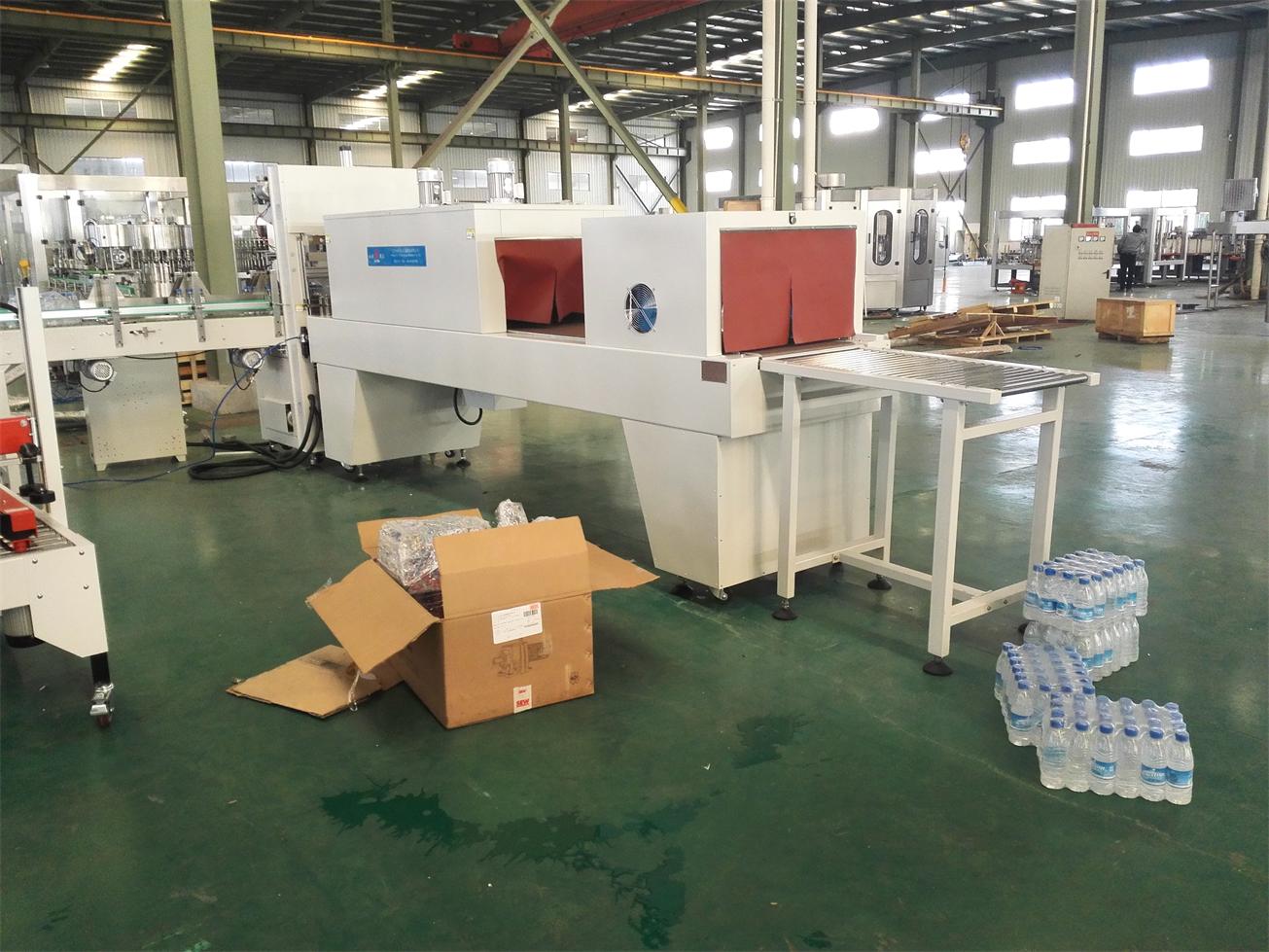

Automatic bottle packing machine
JIANGSU JINRONG MACHINERY CO., LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Automatic bottle packing machine
JIANGSU JINRONG MACHINERY CO., LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: carbon steel
- Size: 5500×3200×2100
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia
- Made in: Jiangsu, China
About this product
- Materials: carbon steel
- Size: 5500×3200×2100
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia
- Made in: Jiangsu, China
Product details
| Materials | carbon steel |
|---|---|
| Size | 5500×3200×2100 |
| Color | white |
Product details
| Materials | carbon steel |
|---|---|
| Size | 5500×3200×2100 |
| Color | white |
From the supplier
Main technical parameters:
Packing product : PET bottles
Packing form：2x3,3×4,4×6 etc.
Capacity: 10 packages/minute
Power charge: 19 KW
Control voltage: DC24 V
Normal working power: 19 KW
Air Supply :
Pressure: 0.6-0.8 Mpa (no oil no water)
Air consumption: 300NL/min
Pipe joint size: Φ10
The composition of the equipment
Items
Qty
Outline dimension（L×W×H）mm
Dimension For The Whole Unit
5500×3200×2100 (without no-power conveyor frame)
(without no power conveyor frame)
Total Weight
1500kg
Note: Table parameters is standard production line height 990mm
Shrinking temperature: 150℃～260℃
Environmental temperature: 5～40℃
Humidity: 30～80 %
Working noise: ≤65dB
The related material requirements:
Packing materials: LDPE(dust & static electricity removed)
Film roll width: ≤580mm
Film thickness: 0.04～0.10mm
Film roll diameter: ≤400mm
Ⅱ、Main parts
YCD-6535 part disposition
Specification and model
Remarks
Isothermal sealing cutter
L660
SHF
PLC Controller(core part)
Schneider
TM208LDA24DRN
France
Motor protector
3UA5040-OG
Germany
Transducer
Danfoss
Denmark
All cylinder
UNIQUC
Taiwan
Intermediate relay
Schneider
France
Approaches switch
Leuze
Germany
Contactor
SEIMENS
3TB4010-OXN2
Germany
Meshy belt
DUPONT
600*8350
USA
From the supplier
Main technical parameters:
Packing product : PET bottles
Packing form：2x3,3×4,4×6 etc.
Capacity: 10 packages/minute
Power charge: 19 KW
Control voltage: DC24 V
Normal working power: 19 KW
Air Supply :
Pressure: 0.6-0.8 Mpa (no oil no water)
Air consumption: 300NL/min
Pipe joint size: Φ10
The composition of the equipment
Items
Qty
Outline dimension（L×W×H）mm
Dimension For The Whole Unit
5500×3200×2100 (without no-power conveyor frame)
(without no power conveyor frame)
Total Weight
1500kg
Note: Table parameters is standard production line height 990mm
Shrinking temperature: 150℃～260℃
Environmental temperature: 5～40℃
Humidity: 30～80 %
Working noise: ≤65dB
The related material requirements:
Packing materials: LDPE(dust & static electricity removed)
Film roll width: ≤580mm
Film thickness: 0.04～0.10mm
Film roll diameter: ≤400mm
Ⅱ、Main parts
YCD-6535 part disposition
Specification and model
Remarks
Isothermal sealing cutter
L660
SHF
PLC Controller(core part)
Schneider
TM208LDA24DRN
France
Motor protector
3UA5040-OG
Germany
Transducer
Danfoss
Denmark
All cylinder
UNIQUC
Taiwan
Intermediate relay
Schneider
France
Approaches switch
Leuze
Germany
Contactor
SEIMENS
3TB4010-OXN2
Germany
Meshy belt
DUPONT
600*8350
USA
