About this product
- Materials: steel
- Size: 7500*1500*1600mm
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 7500*1500*1600mm
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 7500*1500*1600mm |
| Color | Blue & Yellow |
Product details
| Materials | steel |
|---|---|
| Size | 7500*1500*1600mm |
| Color | Blue & Yellow |
From the supplier
Product Name:
Downpipe Forming Machine
Introduction:

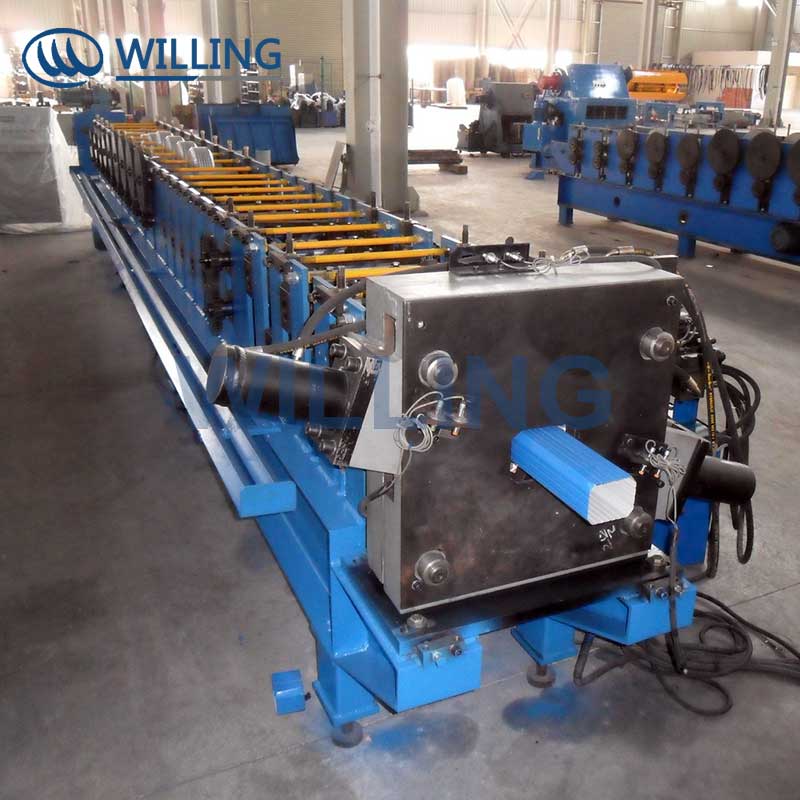

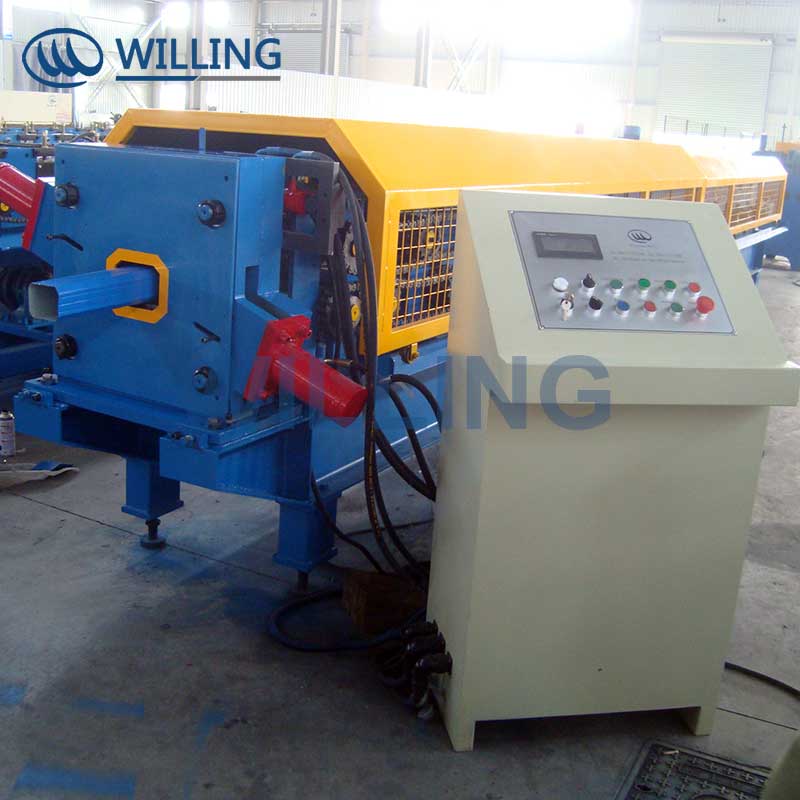

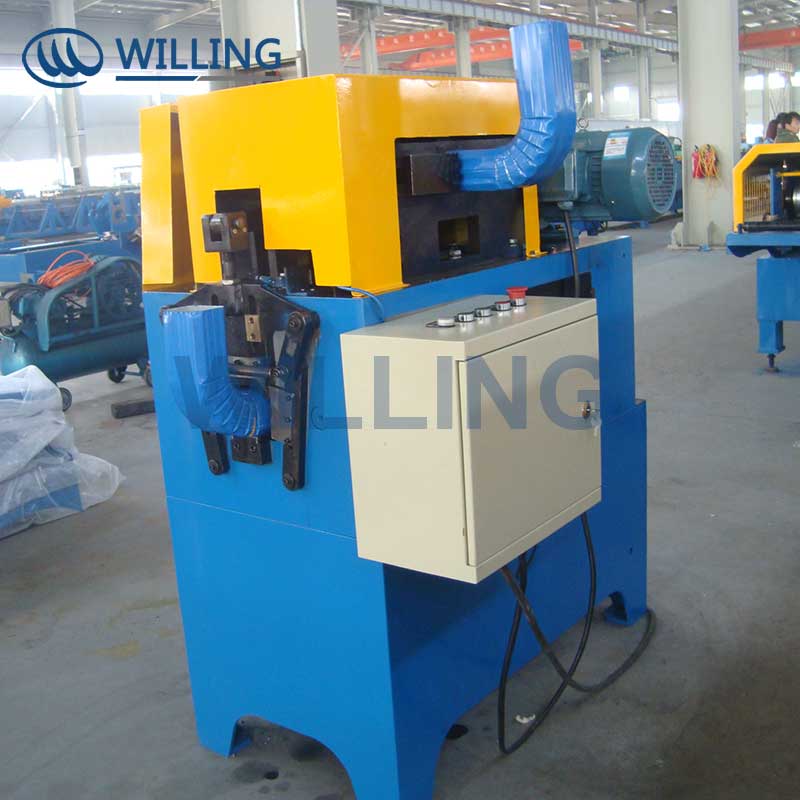

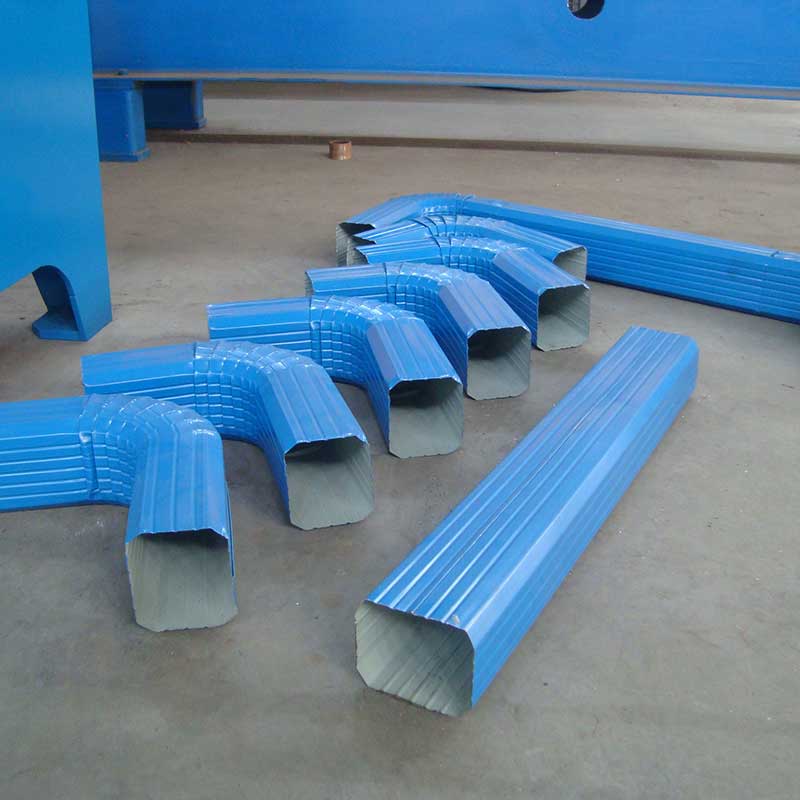

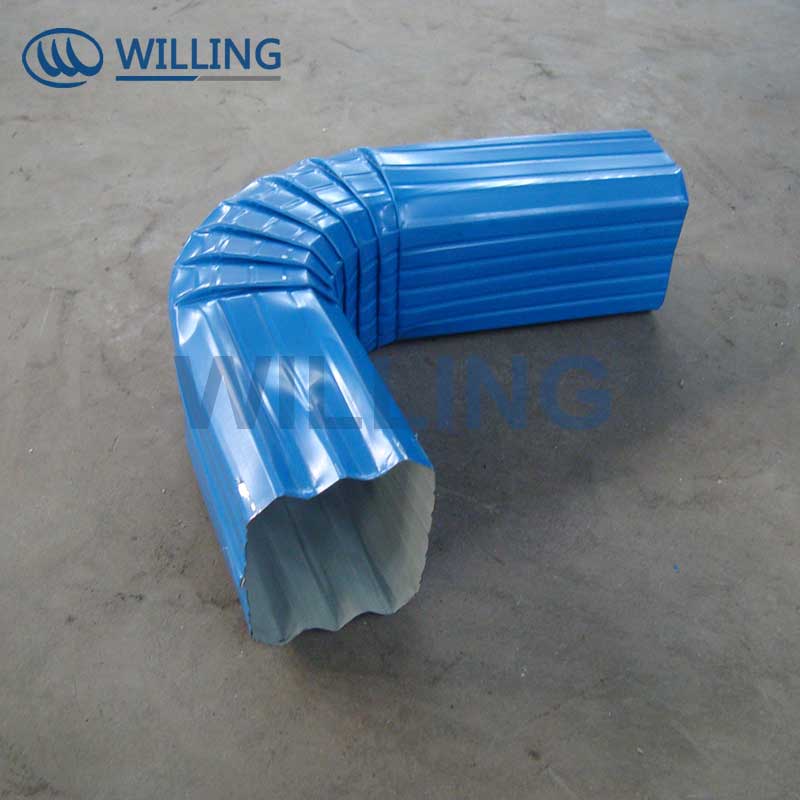

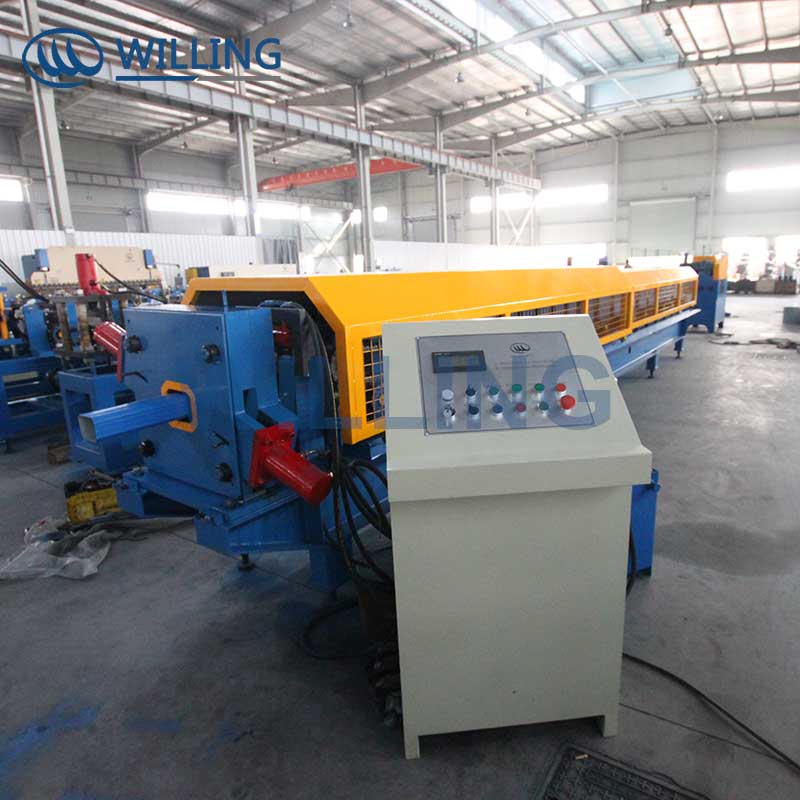

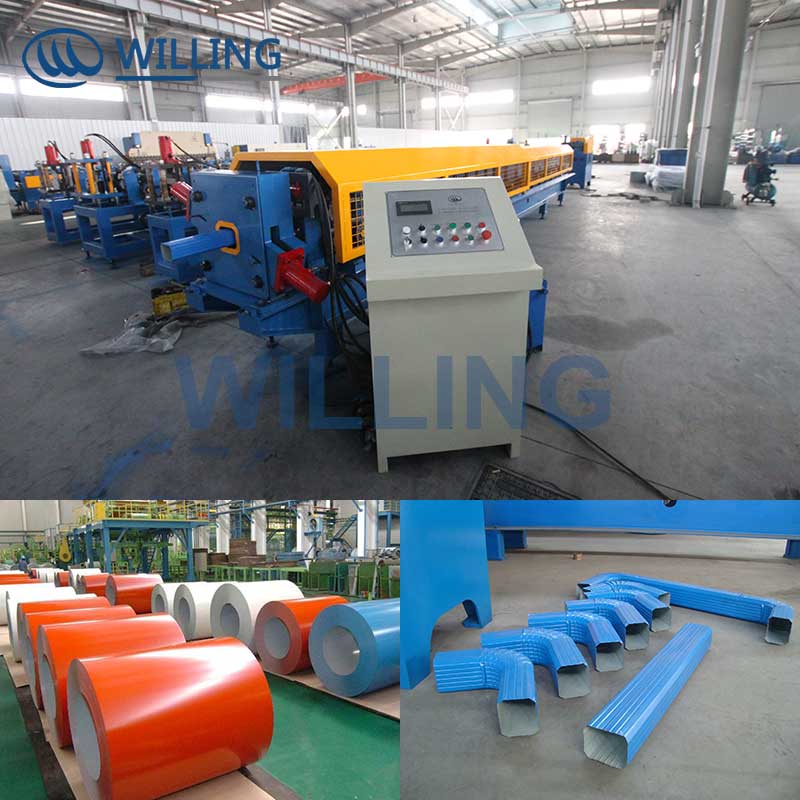

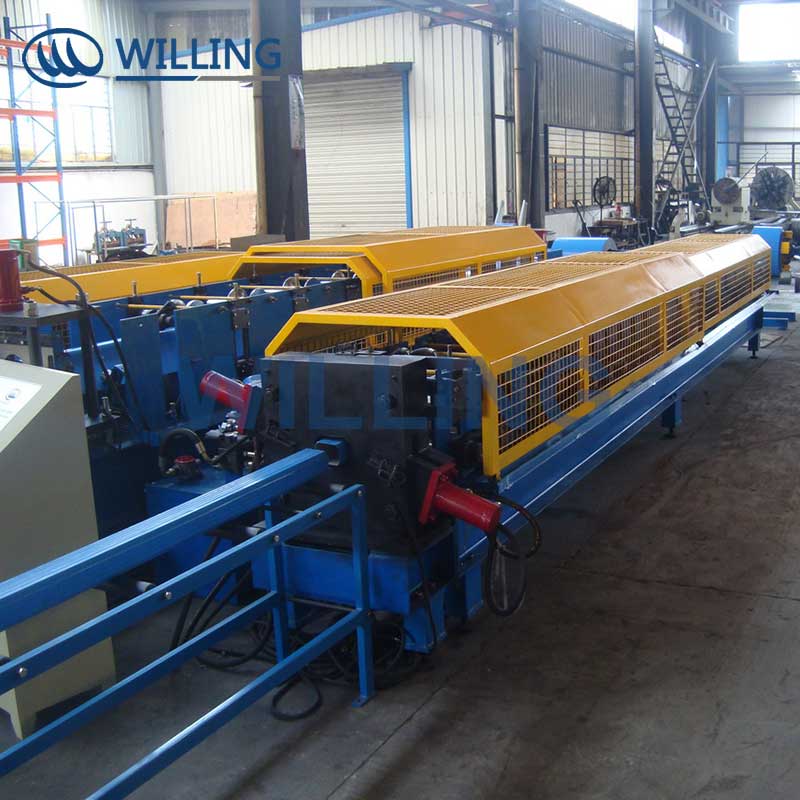

Closed type color coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, no leak, beautiful integrity, long time using and so on. This series machine is matched with downpipe bending (elbow) machine, used for bending and end narrowing. The angle of bending can be adjusted by manual according to engineering requirements. Color coated steel downpipe is widely used in workshop, warehouse, hangar, gym, and so on for industry &civil buildings.
Working Flow：

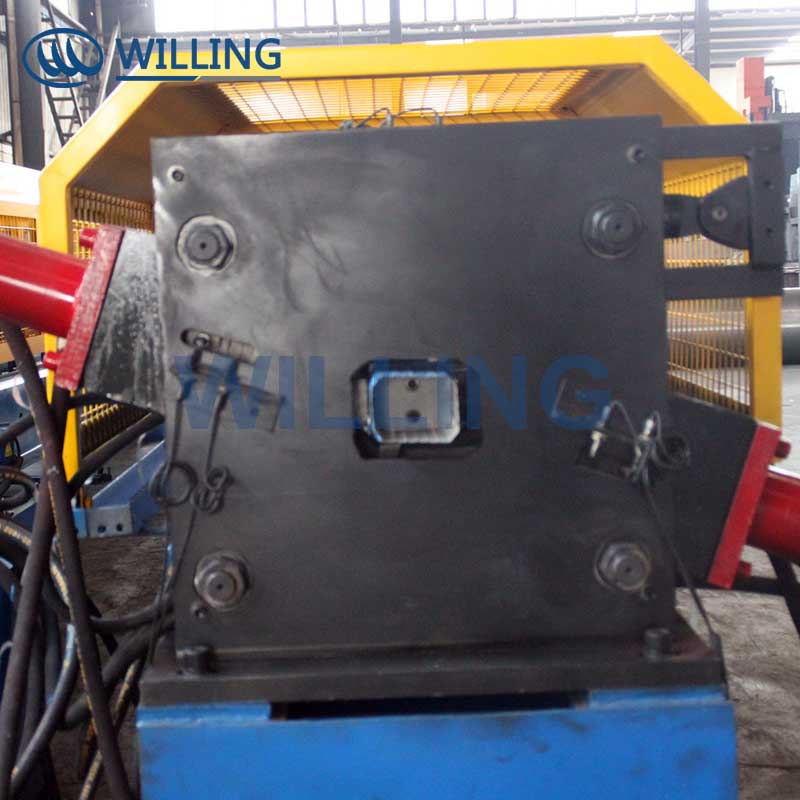

Uncoiling→Sheet Guiding→End cutting→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Model
Square
Material
Type
Color steel sheet
Thickness（mm）
0.4-0.6
Yield stress（Mpa）
230-300
Max. Forming speed （m/min）
0-12
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
7.5
Main motor power（KW）
3
Total power（KW）
10.5
Total weight（Kg）
About 4000
From the supplier
Product Name:
Downpipe Forming Machine
Introduction:
Closed type color coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, no leak, beautiful integrity, long time using and so on. This series machine is matched with downpipe bending (elbow) machine, used for bending and end narrowing. The angle of bending can be adjusted by manual according to engineering requirements. Color coated steel downpipe is widely used in workshop, warehouse, hangar, gym, and so on for industry &civil buildings.
Working Flow：
Uncoiling→Sheet Guiding→End cutting→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Model
Square
Material
Type
Color steel sheet
Thickness（mm）
0.4-0.6
Yield stress（Mpa）
230-300
Max. Forming speed （m/min）
0-12
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
7.5
Main motor power（KW）
3
Total power（KW）
10.5
Total weight（Kg）
About 4000
About the supplier
Main products: Cold Rolling Mill,Steel Glazed Tile Forming Machine,Other Textile Machinery,Tube Machine,Steel Plate Forming Machine,Roller Shutter Operator,Tile Machine,Other Building Materials Processing Equipment,Other Metal Processing Machinery,Shear Machine,Press brake,Mask Blank Making Machine
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2004
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2004

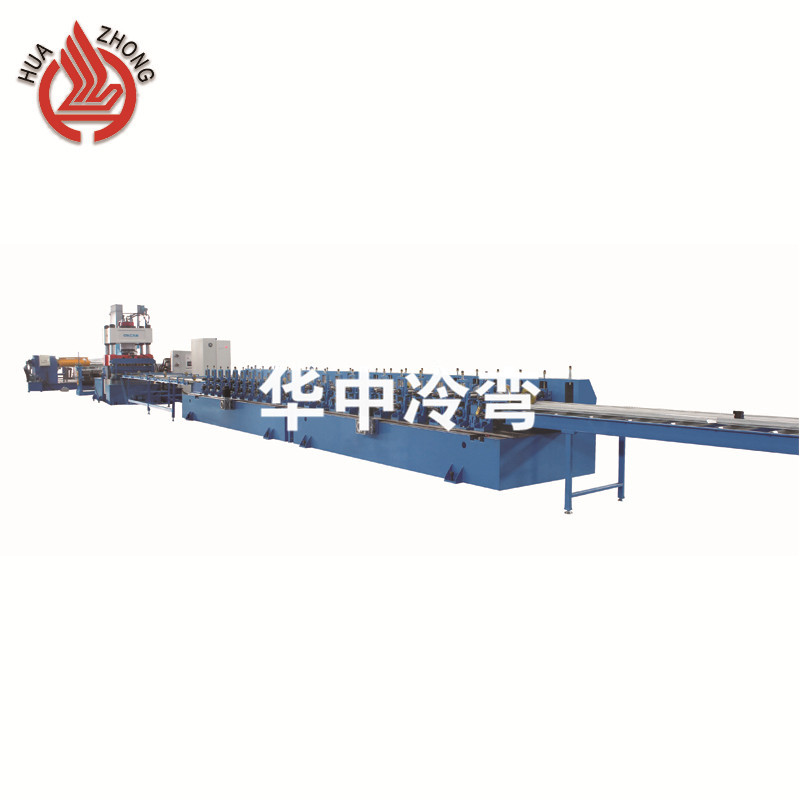

Similar products from other suppliers
