Enclosed type fiber laser cutter for plate 6020 6000W

The fully enclosed dual exchange fiber laser cutting machine is equipped with an industrial welding structure body, which is rough machined after high-temperature annealing and precision machined after secondary vibration aging treatment; Cast aluminum crossbeam: using heavy-duty steel mold pressure casting ensures the strength, accuracy, and service life of the machine tool; Closed cutting platform improves purification efficiency and reduces lens contamination. Parallel exchange platform, 10 seconds exchange time, faster speed, and more time-saving loading and unloading.

Features

1. Adopting imported Motovario reducers, high-precision gears and racks, and linear guides to ensure smooth operation at high speeds, low noise, and reliable performance.
2. Adopting servo drive control, with stronger torque, faster and smoother running speed;
3. Follow up dust extraction system, with good dust extraction effect and energy saving;
4. Adopting domestically leading laser cutting heads and laser lenses, the focused spot is smaller, the cutting lines are finer, the work efficiency is higher, and the processing quality is better; The whole machine is transmitted through optical fiber routing, without the need for complex light guiding systems such as mirrors. The optical path is simple, the structure is stable, and the external optical path is maintenance free;
5. Using well-known fiber lasers with high electro-optical conversion efficiency, it can significantly save power consumption during operation and reduce operating costs; The cutting edge is less affected by heat, the cutting seam is smooth, and generally does not require secondary processing.
6. A professional laser cutting control system with intelligent typesetting function, making operation simpler and more efficient.

Detail Images

1. Stable and Solid Bed

The bed has good comprehensive performance, high compressive strength and hardness, ensuring the rigidity and stability required for high-speed movement of the machine tool while minimizing the thermal impact generated during the machining process.

2. Transmission System

The combination of GERMAN ROR racks and TAIWAN HIWIN linear guides improves cutting speed

Optional linear guides brand: JAPAN SMG/ GERMAN HEREN

3. Fiber Laser Generator
Adopt renowned brand lasers (MAX/IPG/RAYCUS optional), fiber lasers are highly integrated, easy to operate, compact and lightweight, easy to install, and operate with basic maintenance free operation. They have a long lifespan and can continuously emit light for 100000 hours.

4. Control System

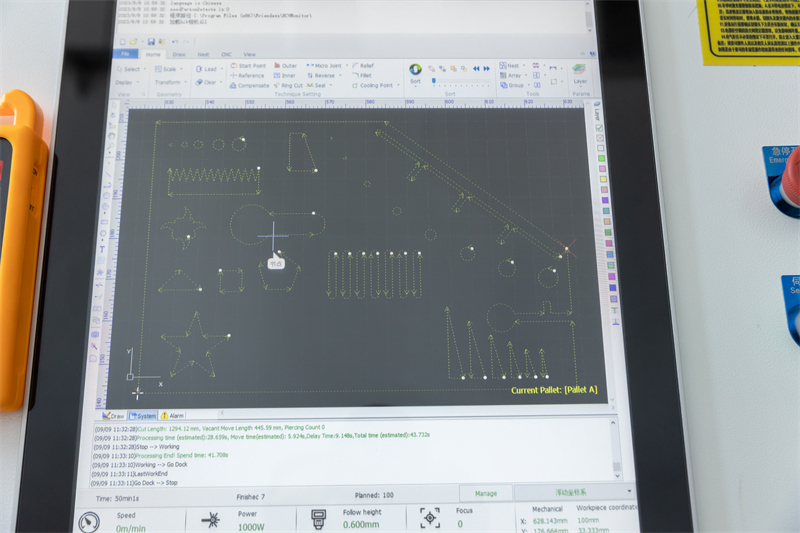

Adopting BOCHU intelligent visual laser control system to intuitively adjust laser power, gas type and pressure; Intelligent edge searching and automatic positioning; Supports importing multiple types of files, intelligent typesetting, automatic sequence generation, process visualization, and simple and convenient operation.

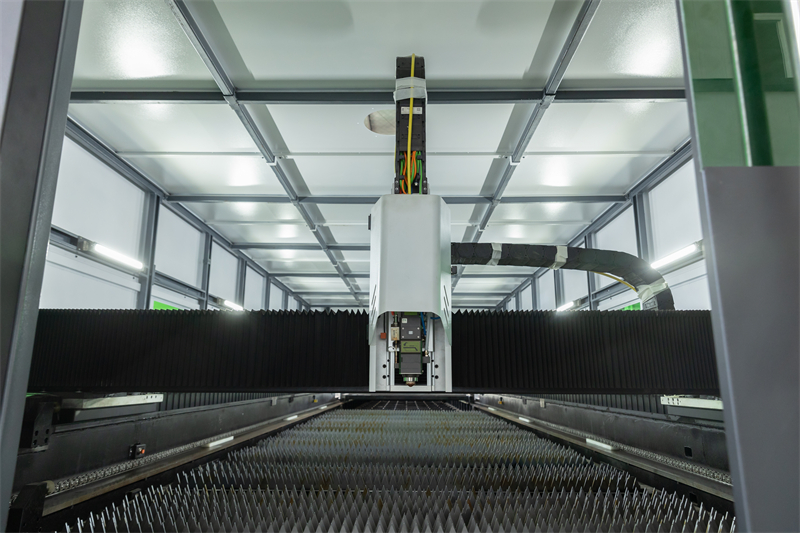

5. Cutting Head
Using laser cutting heads and laser lenses (Raytools/BOCI), Focusing on smaller light spots, finer cutting lines, higher work efficiency, and better processing quality. Automatic focusing, capable of quickly changing different focal lengths to meet different thicknesses of metal cutting, integrated temperature sensing technology, CNC calculation compensation. Avoid thermal lens effect; 360 degree intelligent obstacle avoidance during air movement to protect the cutting head; Higher cutting accuracy, wider applicability, lower processing costs, and longer service life.

6. Servo Motor and Drive
Adopt GERMAN Lead-motion or JAPAN FUJI servo motor with high performance and long service life.

7. Cooling System

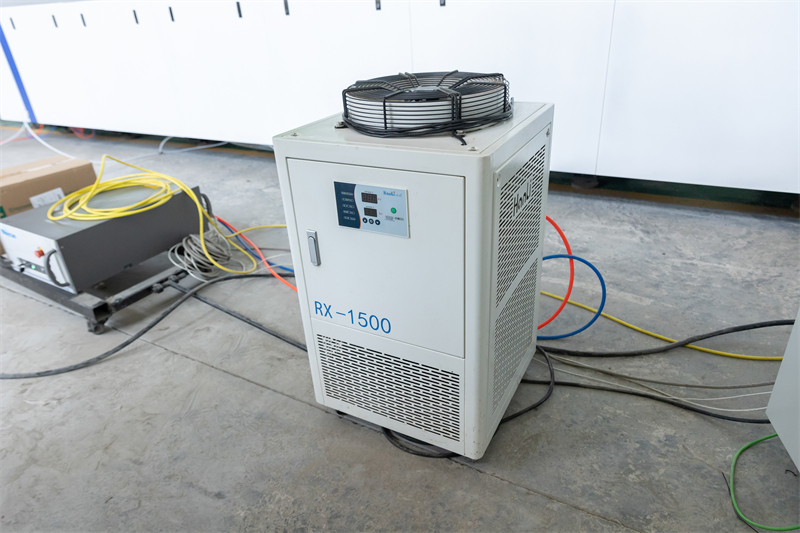

Adopting WuHan HanLi brand laser specific chiller
*Equipped with dual control of high and low temperature water to meet the constant temperature requirements of the laser cavity and output port
*Ensure the safe and stable operation of the laser
*It has functions such as over temperature, flow rate, water level, real-time monitoring of water quality, sound and light alarm

8.Reducer
France brand MOTOVARIO reducer. High tensile rigidity, high precision, low noise, ip65 protection level, to ensure the sustainable operation of 90 degrees.

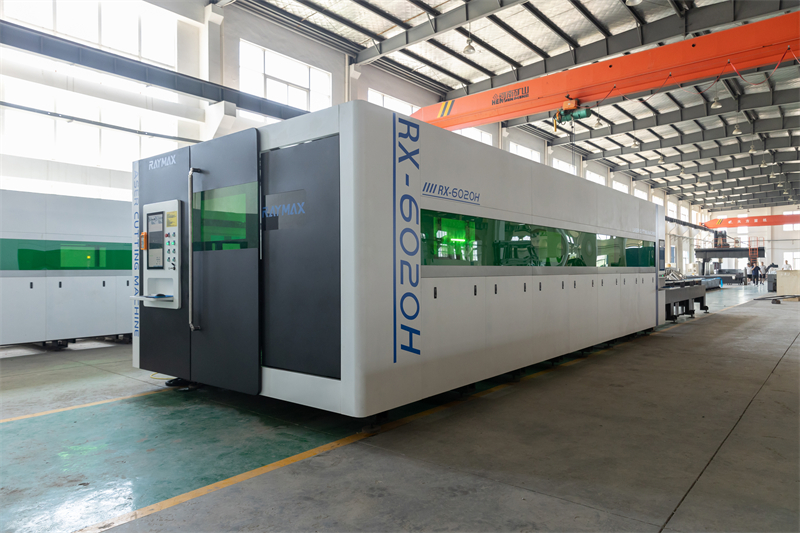

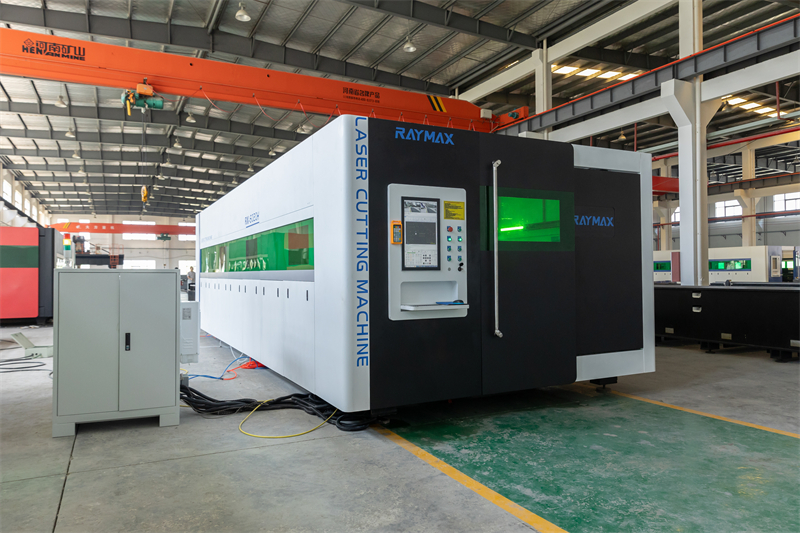

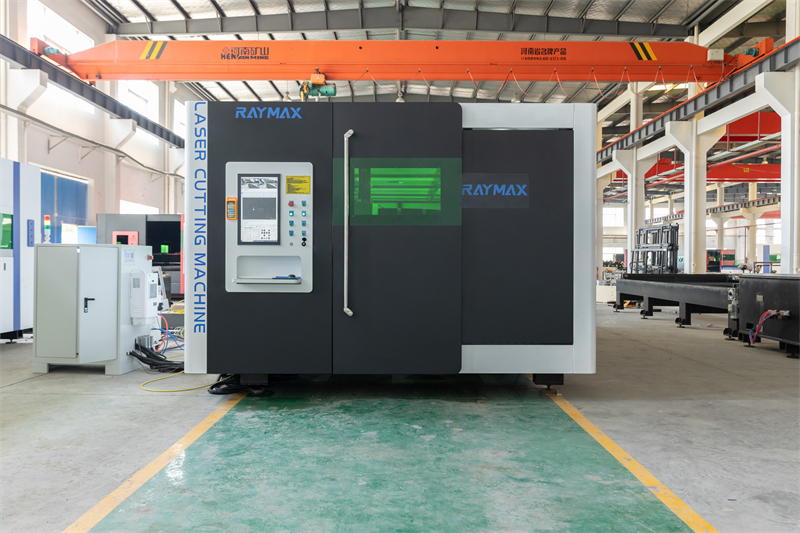

9.External Enclosure Design
Fully closed protection improves using security; laser protection glass protect human beings from laser radiation.

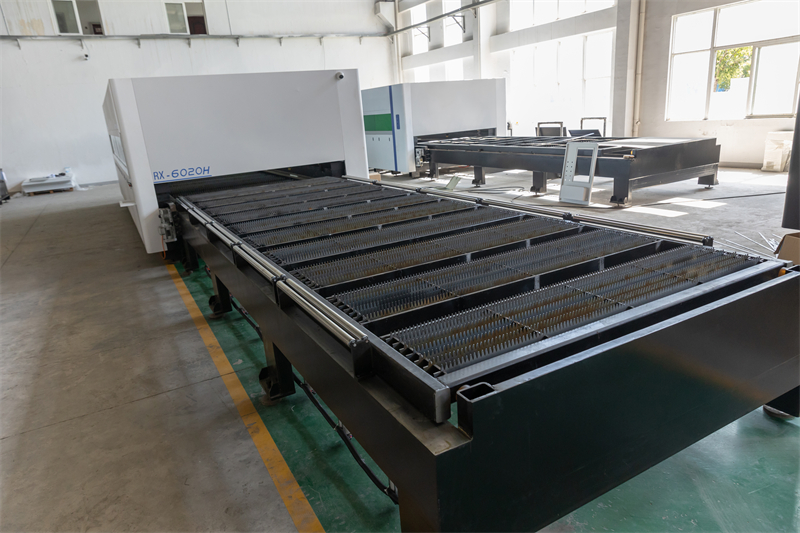

10.Exchange Platform
Dual workstations can be exchanged simultaneously, and the platform can complete the exchange in 8S; Easy loading and unloading, board cutting and loading and unloading can be carried out simultaneously, saving auxiliary time for loading and unloading; The gear rack transmission method is stable and has high precision, and is more efficient compared to the traditional ball screw transmission.
