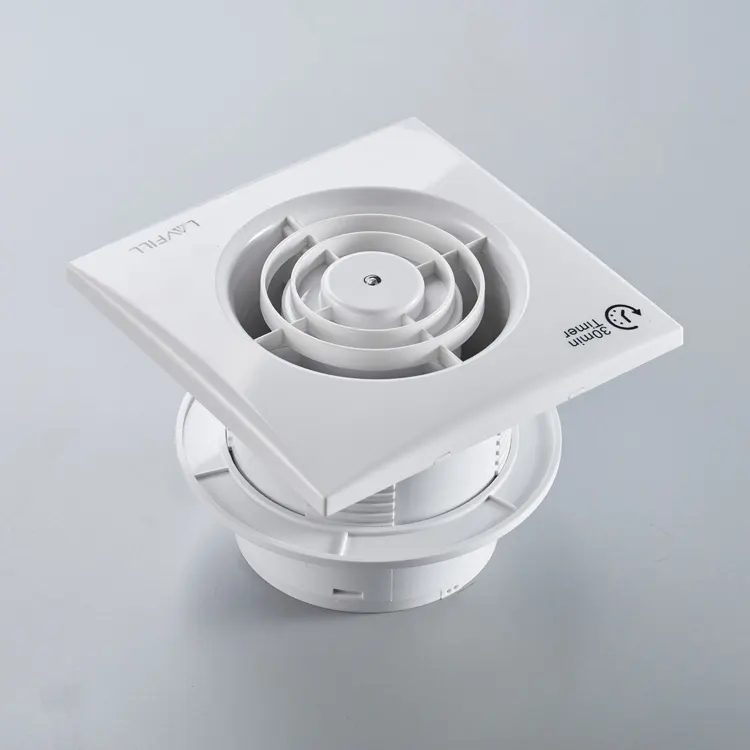

Product Description

Product Features

The fan is suitable for wall / window / ceiling mounting.

Shutter, ring are optional, ring is needed for window mounting.

Easy installation

Shaded pole motor with thermo cut-off

Ball bearing motor to reduce friction for long life operation

Modern and functional design

Front louver for safety protection

Safety design based on IEC requirements

Approved by SAA TUV SASO CE RoHS

More functions

+ With humidity sensor adjustable humidity range 60%-90%, the humidity level from 60%-90% can be shown by four LED indicators, adjustable time range 0 -30 mins, the original factory setting is 60%, 1min.
+ With timer adjustable time range 0 -30 mins, the delay time 30s-30mins can be shown by five LED indicators, the original factory setting is 1 mins.
+ With motion sensor sensing range of 0.5m ≤ D ≤8m, angle 180°*360° delay timer adjustable time range 1 -30 mins.

Specification

Installation Dimension

Unit: mm

Article No. ∅ A B C D LFWW-09Y

∅99

150

96

14

LFWW-09YT LFWW-09YH LFWW-09YS LFWW-13Y ∅149 193 106 14 LFWW-13YT LFWW-13YH LFWW-13YS

Technical Parameter

Article No. Category Rated Voltage/Frequency Ventilator Power Air Volume Noise

LFWW-09Y

Wall/Window Type Extractor Fan

12v~,50Hz

110V~,60Hz

127V~,60Hz

220V~,50Hz

220V~,60Hz

220V~,50/60Hz

220-240V~,50Hz

12W 130m³/h 34dB

LFWW-09YT

LFWW-09YH

LFWW-09YS

LFWW-13Y

18W 320m³/h 35dB

LFWW-13YT

LFWW-13YH

LFWW-13YS

Note:

T - With Timer

H - With Humidity Sensor

S - With Motion Sensor

Exploded View

FAQ

Wenzhou Yudong Electrical Appliance & Sanitary Ware Co., Ltd.
We sincerely welcome more friends to cooperate with us.

Q1: Are you a factory or trading company?

A:We are manufacturer, we have our own export rights, specialized in producing domestic fans and fittings, hotel hair dryers, hand dryers etc..

Q2: Do you have any certificates?

A:Yes, all of domestic fans are CE RoHS SAA approved, hotel hair dryer, hand dryer are CE, RoHS approved.

Q3: Do you accept OEM or ODM?

A:Yes, we do in the means of OEM, ODM,OBM.

Q4: Where is your FOB port?

A: Ningbo Port or Shanghai port.

Q5: How can I get some samples?

A:We are glad to offer you samples, you are expected to pay for the courier cost and sample fee, we will arrange the samples to send to you. Or you can arrange a remote pick-up service upon FedEx, UPS, DHL, TNT to have the samples collected via your own account No..

Q6: How long is the delivery time for the samples?

A:In general, it needs 5-7 days to send samples.

Q7: What is your MOQ?

A:Our MOQ is 200pcs/item, 500pcs/order for EXW term, 200pcs/item, 2000pcs/order for FOB term. Use customized package, MOQ is 2000pcs/item. For customized package if the MOQ is below 2000pcs, you have to pay deposit for each package design and manufacture, only if the total mount of each item reaches 2000pcs in one year since the first shipment considering the storage cost and box damage over time, we will return the deposit.

Q8: How long is the delivery time for mass order?

A:In general, 30-35 days after receiving deposit and confirming customized details.

Q9: Can we print our logo on the products?

A:Yes, of course, we print customized logo by laser marking generally.

Q10: What about the product services and quality?

A:We put forward strict components suppliers selection, spare parts testing, safety testing, product durable testing, pre-shipment inspection by senior engineer. And we offer parts one year or three year warranty.
