F3000 cargo truck 4×2, SX1185DN461 (WP10.300E22/Europe II), hydraulic main seat, four-point hydraulic suspension cab, manual window shaker, ordinary rearview mirror, manual flip, ordinary heater, ordinary air filter, F3000 cooling system, square muffler, 165Ah maintenance-free battery, metal bumper, spare tire holder, RTD-11509C, 7.5T MAN front axle, 13T MAN double reduction axle, ratio 4.769, 850×300 (8+5) double-layer frame, front and rear multi-leaf springs, 400L aluminum alloy fuel tank, 11.00R20 tires, suitable for national and provincial roads.

F3000 cargo truck 6×4, SX1255DR564 (WP10.340E22/Europe II), hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, 165Ah maintenance-free battery, spare tire holder, 10JSD180, 7.5T MAN front axle, 13T MAN double reduction axle, ratio 4.769, 850×300(8+5) double-layer frame, front and rear multi-leaf springs, two main springs + two U-bolts, 400L aluminum alloy fuel tank, 12.00R20 tires, suitable for national and provincial roads.

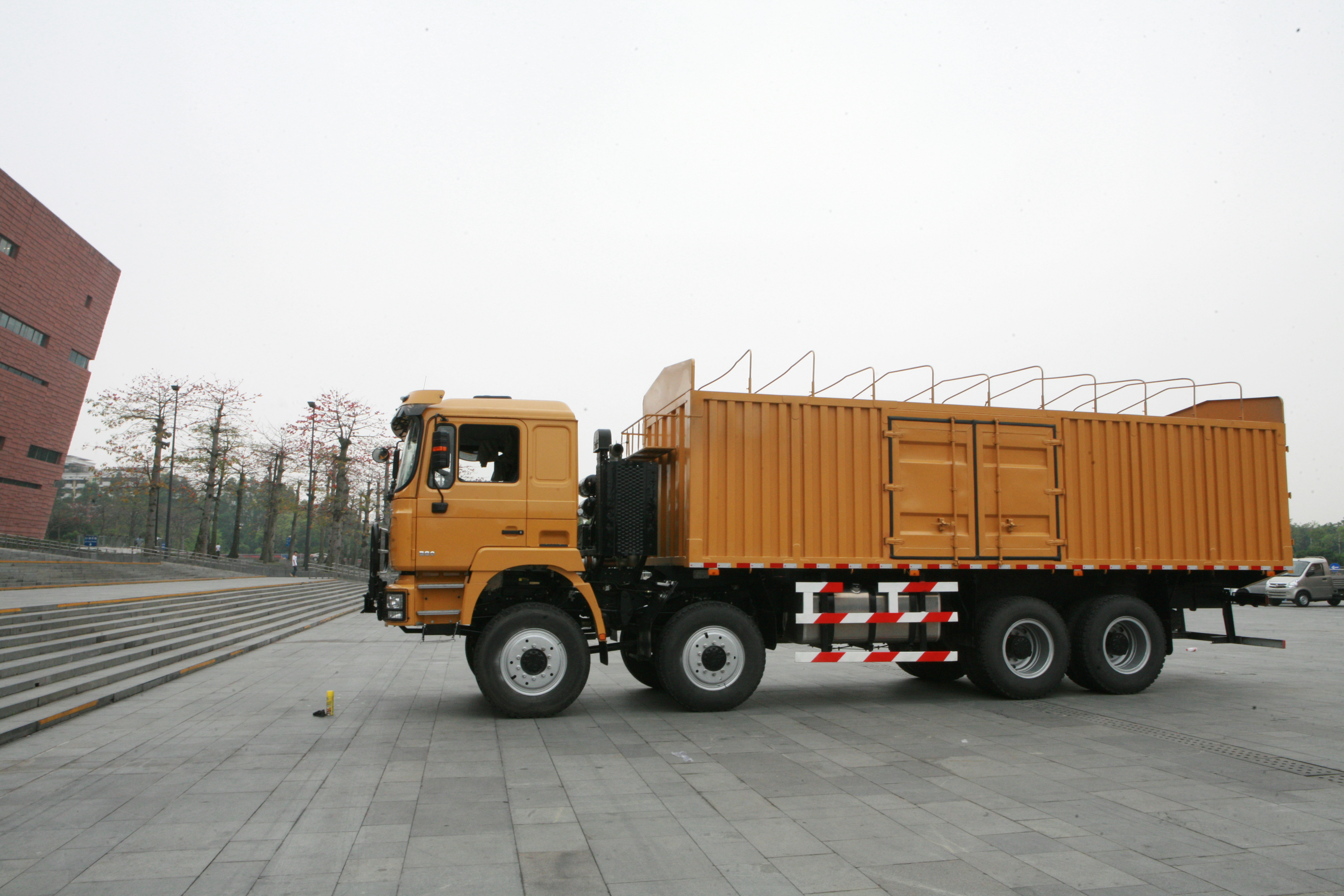

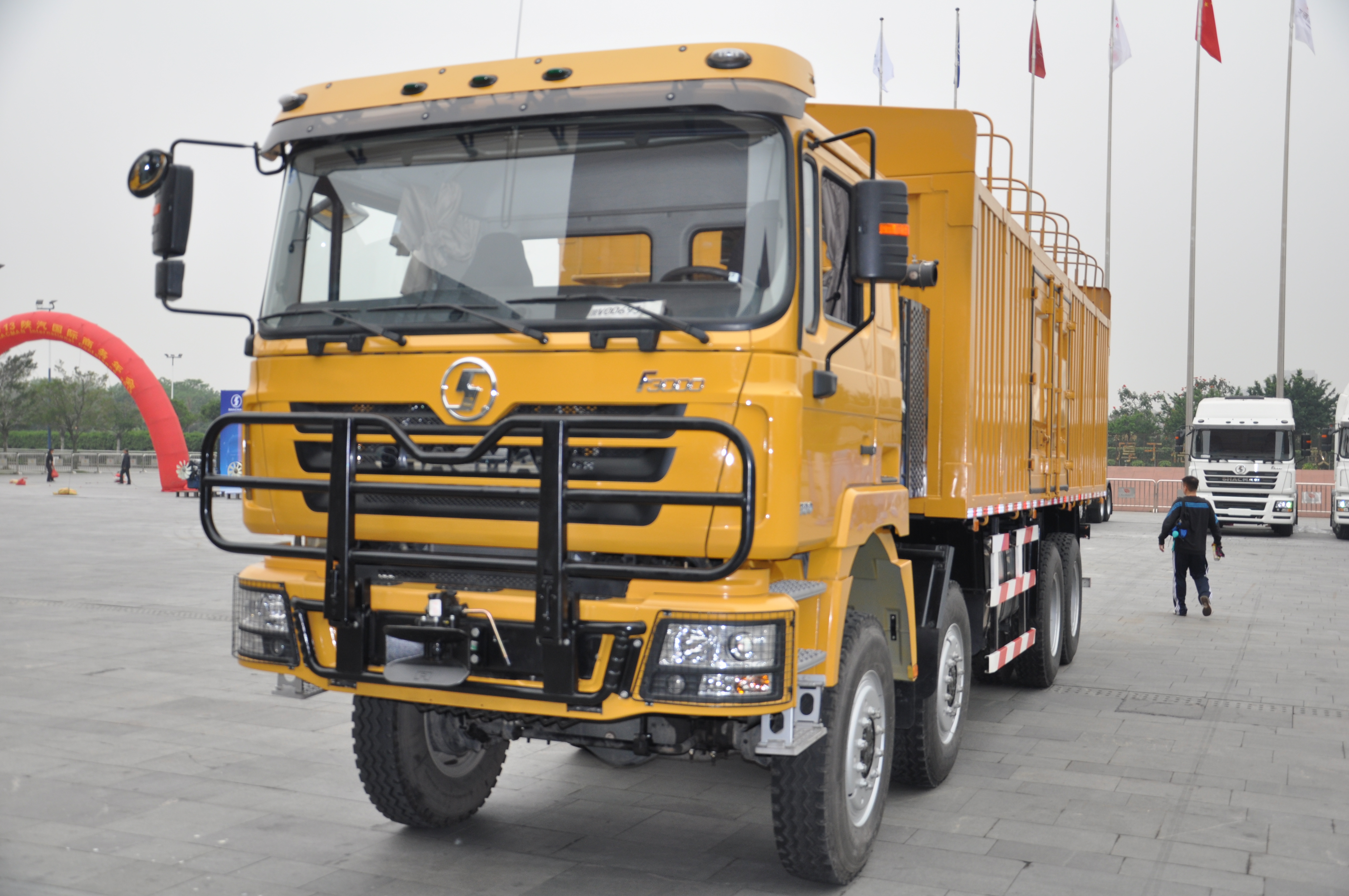

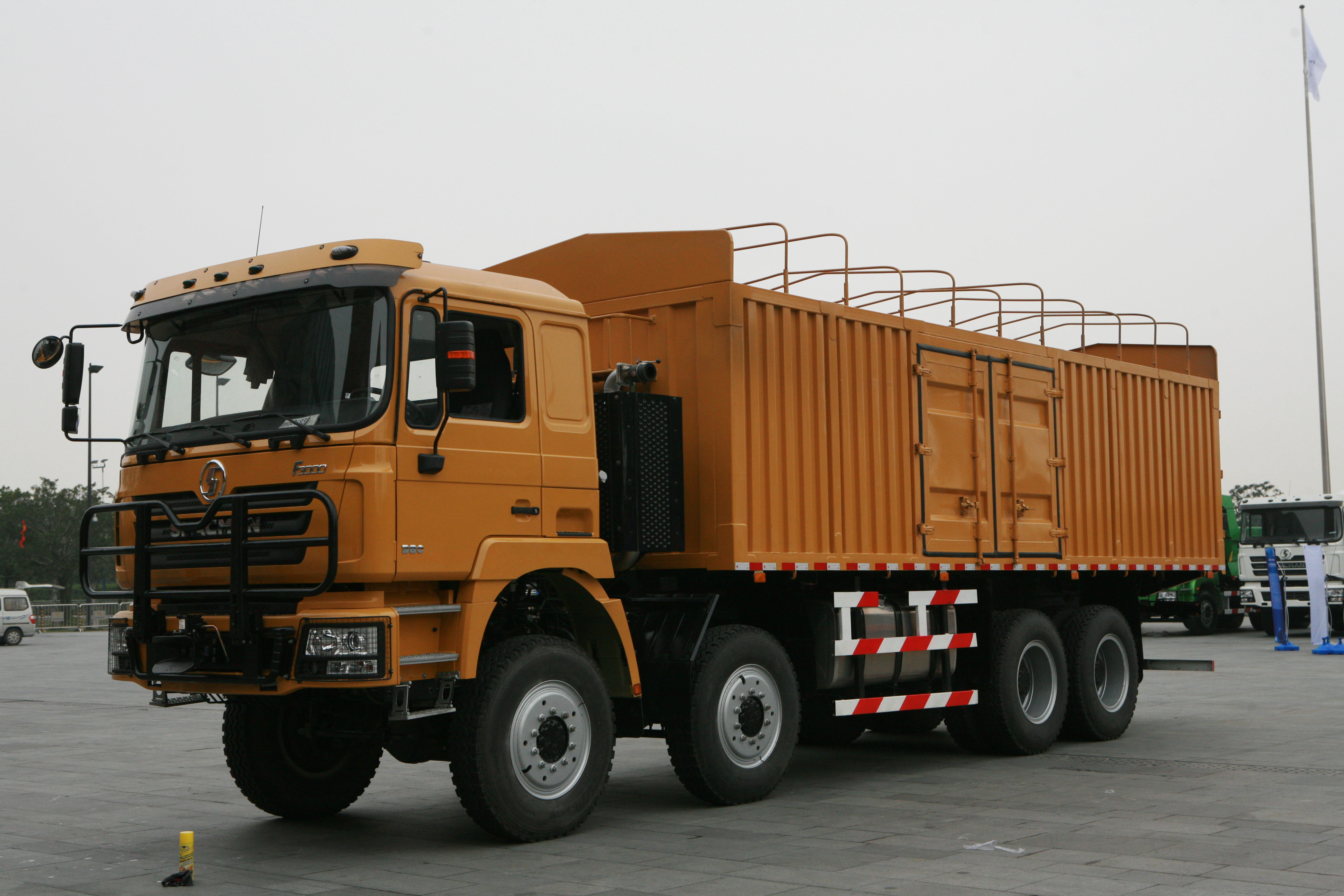

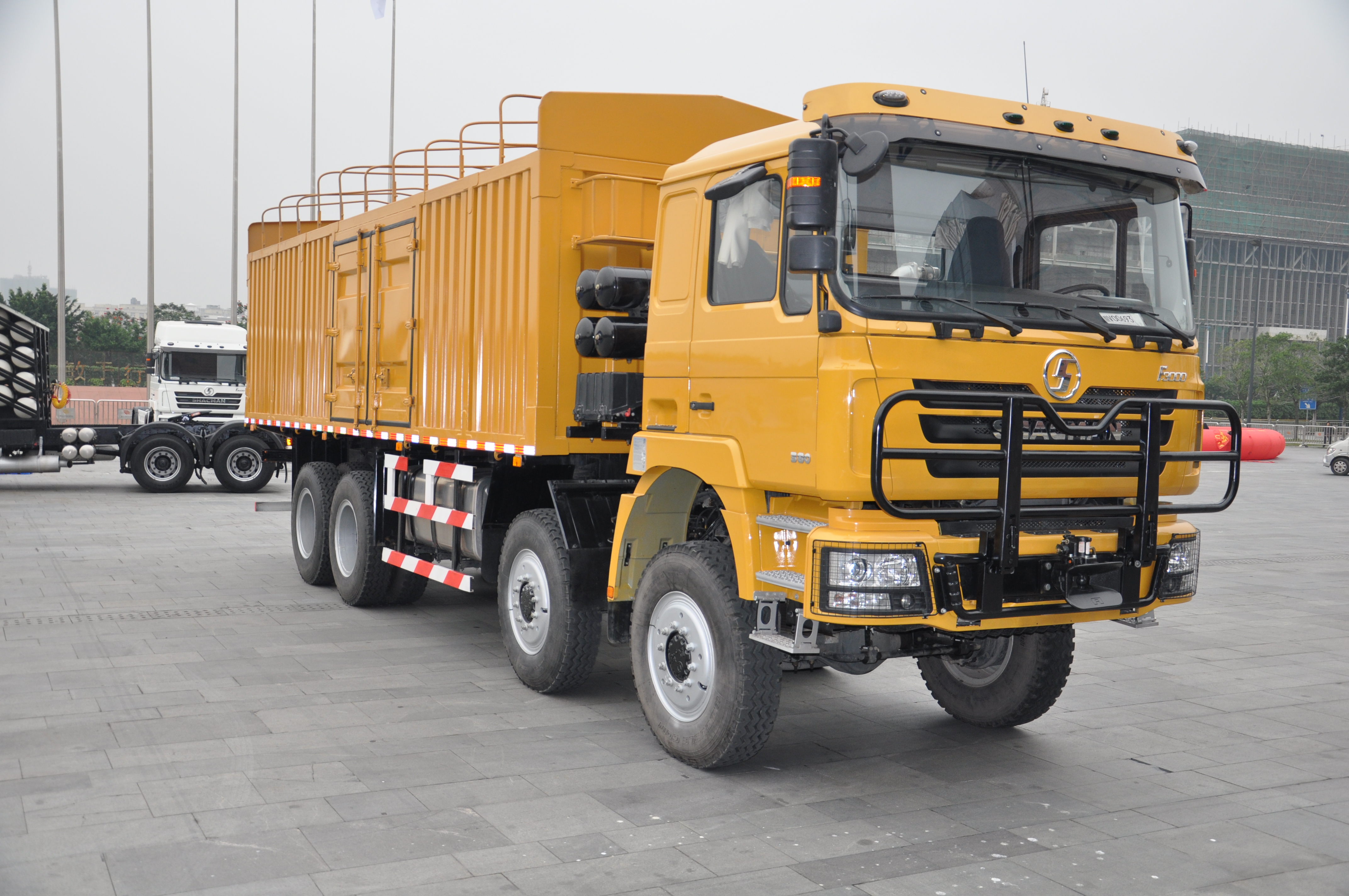

F3000 cargo truck 8×4, SX1315JU456 (WP12.400E201/Europe II), hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper,165Ah maintenance-free battery, spare tire holder, 12JSD200T-B, 7.5T MAN front axle, 16T MAN double reduction axle, ratio 4.266, 850×300 (8+7 ) double-layer frame, front and rear multi-leaf springs, four main springs+ four U-bolts, 400L aluminum alloy fuel tank, 12.00R20 tires, suitable for national and provincial roads.

F3000 cargo truck 8×4, SX13155U456 (WP12.400E201/Europe II), air main seat, four-point air suspension cab, electric electric heated rearview mirror, central control lock (dual control lock), electronically controlled automatic constant temperature air conditioner, daytime running lights, electric window shaker, manual reversing, ordinary air filter, metal bumper,165Ah maintenance-free battery, spare tire holder, 12JSD200T-B, 7.5T MAN front axle, 16T MAN double reduction axle, ratio 4.266, 850×300 (8+7) double-layer frame, front and rear multi-leaf springs, four main springs + four U-bolts, 400L aluminum alloy fuel tank, 12.00R20 tires, suitable for national highways and provincial road.

Advantages

1.The project "Key Technologies and Applications of Power Assembly for Heavy Commercial Vehicles" won the first prize of National Award for Science and Technology Progress. Weichai is the largest power assembly group in China and the world's largest manufacturer of high-speed high-power engines, and currently has more than 3.5 million units worldwide. FAST is the world's largest manufacturer and distributor of heavy-duty transmission, andthe annual production and sales of heavy-duty vehicle transmission ranks first in the world for twelve consecutive years, with more than 7 million units in the global market. HANDE axle is an important heavy-duty axle production base in China. It has produced more than 3.9 million axles, ranking first in the export of domestic axle assemblies for many years.

（1）Weichai four-valve engine has strong power with large output torque, at lower engine speed. It is the best power and explosive force in the industry. Wedge suspension is equipped in engine, The NVH performance (noise, vibration and roughness of acoustic vibration), anti-loosening performance, comfort and vehicle reliability is greatly improved.

（2）Fast transmission has dual intermediate shafts with high reliability. Large speed ratio range is suitable for different working conditions. And has strong climbing ability. The small speed ratio differential guarantees high fuel economy.

（3）The fatigue life of HANDE axle is 1318,000 times and the bearing capacity is strong. The axle adopts the European synchronous FAG low resistance maintenance-free bearing technology with independent lubrication system, lower fuel consumption.

2.Cummins, the worldwide largest independent engine manufacturer, is the only company in the global engine industry with all five key engine subsystems. Cummins ISM engine, ECM electronic control system can provide intelligent protection andmulti-level fuel filtration system has great fuel adaptability and low fuel consumption.

3.WABCO valves, adding a test air pressure interface,is easy to measure air pressure, to test braking performance and troubleshooting. VOSS joints have greatly improved reliability, and the vehicle has better air tightness and better pressure holding capacity.

4.The dryer tank and water-oil separator achieve double dewatering and oil removal protection ensures compressed air drying and cleaning, which significantly improves the reliability of brake system, reduces pipeline freezing and congestion caused by hidden risks and improves traffic safety.

5.Optional leaf spring suspension, composite suspension and air bag suspension can be used for suspension.

（1）Spring leaf has the strongest bearing ability.

（2）Composite suspension has strong carrying capacity and good comfort.

（3）Airbag suspension is light weigh with small bumpy range.

6. New generation electrical system: It adopts advanced CAN bus technology from Germany BOSCH with the function of automatic fault detection.The newly upgraded electrical system has been verified by the vehicle market of 12 million kilometers, with stable performance, safe and convenient operation.

7.Adopting simulation and multi-dynamics technology, the whole system is adjusted from walking system, suspension system and suspension system to the driver’s seat. It is verified by the latest European test standard (ISO2631) that the ride is international leader in comfort.

8.The cooling system is equipped with symmetrical left and right air chambers with advantages of shorter inter-cooler inlet pipe, reducingpipe drag resistance, tightening piping layout and increasing ground clearance.

9.Air handling unitis equipped withAPU module - air dryer and four circuit protection valves, which is simple, high reliability and safety.

10.Ф430mm large friction clutch provides high transmission torque and efficiency.

11.Weichai WEVB exhaust brake system reduces the wear of tires, brake pads and the cost of vehicle use while ensuring safety.

12.Cummins JACOB brake system:

(1) The weight of the JAC system is only 20 kilograms, which can increase the weight of the whole vehicle and increase the weight of the cargo by more than 300 kilograms.

(2) JAC is maintenance-free with no costs, which can improve operational efficiency and user revenue.

(3) JAC brake system can reduce the number of brakes and the replacing costs, extend the life of brake pads.

(4) 326 horsepower braking power and 7 gear 51 km/h downhill gear can be provided during the downhill,withhigher safety and transportation efficiency.

13.Optional Fleetguard air filter, oil bath ail filter and air filter used in desert can prolongthe life of air compressor and decrease the maintenance rate.

14.Reinforced multi-leaf spring and four U-bolts with great rigidity and strong bearing capacityare more suitable for working conditions.

15.Wheel rim has been reinforced, whose thickness increased from 14mm to 16mm and steel ring from 8.5 to 9.0.

16.Widening and variable cross section brake shoe has better heat dissipation, braking qualities and long service life.

17.Equipped with Φ120 bore steering gear, the steering assist capacity is increased by 24%, and the working condition adaptability is improved; the steering system pressure is reduced, the component failure rate is effectively reduced.

18. The ground clearance of guard gating is up to 636mm, and the thickness of the guard gating is increased from 3mm to 6mm, which can meet the requirements of customers.

19.The taillight is equipped with guard gatingto improve the adaptability of complex working conditions, which reducesthe taillight damage rate.
