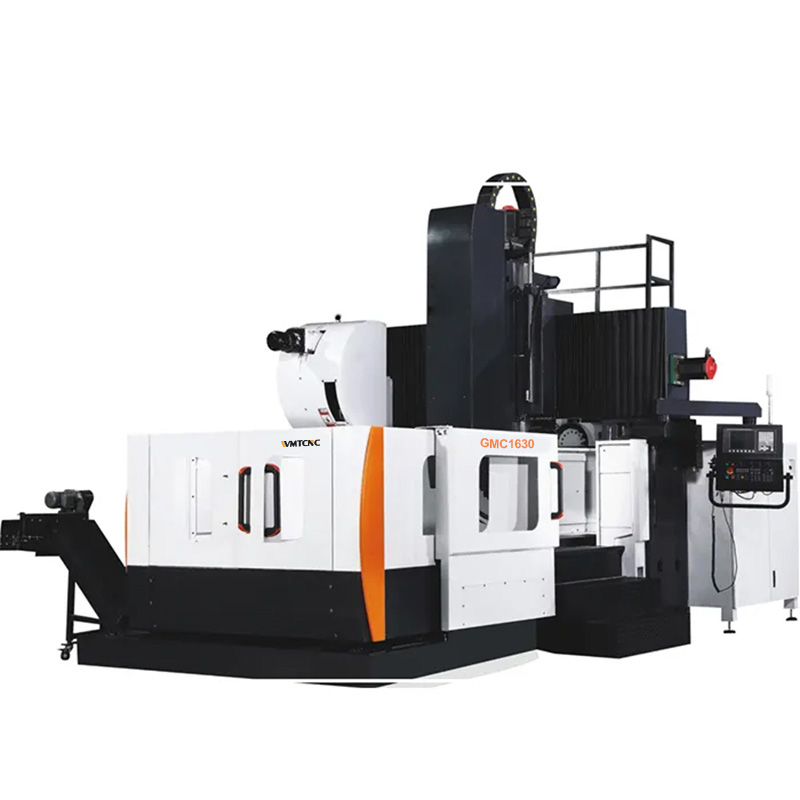

Gantry Machining Center GMC1630
WMT CNC INDUSTRIAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Gantry Machining Center GMC1630
WMT CNC INDUSTRIAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: metal
- Color: black and white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: metal
- Color: black and white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Color | black and white |
Product details
| Materials | metal |
|---|---|
| Color | black and white |
From the supplier
This machine is suitable for milling, boring, drilling, threading, etc. Machining ferrous and non ferrous metals, it can finished various process with only once install the work piece, ensure the quality of products and production efficiency.
Specification Specification GMC1630 Worktable Worktable size (L×W) 3000×1500mm T-slots size (N×W×D) 9-22×160mm Travel X/Y/Z axis travel 3000/1650/800mm Capacity Distance from spindle nose to worktable surface 160-960mm Distance between two columns 1650mm Spindle Spindle taper BT50 Spindle power 15/18.5kw Max. spindle speed 6000rpm Spindle torque 143N·m Feed Rapid feed speed (X/Y/Z) 10/10/10m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 6316/5016/5016 X/Y/Z guideway type X/Y:roller linear guideways, Z:box guideway Tool magazine Tool magazine capacity 24T Max. length of tool 350mm Tool change time (T-T) 3s Positioning accuracy (GB standard) Positioning accuracy（X/Y/Z） 0.03mm Re-positioning accuracy（X/Y/Z） 0.018mm Machine dimension L×W×H 8800×5800×5000mm Machine weight Max. loading of worktable 7t N.W 26tMachine Details
From the supplier
This machine is suitable for milling, boring, drilling, threading, etc. Machining ferrous and non ferrous metals, it can finished various process with only once install the work piece, ensure the quality of products and production efficiency.
Specification Specification GMC1630 Worktable Worktable size (L×W) 3000×1500mm T-slots size (N×W×D) 9-22×160mm Travel X/Y/Z axis travel 3000/1650/800mm Capacity Distance from spindle nose to worktable surface 160-960mm Distance between two columns 1650mm Spindle Spindle taper BT50 Spindle power 15/18.5kw Max. spindle speed 6000rpm Spindle torque 143N·m Feed Rapid feed speed (X/Y/Z) 10/10/10m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 6316/5016/5016 X/Y/Z guideway type X/Y:roller linear guideways, Z:box guideway Tool magazine Tool magazine capacity 24T Max. length of tool 350mm Tool change time (T-T) 3s Positioning accuracy (GB standard) Positioning accuracy（X/Y/Z） 0.03mm Re-positioning accuracy（X/Y/Z） 0.018mm Machine dimension L×W×H 8800×5800×5000mm Machine weight Max. loading of worktable 7t N.W 26tMachine Details
