High Pressure Polyurethane Insulation Machine
- FOB goods (100)
- $400,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $14,000
- Section 301 tariff (25.0%)
- $100,000
- Customs fees (MPF/HMF)
- $1,135
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
High Pressure Polyurethane Insulation Machine
- FOB goods (100)
- $400,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $14,000
- Section 301 tariff (25.0%)
- $100,000
- Customs fees (MPF/HMF)
- $1,135
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: PU
- Size: 800
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
About this product
- Materials: PU
- Size: 800
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
Product details
| Materials | PU |
|---|---|
| Size | 800 |
| Color | red |
From the supplier
High Pressure Polyurethane Insulation Machine

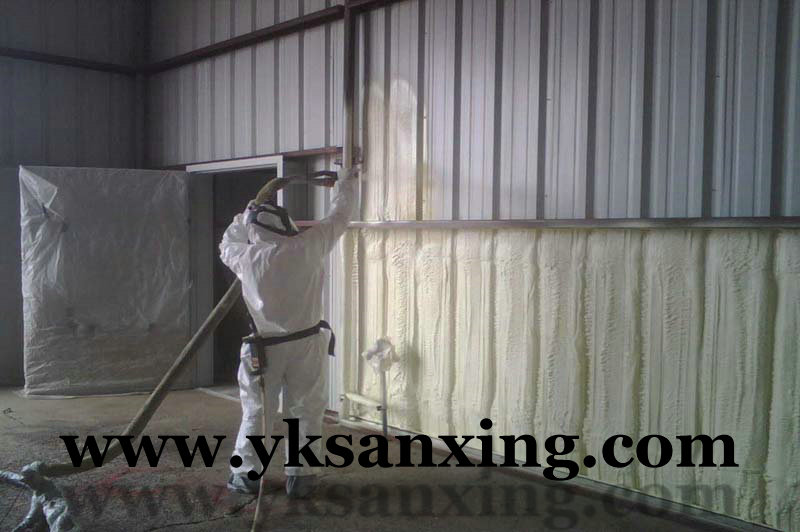

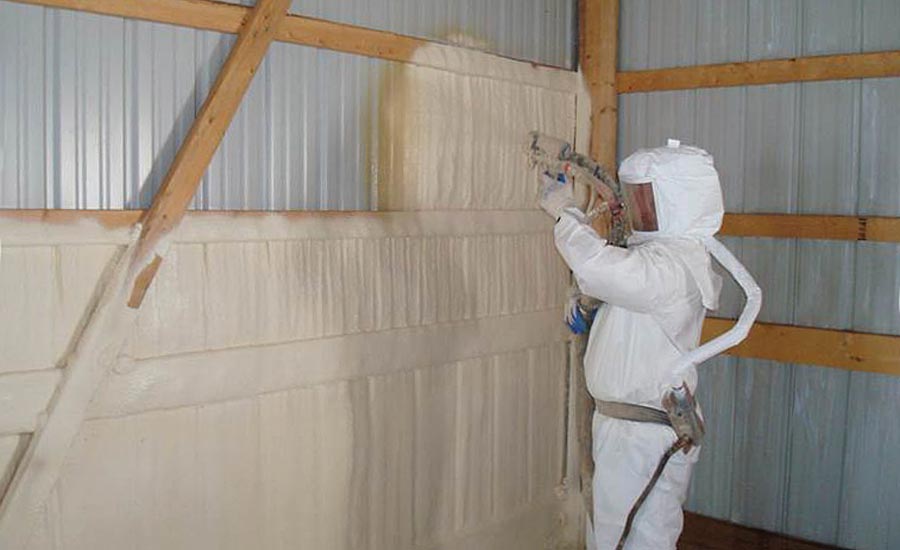

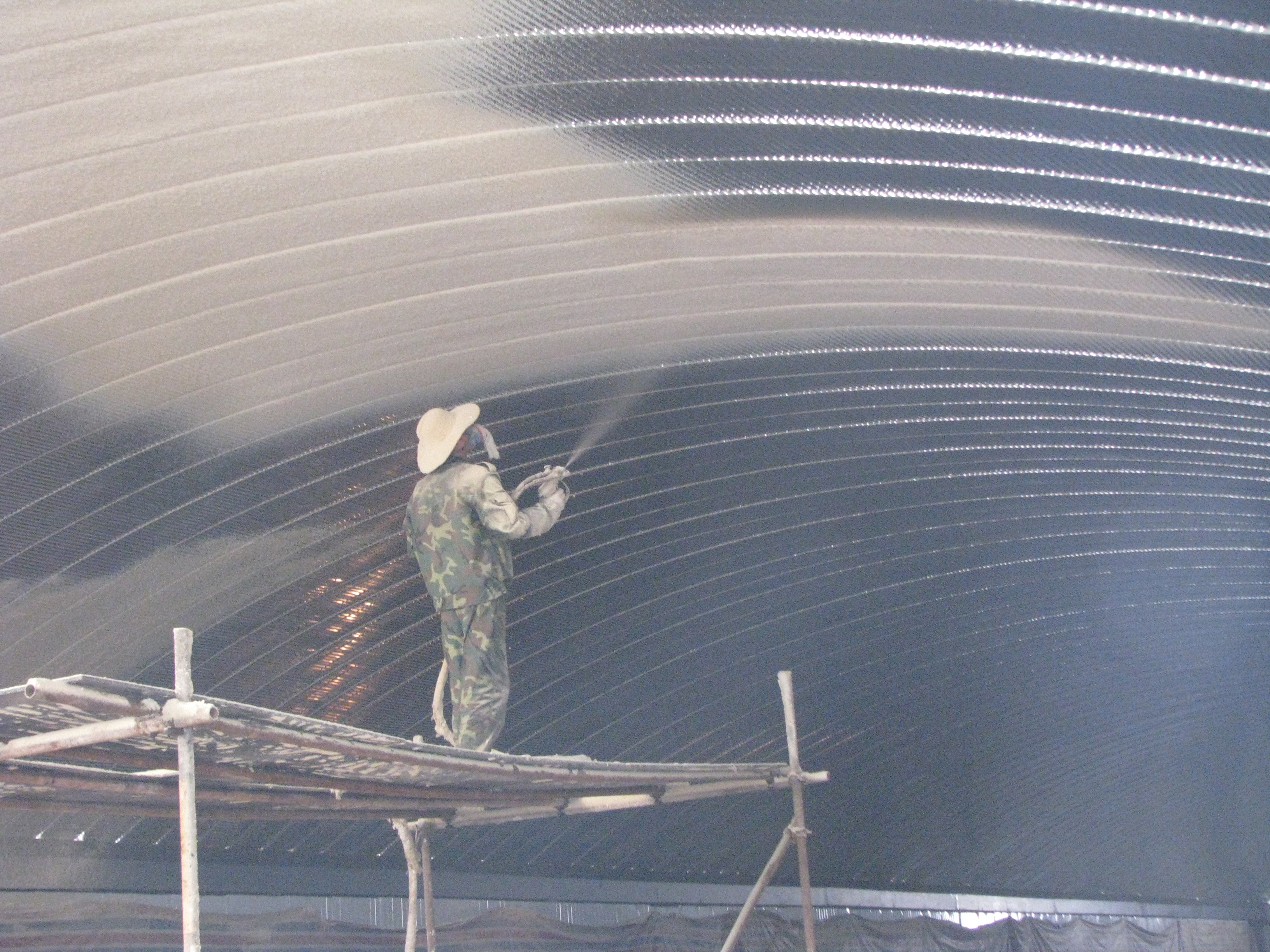

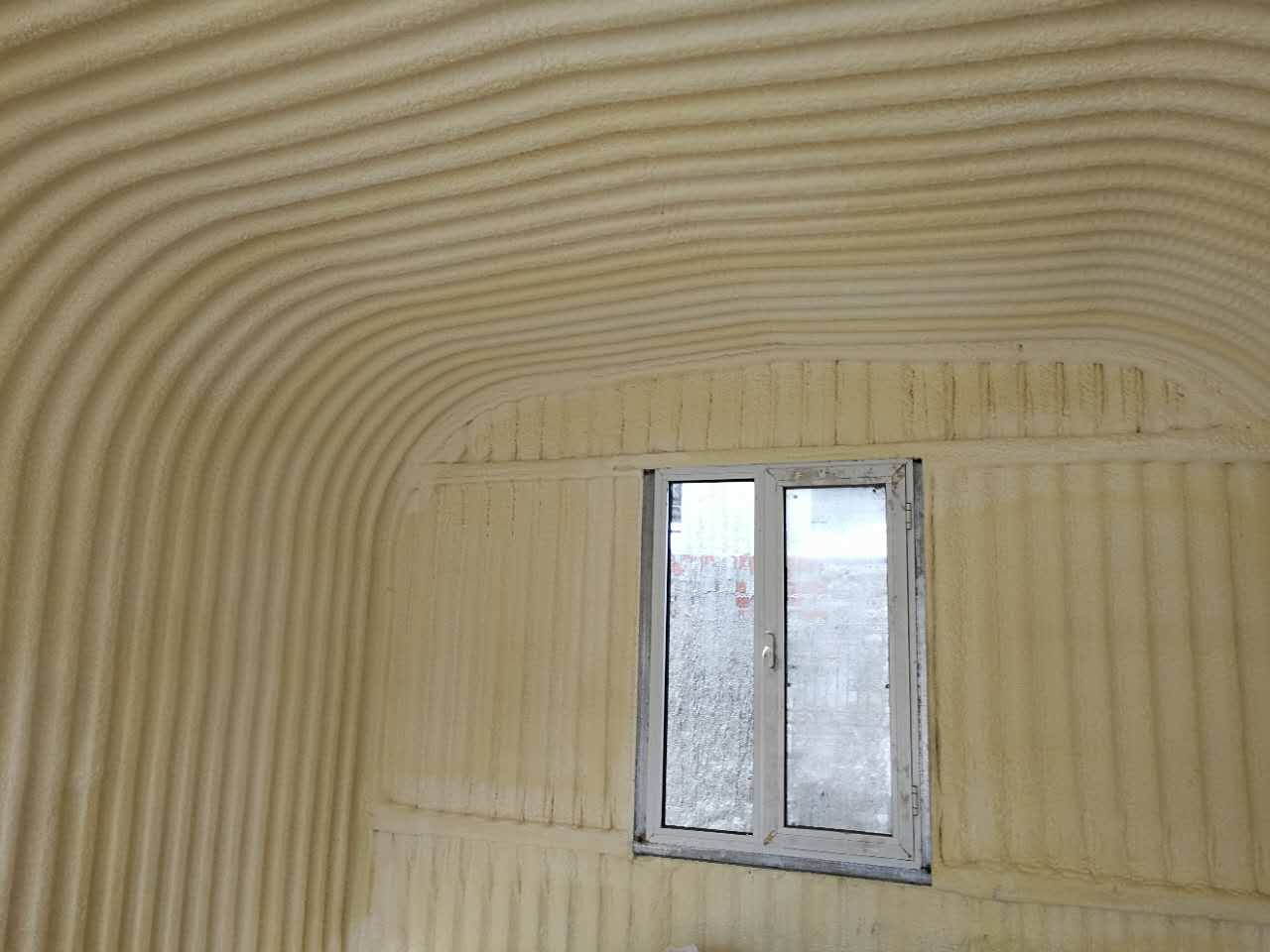

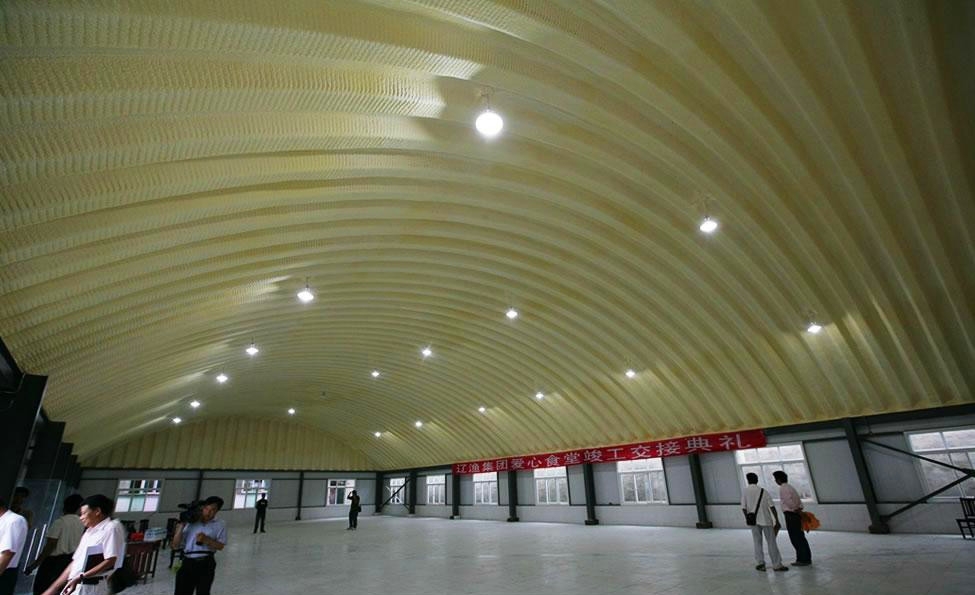

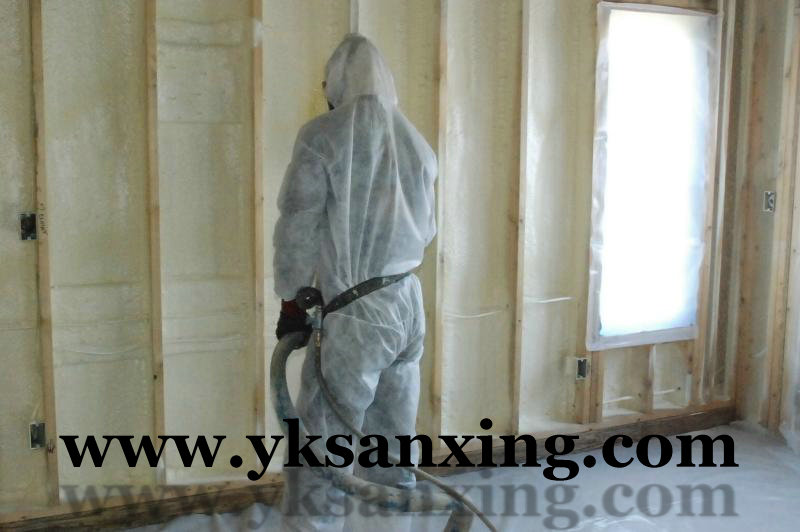

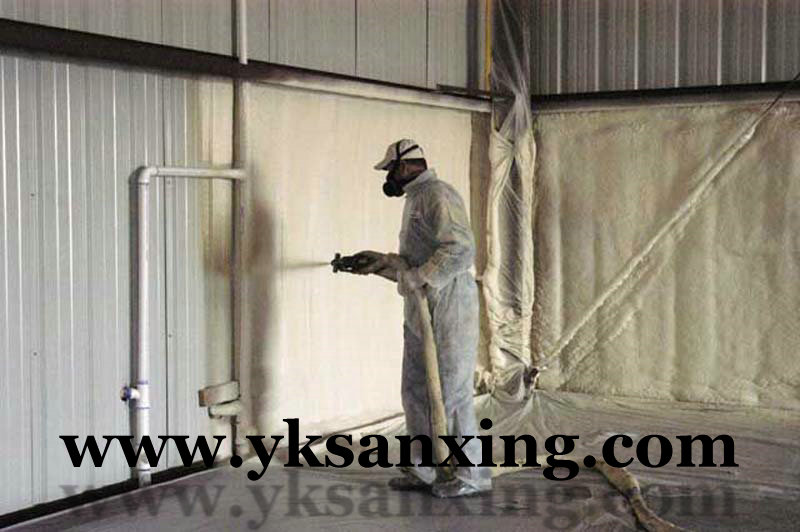

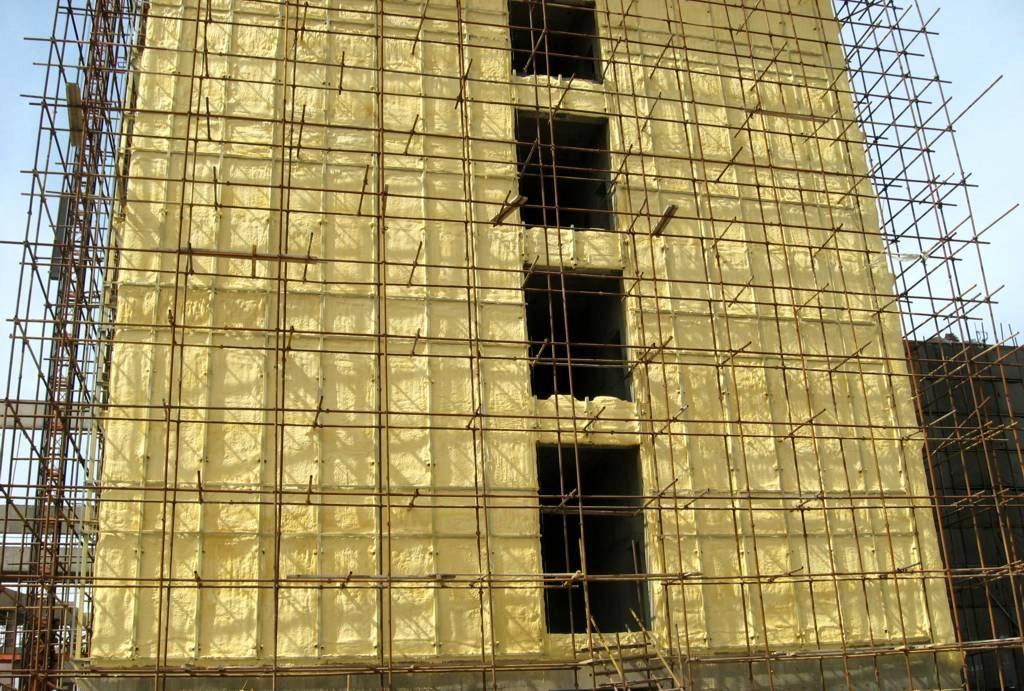

The performance parameters of the system cover the same kind of traditional two-component spraying equipment, so it can meet the application requirements in the same two-component spraying application field, at the same time, it has a wider use and promotion space in the application fields of timing, quantitative, accurate control, assembly line spraying production and so on.
Sanxing polyurethane high pressure airless spraying (pouring) molding system, adopts machining center parts to ensure the mixing pressure required for two-component raw materials.;2500 w of independent heaters to provide reliable heating source for raw materials, thus effectively solve the viscosity problem of raw materials ;15 meters of heating insulation line to ensure that the heat of heated raw materials do not lose; no solvent spray gun cleaning system, make your operation, maintenance easier.
Standard configuration
Host :1

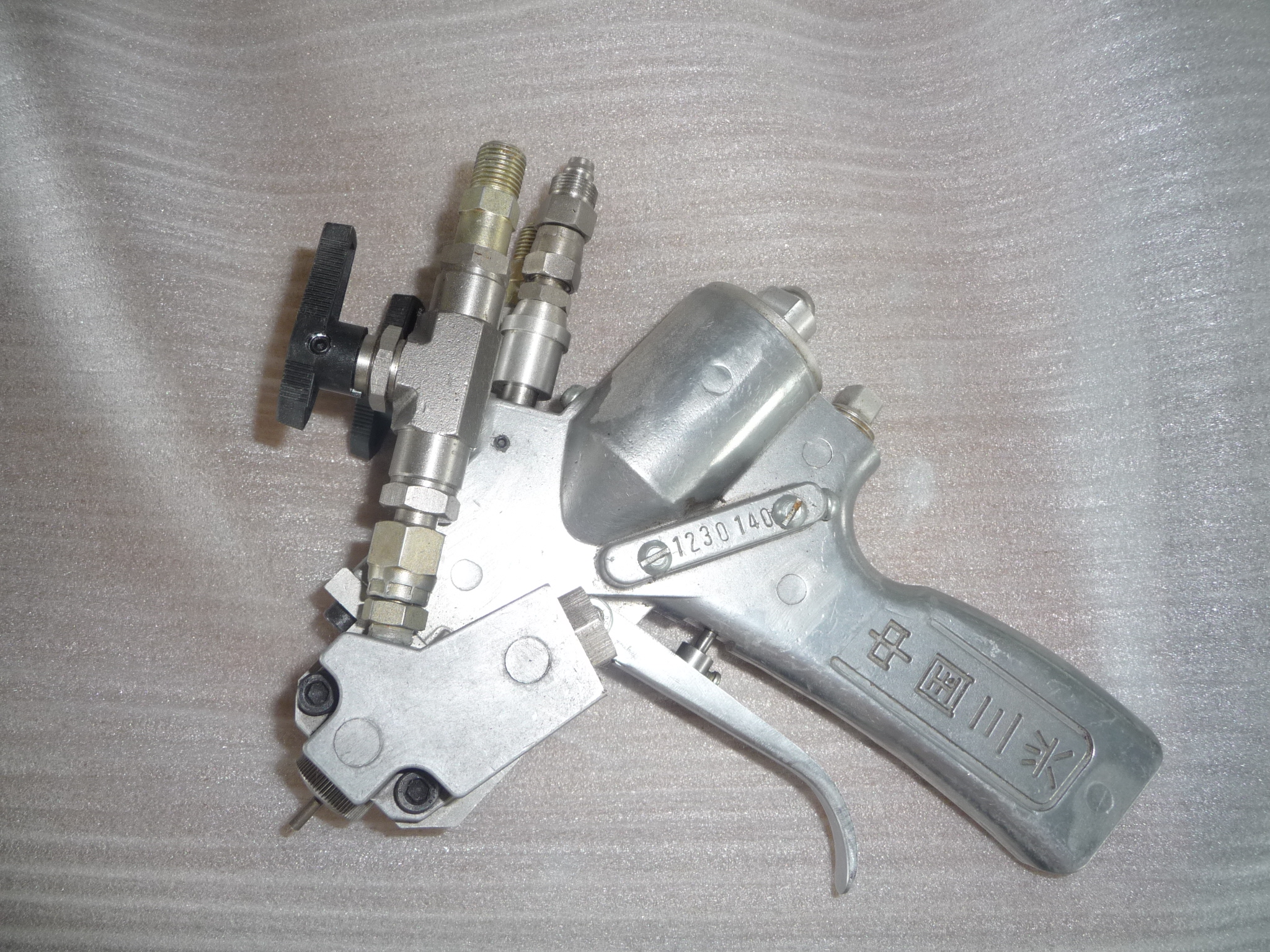

Spray gun :1
Heating insulation line :15 m
Combined short barrel: 1 set of 3 m
Feed pump : 2
Tools :1 set
Operation Manual :1 set
Technical parameters
Raw material ratio: 1:1
Raw material viscosity range: 200 ~ 1000CPS
Raw material output: 4-8kg/ min
Heating power of raw material: 2500W×2
Heating power of pipeline: 2000W
Electrical source: single phase 220V 7000W 50Hz
Air source: 0.5-0.8mpa (70~120psi) ≥0.9m3/min
Output pressure of single component raw material: 5-10mpa
Maximum length of pipeline: 45 meters
