About this product
- Materials: steel
- Size: 1350*1220*1050 1500*800*1600
- Color: Grey
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Anhui, China
About this product
- Materials: steel
- Size: 1350*1220*1050 1500*800*1600
- Color: Grey
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Anhui, China
Product details
| Materials | steel |
|---|---|
| Size | 1350*1220*1050 1500*800*1600 |
| Color | Grey |
From the supplier

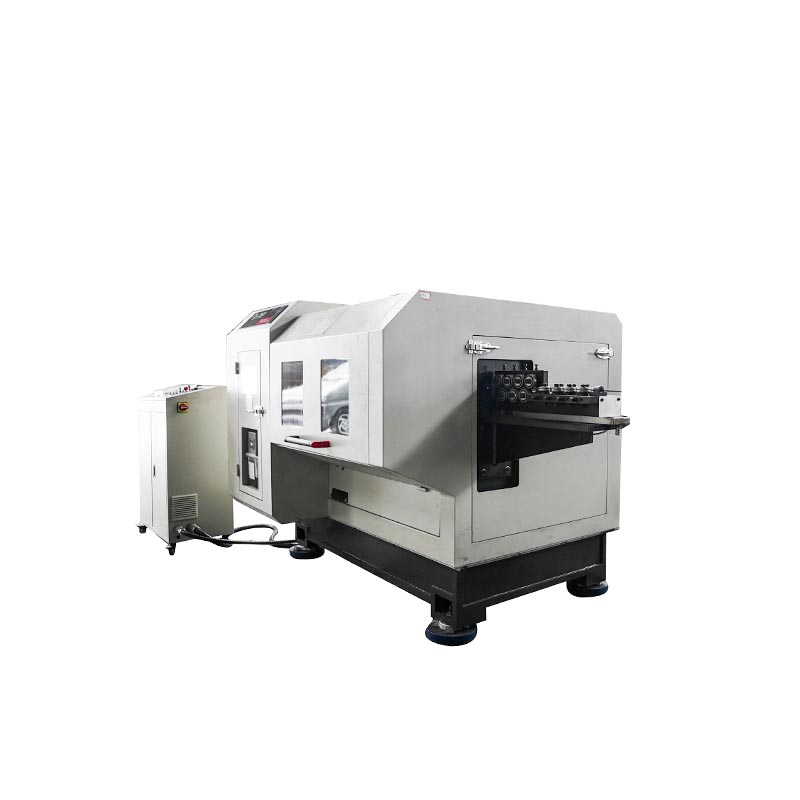

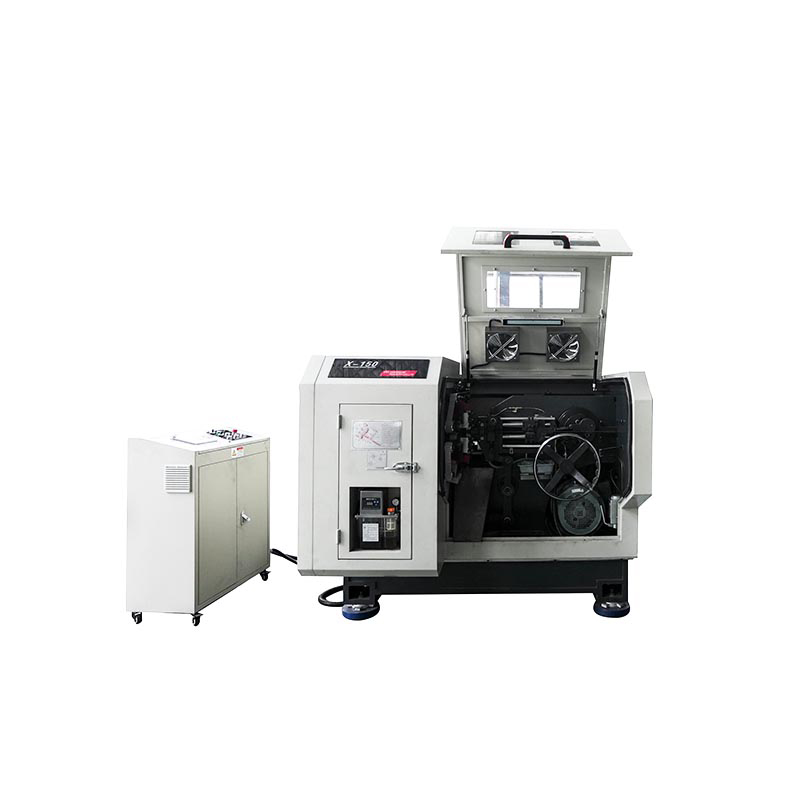

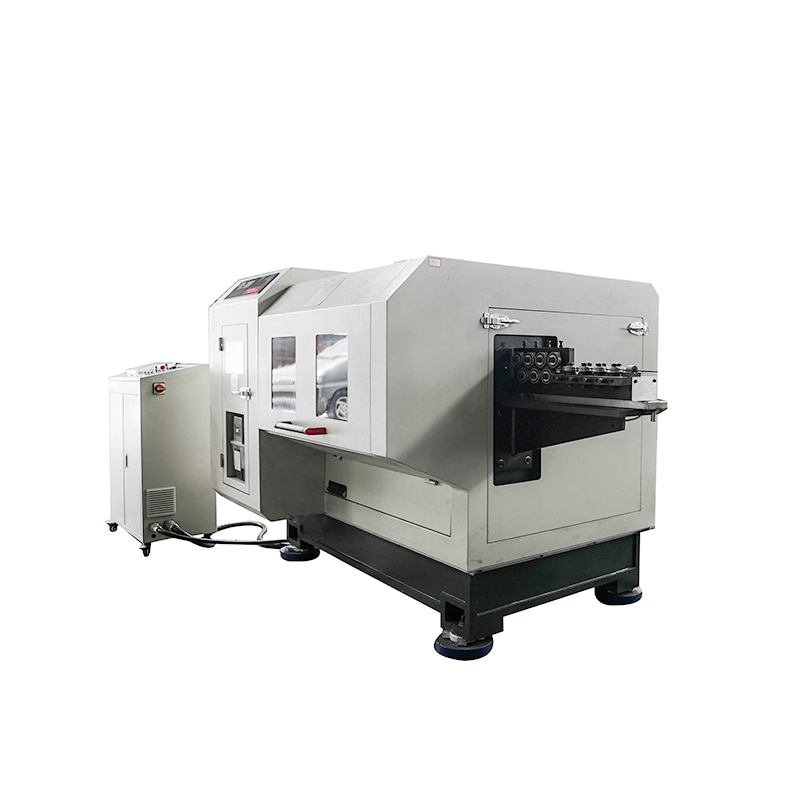

This machine is a high-speed energy-saving nail equipment, mainly used for high quality pneumatic gun nail as well as the production of nails.
Especially suitable for the production and processing of nails in small diameter, roofing nails and high standard nails at present market.
Main characteristics:
1. Shorter stroke (12 mm), traditional machine around 100 mm
a. Stable performance, defective rate less than 1/100000
b. Lower mechanical wear
c. Gripping dies and punches are more durable.
2. The nail length can be well controlled.
a. The machine equipped with sensor for detecting longer or shorter nails
b. Active wire feeding, can ensure straight shank and consistent length, no matter what the wire coil’s weight is.
3. Metal scraps can be well separated
a. Effectively protect the nail conveying belt
b. Ensure the nail head with good and consistent shape
4. High quality nails: consistent nail head and shank length (tolerance 0.5 mm), defective rate 1/100000, which is very good for coil nail collating and strip nail making.
5. Easy operation and high efficient: the machine is fully automatic and runs stably.
6. Automatic oiling system with oil pump
7. With seven alarming sensors to protect the machine and ensure the nail quality
8. Low maintenance cost
9. Save energy and labor cost
2.5-4.8mmNail length range32-50mm32-90mm70-130mm70-150mmNail making speed≤800pcs/min≤760pcs/min≤600pcs/min≤700pcs/minRate power7kw7kw7.5kw14kwDimensions1350*850*11701500*800*16001350*1220*1050 1500*800*16001550*1220*1300 1500*800*16001650*1250*1300 1500*800*1600Weight2200kg2800kg3500kg4500kgAdvantages of performance and structure1. The main features of this machine are simple structure, good rigidity, convenient use and low maintenance cost. The straight-shaft cam and the crankshaft are linked with synchronous belts, so the machine is easy to adjust and low in maintenance cost 2. The cutters and gripping dies are designed according to the cam lever principle, which is simple and reliable with stable accuracy control. 3. The double punch structure is used for gripping dies to ensure the concentricity of the nail head and the bigger diameter ratio of the nail shank and nail head.Machine DetailsCertificatePacking & DeliveryTo better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
