Main Features:

● The whole machine adopts full steel welding structure, vibration eliminate stress, has the very good rigidity and stability.

● Adopts advanced hydraulic integrated manifold, compact structure, reduce the pipeline connection, improve the reliability of system and easy maintainability

● Frame and cutting beam offer maximum rigidity and resistance to deflection and tensional force for accurate shearing of mild steel up to 40mm. This guillotine shear machine features four cutting edges that can be turned three times before grinding for increased production life.

● Advanced integrated hydraulic system with excellent reliability quality.

● Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.

● The hydraulic guillotine shear angle does not change when the tandem cylinder is sheared and adjustable rake angle can minimize plate deformation.

● As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also guaranteed.

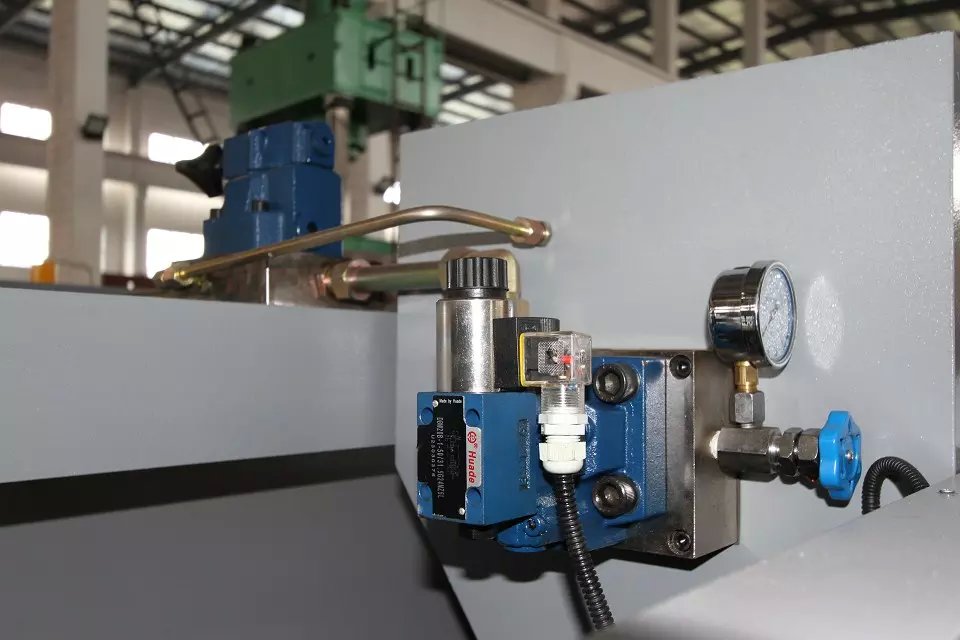

Hydraulic system:

● Hydraulic system is from Bosch -Rexroth, Germany.
When the oil comes out from the pump, all the way into the pressure cylinder first presses the sheet material, and another routing time relay controls the delay to enter the left cylinder upper chamber for about 2 seconds. The oil in the lower cylinder of the left cylinder is forced into the upper cylinder upper chamber and the right cylinder lower chamber. Oil back to the tank. The return stroke is reversed by the solenoid valve.

Main configuration:

· Bright LCD screen

· Back / front gauge control

· Retract function

· Cutting angle control and gap control

· Stroke length limitation

· Force control

· Manual movement of all axes

· Force control

· Sheet thickness measurement

· RTS, Return to Sender function

· Second servo axis (DAC-362s)

· Sheet support
