About this product
- Materials: paper and pe coating machine
- Size: 11800 x 7800x 4500mm
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: paper and pe coating machine
- Size: 11800 x 7800x 4500mm
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | paper and pe coating machine |
|---|---|
| Size | 11800 x 7800x 4500mm |
| Color | white |
From the supplier
company introduction :
Jiangyin City Jiangnan Light Industrial Machinery co., LTD is located in Jiangyin city ,Jiangsu Province of China, A beautiful and fertile region with rivers and lakes in east of china with convenient transportation.
Founded in 1984. we are one of the earliest enterprises to develop plastic packaging machinery. Factory covers 55000 square meters areas, owns the high quality technical team, with first-class numerical control processing equipment. we have processed the consummation management system with strong R&D capability, owned the ability to enrich the market by 34 years developing. We are committing to the design, manufacture and service for soft paper & plastic packaging machinery and equipments. We Mainly manufacture the multi-layer coating machine (extrusion laminating machine), Roto gravure printing machine , Laminating machine ,film blowing machine , bag making machine etc.
The whole production process is strictly regulated in accordance with the ISO9001 quality management standard CE certification. More than 30 utility model patents and invention patents have been obtained, of which 10 products have filled domestic gaps.Formed three series, more than 30 kinds of products widely used in food, beverage, medicine, chemical industry and other fields. Now our products are hot sale in the domestic market , and export to southeast Asia, Europe, Africa and other regions.Our products have won the Second Prize in National Star Fire, ministry, province, city scientific and technological achievement progress award, international design invention patent gold medal, jiangsu province quality new product gold medal.
Jiangnan light industry machinery factory was appraised as “85” National Scientific And Technological Advanced Township Enterprises.In the 1990s we were designated as Jiangsu Packaging Equipment Manufacture ,China Food Packing Machinery Cooperative Enterprise, and obtained science and technology innovation fund by our Multi-layer Coating Machine for food industry.
we adheres to the business philosophy of "quality is the base, innovation is the key" . we are sincerely customized with all kinds of soft paper & plastic packaging machinery and equipments for the customer from all over the world.
machinery inforamtion :
A. Brief Introduction

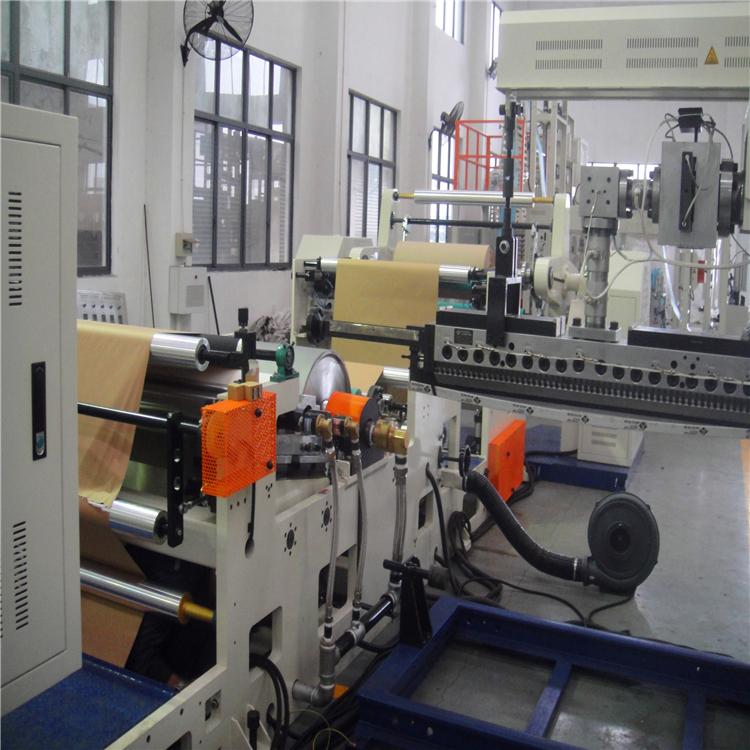

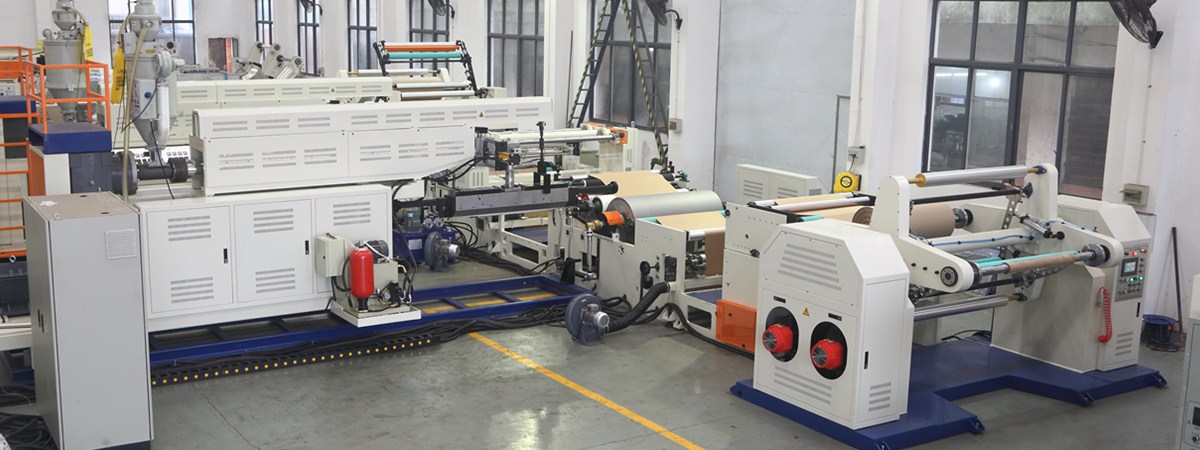

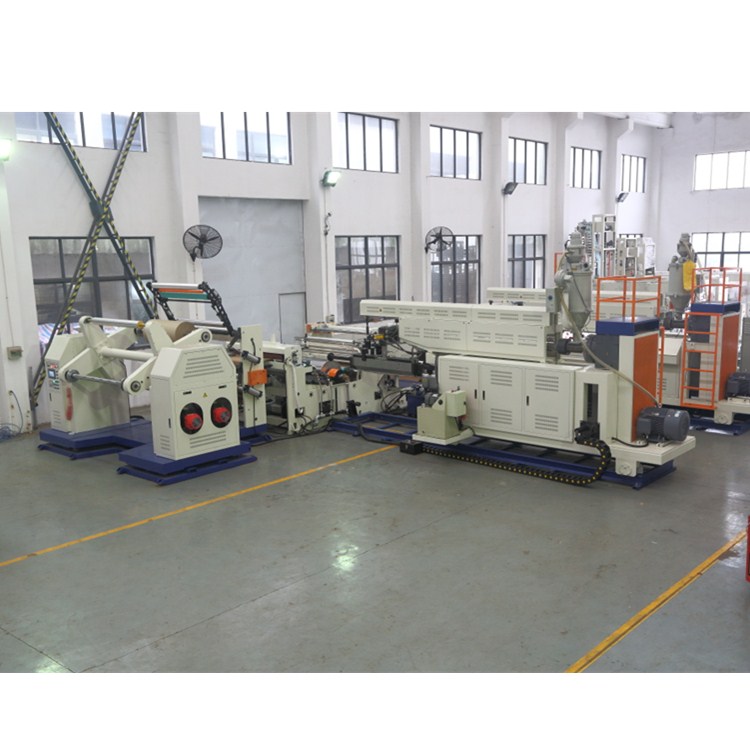

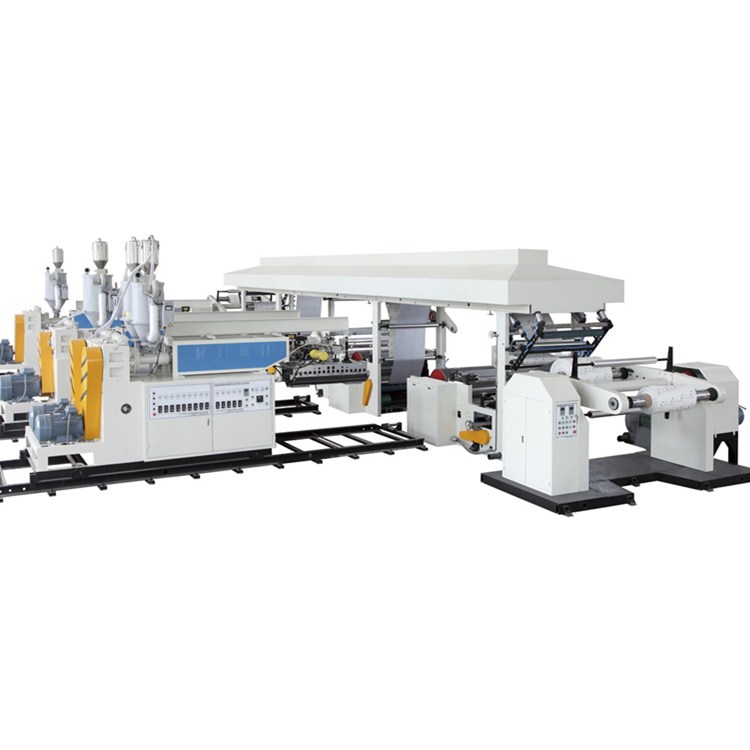

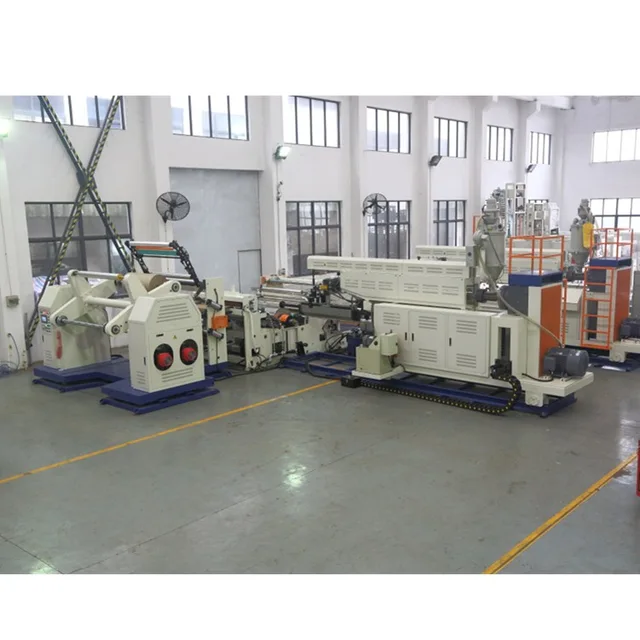

JLM100-1800 model coating and laminating machine adopts electric, pneumatic and micro system and PLC control system. Used to coating one layer on soft non woven surface. It include:

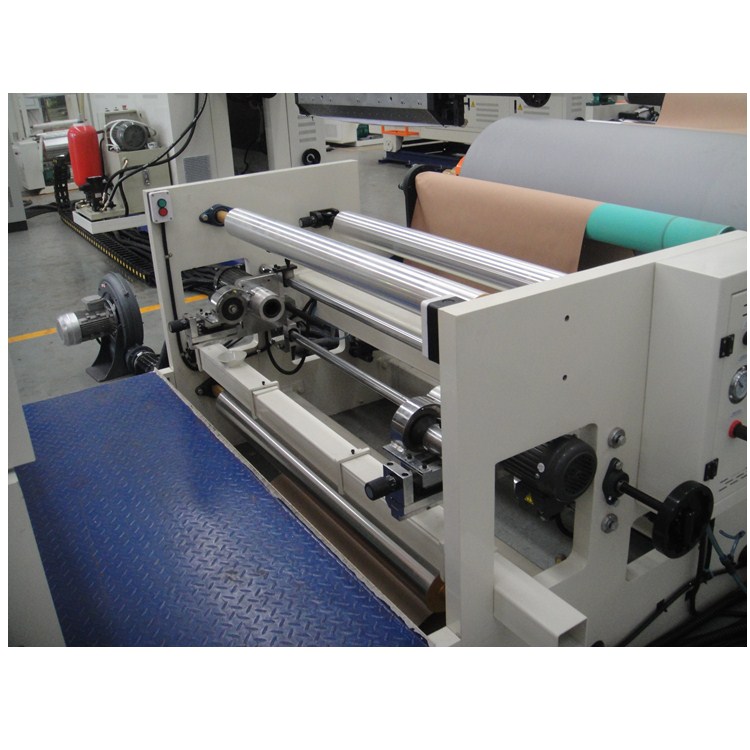

- 1. Unwinding system:two seperate stand pneumatic rollers magnetic blade controller.

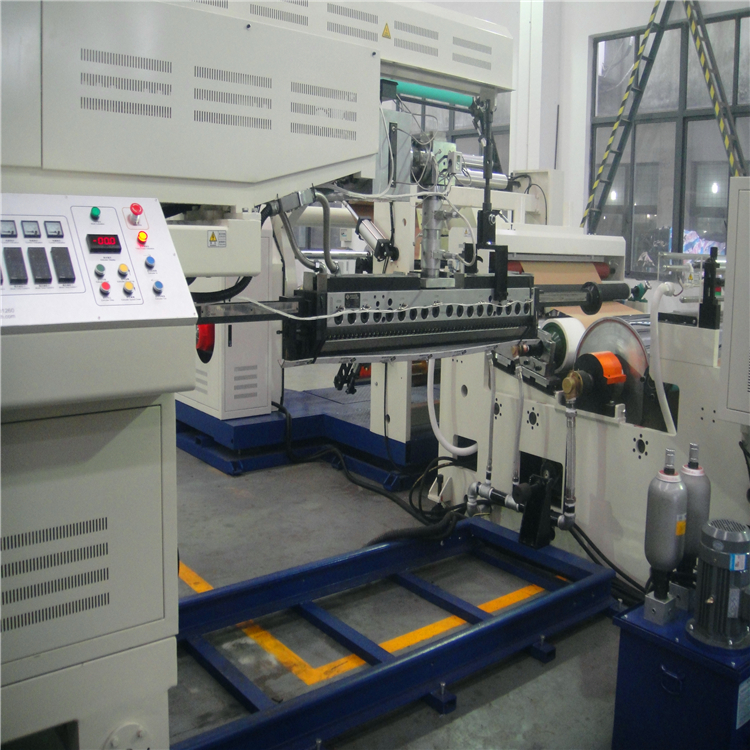

2. Extruder & T-die.

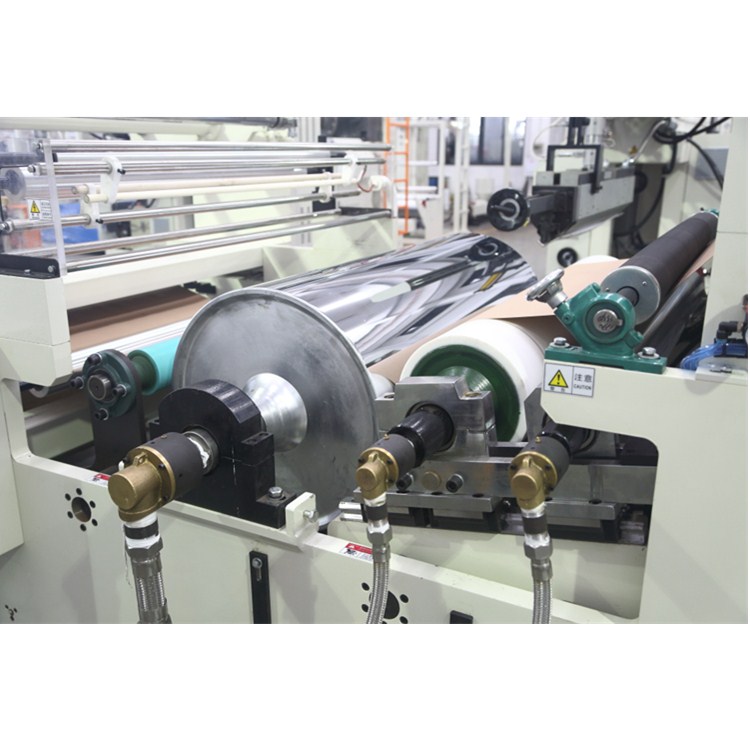

3. Laminating system.
- 5. Rewinding system:
6. Others: PLC System (screen touch), automatic accounting meter.
(Picture DELTA brand changed to SIEMENS)
B. Main Technical Parameters
1. Applicability：coating 10gsm～75gsm roll base paper.
2. Coating materials: PE, PP, EAA, EVA and so on.
3. Coating width: 1250~1750mm.
4.Coating thickness: 0.010～0.2mm (single layer).
5. Evenness degree of coating: error±3% (according to actually base materials).
6. Strength of peel off: 3-5N/30MM (according to the actual coating material).
7. Max extruding capacity: 250kg/h.
8. Machine design speed: 0-80m/min.
9. Unwinding system adopts double shafts work station,Tension is automatically controlled by magenetic blade technology, and tension feedback system. Rectify system adopts trolley type automatic pneumatic rectifying equipment (EPC), rectify journey: ±50mm.

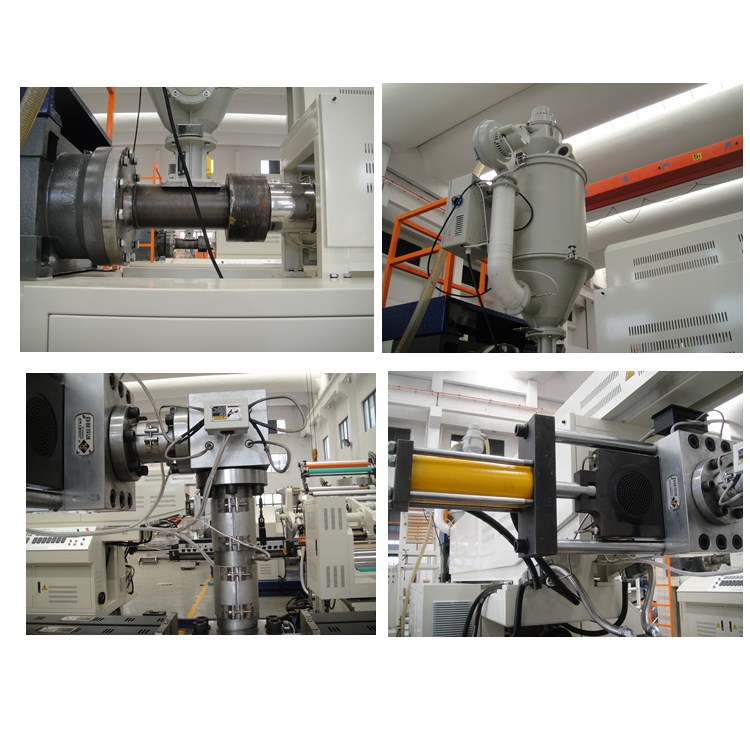

10. Extruder system : Pedestal for extruder adopts the light rail pedestal to move automatically from front to back, up and down.mother and son type mini extruder worked for color masterbatch.
11. Screw & Barrel: φ 100mm, L=33D, screw material: 38CrMoAl.hardening and surface itrogen Treated (NT), enhanced double mixing type, with high capacity.
12. digital intelligent temperature control system.
13. Loop of porcelain enamel for screw and barrel; (each zone with overload short circuit device).
14. Stainless steel inside heat die (each zone with overload short circuit device).
15. T-die: new type featheredge mould, material: 5CrNiMoV, hardening and tempering, deal with Chrome, having good tenacity, will not transmogrification after frequently using in high temperature.
16. The reduction gear box adopts high strength hard tooth surface reduction box with high obscuration and more reliable. lips is 0.008mm gap. Specially for coating machine,temperature range from 150-300℃。

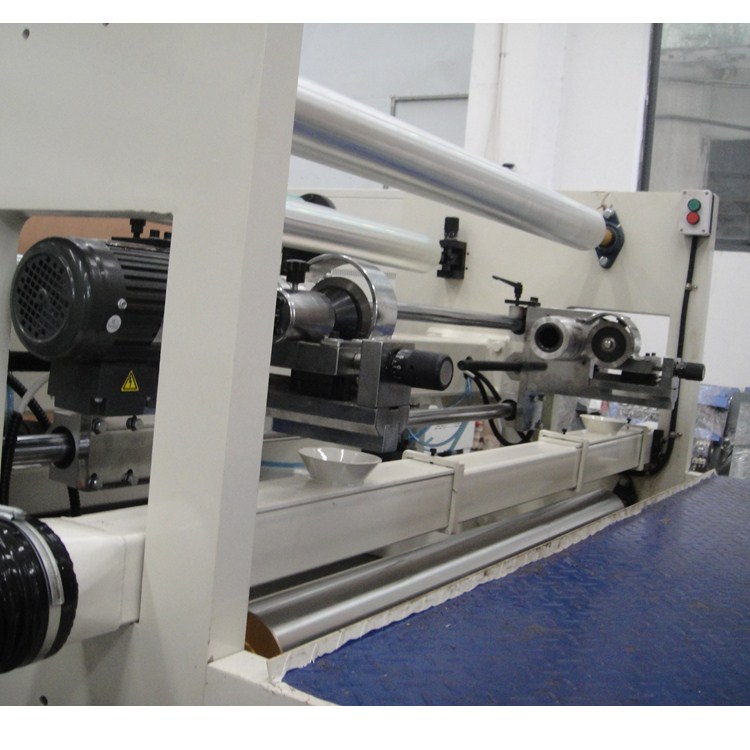

17. Winding adopts four roller guiding roller rewinding, tension control by magnetic blade. Automatic accounting.
18. Max diameter of unwinding: 1000mm, max diameter of winding: 1000mm.
19. Pneumatic shaft for unwinding and winding: 3 inch (diameter: 76mm).
20. Total power: 100 kw. (cost 50kw/h during running).
21. Machine dimension(L×W×H): 8800mm×7700mm×3200mm.
22. Weight: about 18000kg.
