About this product
- Materials: film blowing and printing machine
- Size: 4000mm×1300mm×2500mm
- Color: usual : the white and orange ,can be customize as require
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: film blowing and printing machine
- Size: 4000mm×1300mm×2500mm
- Color: usual : the white and orange ,can be customize as require
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | film blowing and printing machine |
|---|---|
| Size | 4000mm×1300mm×2500mm |
| Color | usual : the white and orange ,can be customize as require |
Product details
| Materials | film blowing and printing machine |
|---|---|
| Size | 4000mm×1300mm×2500mm |
| Color | usual : the white and orange ,can be customize as require |
From the supplier
JSY-350 FILM BLOWING AND PRINTING MACHINE
Jiangyin City Jiangnan Light Industry Machinery Co.,Ltd.
Our factory founded in 1984. With 30 years experience , we are the professional manufacture in the field of the soft paper & plastic packing machinery and equipment, mainly manufacture the multi-layer coating machine (extrusion laminating machine), rotogravure printing machine, film blowing machine.
In 2000, we’ve got more than 30 items’ national invention patent and practical New-style patent.
We are keeping moving want to be better.
Our aim is :’’ Recruitment world passenger and reputation come from the letter, sincerely customize every type of paper and plastic packing machinery for our client and making us obtain progress.
production details：
The JSY-350 blown film combination color printer is an equipment dedicated to the production of packaging bags for medical infusion sets. This equipment can be used for the production of environmentally friendly materials PLA. It is one of our company's most mature production lines. Due to the epidemic, this equipment has become a best-selling product in 2020.
Main technical parameter
Screw and barrel
Φ45mm, L=28D
38CrMoAl,surface with nitride,with special mixed segment,great effect,high capacity
Blowing material
LDPE/HDPE/LLDPE and recycled material and so on
Blowing film width
100mm-350mm
Blowing film thickness
LDPE:0.012mm-0.3mm;HDPE:0.01mm-0.2mm
Printing width
400mm
Color
2/3/4/5 colors (price different)
Power
25kw,3Phase 380V
Total weight
2200kg
Output
10-35KG
Printing speed
40m/min

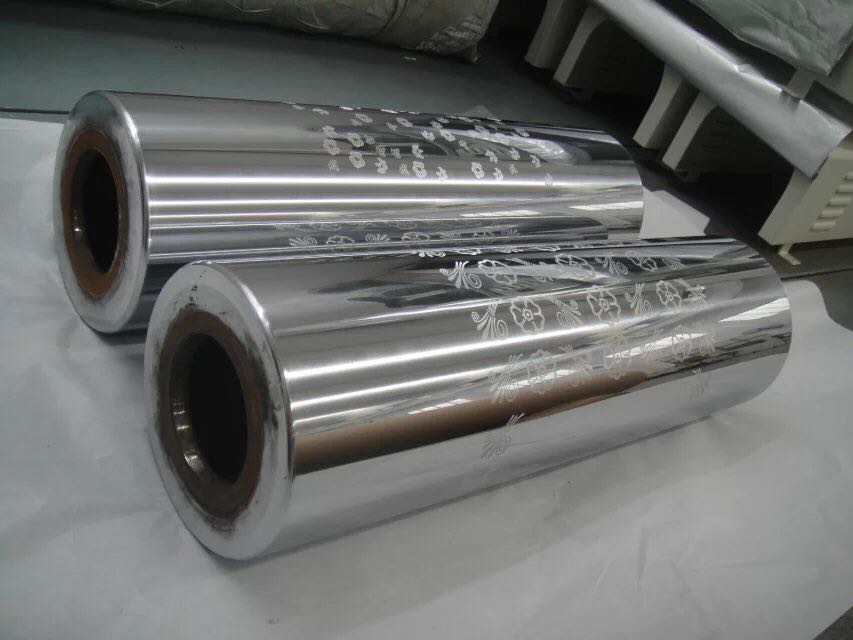

Granvure size
L(620mm),¢75-180mm

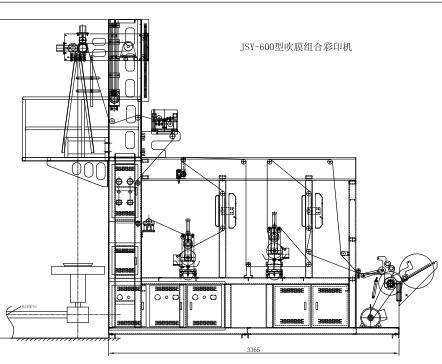

Overall size
4000mm×1300mm×2500mm
Main system feature

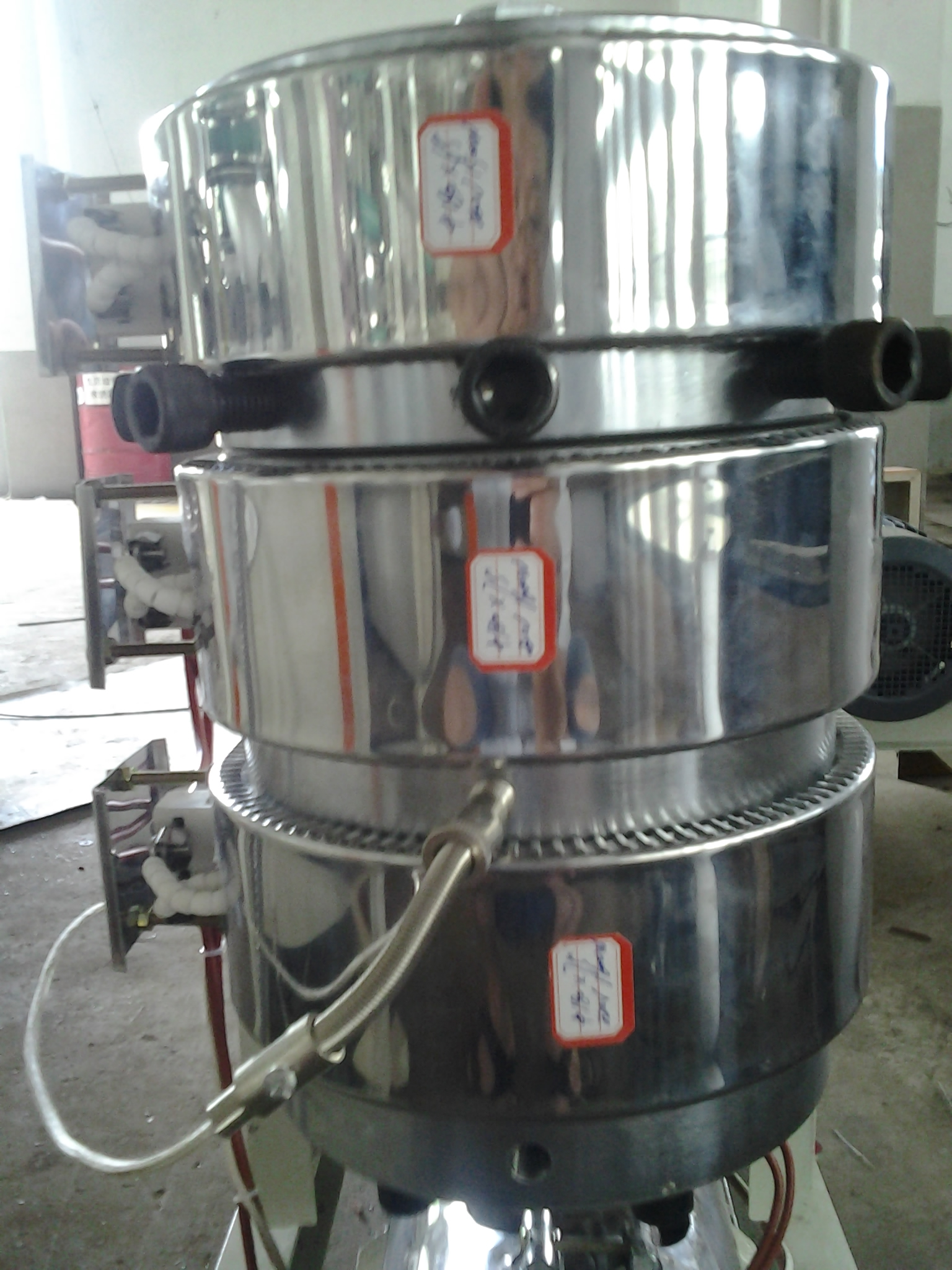

Extruding system
High strength hard tooth surface with high obturation , good reliability ,high capcity, little noise ,long using life ,steady transmission and the other.
Drawling up system
Adjustable motor control
Rewind system
Centre rewinder
Electric equipment list
No.
Name
Place
Brand
1
Gearbox
China
Keiwei
2
Motor
Shanghai or Zhejiang or Germany
Siemens
3
Inverter
China
INVT
4
Temperature controller
Japan
Omron
5
Contactor
China
Delixi
6
Pneumatic element
Taiwan
Airtac
Sample
From the supplier
JSY-350 FILM BLOWING AND PRINTING MACHINE
Jiangyin City Jiangnan Light Industry Machinery Co.,Ltd.
Our factory founded in 1984. With 30 years experience , we are the professional manufacture in the field of the soft paper & plastic packing machinery and equipment, mainly manufacture the multi-layer coating machine (extrusion laminating machine), rotogravure printing machine, film blowing machine.
In 2000, we’ve got more than 30 items’ national invention patent and practical New-style patent.
We are keeping moving want to be better.
Our aim is :’’ Recruitment world passenger and reputation come from the letter, sincerely customize every type of paper and plastic packing machinery for our client and making us obtain progress.
production details：
The JSY-350 blown film combination color printer is an equipment dedicated to the production of packaging bags for medical infusion sets. This equipment can be used for the production of environmentally friendly materials PLA. It is one of our company's most mature production lines. Due to the epidemic, this equipment has become a best-selling product in 2020.
Main technical parameter
Screw and barrel
Φ45mm, L=28D
38CrMoAl,surface with nitride,with special mixed segment,great effect,high capacity
Blowing material
LDPE/HDPE/LLDPE and recycled material and so on
Blowing film width
100mm-350mm
Blowing film thickness
LDPE:0.012mm-0.3mm;HDPE:0.01mm-0.2mm
Printing width
400mm
Color
2/3/4/5 colors (price different)
Power
25kw,3Phase 380V
Total weight
2200kg
Output
10-35KG
Printing speed
40m/min
Granvure size
L(620mm),¢75-180mm
Overall size
4000mm×1300mm×2500mm
Main system feature
Extruding system
High strength hard tooth surface with high obturation , good reliability ,high capcity, little noise ,long using life ,steady transmission and the other.
Drawling up system
Adjustable motor control
Rewind system
Centre rewinder
Electric equipment list
No.
Name
Place
Brand
1
Gearbox
China
Keiwei
2
Motor
Shanghai or Zhejiang or Germany
Siemens
3
Inverter
China
INVT
4
Temperature controller
Japan
Omron
5
Contactor
China
Delixi
6
Pneumatic element
Taiwan
Airtac
Sample
