Product Description

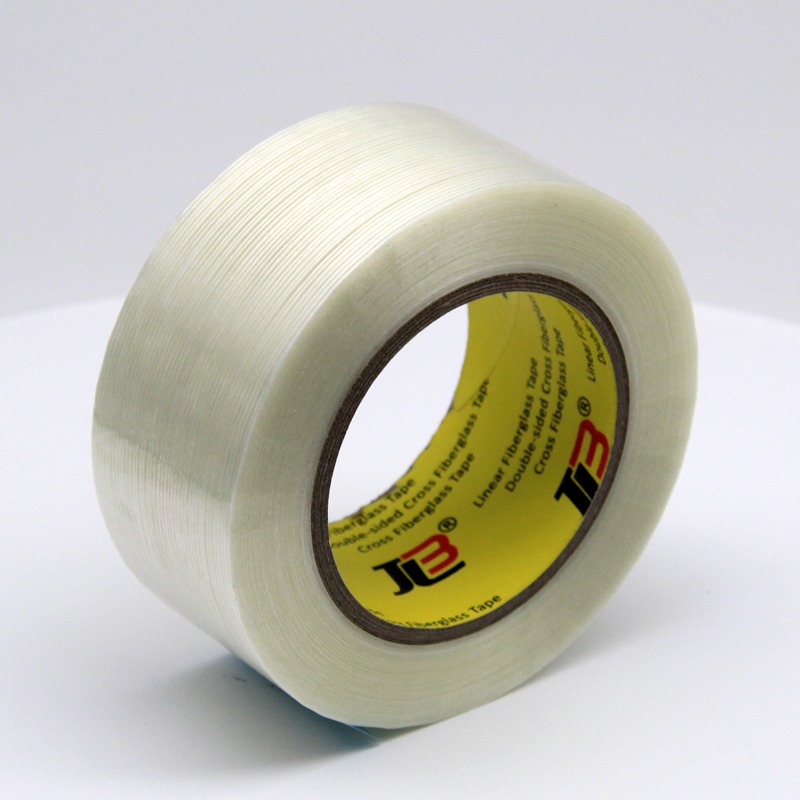

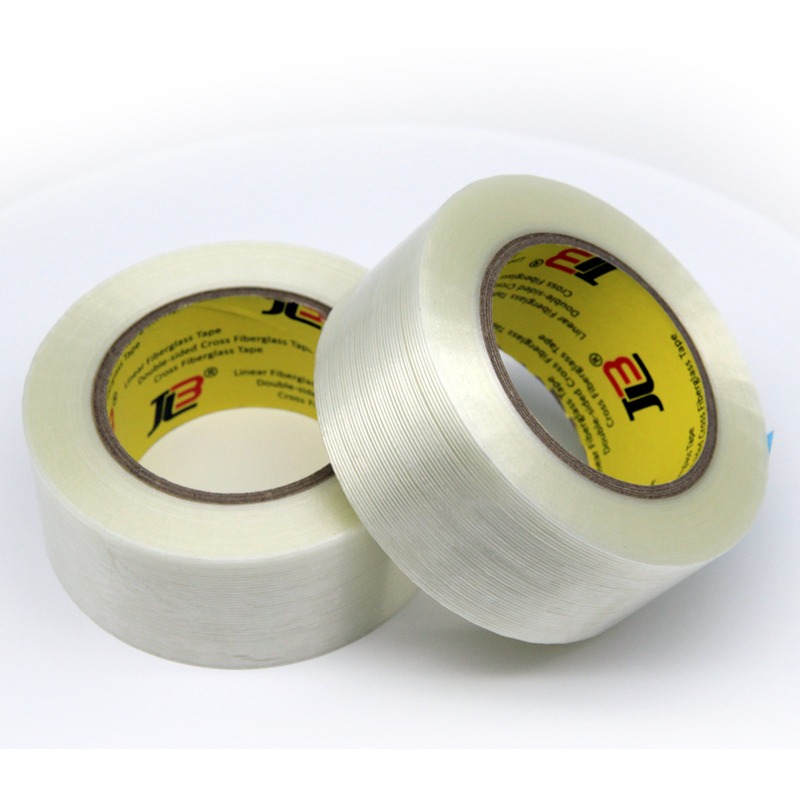

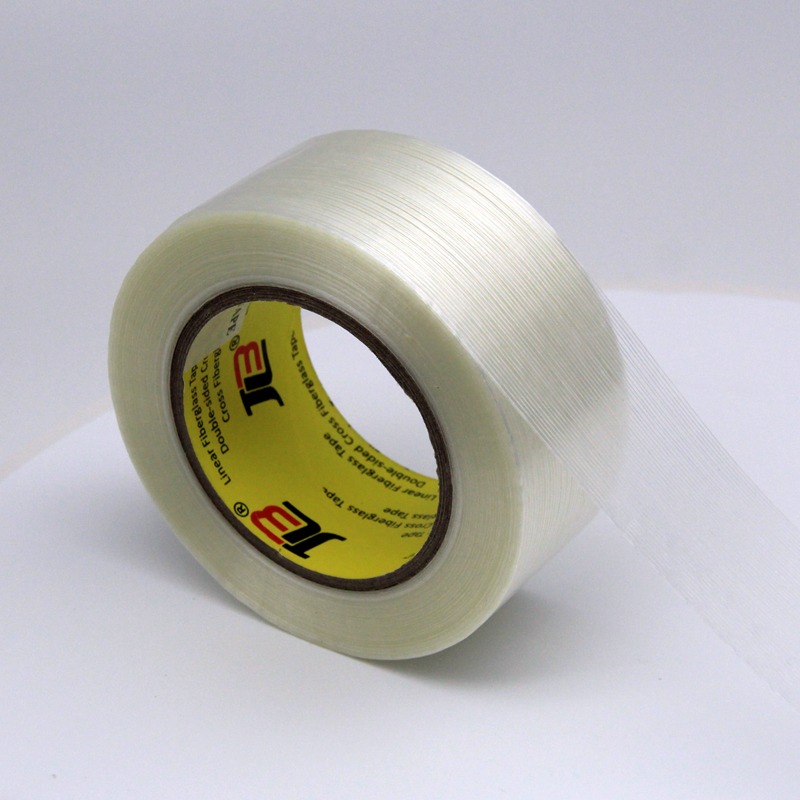

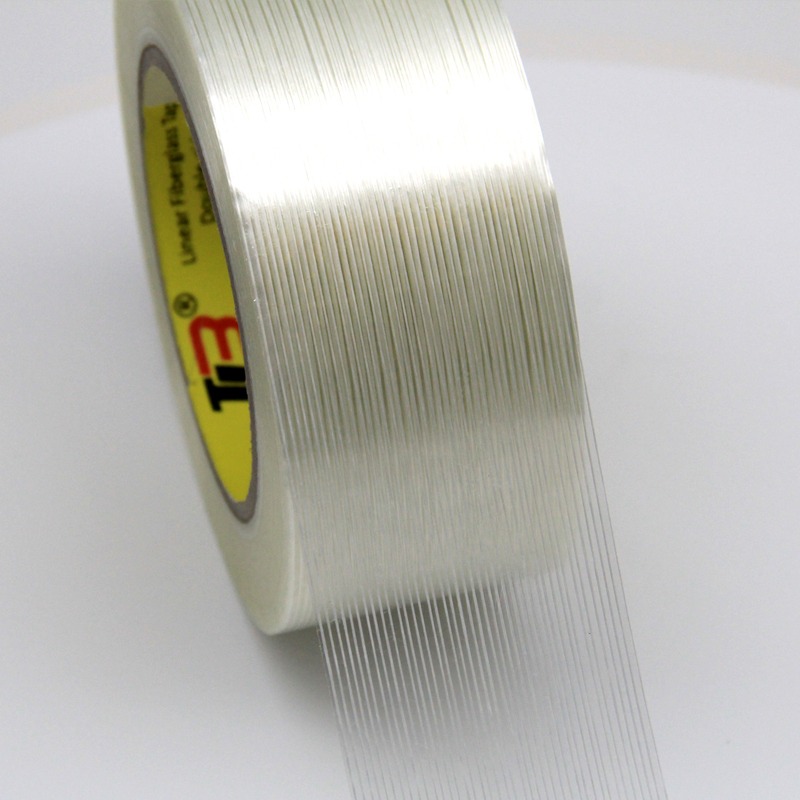

JLT-602C is a transparent and reinforced filament tape. Glass fiber contributes higher tensile strength and improved synthetic rubber adhesive delivers stronger adhesion;high resistance to abrasion;impact resistance and high holding power.

Technical Information

Physical Properties

Standard

Metric

Test Method

Reinforcement

Fiberglass

Adhesive

Synthetic Rubber

Backing

BOPP

Color

Clear

Total Thickness

4.3 mil

0.11 mm

ASTM D-3652

GB/T7125

Peel Adhesion

79 oz/in

22 N/25mm

ASTM D-3330

GB/T2792

Holding Power

≥36 h

≥36 h

ASTM D-3654

GB/T4851

Tensile Strength

112 lbs/in

500N/25mm

ASTM D-3759

GB/T7753

Elongation at Break

3%

3%

ASTM D-3759

GB/T7753

Service Tem.--Mini

23℉

-5℃

BC/BD-220SE

BC/BD-220SE

Service Tem.--Max

158℉

70℃

DHG-9055A

DHG-9055A

Specifications

• A variety of filament tape grades are available. Tensile strength grades range from 90 lb. to 472 lb. per inch of width. Different types and grades of adhesive are also available.
• Sometimes filament tape is made with cotton or synthetic filaments. Filament tape backing can be made from clear plastic or brown paper with the filaments usually running lengthwise down the tape, giving it strength. Sometimes the filaments run multi-directionally through the tape.
• Strapping tape is also available without filaments but with chemical fiber. It is a heavy-duty polypropylene tape with the same intended use as filament tape. Strapping tape without filaments can be stretched (some up to 30%) without breaking, yet returns to its original shape and size to hold loads securely. It has a strong rubber adhesive backing and removes cleanly from applied surfaces.

Related Products (Similar Item Or Complementary Item)

Other JL3 Brand Mono-directional / General Purpose/ Filament Tape

SR: Synthetic Rubber

Item No.

Adhesive

Backing / Reinforcement

Color

Thickness

Peel Adhesion

Tensile Strength

mm

mils

N/in

oz/in

N/in

lbs/in

JLT-611A

SR

PET / Fiberglass

Clear

0.10

3.9

25

90

400

90

JLT-602C

SR

BOPP / Fiberglass

Clear

0.11

4.3

22

79

500

112

JLT-602

SR

PET / Fiberglass

Clear

0.10

3.9

23

83

550

124

JLT-605

SR

BOPP / Fiberglass

Clear

0.12

4.7

23

83

550

124

JLT-605A

SR

PET / Fiberglass

Clear

0.14

5.5

23

83

570

128

JLT-602A

SR

PET / Fiberglass

Clear

0.15

5.9

25

90

850

191

JLT-607D

SR

PET / Fiberglass

Milk White

0.14

5.5

26

94

950

214

JLT-695

Acrylic

PET / Fiberglass

Clear

0.15

5.9

16

58

950

214

1) JLT-611A: Box closing, palletizing, strapping, bundling and reinforcing; Utility.

2) JLT-602C, JLT-602, JLT-605, JLT-605A: Box closing, palletizing, strapping, bundling and reinforcing; Economic.

3) JLT-602A: Heavy box closure, general bundling and reinforcing, metal coil closure, pipe bundling; medium strength.

4) JLT-607D, JLT-695: Heavy box closure, general bundling and reinforcing; White boxes, color coding.

Our Market

Our tapes are widely spread over more than 30 countries. We are supplier of many big brands worldwide. Our amount of exports takes up one third of our total sales volume and our main overseas market is in North America and Southeast Asia.

FAQ

Q1: What’s your port of loading?

Xiamen, China or Shanghai, China.

Q2: What’s your MOQ?

Our MOQ is 10,000 square meters an order.

Q3: Do you offer custom printing for the tape?

Yes, we have our own high standard printing machine to meet your every printing requirement.
