Description of Clean Removal Filament Tape

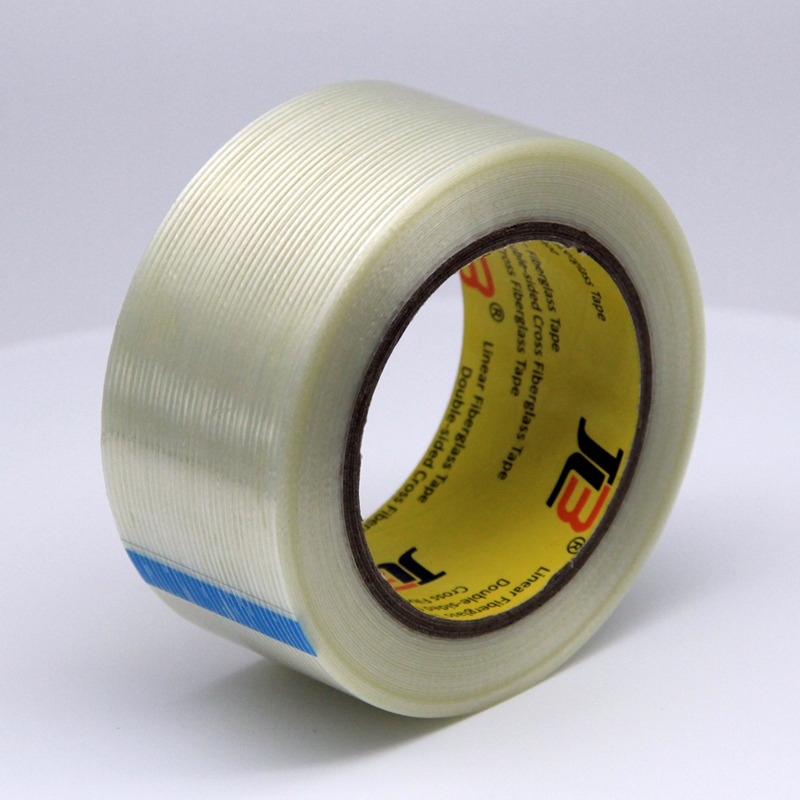

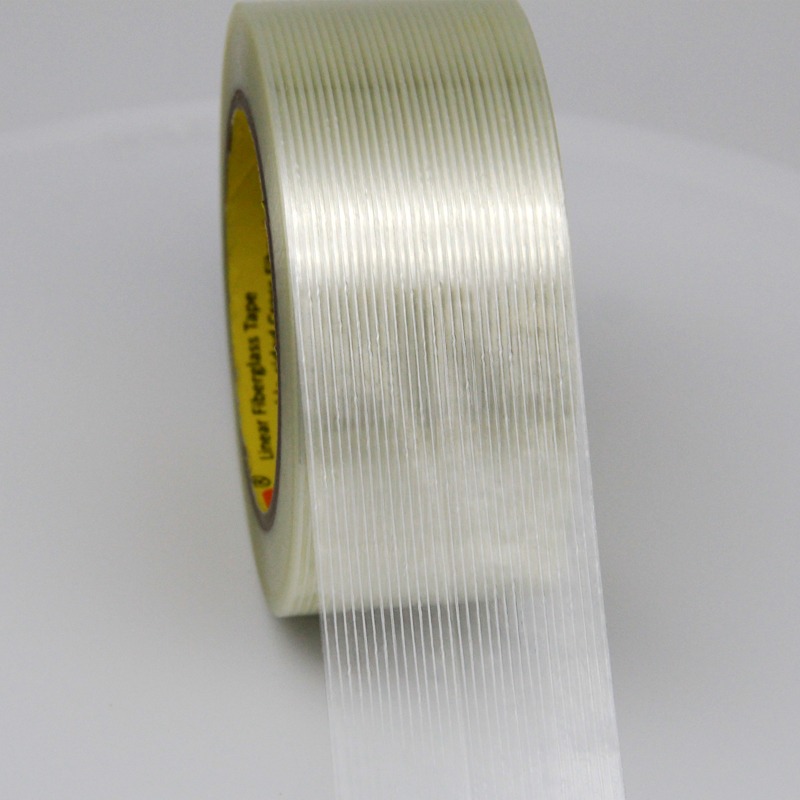

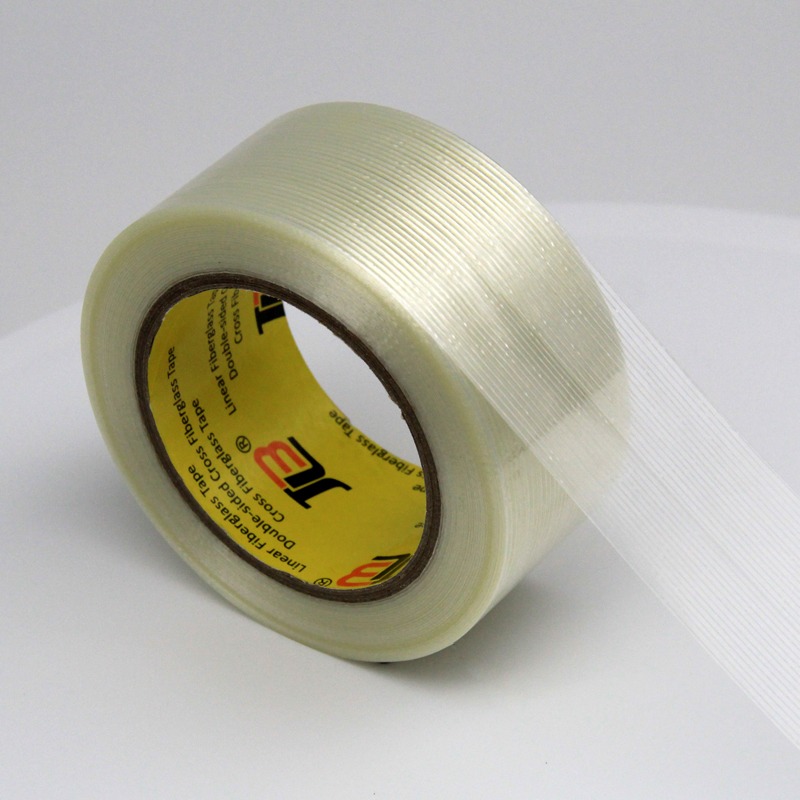

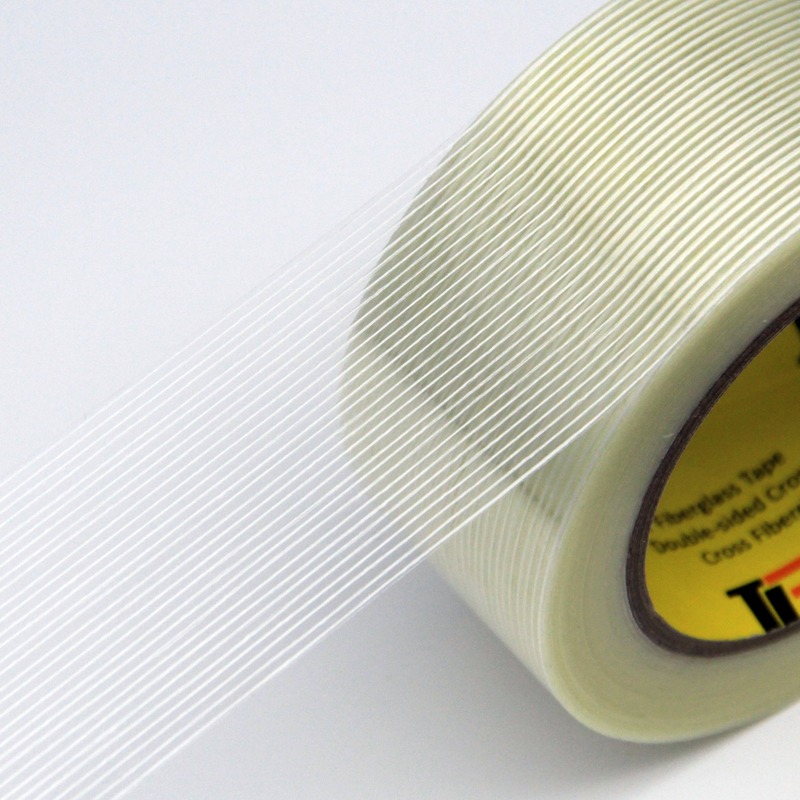

JLT-615 Filament tapes are constructed of olyester film that is glass-reinforced and that has an aggressive synthetic rubber. It will not leave glue residue after peel off.

JL3 offers a variety of grades of filament tape are available. Some have as much as 472 pounds of tensile strength per inch of width. Different types and grades of adhesive are also available. Most often, the tape is 12 mm (approx. 1/2 inch) to 24 mm (approx. 1 inch) wide, but it is also used in other widths. A variety of strengths, calipers, and adhesive formulations are available.

Parameter of Clean Removal Filament Tape

Physical Properties Standard Metric Test Method Reinforcement Fiberglass Adhesive Modified Synthetic Rubber Backing PET Color Clear Total Thickness 5.5 mils 0.14 mm ASTM D-3652 GB/T7125 Peel Adhesion 58 oz/in 16 N/25mm ASTM D-3330 GB/T2792 Holding Power ≥48h ≥48h ASTM D-3654 GB/T4851 Tensile strength 191 lbs/in 850N/25mm ASTM D-3759 GB/T7753 Elongation at Break 3% 3% ASTM D-3759 GB/T7753 Service Tem.--Mini 14℉ -10℃ BC/BD-220SE BC/BD-220SE Service Tem.--Max 176℉ 80℃ DHG-9055A DHG-9055A

Performance of Clean Removal Filament Tape

JLT-615 is a transparent and high strength filament tape. Glass fiber contributes higher tensile strength and improved special synthetic rubber delivers stronger adhesion; good adhesion to the surface slightly stained by oil and without residue left; high resistance to abrasion; impact resistance and high holding power.

Related Products (Similar Item Or Complementary Item)

Other JL3 Brand Mono-directional / Clean Removal / Filament Tape

MSR: Modified Synthetic Rubber

Item No.

Adhesive

Backing / Reinforcement

Color

Thickness

Peel Adhesion

Tensile Strength

mm

mil

N/in

oz/in

N/in

lbs/in

JLT-602D

MSR

PET / Fiberglass

Clear

0.12

4.7

15

54

500

112

JLT-615

MSR

PET / Fiberglass

Clear

0.14

5.5

16

58

850

191

JLT-607A

MSR

PET / Fiberglass

Milk White

0.16

6.3

22

79

950

214

JLT-698

MSR

PET / Fiberglass

Clear

0.16

6.3

22

79

1050

236

JLT-609

MSR

PET / Fiberglass

Clear

0.18

7.1

20

72

1500

337

JLT-696

MSR

PET / Fiberglass

Clear

0.24

9.4

13

47

2100

472

JLT-6614

SR

PET / Chemical Fiber

Clear

0.18

7.1

28

101

1100

247

1) JLT-602D: Appliance and furniture securing and stabilizing; Clean removal; Utility.

2) JLT-615: Appliance and furniture securing and stabilizing; Clean removal; Medium strength.

3) JLT-607A, JLT-698: Heavy appliance and furniture securing and stabilizing; Clean removal; High strength.

4) JLT-609, JLT-6614, JLT-696: Extreme bundling and reinforcing, steel rope of bridge strapping.

Packaging of Blue Filament Tape

Finished Roll of Filament Tape:

1/2” X 60 yards (12mmX55m) rolls: 72 rolls per case, 128 cases per pallet;

3/4” X 60 yards (18mmX55m) rolls: 48 rolls per case, 128 cases per pallet;

1” X 60 yards (24mmX55m) rolls: 36 rolls per case, 128 cases per pallet;

1 1/2” X 60 yards (36mmX55m) rolls: 24 rolls per case, 128 cases per pallet;

2” X 60 yards (48mmX55m) rolls: 24 rolls per case, 96 cases per pallet.

We use plastic bags and high quality corrugated cases to pack the filament tapes.

Log Roll of Filament Tape:

1020mmX55m: 88-105 rolls per pallet.

Jumbo Roll of Filament Tape:

1020mmX1000m:5-8 rolls per pallet.
