1-Product Description

Reverse osmosis is the core technology of the seawater desalination plant. Seawater is pushed against a semi-permeable membrane that only allows water molecule to pass through at high pressure, while most of the salts present in the seawater is blocked, forming concentrated salt water which is returned to the sea. The seawater undergoes two stages of reverse osmosis to enhance salts removal.
The purified water can be used as process water without further treatment, drinking water after mineralization or make-up water for the boiler after further purification.

2-Technical Parameters

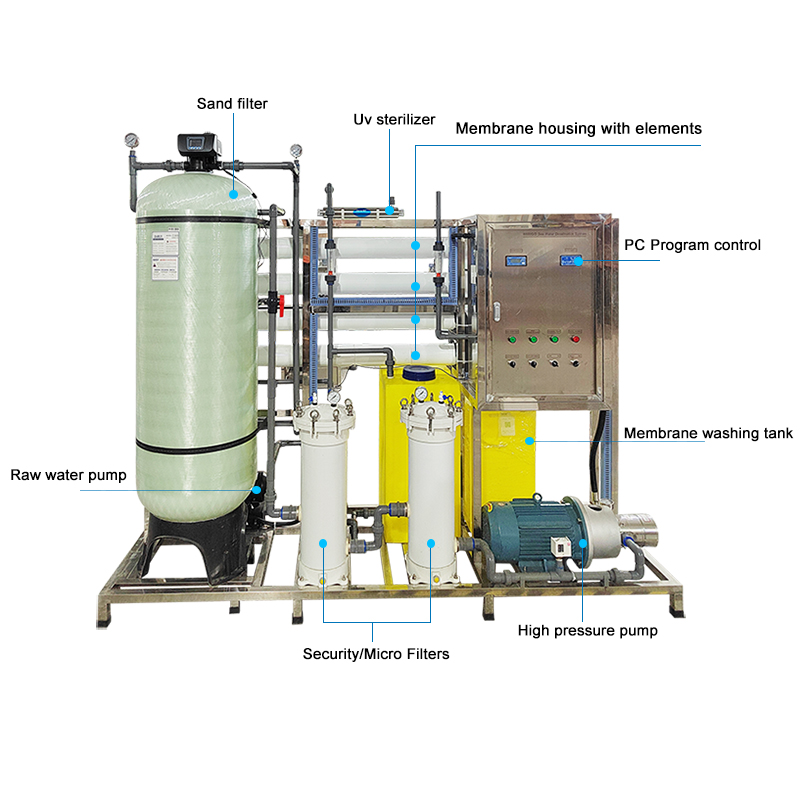

Ro system technical parameters(for seawater TDS 35000ppm) Product Name Material Brand Usage Raw Water Pump Fluoroplastic seawater corrosion -resistance/SUS-316/2507 CNP/Other brand Provide needed pressure for pre-treatment filter Sand Filter FRP China domestic brand Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health. Anti Dosing System U-PVC SEKO To prevent the ro membrane blocking easily. 1/2#Security Filter FRP China domestic brand Remove 1/5 micro particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree. High Pressure Pump Fluoroplastic seawater corrosion -resistance/SUS-316/2507 CNP/Other brand Provide needed pressure for RO system RO Membrane VONTRON/Other brand Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 98.5% dissolved salts. UV/Ozone generator SUS-304/SUS-316 China domestic brand Kill bacteria in water. UV for direct drinking water. Ozone generator for bottle water CIP Cleaning System SUS-304/SUS-316 China domestic brand Membranes maintenance Electronic control system SUS-304 PLC or PC Program control system Water quality conductivity Monitor/PH detector,AC contactor,Air switch,indicator light,knob switch,electrical miscellaneous pieces...

3-Main Features

1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance
3.RO system uses imported USA DOW membrane
4.Automatic switch on when lack of water,and switch off when no water or full of water
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7.Production water conductivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

4-Replacement time of consumable parts

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. PP Filter cartridge: replaced about every 1 month
c. Ro membrane: replaced about every 2 year
We suggest customers buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to be replaced every month
