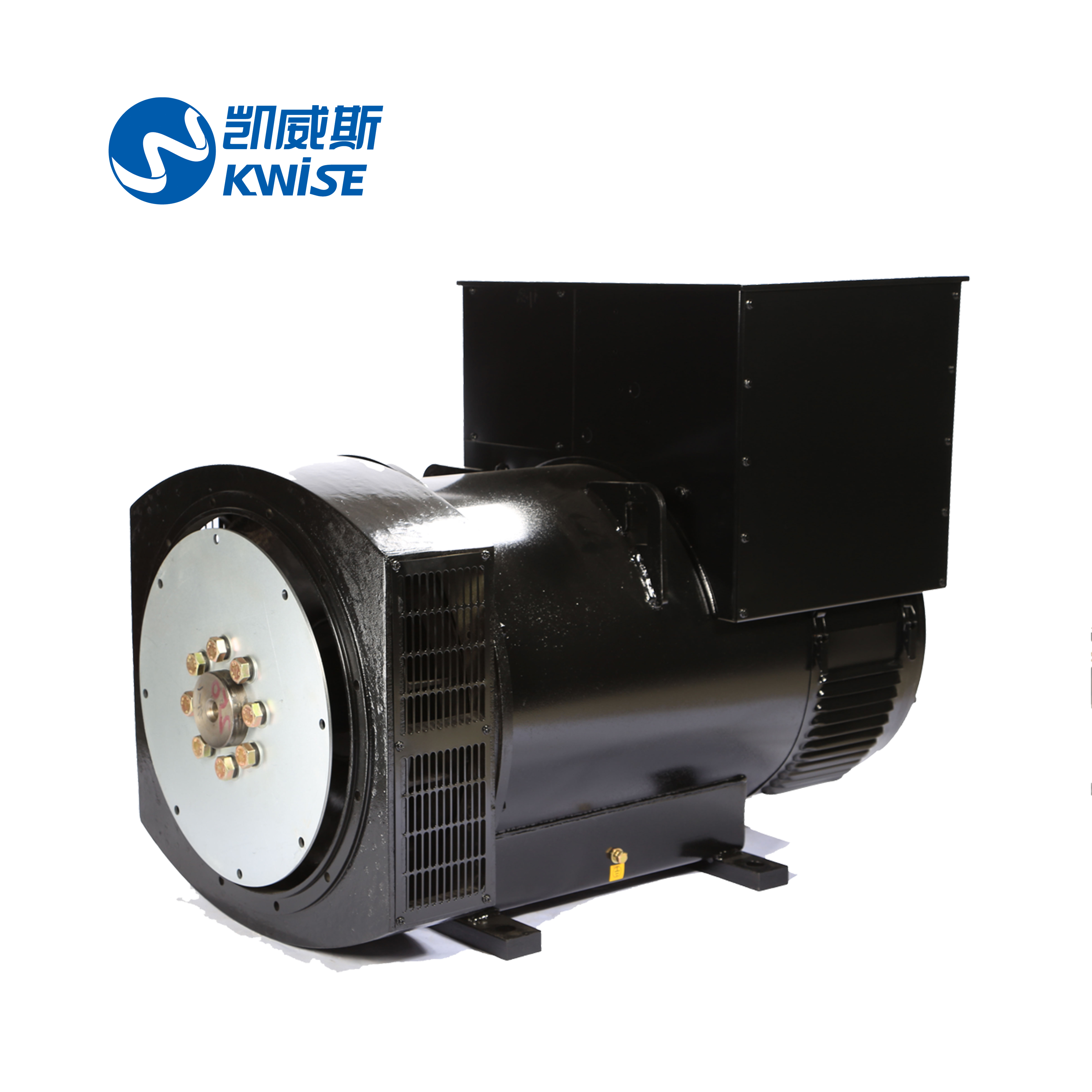

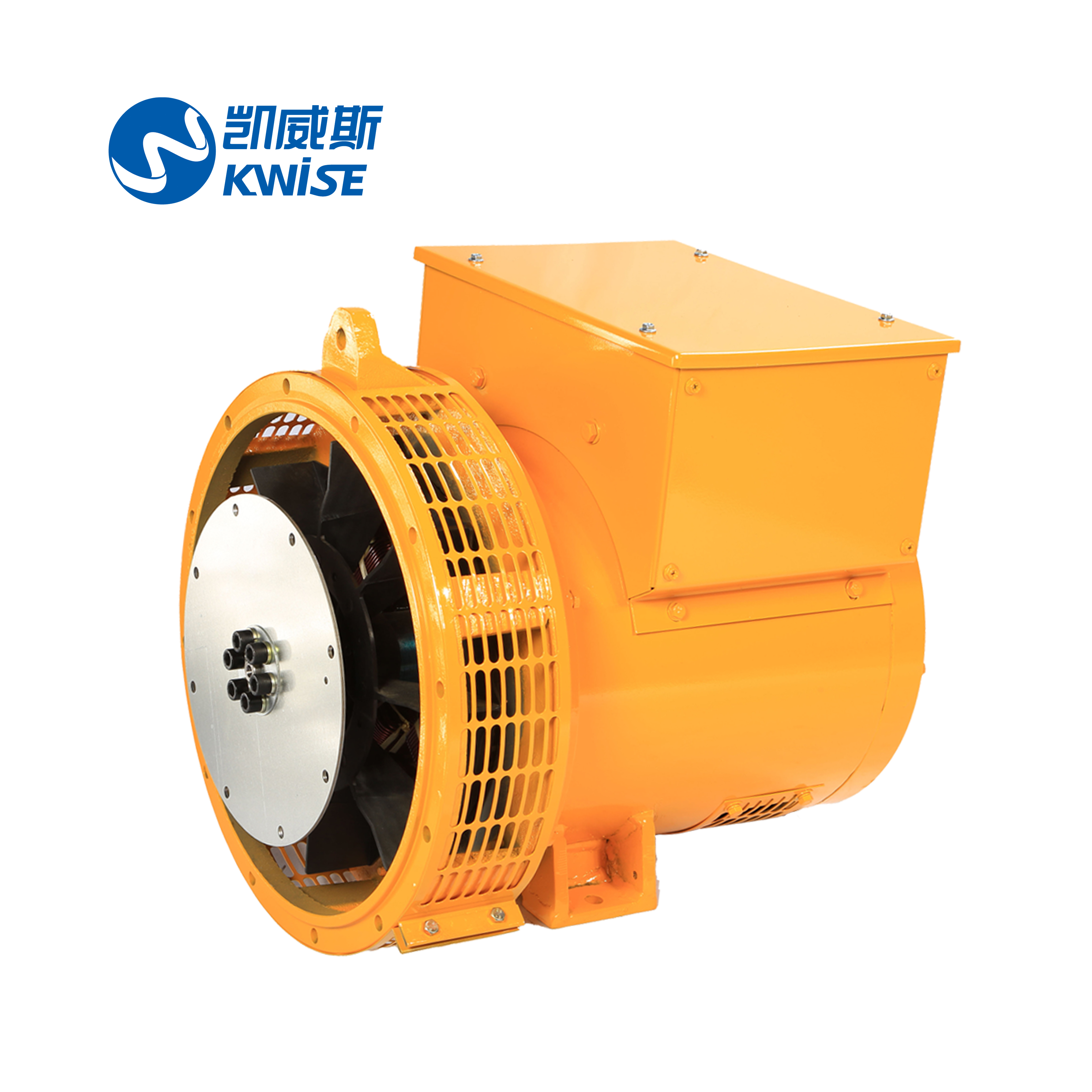

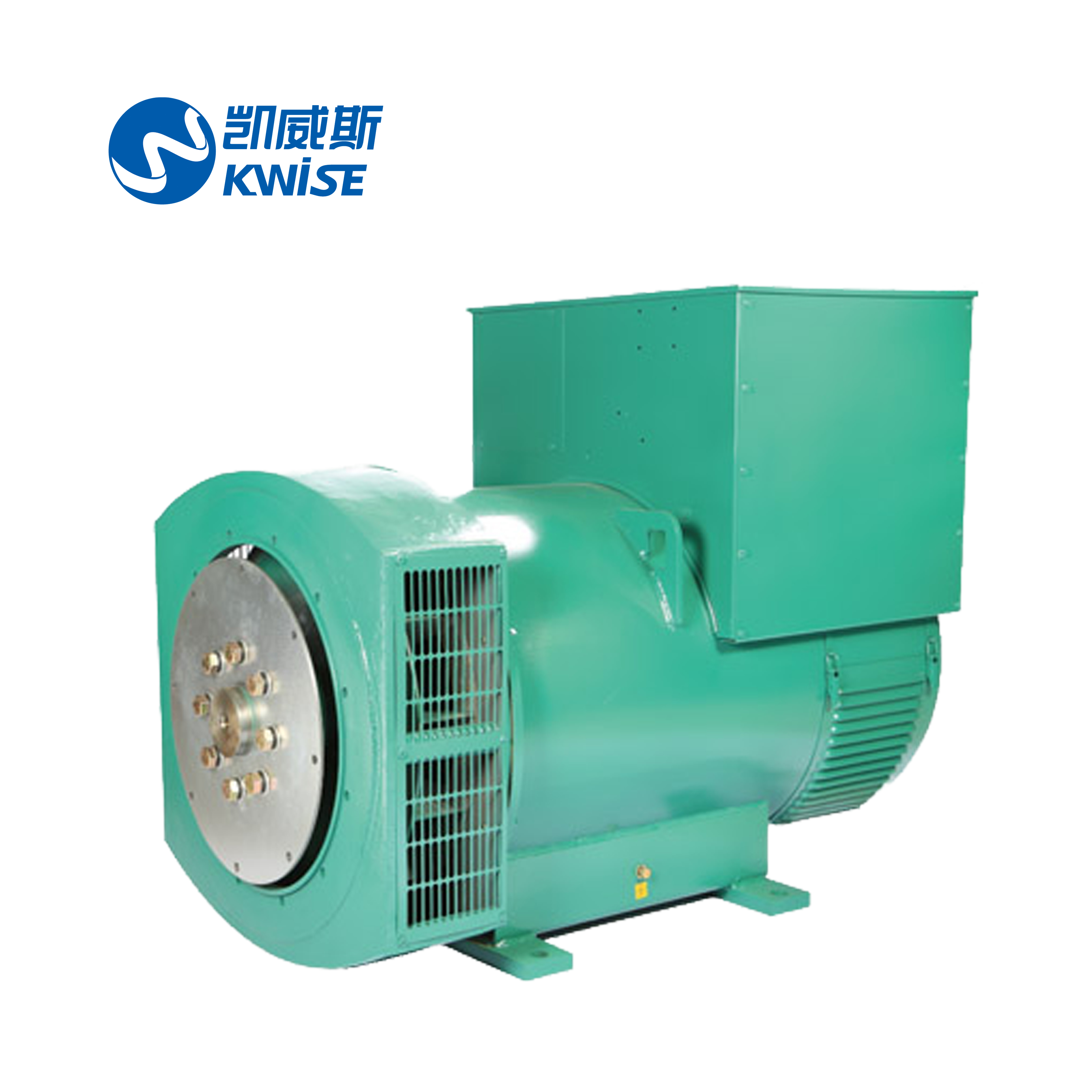

Kwise KAL Series 6.5kw-2000kw Brushless AC Alternator
FUJIAN KWISE GENERATOR CO.,LTD5/10 fairsManufacturerModel SG Series
$50000–$27,13194/ unit FOB · ≈ converted from CNY
Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.
MOQ 1 unit · T/T, L/C, D/P, PayPal, Western Union
Estimated landed cost
$17,790 / unit
range $658–$34,918 · total ≈ $1,779,014
See what’s includedHide breakdown
- FOB goods (100)
- $1,381,597
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $48,356
- Section 301 tariff (25.0%)
- $345,399
- Customs fees (MPF/HMF)
- $2,362
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,381,597
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $48,356
- Section 301 tariff (25.0%)
- $345,399
- Customs fees (MPF/HMF)
- $2,362
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Kwise KAL Series 6.5kw-2000kw Brushless AC Alternator
FUJIAN KWISE GENERATOR CO.,LTD5/10 fairsManufacturerModel SG Series
$50000–$27,13194/ unit FOB · ≈ converted from CNY
Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.
MOQ 1 unit · T/T, L/C, D/P, PayPal, Western Union
Estimated landed cost
$17,790 / unit
range $658–$34,918 · total ≈ $1,779,014
See what’s includedHide breakdown
- FOB goods (100)
- $1,381,597
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $48,356
- Section 301 tariff (25.0%)
- $345,399
- Customs fees (MPF/HMF)
- $2,362
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,381,597
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $48,356
- Section 301 tariff (25.0%)
- $345,399
- Customs fees (MPF/HMF)
- $2,362
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Copper、Silicon、lron
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Fujian, China
About this product
- Materials: Copper、Silicon、lron
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Fujian, China
Product details
| Materials | Copper、Silicon、lron |
|---|
Product details
| Materials | Copper、Silicon、lron |
|---|
From the supplier
Product Description
Comman Data
Ambient temp
40ºC
Temp rise
125K
Short circuit capacity
/
Altitude
1000m
Voltage regulation
±1%
Cooling method
IC01
Insulation class
Class H
Excitation system
self excitation
Direction of rotation
clockwise
Duty
S1
Winding pitch
2/3
Over speed
2250rpm
Pole
4
Power factor
0.8
Protection
IP23
TIF
<50
THF
<2%
THD
<5%
Forms
single/double bearing
Balancing
according to ISO1940
frame
Steel frame
RECOGNIZED STANDARDS
GB755, BS500, IEC 60034, VED0530, CSAC22.2 100, NEMA MG-1.22,ISO 9001
OVERLOAD ACCEPTANCE
4 Pole Alternators can be overloaded according to NEMA
Accessories and options PMG(from SG224) Engine adaptors for double bearing alternators Remote voltage potentiometers Air inlet filters(5% derating) Air outlet filters or deflectors(5% derating) emergency kits(AVR+ Rotary Rectifier + Varistor) Thermal protections for bearings Thermal protections for stator windings Anti condensation heaters Current transformers for paralleling with other alternators Specific painting(according to customer's requirements) Three-proofing lacquer(special protection process for winding in harsh environments) MODEL Cont./125K/40ºC Standby/150K/40ºC WEIGHT(KG) KW KVA KW KVA NS164G65B1 7.8 9.75 8.6 10.7 78 NS164G88B2 10.56 13.2 11.6 14.5 84 NS164G108B3 12.96 16.2 14.3 17.8 93 NS164G128C4 15.36 19.2 16.9 21.1 101 NS164G14C5 16.8 21 18.5 23.1 105
Accessories and options PMG(from SG224) Engine adaptors for double bearing alternators Remote voltage potentiometers Air inlet filters(5% derating) Air outlet filters or deflectors(5% derating) emergency kits(AVR+ Rotary Rectifier + Varistor) Thermal protections for bearings Thermal protections for stator windings Anti condensation heaters Current transformers for paralleling with other alternators Specific painting(according to customer's requirements) Three-proofing lacquer(special protection process for winding in harsh environments) MODEL Cont./125K/40ºC Standby/150K/40ºC WEIGHT(KG) KW KVA KW KVA NS164G65B1 7.8 9.75 8.6 10.7 78 NS164G88B2 10.56 13.2 11.6 14.5 84 NS164G108B3 12.96 16.2 14.3 17.8 93 NS164G128C4 15.36 19.2 16.9 21.1 101 NS164G14C5 16.8 21 18.5 23.1 105
From the supplier
Product Description
Comman Data
Ambient temp
40ºC
Temp rise
125K
Short circuit capacity
/
Altitude
1000m
Voltage regulation
±1%
Cooling method
IC01
Insulation class
Class H
Excitation system
self excitation
Direction of rotation
clockwise
Duty
S1
Winding pitch
2/3
Over speed
2250rpm
Pole
4
Power factor
0.8
Protection
IP23
TIF
<50
THF
<2%
THD
<5%
Forms
single/double bearing
Balancing
according to ISO1940
frame
Steel frame
RECOGNIZED STANDARDS
GB755, BS500, IEC 60034, VED0530, CSAC22.2 100, NEMA MG-1.22,ISO 9001
OVERLOAD ACCEPTANCE
4 Pole Alternators can be overloaded according to NEMA
Accessories and options PMG(from SG224) Engine adaptors for double bearing alternators Remote voltage potentiometers Air inlet filters(5% derating) Air outlet filters or deflectors(5% derating) emergency kits(AVR+ Rotary Rectifier + Varistor) Thermal protections for bearings Thermal protections for stator windings Anti condensation heaters Current transformers for paralleling with other alternators Specific painting(according to customer's requirements) Three-proofing lacquer(special protection process for winding in harsh environments) MODEL Cont./125K/40ºC Standby/150K/40ºC WEIGHT(KG) KW KVA KW KVA NS164G65B1 7.8 9.75 8.6 10.7 78 NS164G88B2 10.56 13.2 11.6 14.5 84 NS164G108B3 12.96 16.2 14.3 17.8 93 NS164G128C4 15.36 19.2 16.9 21.1 101 NS164G14C5 16.8 21 18.5 23.1 105
Accessories and options PMG(from SG224) Engine adaptors for double bearing alternators Remote voltage potentiometers Air inlet filters(5% derating) Air outlet filters or deflectors(5% derating) emergency kits(AVR+ Rotary Rectifier + Varistor) Thermal protections for bearings Thermal protections for stator windings Anti condensation heaters Current transformers for paralleling with other alternators Specific painting(according to customer's requirements) Three-proofing lacquer(special protection process for winding in harsh environments) MODEL Cont./125K/40ºC Standby/150K/40ºC WEIGHT(KG) KW KVA KW KVA NS164G65B1 7.8 9.75 8.6 10.7 78 NS164G88B2 10.56 13.2 11.6 14.5 84 NS164G108B3 12.96 16.2 14.3 17.8 93 NS164G128C4 15.36 19.2 16.9 21.1 101 NS164G14C5 16.8 21 18.5 23.1 105
