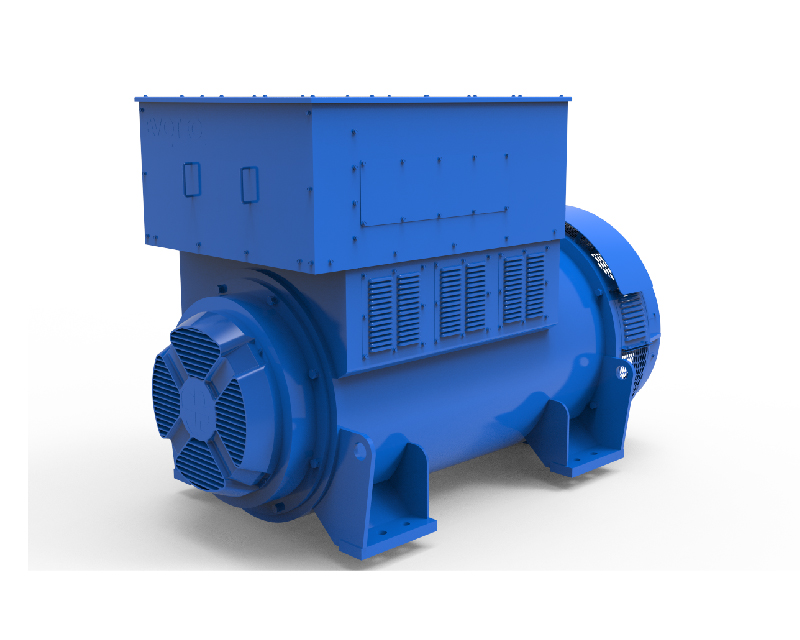

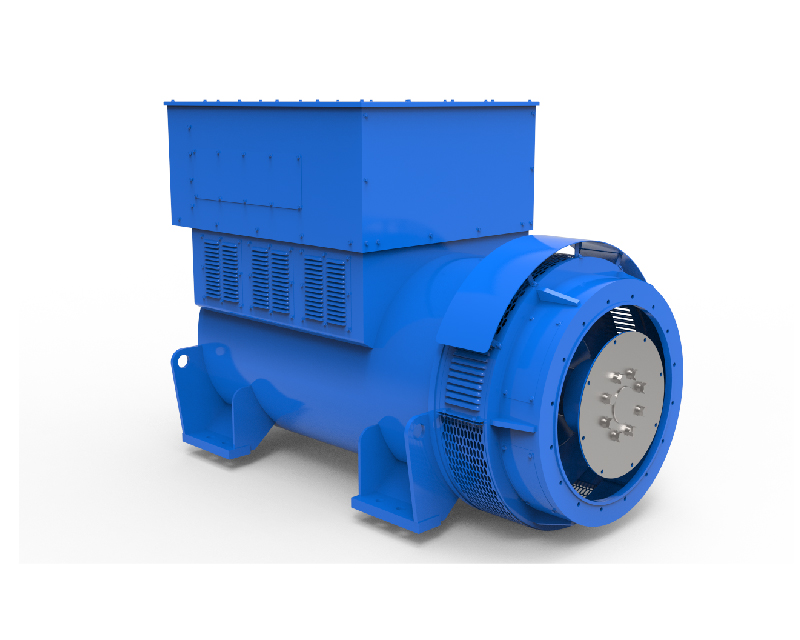

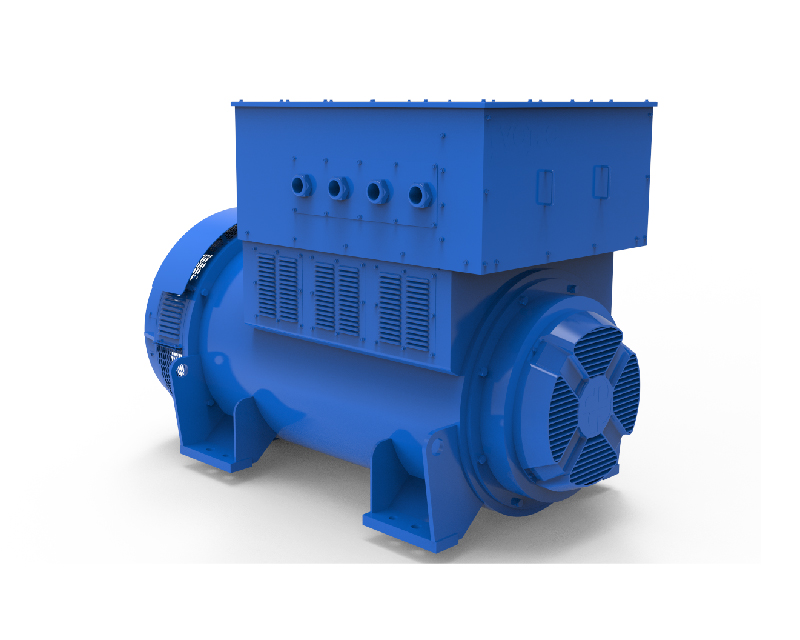

High voltage generator
- FOB goods (100)
- $515,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $18,025
- Section 301 tariff (25.0%)
- $128,750
- Customs fees (MPF/HMF)
- $1,278
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
High voltage generator
- FOB goods (100)
- $515,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $18,025
- Section 301 tariff (25.0%)
- $128,750
- Customs fees (MPF/HMF)
- $1,278
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: 100% copper wire, silicon steel 600
- Size: 2296*1350*1576
- Color: blue(on request)
- Voltage adjuster type: Electronical
- Voltage: Other
- Head cover position: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: 100% copper wire, silicon steel 600
- Size: 2296*1350*1576
- Color: blue(on request)
- Voltage adjuster type: Electronical
- Voltage: Other
- Head cover position: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | 100% copper wire, silicon steel 600 |
|---|---|
| Size | 2296*1350*1576 |
| Color | blue(on request) |
| Voltage adjuster type | Electronical |
| Voltage | Other |
| Head cover position | Other |
| Brushless alternator type | PermanentMagnetTypeOther |
| Brand | Other |
| Bonding typeof magnetic field winding | Other |
| Rectifier structure | Other |
| Structure | BrushlessAlternator |
| Current level | Other |
From the supplier
Standard Product Specification
Rated Power:2000KW~3000KW
Capacity:2500KVA~3750KVA
Voltage: 3300V-13800V
Speed；1500rpm/1800rpm
Frequency: 50hz/60hz
Degree of Protection：IP23 to IP55
Insulation Class：F/H
Product Technical Characteristics
1.Patented high-efficiency winding design with high energy efficiency,can generate more power with less fuel consumption.
2.AVR design with 3 national patents to make parallel operation more stable and well matched with various power systems
3.Unique pitch 2/3 winding design, effectively suppress current and output line voltage waveform distortion
4.Built-in exciter structure design, low vibration, low loss, stable operation, ultra-low speed can build pressure
5.Compact and short size design, good ventilation and heat dissipation, low temperature rise,and more user cost savings
AVR-A new voltage regulator (AVR) design with three national patents
Advantages:
1.Applicable to 50 / 60Hz brushless excitation alternator; remote voltage adjustment function with fuse protection function;
2.Built-in frequency compensation (low frequency protection), solid state excitation, EMI filtering (electromagnetic interference filter), stability adjustment function;
3.Multi-voltage selection function, suitable for 110V, 220V, 440V voltage system;
4.Parallel AVR (ETC-2, ETC-3) has parallel function and over-excitation protection function.
Stator-Rotary lamination structure
Advantages:
1.Ensure the uniformity of the magnetic circuit, improve the operating conditions of the generator, and improve Generator efficiency,extending life span
2.The ventilation and heat dissipation area is increased,and the heat exchange capacity of the generator is effectively improved.Good ventilation and heat dissipation
Rotor-Enameled flat copper wire rotor winding
Advantages:
1.Insulation strengthening treatment for the first and last three turns of each pole coil of the generator rotor can significantly increase the resistance of the pole coil to voltage shock and improve the generator’s life span and reliability;
2.Reduce the impact on the rotating rectifier bridge and improve the service life and reliability of the rectifier bridge;
3.Reduce the excitation current design can effectively improve the reaction speed of excitation,reduces the output current of the AVR and improves the sensitivity and service life of the AVR.
