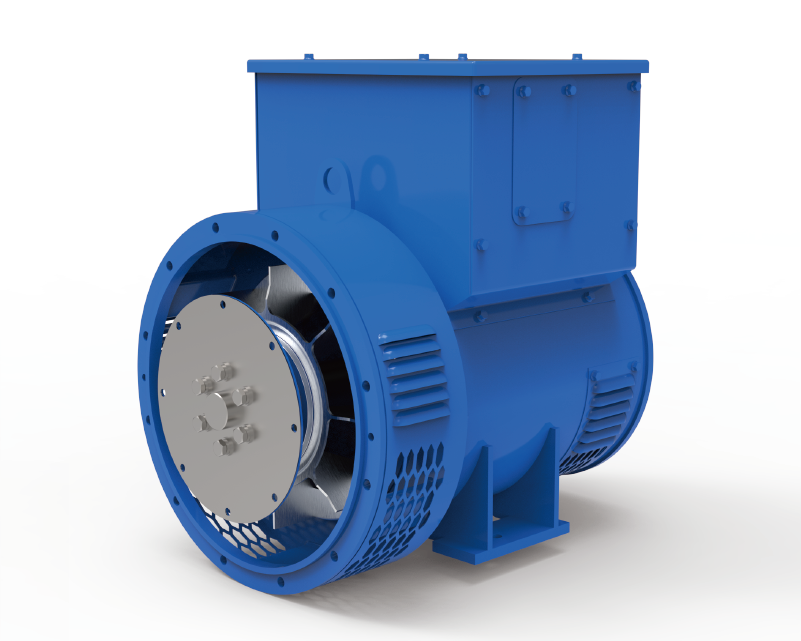

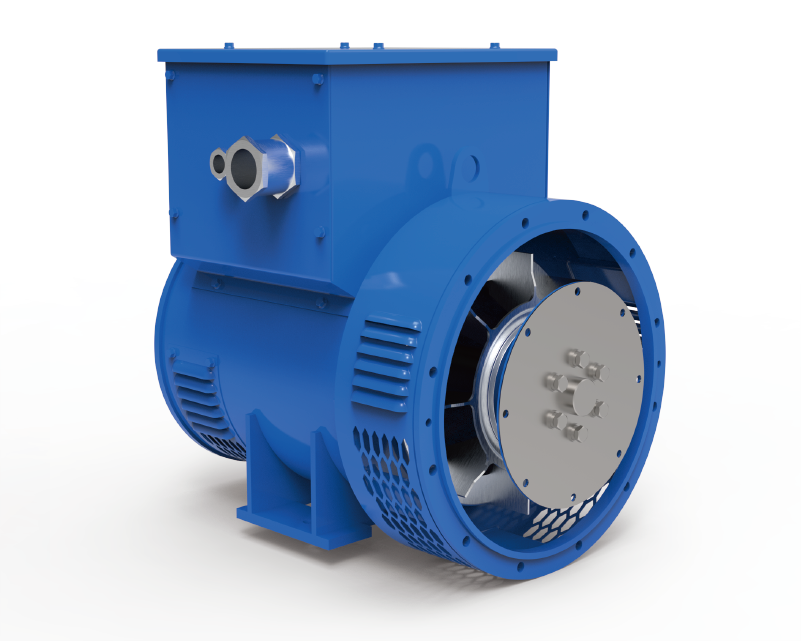

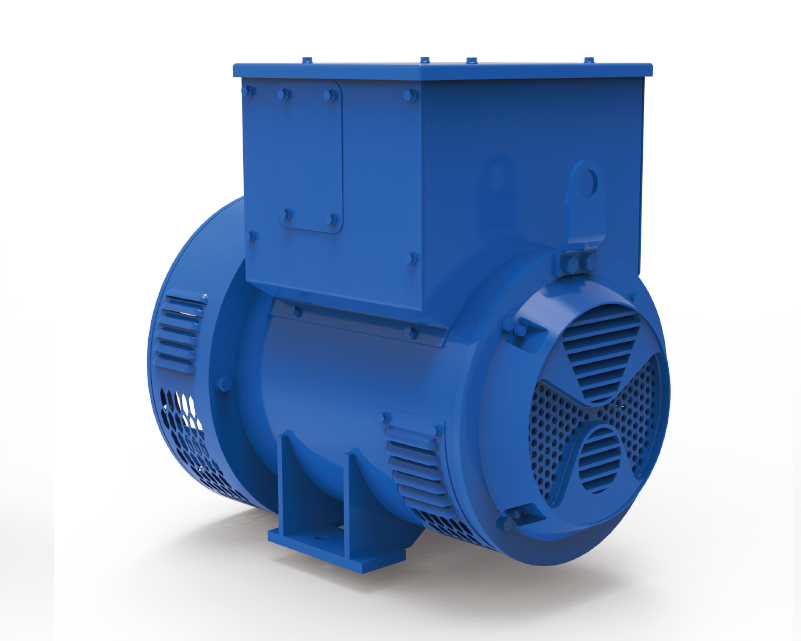

Standard Product Specification

Service Duty : Continuous Duty (S1) or Standby
Voltage : 400V /480V
Phase : Reconnectable Single / 3
Pole : 4
Speed : 1500rpm / 1800rpm
Voltage regulation : +/-1%
Frequency : 50Hz / 60Hz
Power factor : 0.8
Temperature rise : 80°C to 163°C
Ambient temperature : 27°C to 60°C
Degree of Protection : IP23 to IP55
Overload : 10% for 1 hour

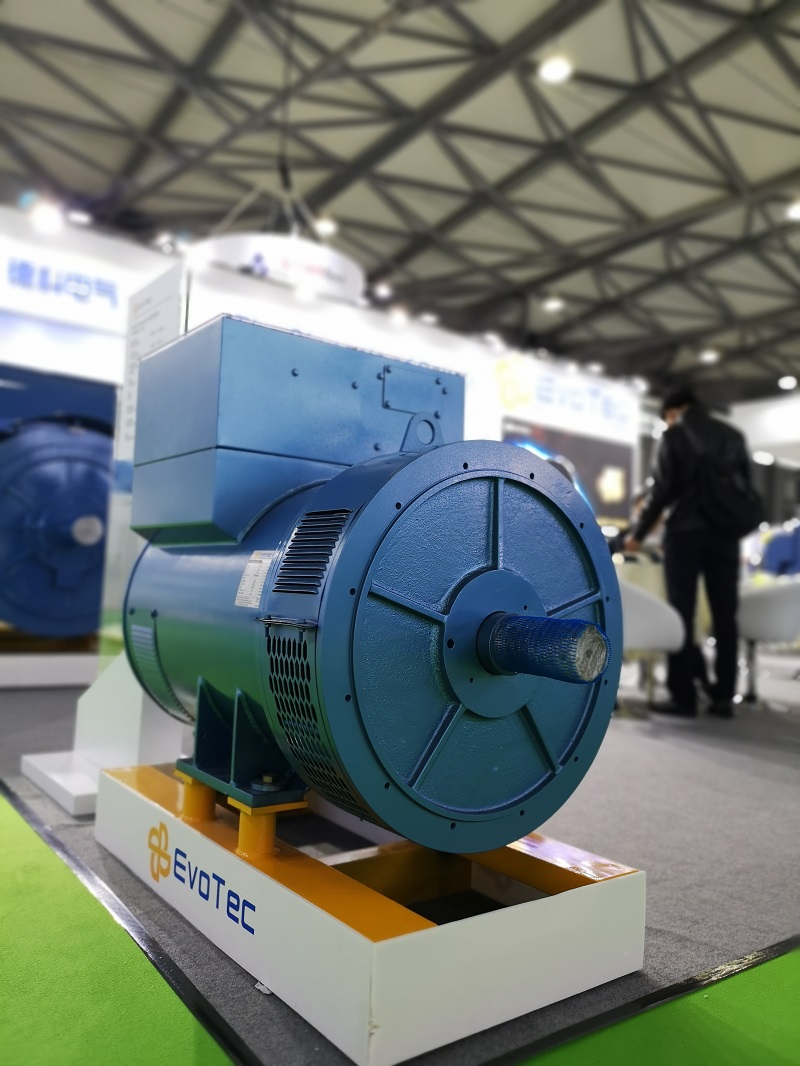

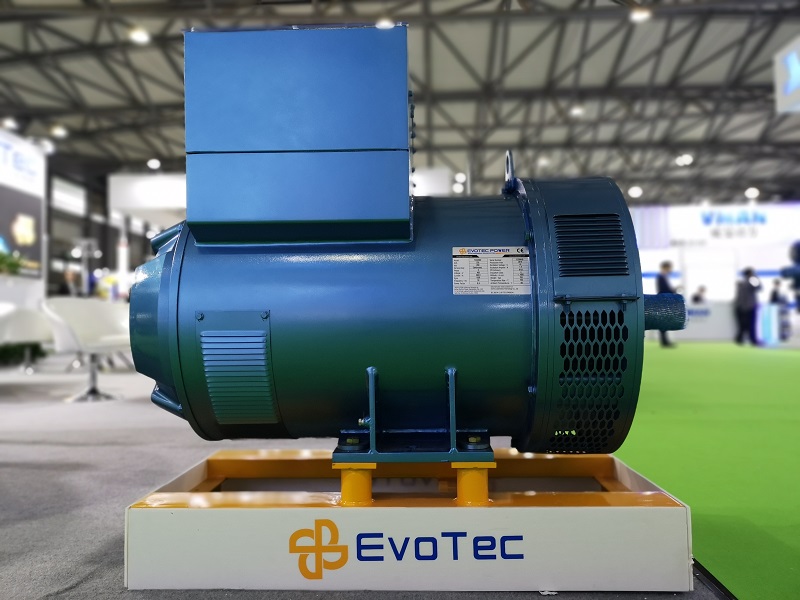

Construction : Double Bearing
Insulation Class : H
Altitude : up to 4000 m.a.s.l
Winding Pitch : 2/3
Terminal : 6 or 12 Leads
Overspeed : 1.25 times

Product Technical Characteristics

1.Patented high-efficiency winding design with high energy efficiency,can generate more power with less fuel consumption.

2.AVR design with 3 national patents to make parallel operation more stable and well matched with various power systems

3.Unique pitch 2/3 winding design, effectively suppress current and output line voltage waveform distortion

4.Built-in exciter structure design, low vibration, low loss, stable operation, ultra-low speed can build pressure

5.Compact and short size design, good ventilation and heat dissipation, low temperature rise,and more user cost savings

AVR-A new voltage regulator (AVR) design with three national patents

Advantages

1.Applicable to 50 / 60Hz brushless excitation alternator; remote voltage adjustment function with fuse protection function;

2.Built-in frequency compensation (low frequency protection), solid state excitation, EMI filtering (electromagnetic interference filter), stability adjustment function;

3.Multi-voltage selection function, suitable for 110V, 220V, 440V voltage system;

4.Parallel AVR (ETC-2, ETC-3) has parallel function and over-excitation protection function.

Stator- Patented Rotary lamination structure

Advantages

1.Ensure the uniformity of the magnetic circuit, improve the operating conditions of the generator, and improve Generator efficiency,extending life span

2.The ventilation and heat dissipation area is increased,and the heat exchange capacity of the generator is effectively improved.Good ventilation and heat dissipation

Rotor-Enameled flat copper wire rotor winding

Advantages:

1.Insulation strengthening treatment for the first and last three turns of each pole coil of the generator rotor can significantly increase the resistance of the pole coil to voltage shock and improve the generator’s life span and reliability;

2.Reduce the impact on the rotating rectifier bridge and improve the service life and reliability of the rectifier bridge;

3.Reduce the excitation current design can effectively improve the reaction speed of excitation,reduces the output current of the AVR and improves the sensitivity and service life of the AVR.
