LF40-01 Air Pressure Switch for Spa Hot Tub/Air Pump/Swimming Pool pneumatic pressure switch kitchen waste disposal accessories
ZHEJIANG LEFOO CONTROLS CO., LTD.See what’s includedHide breakdown
- FOB goods (100)
- $694
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $19
- Section 301 tariff (25.0%)
- $174
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $694
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $19
- Section 301 tariff (25.0%)
- $174
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 49.5*44.9
- Color: Black/White
- Feature: Other
- Size: Miniature
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 49.5*44.9
- Color: Black/White
- Feature: Other
- Size: Miniature
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 49.5*44.9 |
|---|---|
| Color | Black/White |
| Feature | Other |
| Size | Miniature |
| Material | Other |
Product details
| Size | 49.5*44.9 |
|---|---|
| Color | Black/White |
| Feature | Other |
| Size | Miniature |
| Material | Other |
From the supplier

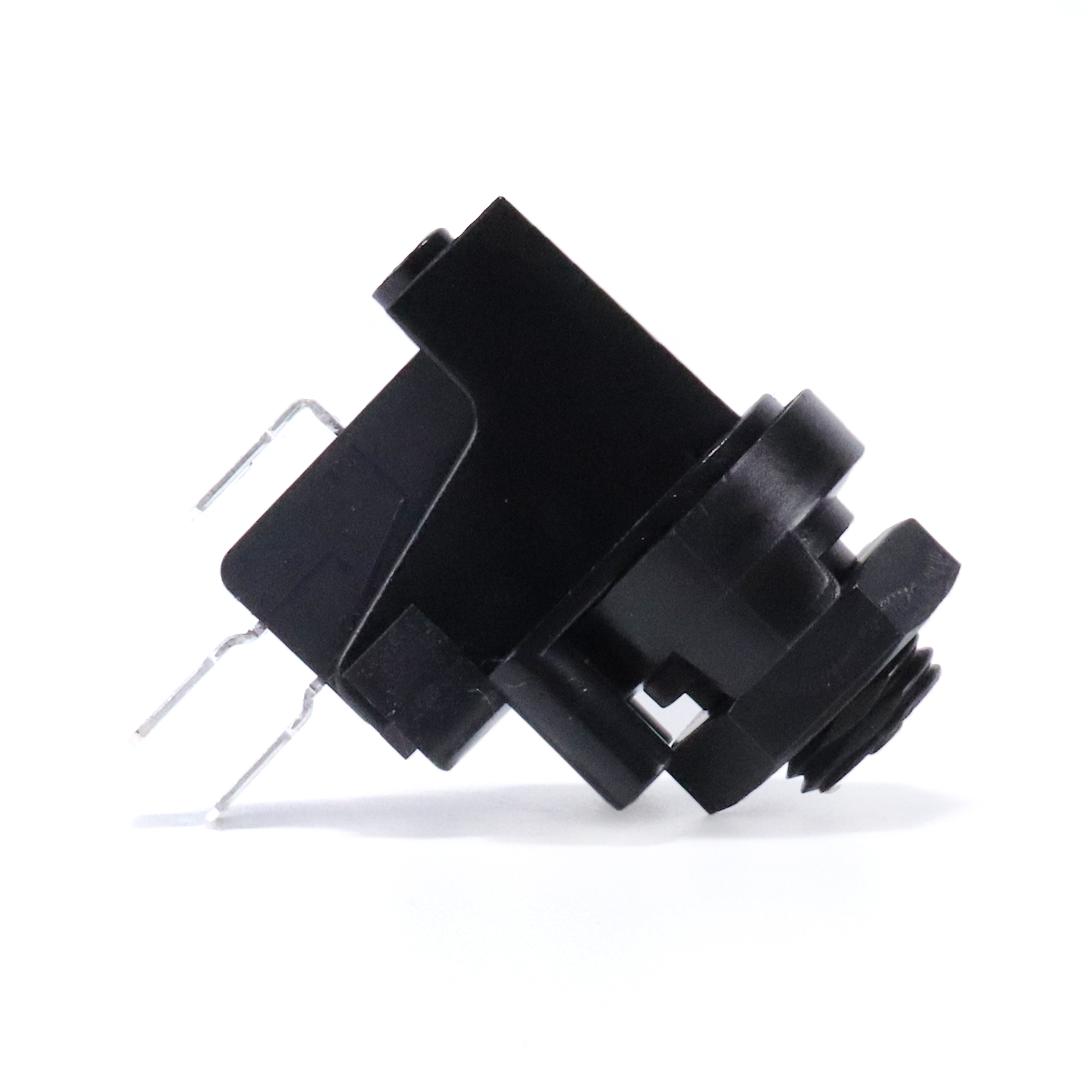

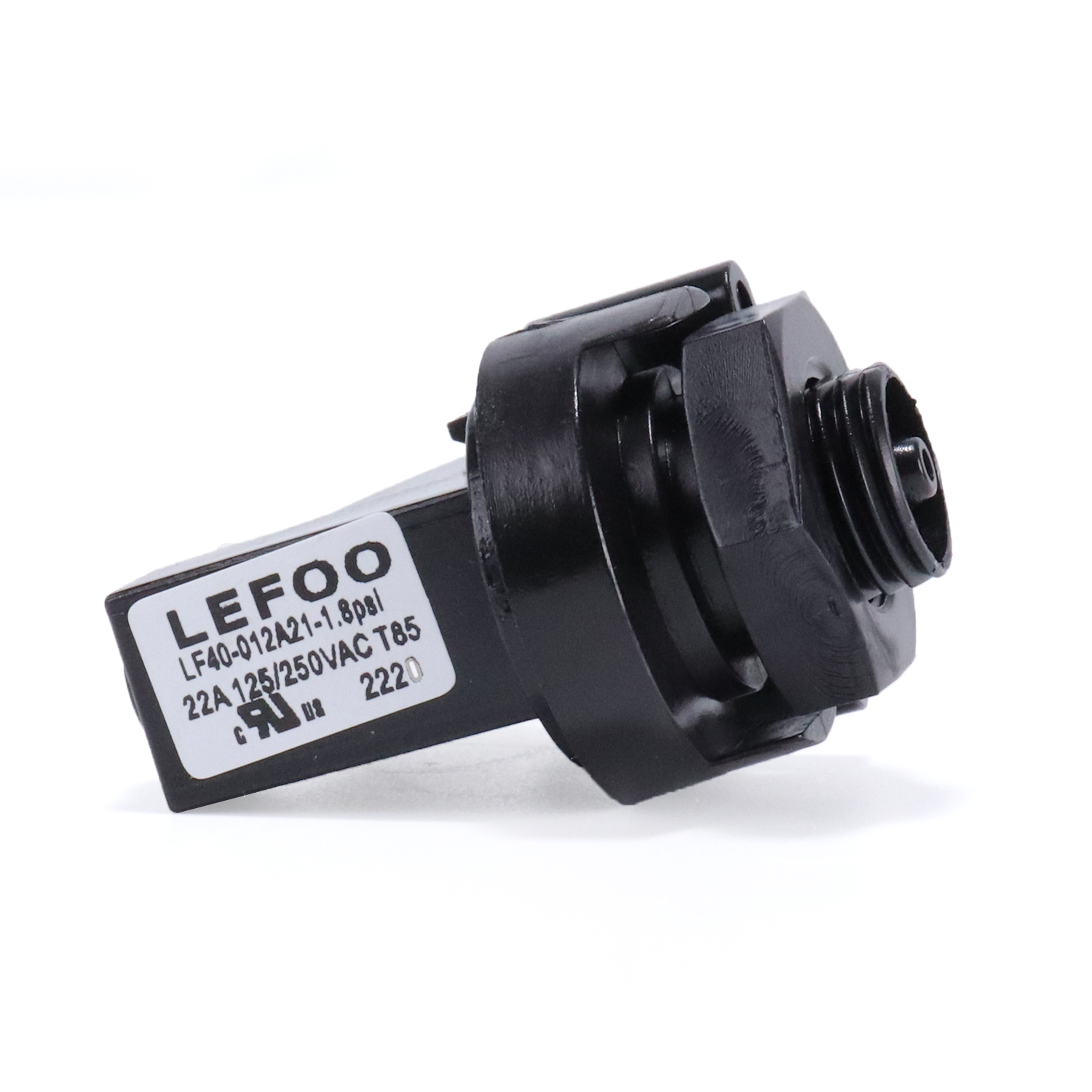

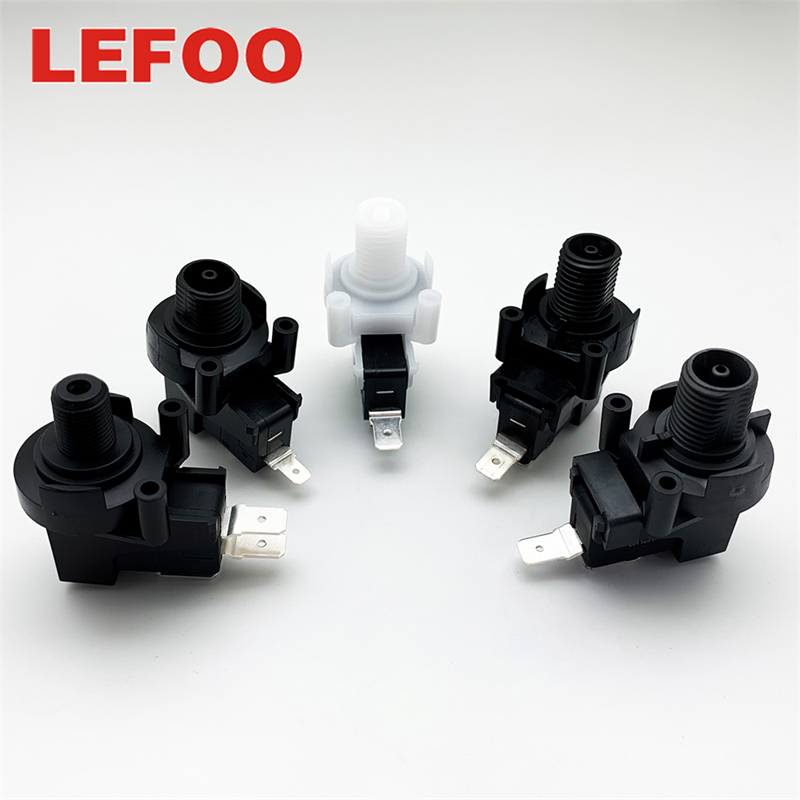

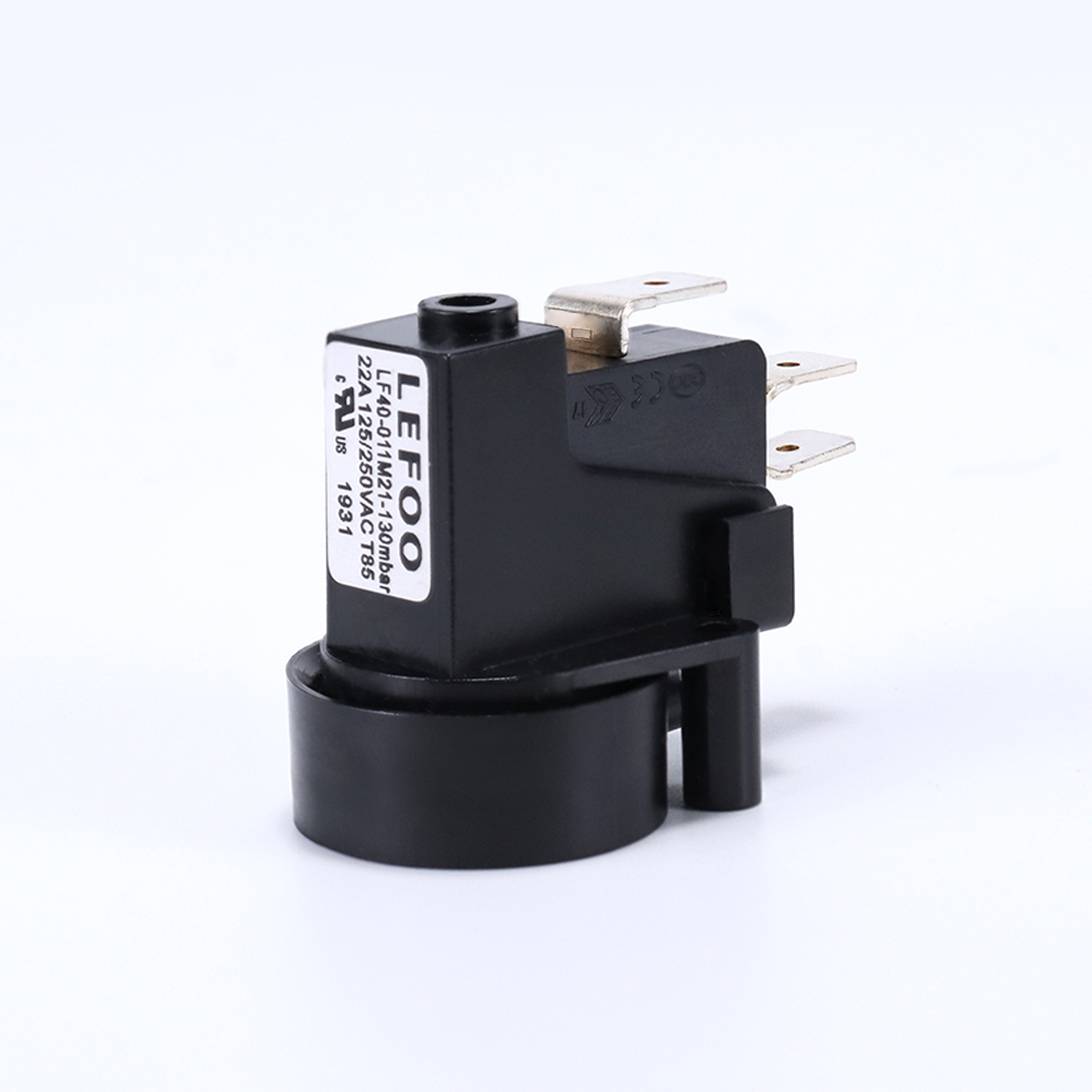

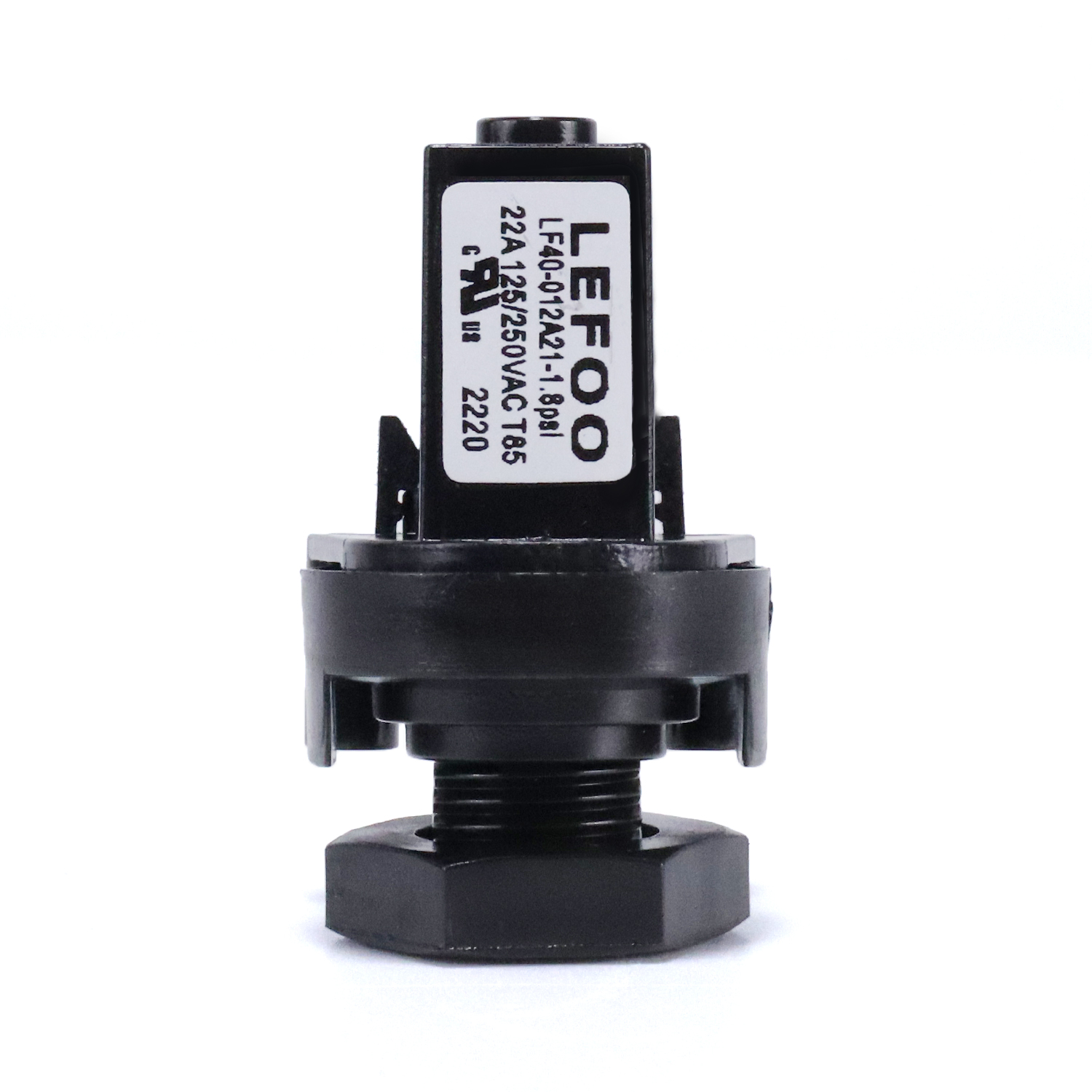

LF40-01is provided with a snap action switching for higher current capacity, SPDT contact form and switch dead bands (also referred to as mechanical differential or hysteresis).

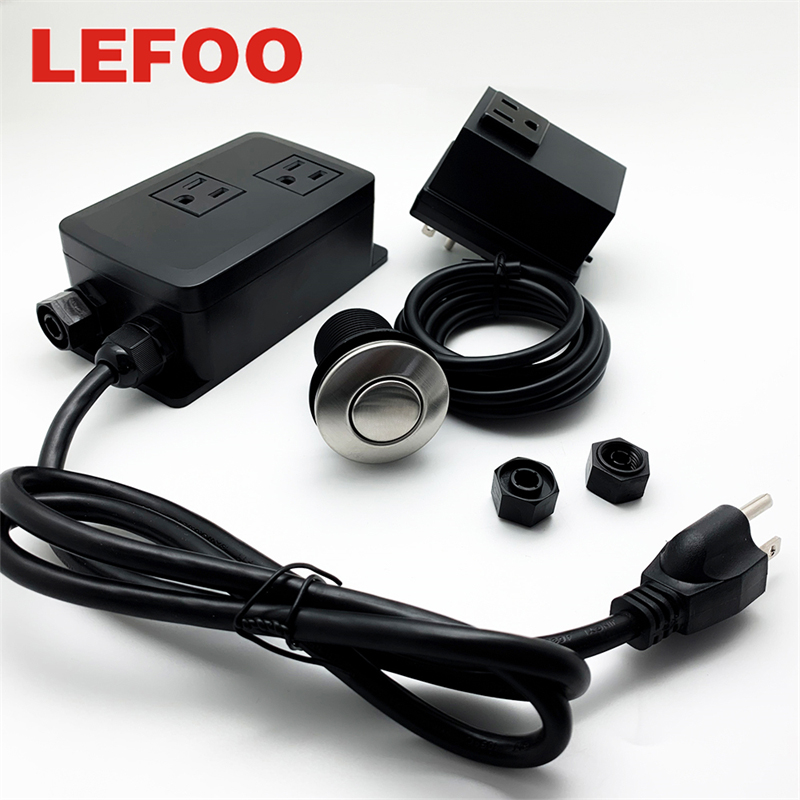

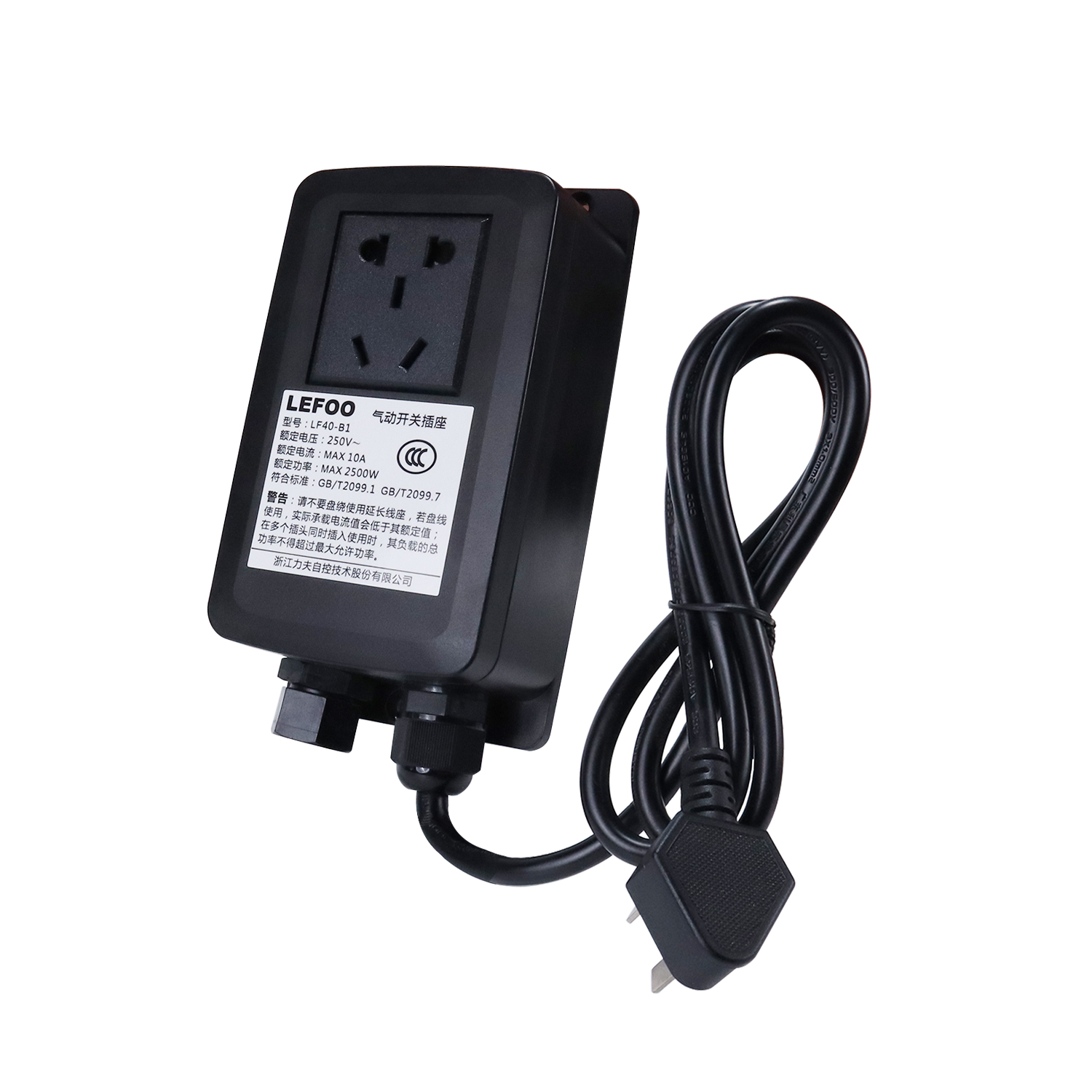

LF40-01can be used together with air button (also called as Actuator) for remote control purpose. It is widely used in food waste disposer, pumps for swimming pools and spas, hot tubs, sanitary equipment, outdoor machines, medical equipment, etc. As a remote control switch, it is small enough to fix in the control box of the engine. Used as a remote control, the air switch has two actions:
1) Momentary action: when the air button is pushed, the air switch is actuated. When the air button is released, the air switch will also be released. This is the way the basic pressure switches are working.
2) Alternate action (also referred to as latching or bistable): the first pushing on air button actuates the air switch, and the air switch keep actuating when air button is released. A second push on the air button will release the air switch.
Model
LF40-01
Medium
Air or other non hazardous gas, water
Operating PressureRange
20 mbar to 1000 mbar
Proof Pressure
50 PSI
OperatingTemperature Range
-10° C to 85° C
Contact Arrangement
SPST or SPDT
Electric Rating
1/2HP 250V, for long distance remote control;
2HP 250V, for high rating application;
Other rating can be available on request
Terminals
6.35 or4.88 mmmale Q.C.
Connection
4mm OD tube,1/4 NPT male thread, 1/8 NPT male thread
Aggency Approval UL, CUL
From the supplier
LF40-01is provided with a snap action switching for higher current capacity, SPDT contact form and switch dead bands (also referred to as mechanical differential or hysteresis).
LF40-01can be used together with air button (also called as Actuator) for remote control purpose. It is widely used in food waste disposer, pumps for swimming pools and spas, hot tubs, sanitary equipment, outdoor machines, medical equipment, etc. As a remote control switch, it is small enough to fix in the control box of the engine. Used as a remote control, the air switch has two actions:
1) Momentary action: when the air button is pushed, the air switch is actuated. When the air button is released, the air switch will also be released. This is the way the basic pressure switches are working.
2) Alternate action (also referred to as latching or bistable): the first pushing on air button actuates the air switch, and the air switch keep actuating when air button is released. A second push on the air button will release the air switch.
Model
LF40-01
Medium
Air or other non hazardous gas, water
Operating PressureRange
20 mbar to 1000 mbar
Proof Pressure
50 PSI
OperatingTemperature Range
-10° C to 85° C
Contact Arrangement
SPST or SPDT
Electric Rating
1/2HP 250V, for long distance remote control;
2HP 250V, for high rating application;
Other rating can be available on request
Terminals
6.35 or4.88 mmmale Q.C.
Connection
4mm OD tube,1/4 NPT male thread, 1/8 NPT male thread
Aggency Approval UL, CUL
