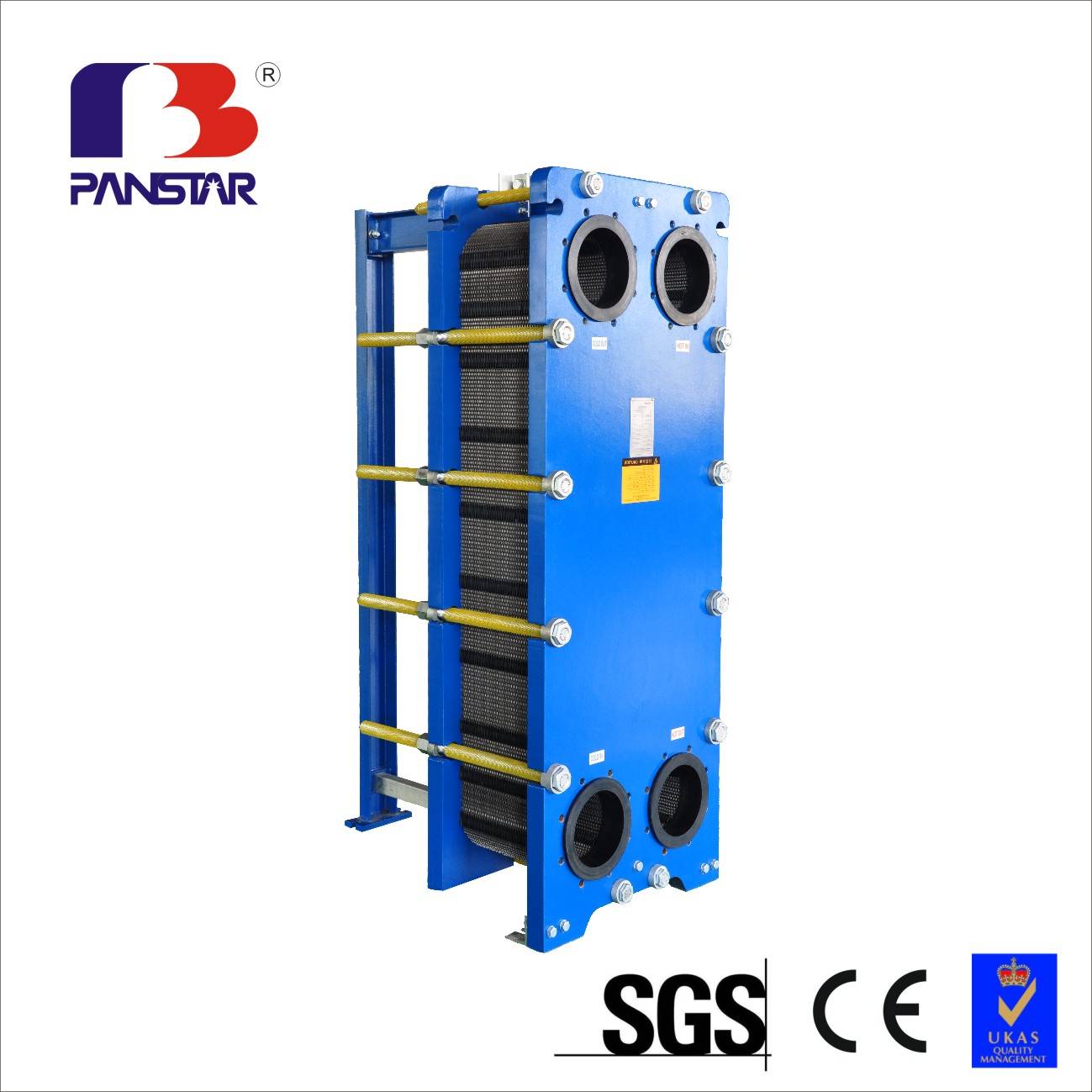

Paist detachable plate heat exchangers come in several series including BR series, BP series, BT series, BS series, condenser, evaporator, semi welded, fully welded, and more than 100 types of plate types.

Various models have deep ripples, shallow ripples, large angles, small angles, etc., fully ensuring that they meet the needs of different users. Special working conditions can be specially designed and manufactured according to user needs.

Plate material:

stainless steel: SUS304、316、316L、310S、904

Titanium and titanium palladium alloys: TAi、TAi－Pd

Hastelloy alloy: C276、D205、B2G

Nickel: Ni200

Molybdenum: 254MO

Product parameters:

Pressure range: not exceeding 2.5MPa

Maximum processing capacity: 1500 cubic meters per hour

Minimum processing capacity: 1 cubic meter per hour

Assembly area range: 800 square meters

General temperature range:- 50-180℃

Maximum interface: DN350

Minimum interface: DN32

Heat load: 10MW

Plate thickness: 0.5-0.8mm

-------------------------------------------------------------------------------------

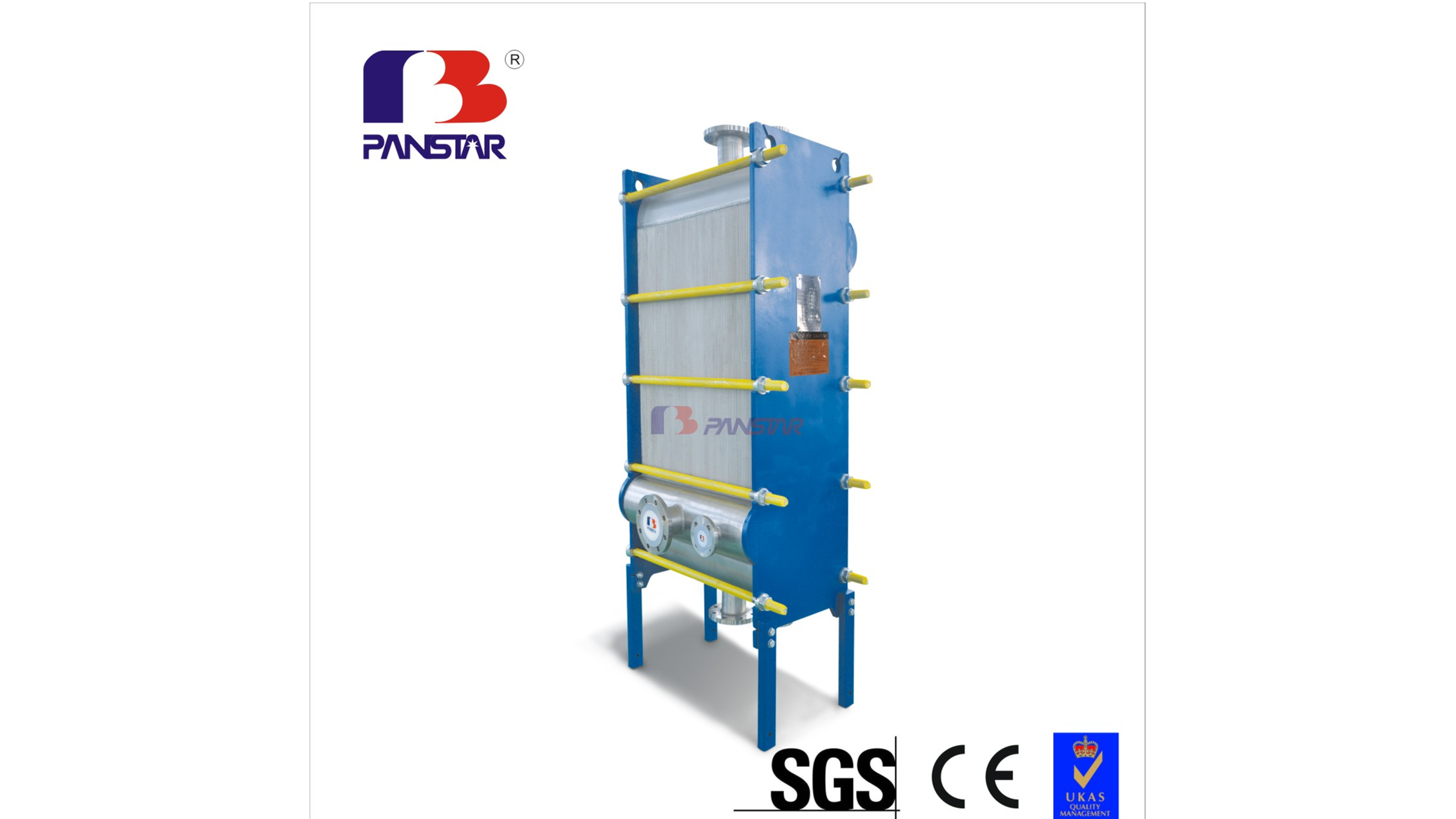

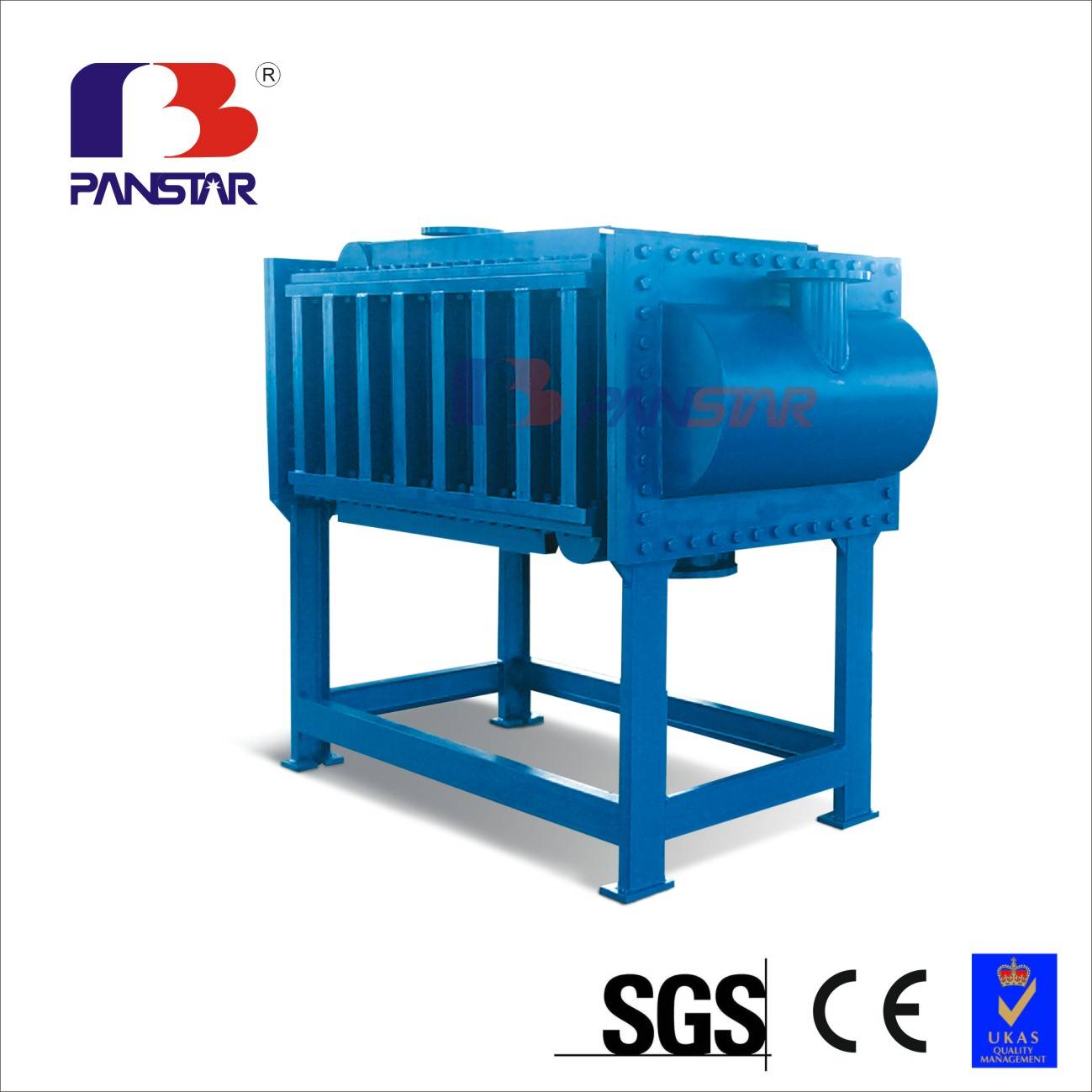

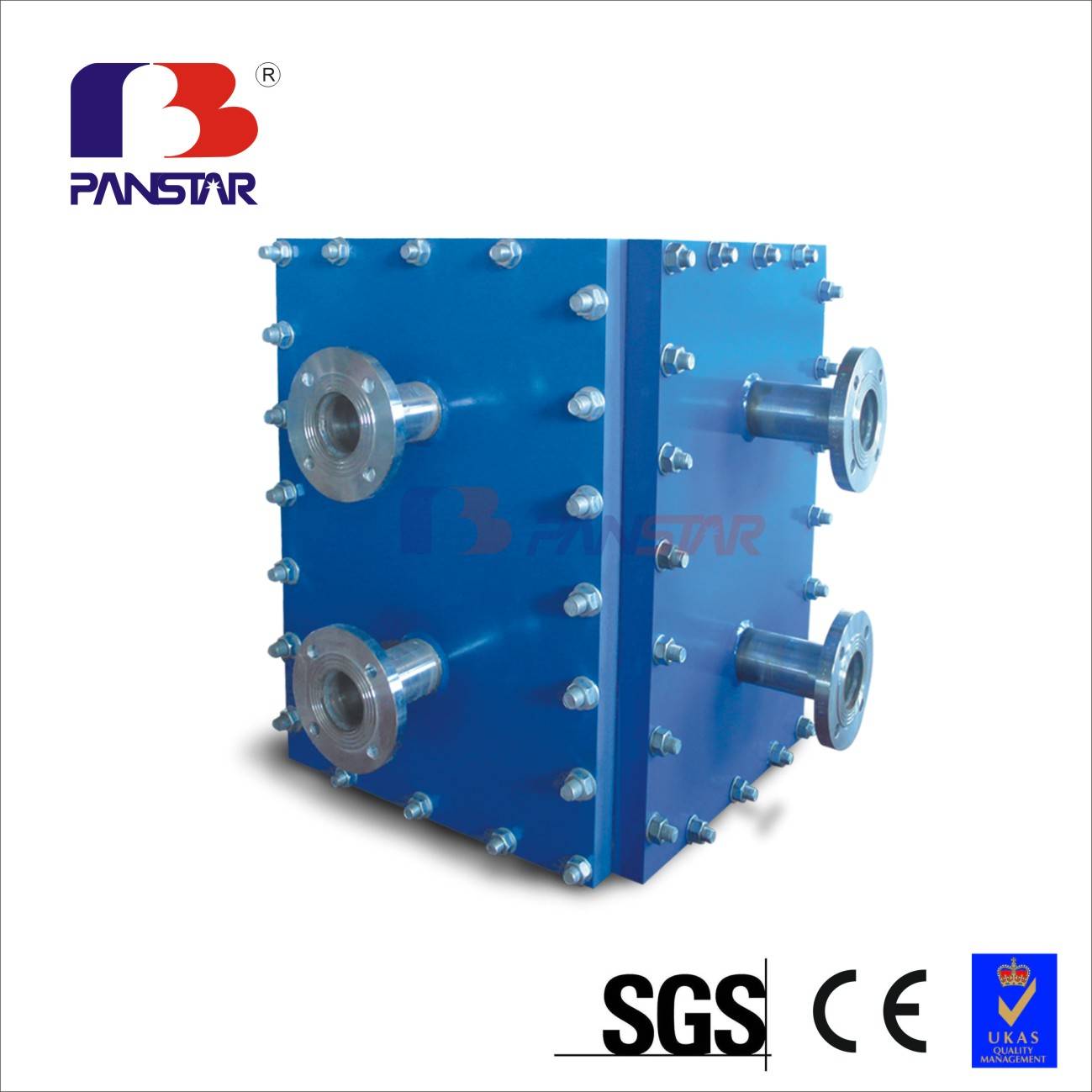

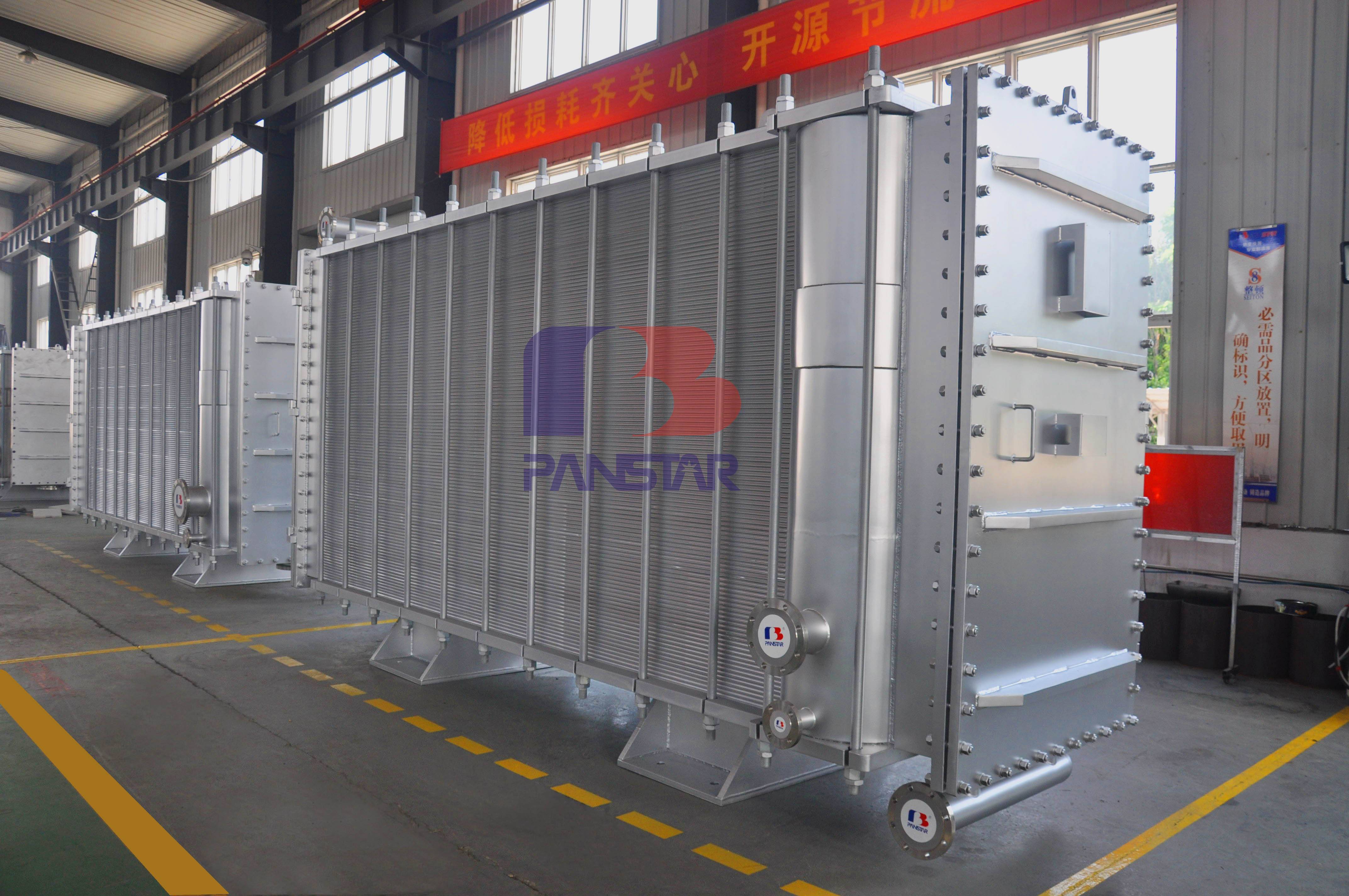

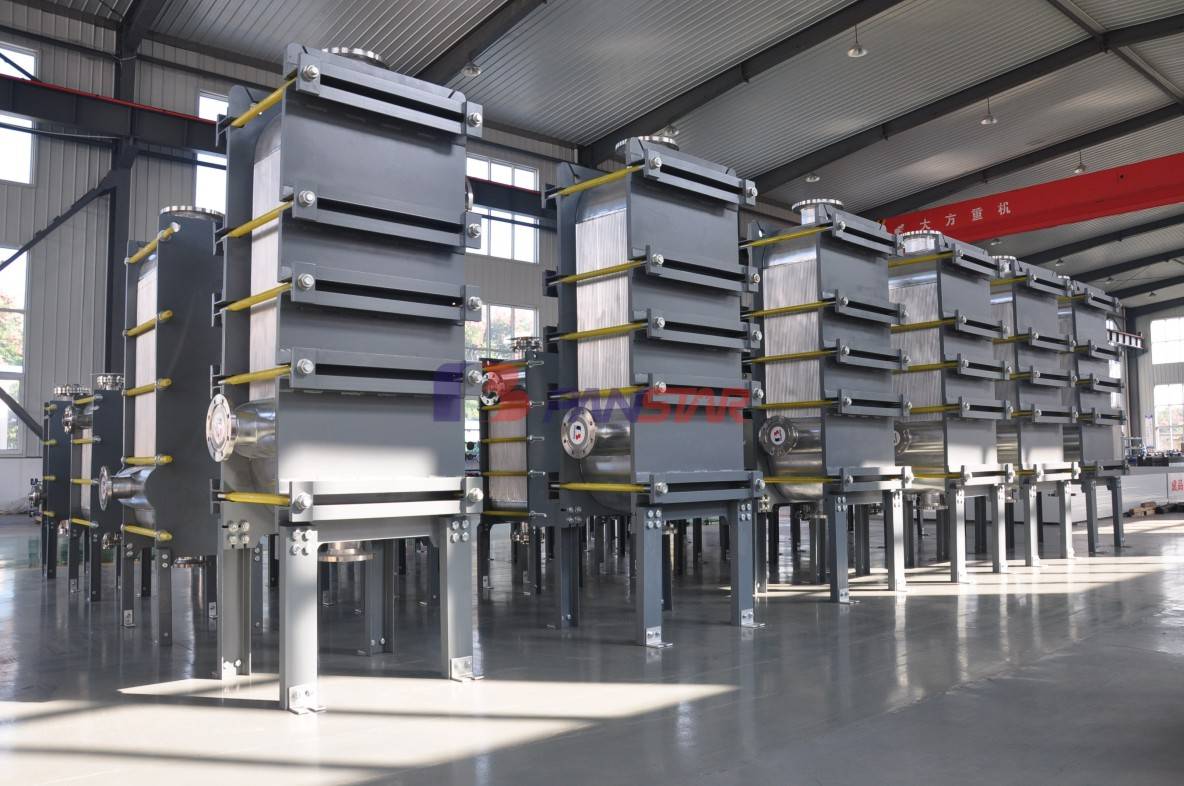

Characteristics of Paist fully welded plate heat exchanger:

1. Compact structure, small footprint, high heat transfer efficiency, high pressure bearing capacity (up to 4.0Mpa), high temperature resistance (up to 250-300 ℃), and reliable operation.

2. High heat transfer efficiency: The heat exchange of the medium in the heat exchanger is achieved through plate bundles, and the plates that make up the plate bundles are pressed and formed by special molds. The structural form is similar to that of ordinary detachable plate heat exchangers, with advantages such as high heat transfer efficiency, large flow rate, low fluid pressure drop, and less heat loss.

3. Flexible and convenient: A set of molds can be used to press plates of different lengths, forming bundles of plates of different specifications, forming a product series of the same width, with multiple specifications and models, and a wide range of choices, which can better meet the requirements of working conditions.

4. Wide applicability: The plate bundle and clamping plate are all welded structures, which can safely and smoothly operate in situations where the temperature is ≤ 300 ℃, the pressure is ≤ 4.0Mpa, or the working medium corrodes the sealing gasket, as well as in production processes with high safety requirements for flammable, explosive, toxic media and environmental conditions such as vapor condensation, liquid medium cooling, heating, evaporation, etc. Therefore, it has both the advantages of a detachable plate heat exchanger and the characteristics of being suitable for high temperature and high pressure.

Application fields of Paist fully welded plate heat exchanger:

Crude oil, natural gas purification treatment, and chemical products; Chemical industry; Pharmaceuticals and specific chemical products; Spray control system; HVAC refrigeration; Regional heating and thermal power plants; Food technology; Recovery of heat from cooling towers; petrifaction; Heating; Electricity; Metallurgy; Bioenergy; Refining; Power plant; Industries such as high temperature and high pressure.

Product parameters:

Pressure range: not exceeding 4.0MPa

Maximum processing capacity: 1500 cubic meters per hour

Minimum processing capacity: 1 cubic meter per hour

Assembly area range: 550 square meters

General temperature range:- 50-350℃

Maximum interface: DN500

Minimum interface: DN25

Heat load: 10MW

Plate thickness: 0.8-1.2mm
