Yuguo,DZH biomass steam boiler,Agricultural machinery,Chemical & pharmaceutical machinery
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Yuguo,DZH biomass steam boiler,Agricultural machinery,Chemical & pharmaceutical machinery
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: ·
- Color: ·
- Usage: OtherIndustrial
- Burning style: Fluidized Bed FurnaceOtherCyclone Furnace
- Structure: Other
- Function: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: ·
- Color: ·
- Usage: OtherIndustrial
- Burning style: Fluidized Bed FurnaceOtherCyclone Furnace
- Structure: Other
- Function: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | · |
|---|---|
| Color | · |
| Usage | OtherIndustrial |
| Burning style | Fluidized Bed FurnaceOtherCyclone Furnace |
| Structure | Other |
| Function | Other |
| Manufacturing level | Other |
| Drum placement | Vertical BoilerOtherHorizontal Boiler |
| Installation | Bulk BoilerAssembled BoilerOtherPackaged Boiler |
Product details
| Size | · |
|---|---|
| Color | · |
| Usage | OtherIndustrial |
| Burning style | Fluidized Bed FurnaceOtherCyclone Furnace |
| Structure | Other |
| Function | Other |
| Manufacturing level | Other |
| Drum placement | Vertical BoilerOtherHorizontal Boiler |
| Installation | Bulk BoilerAssembled BoilerOtherPackaged Boiler |
From the supplier

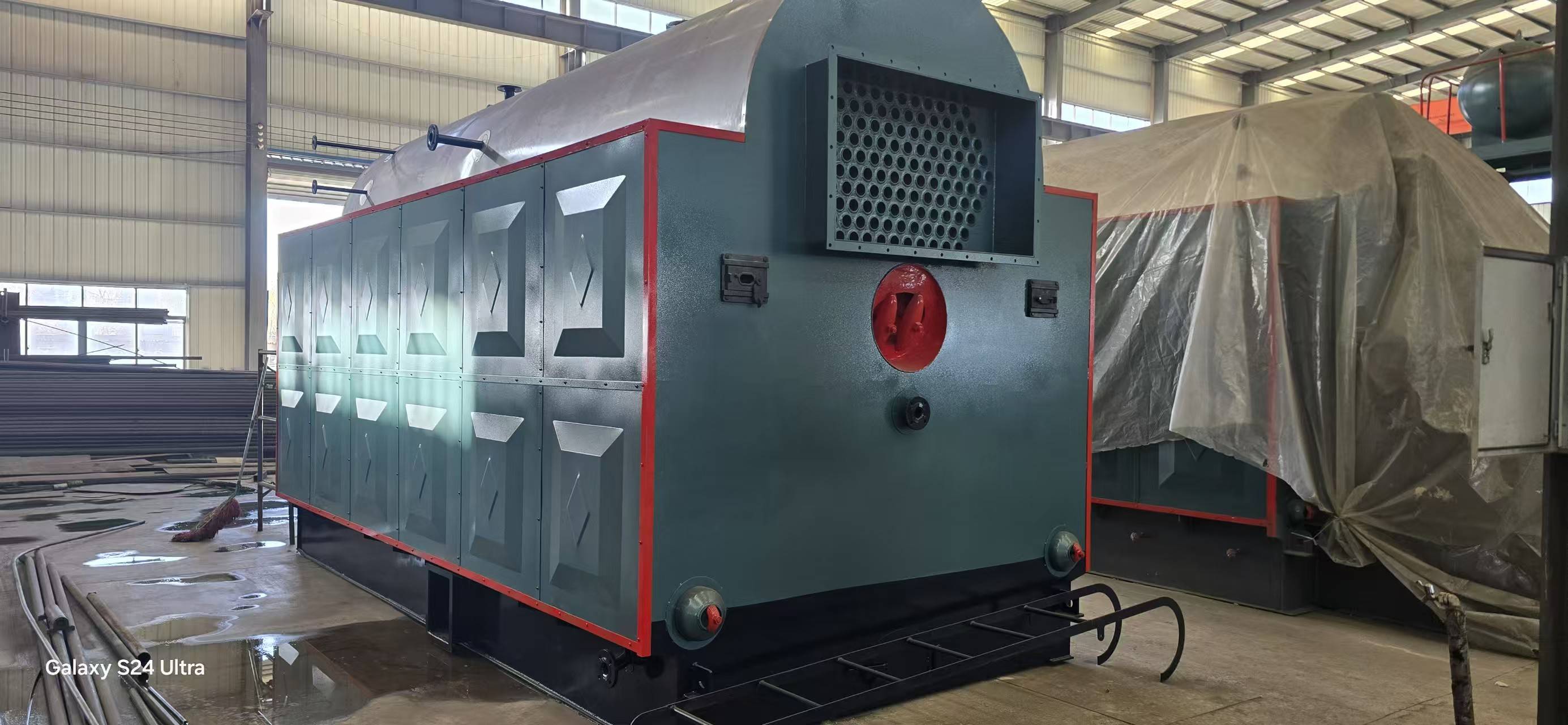

DZH single-drum longitudinal type fast-loading movable grate biomass boiler is a horizontal three-return water-fire tube boiler. The boiler adopts single-drum longitudinal movable grate, which has a simple structure and is durable. This type of boiler does not require uniform feeding, has strong controllability, has a small boiler area and high applicability. The design of this type of boiler is optimized to solve the problem of easy coking in the boiler, significantly improve the thermal efficiency and save fuel costs. The fuel for the boiler is a new clean fuel biomass fuel that is made into various shapes (such as blocks, granules, etc.) and can be directly burned through processes such as crushing, mixing, extruding, and drying. Manual feeding and mechanical feeding methods can be selected according to fuel characteristics. Using biomass fuel, it is environmentally friendly and clean, and meets environmental protection requirements.
performance advantages
(1) According to the characteristics of the fuel, manual feeding or mechanical feeding methods are used.
(2) By adjusting the speed-controlled secondary air volume, the combustion ignition speed can be controlled.
(3) Long strips (L≤ 2M) can burn without being broken.
(4) Uniform feeding is not required.
Technical parameters:
model
DZH0.5
DZH1
DZH2
DZH4
Rated evaporation capacity (t/h)
0.5
1
2
4
Rated evaporation pressure (Mpa)
0.7/1.0
0.7/1.0/1.25
0.7/1.0/1.25
1.25/1.6
Rated steam temperature (℃)
170/184
17./ 184/194
17./ 184/194/204
194/204
Rated feed water temperature (℃)
20
20
20
20
Effective area of grate (㎡)
1.28
2.1
3.36
5.2
Exhaust gas temperature (℃)
179
165/163/128
125/131/133/137
144/145
Boiler weight (T)
8
10/11
14/15
22
boiler size
Length, width, height (mm)
3228
4108
4700
5590
2000
2200
2300
2550
2656
2915
3270
3563
Remarks:
1. All the above values are calculated based on the standard of natural gas (LNG) low calorific value of 8,400 kcal/Nm³, city gas (CG) low calorific value of 4,000 kcal/Nm³, coke oven gas low calorific value of 4,200 kcal/Nm³, diesel low calorific value of 10,200 kcal/kg, and methanol low calorific value of 4650kcal/kg.
2. According to user needs, our company can provide other special models of boilers.
From the supplier
DZH single-drum longitudinal type fast-loading movable grate biomass boiler is a horizontal three-return water-fire tube boiler. The boiler adopts single-drum longitudinal movable grate, which has a simple structure and is durable. This type of boiler does not require uniform feeding, has strong controllability, has a small boiler area and high applicability. The design of this type of boiler is optimized to solve the problem of easy coking in the boiler, significantly improve the thermal efficiency and save fuel costs. The fuel for the boiler is a new clean fuel biomass fuel that is made into various shapes (such as blocks, granules, etc.) and can be directly burned through processes such as crushing, mixing, extruding, and drying. Manual feeding and mechanical feeding methods can be selected according to fuel characteristics. Using biomass fuel, it is environmentally friendly and clean, and meets environmental protection requirements.
performance advantages
(1) According to the characteristics of the fuel, manual feeding or mechanical feeding methods are used.
(2) By adjusting the speed-controlled secondary air volume, the combustion ignition speed can be controlled.
(3) Long strips (L≤ 2M) can burn without being broken.
(4) Uniform feeding is not required.
Technical parameters:
model
DZH0.5
DZH1
DZH2
DZH4
Rated evaporation capacity (t/h)
0.5
1
2
4
Rated evaporation pressure (Mpa)
0.7/1.0
0.7/1.0/1.25
0.7/1.0/1.25
1.25/1.6
Rated steam temperature (℃)
170/184
17./ 184/194
17./ 184/194/204
194/204
Rated feed water temperature (℃)
20
20
20
20
Effective area of grate (㎡)
1.28
2.1
3.36
5.2
Exhaust gas temperature (℃)
179
165/163/128
125/131/133/137
144/145
Boiler weight (T)
8
10/11
14/15
22
boiler size
Length, width, height (mm)
3228
4108
4700
5590
2000
2200
2300
2550
2656
2915
3270
3563
Remarks:
1. All the above values are calculated based on the standard of natural gas (LNG) low calorific value of 8,400 kcal/Nm³, city gas (CG) low calorific value of 4,000 kcal/Nm³, coke oven gas low calorific value of 4,200 kcal/Nm³, diesel low calorific value of 10,200 kcal/kg, and methanol low calorific value of 4650kcal/kg.
2. According to user needs, our company can provide other special models of boilers.
