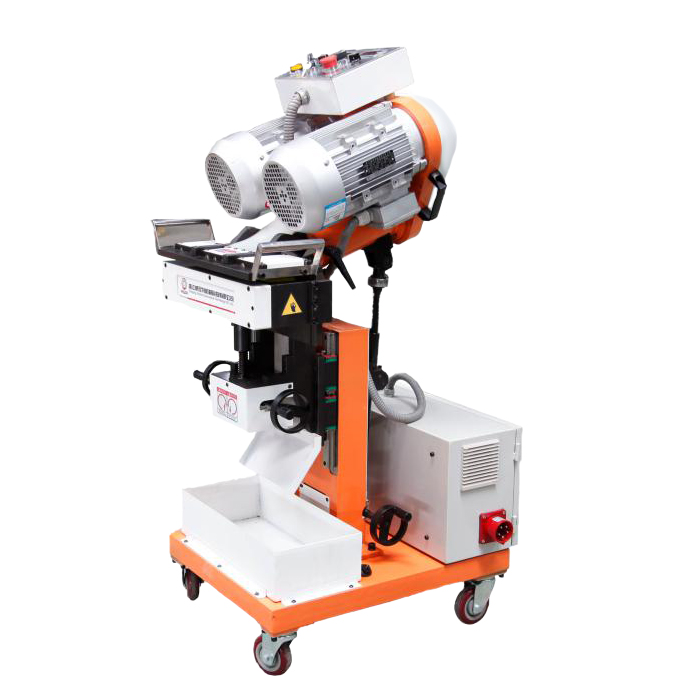

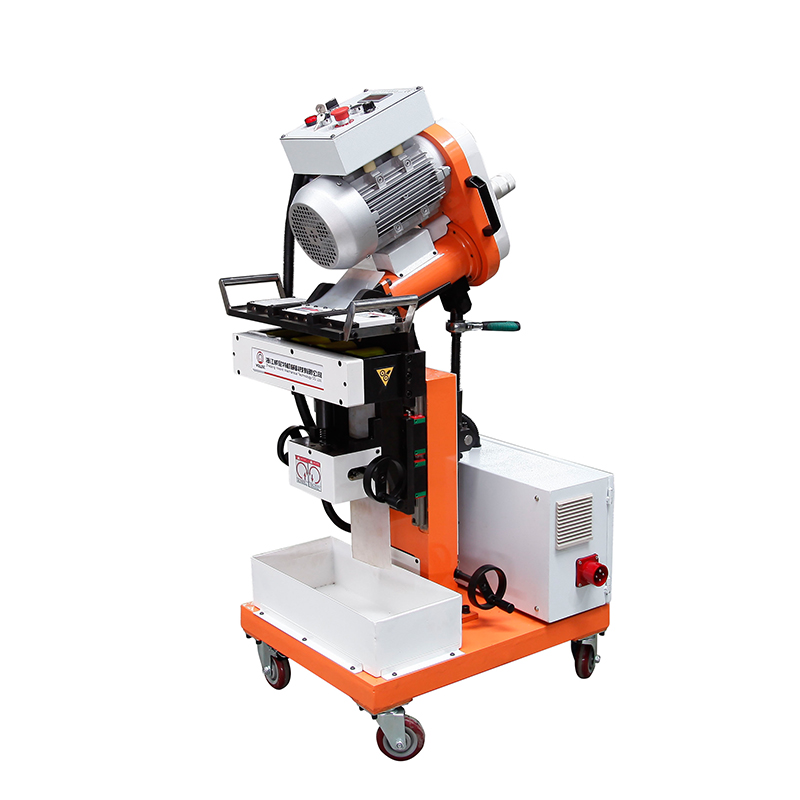

The edge milling machine has the characteristics of small size, light weight, easy mobility, and simple operation, making it suitable for use in small factories. Compared with milling machines, the processing speed is not inferior. In addition, this model of milling machine is equipped with commonly used CNC blades, making it more cost-effective for customers to use.
characteristic:
1. The angle range of the groove can be adjusted freely within the range of 10 to 60 degrees;
2. Rear mounted gearbox is beneficial for processing narrow plates and is safer;
3. The unique design of separating the control box from the electrical box makes operation safer;
4. Use a dense tooth milling cutter to mill the groove, making single blade cutting faster and more efficient;
5. The surface smoothness of the processed groove reaches Ra3.2-6.3, fully meeting the welding requirements of pressure vessels;
6. Small in size and light in weight, it is a portable automatic walking milling machine and also a portable beveling machine;
7. Cold cutting groove operation, with no oxide layer on the groove surface;
8. The machine height can be adjusted from 800mm to 840mm
