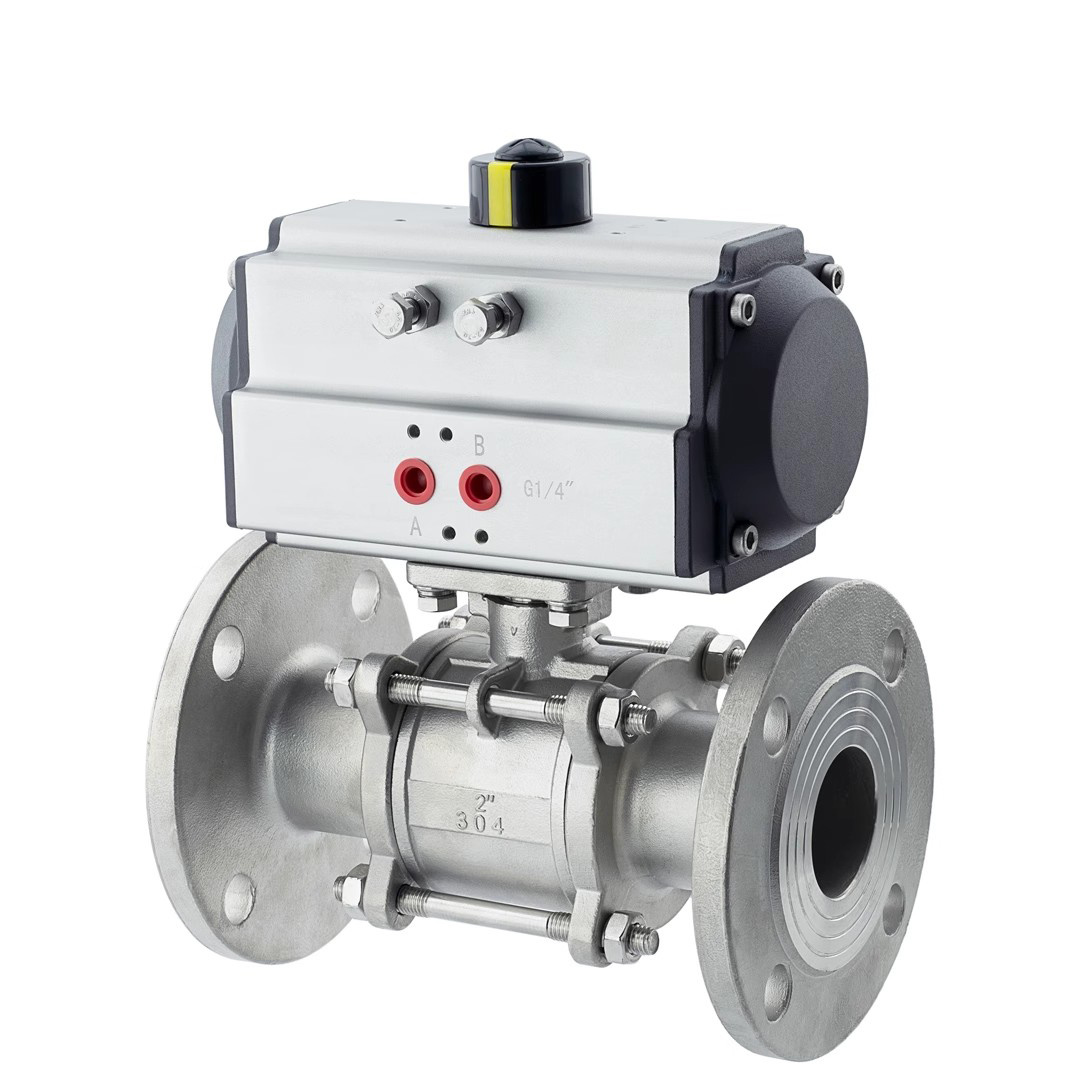

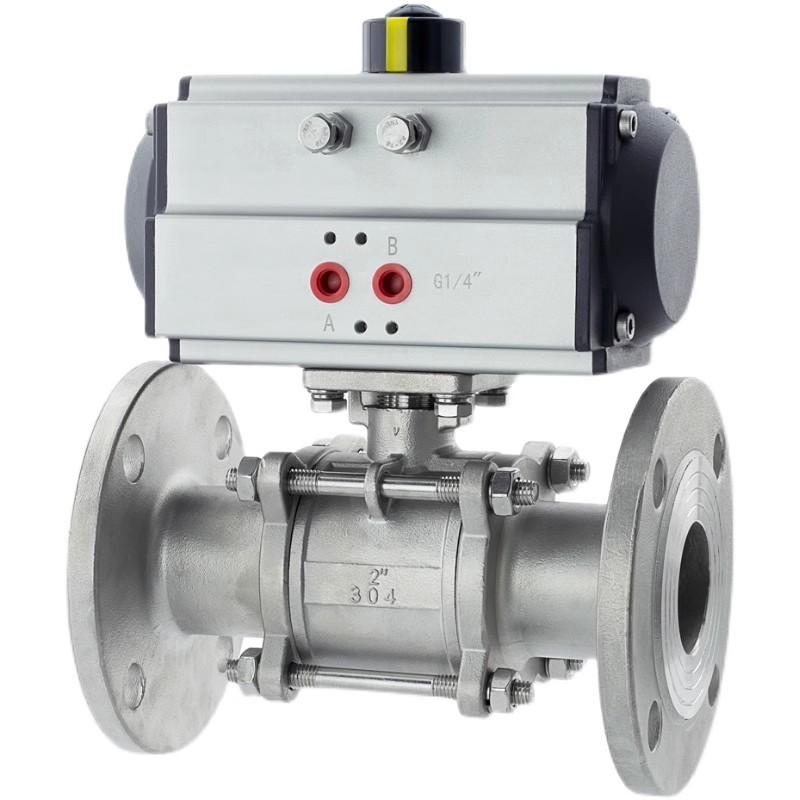

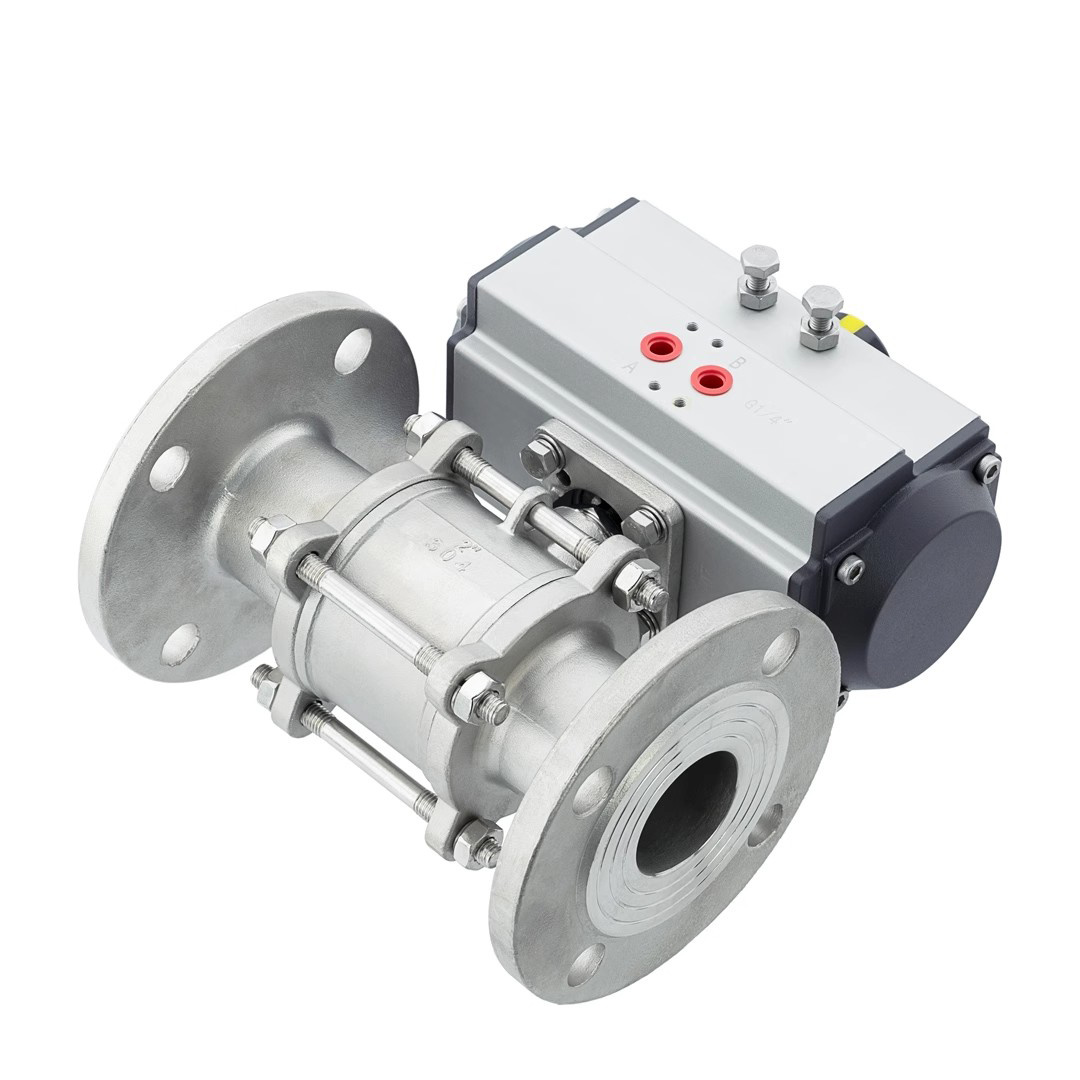

Pneumatic stainless steel three-piece flanged ball valve Q641F-16P3 (Teflon soft-sealed cut-off valve)

This product is a Q641F-16P3 type pneumatic three-piece flanged ball valve, specially designed for the high-frequency and high-precision cutting requirements of industrial automation systems. It combines the corrosion resistance of stainless steel, the zero-leakage feature of fluorine-based soft seals, and the rapid response advantage of pneumatic control, and is suitable for high-risk medium control scenarios in fields such as chemical engineering, pharmaceuticals, and energy. It is a core safety component of modern fluid pipelines.
I. Core Technical Parameters
Basic Performance
Nominal Pressure: PN16 (1.6 MPa), short-term withstand pressure 2.5 MPa, in accordance with the national standard GB/T12237.
Applicable Temperature: -29℃~180℃ (Teflon sealed conventional type), up to 200℃ for the high-temperature model (graphite composite sealing).
Diameter Range: DN15-DN200 (support non-standard customization up to DN300).
Pneumatic Actuator
Air Source Pressure: 0.4~0.7 MPa, single/double action selectable, response time ≤ 1 second (DN50 below).
Control Signal: supports 4-20mA, 0-10V or NAMUR signals, positioning accuracy ±0.5%.
Safety Mode: automatic shut-off in case of air loss (FC/FO selectable), explosion-proof grade ExdIICT6 (applicable to hazardous areas).
II. Material and Structural Design
Core Materials
Valve Body/Valve Cover: 316L stainless steel forged (optional 304), resistant to intergranular corrosion and stress cracking, suitable for media containing Cl⁻ ions (such as seawater, hydrochloric acid).
Ball: 316 stainless steel surface ultra-polished (Ra ≤ 0.2 μm) + tungsten carbide spraying (HV ≥ 1100), 5 times improvement in resistance to particle erosion.
Sealing System: PTFE valve seat + spring pre-tightening structure, leakage rate of bidirectional sealing < 100 ppm (ISO5208 standard).
Innovative Design
Three-piece Modularization: valve body, valve seat, end cover bolted connection, supports online rapid maintenance (replacement of sealing parts takes ≤ 30 minutes).
Fire Safety: valve seat with graphite ring (API607 certified), forms a temporary metal seal at high temperatures to prevent medium leakage.
Low Torque Optimization: valve stem uses self-lubricating bearing, opening and closing torque reduced by 40%, extending actuator lifespan.
III. Core Product Advantages
Rapid Cut Guarantee
Pneumatic actuator completes 90° rotation within 0.5 seconds, meeting SIL2 safety level requirements, suitable for emergency cut-off scenarios such as gas leakage and reactor overpressure.
Low Life Cycle Cost
316L material has an annual corrosion rate of < 0.005 mm in 5% sulfuric acid medium, design life ≥ 15 years (conventional conditions);
Modular structure reduces spare parts inventory costs, maintenance costs only 1/3 of the single-valve type.
Intelligent Compatibility Strong
Supports integration with DCS, SCADA systems, and optional valve position feedback, temperature sensors, etc., for remote monitoring and predictive maintenance.
IV. Typical Application Scenarios
High-risk Chemical Media
Chlorine gas pipelines in the chlor-alkali industry, acid liquid transportation systems in sulfuric acid plants, explosion-proof design suitable for Zone 1/Zone 2 hazardous areas.
Pharmaceutical Sterile Process
Bio-reactor feed control, 316L material + electrolytic polishing treatment (Ra ≤ 0.1 μm), compliant with FDA certification.
Energy Safety System
Emergency cut-off for LNG storage tanks, incoming/outgoing materials, and sulfur-containing natural gas pipelines in oil fields, fire-resistant structure passes API6FA test.
Environmental Emergency Handling
Toxic gas (such as H₂S) emission pipelines in wastewater treatment plants, automatic locking in case of power loss/air loss to prevent environmental pollution.
V. Service and Compatibility Suggestions
Customization Options:
Ultra-low temperature type (-196℃ liquid nitrogen valve), vacuum sealing type (≤ 10⁻⁴ Pa), anti-sulfur type (NACE MR0175 standard).
Warranty Policy:
3-year whole machine warranty (including pneumatic actuator), 48-hour fault response and on-site technical support provided.
Selection Guide:
Conventional conditions: 316L valve body + PTFE seal + double-action actuator (cost-effective preferred);
Extreme environments: titanium alloy valve body + graphite seal + single-action spring reset (deep-sea platforms, strong acid conditions).
