About this product
- Materials: metal
- Size: 2480*1370*2670
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Shandong, China
About this product
- Materials: metal
- Size: 2480*1370*2670
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Shandong, China
Product details
| Materials | metal |
|---|---|
| Size | 2480*1370*2670 |
| Color | yellow |
From the supplier

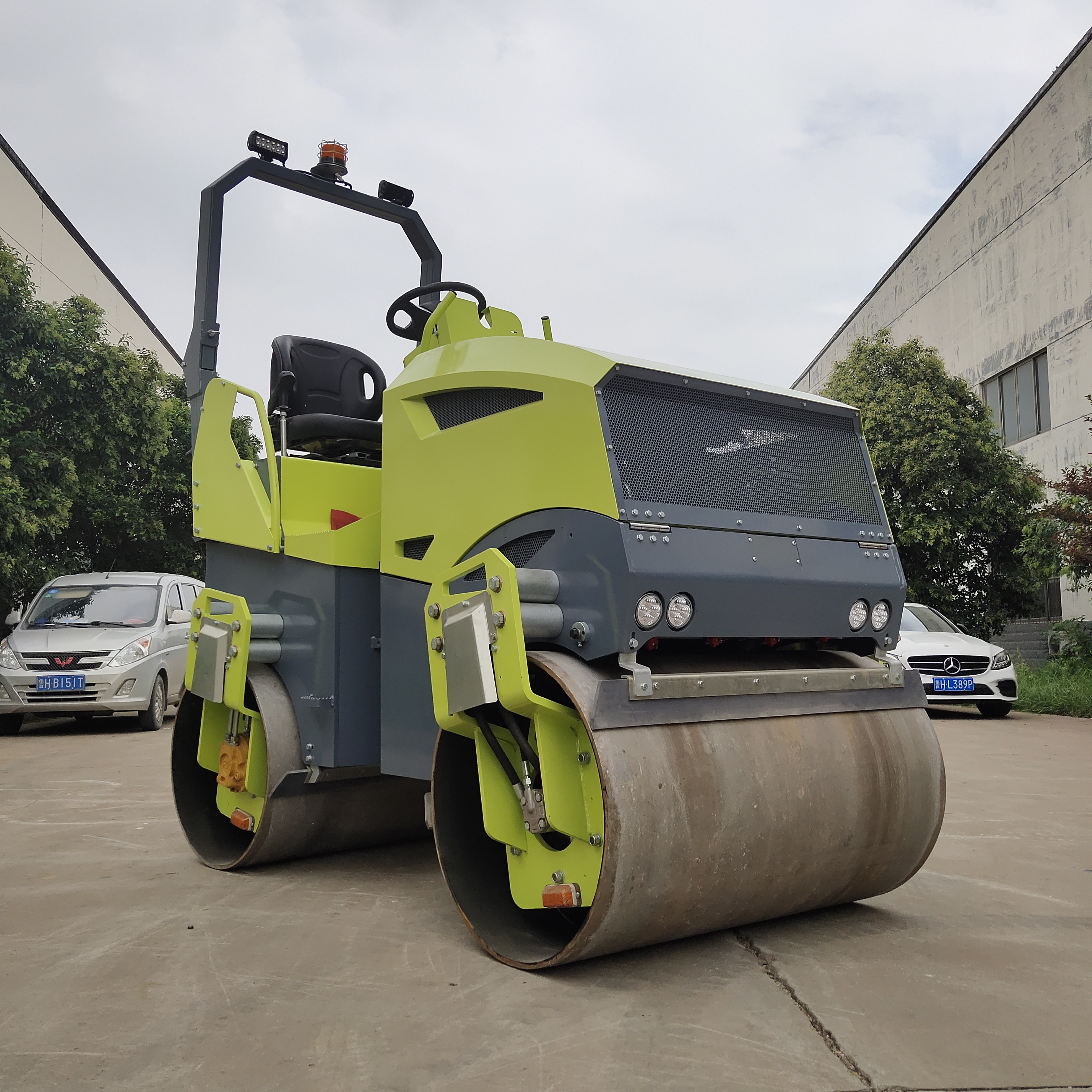

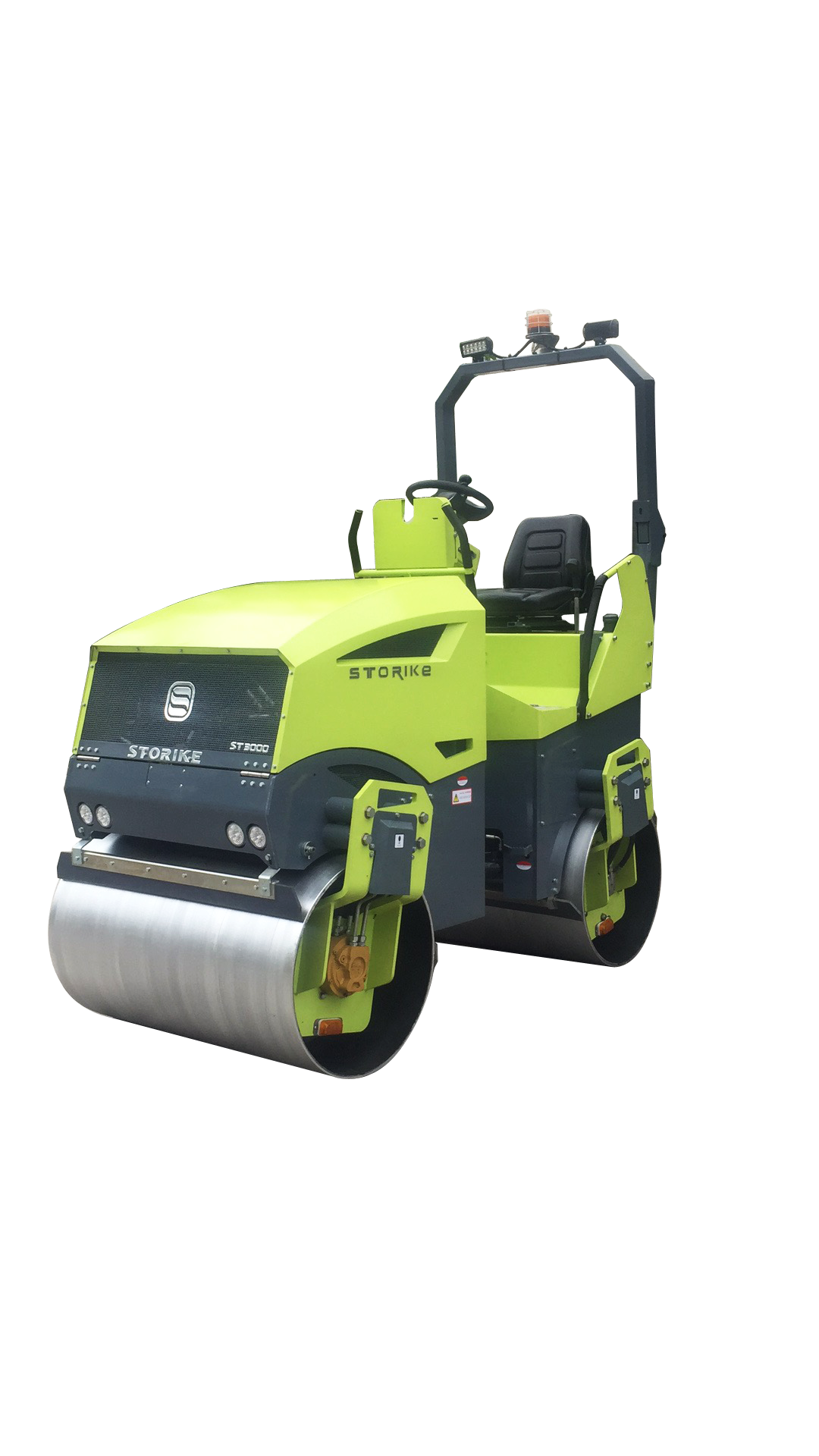

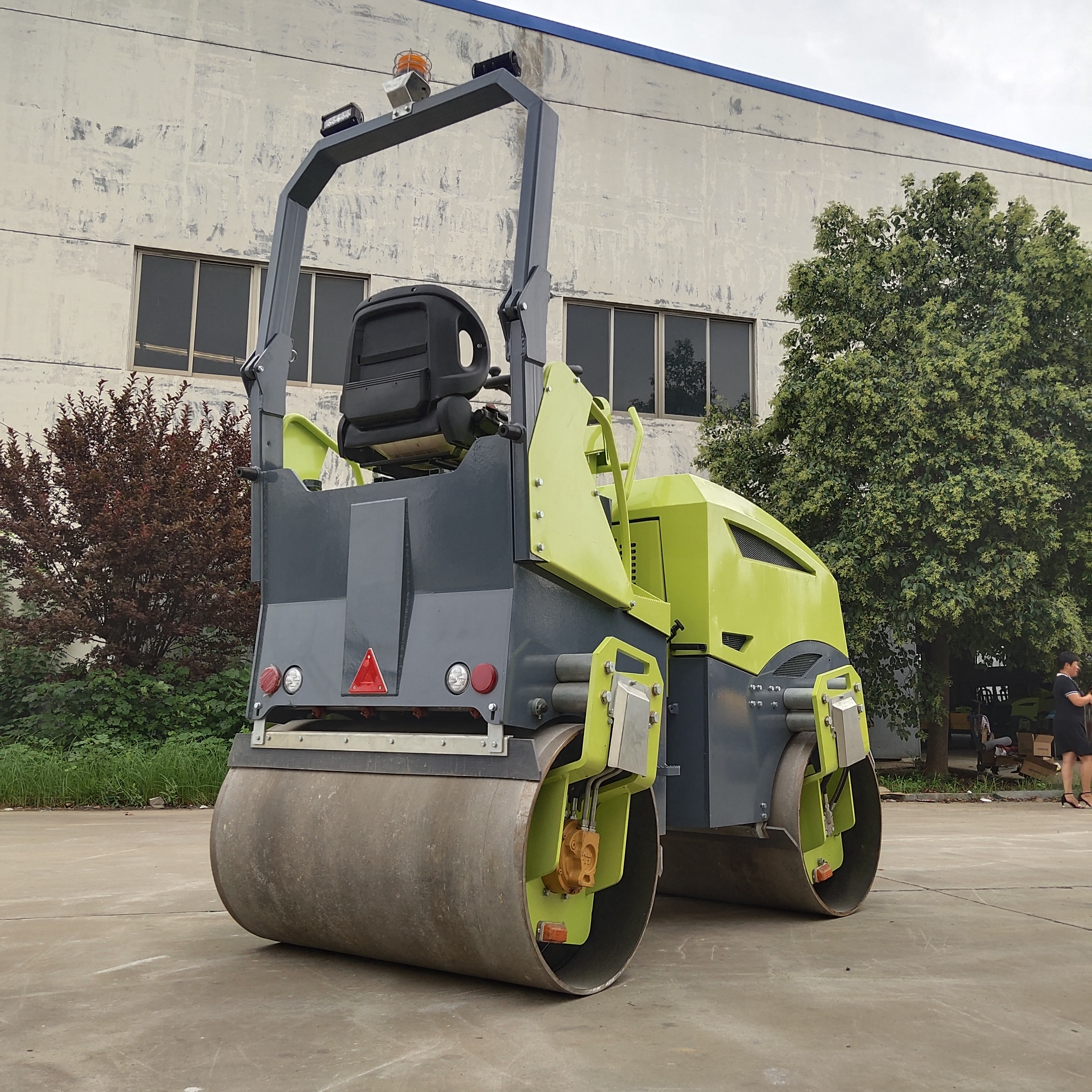

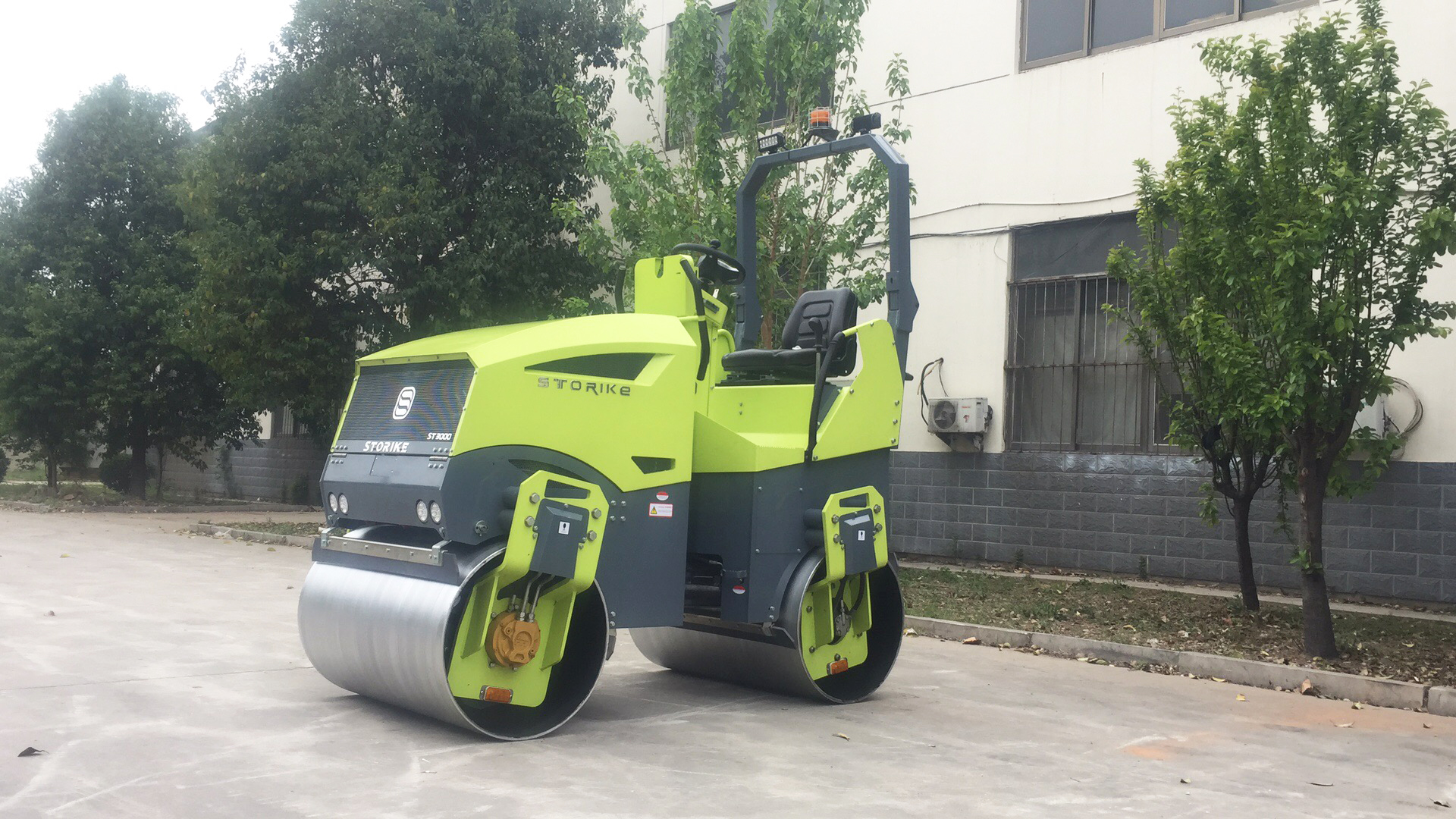

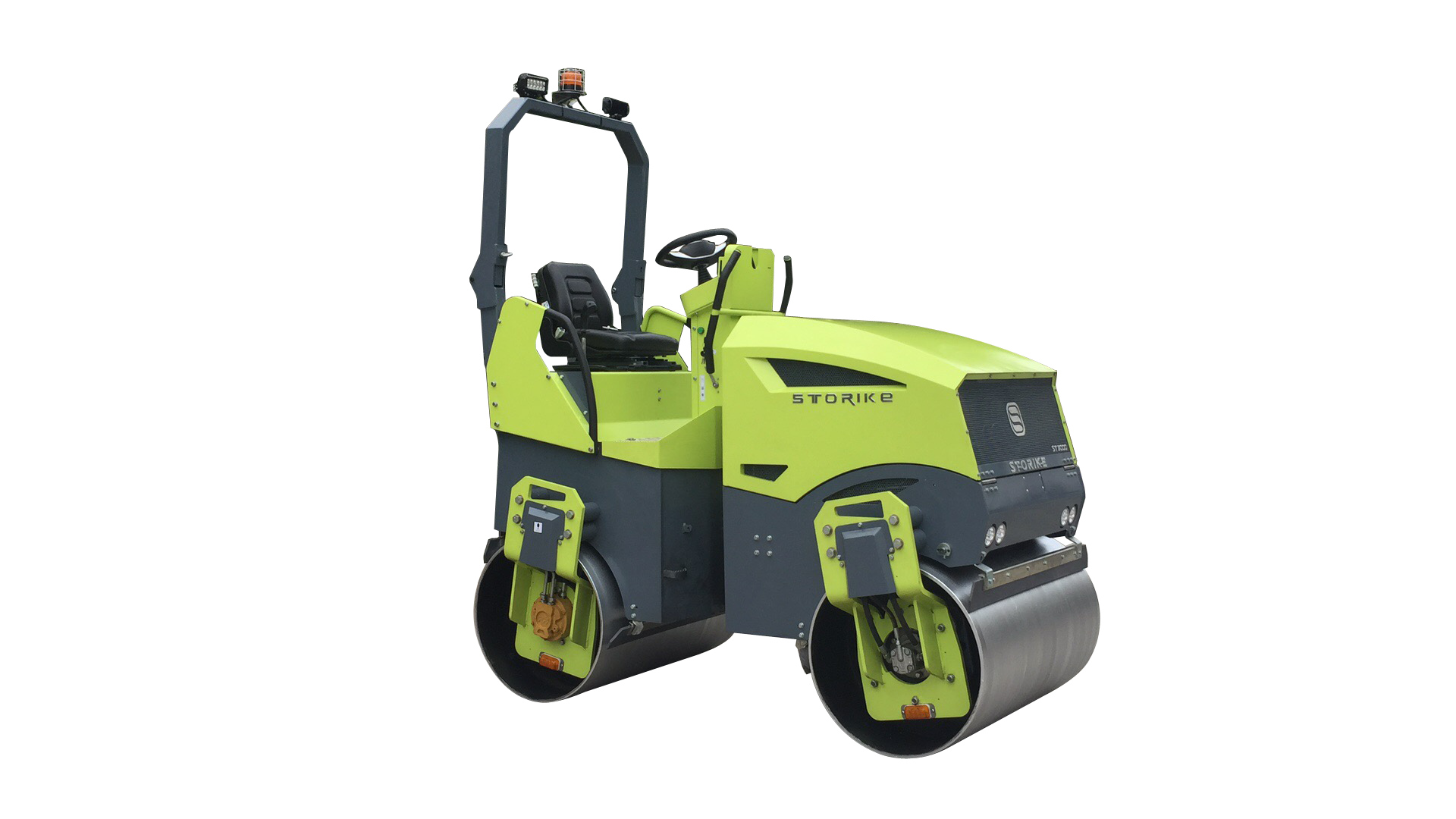

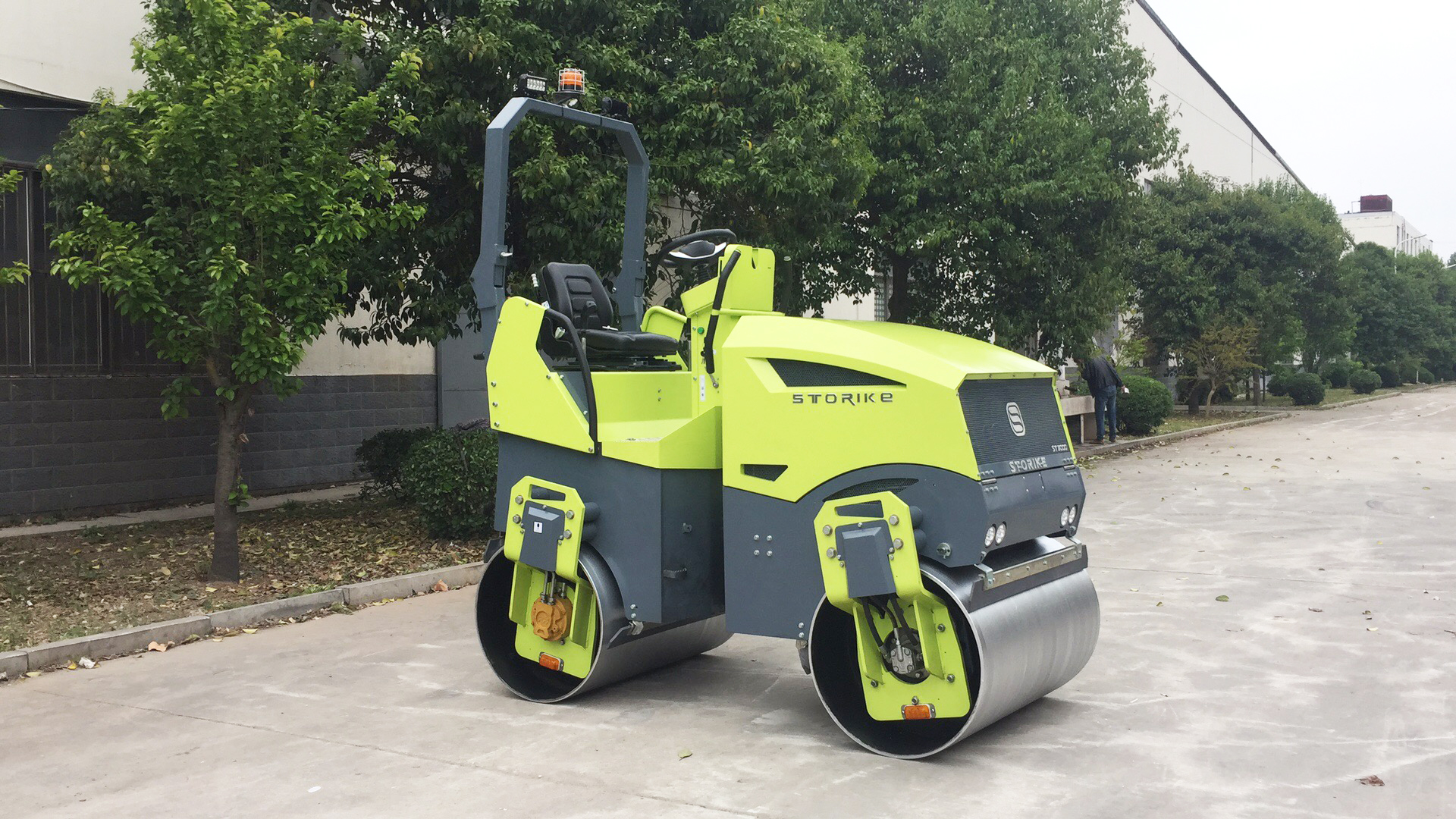

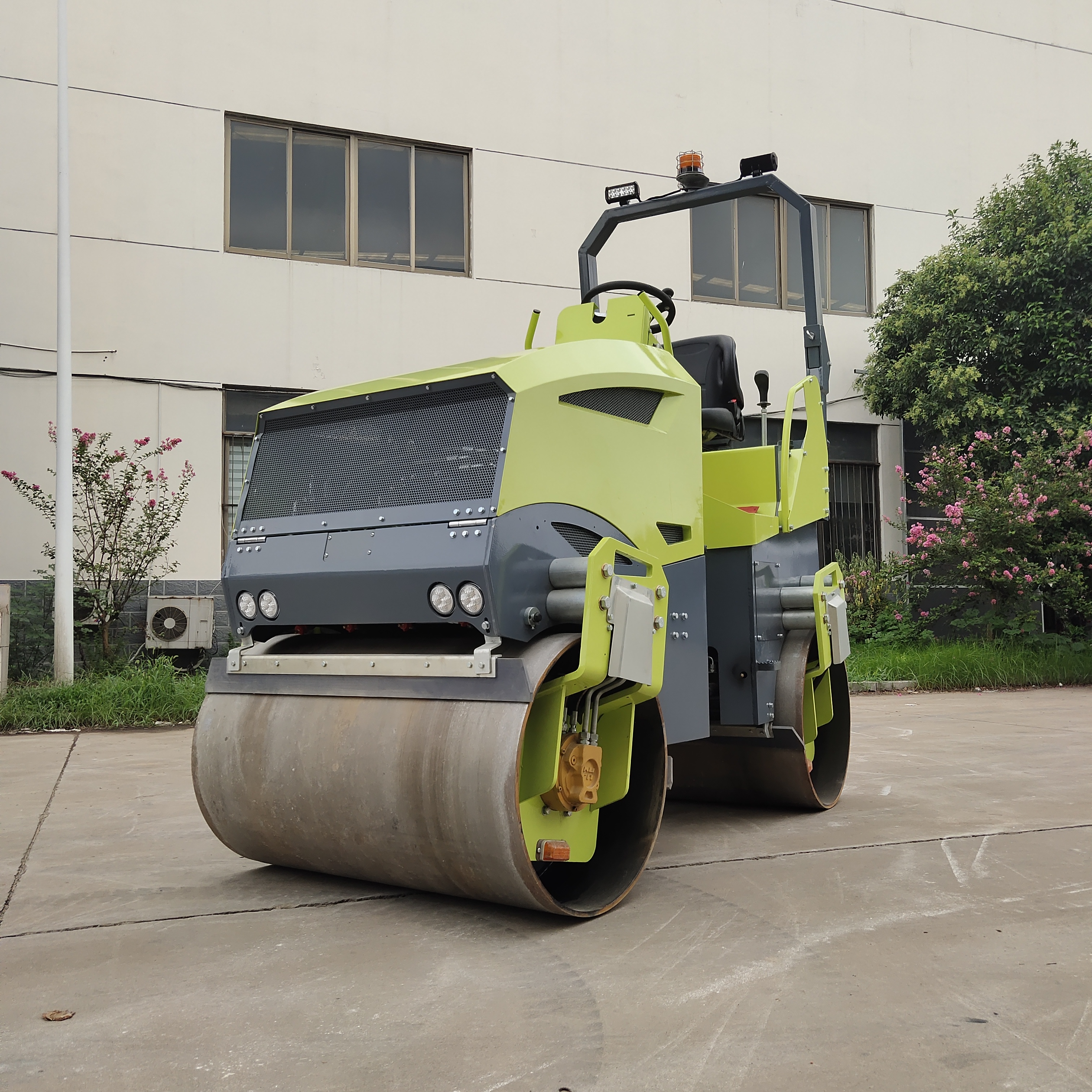

ST4000
Articulated double drum vibratory roller
FEATURES
- 1. Equipped with famous brand engine, could guarantee quality stability and excellent performance.
- 2. Hawkeye-shaped body design, wide field of vision, and beautiful appearance
- 3. Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.
- 4. LED display instrument panel.
- 5. Assembled with working light and warning light, could work at night.
- 6. Ergonomic chair.
- 7. Passed CE, SGS and ISO certification and won Red Star Award design.
- 8. The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.
Overall Size
Total length (L)
mm
2480
Working width (W)
mm
1370
Total height (H)
mm
2670
Height loading, min. (H1)
mm
2000
Drum width (W1)
mm
1200
Wheel base
mm
1720
Technical Date Unit ST4000
Model
ST4000
Weights
Operating weight
kg
4000
Static linear load
N/cm
135/120
Dimensions
Working width
mm
1370
Total length
mm
2480
Total height with ROPS
mm
2670
Turning radius (inner/outer)
mm
2750/4130
Drum width
mm
1200
Drum diameter
mm
720
Wheel base
mm
1720
Drive
Engine manufacturer
Changchai
Type
ZN390B
Engine type
Diesel, vertical, water-cooled, four-stroke
Number of cylinders
3
Power ISO 14396
kW
28.5
Rating speed
rpm
2600
Electric equipment
V
12
Drive mode
Variable displacement pump, stepless speed change, two wheels drive motor parallel
Driving characteristics
Speed
km/h
0-10
Climbing ability, vibration on/off
%
30/40
Brakes
Working brake
Variable displacement pump
Steering
Steering method
Hydraulic cylinder, articulated steering
Steering system
Swing articulated
Exciter system
Vibrating drum
Front
Front+rear
Driving form
Hydraulic motors
Frequency
Hz
60
Amplitude
mm
0.5
Centrifugal force
kN
40
2*40
Sprinkler system
Type of sprinkling
Pressure
Capacities
Hydraulic oil
l
42
Fuel
l
42
Water
l
140
