About this product
- Materials: Metal
- Size: φ1300*1450~φ1800*1500
- Color: Orange
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: φ1300*1450~φ1800*1500
- Color: Orange
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | φ1300*1450~φ1800*1500 |
| Color | Orange |
From the supplier
Applications:
Applied to the garment industry's ultra-fast no tag / label screen printing and other industries. This screen printing machine speed up to 2000 / hour, can greatly increase production.
Suitable material:
Cloth, clothing, body-shirts, labels.
Features Description:
1, PLC control, human-machine interface, features clear, easy to operate.

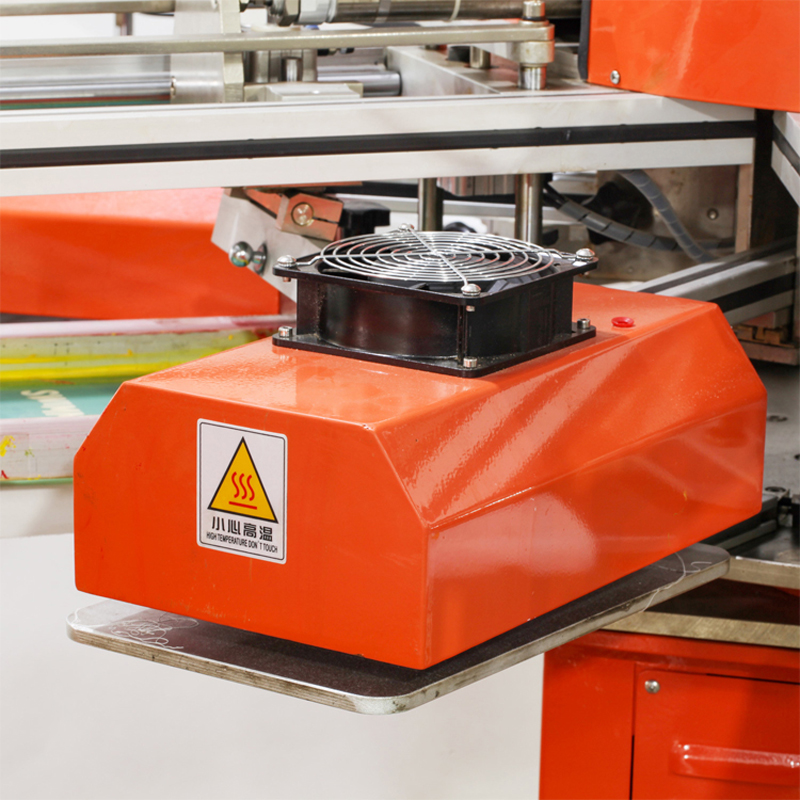

2, Flat screen, infrared drying, particularly suitable for small-area printing inks and printing different frame types. Such as T-shirt collar and so on.
3,6-position by aservo motor drive, smooth running smoothly.

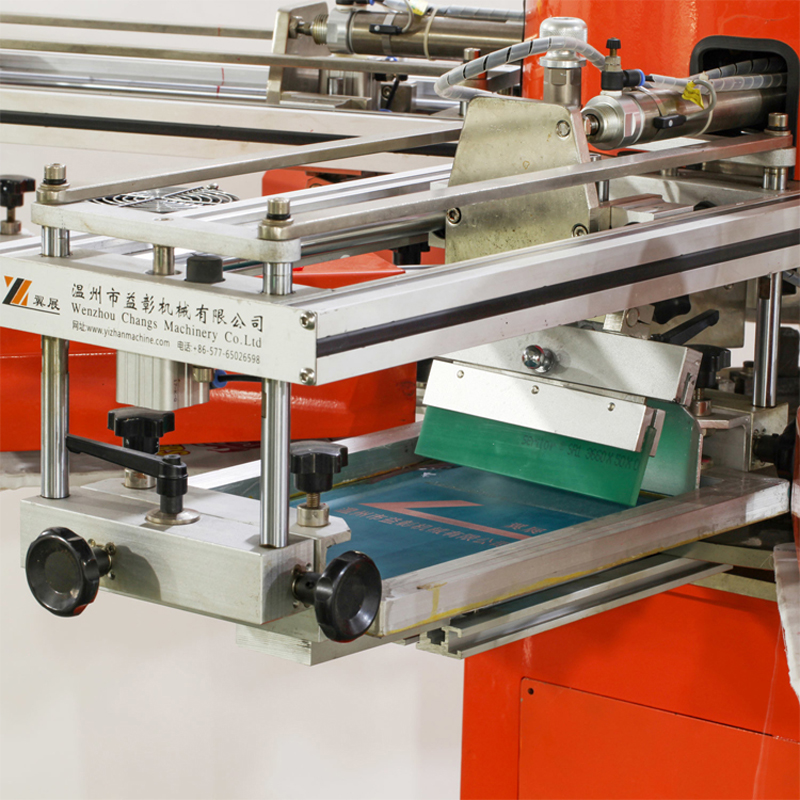

4, scraper, back blade can adjust the angle, also adjust the level to ensure equalized printing pressure. When color printing, the second color screen printing templates around, precise adjustment.

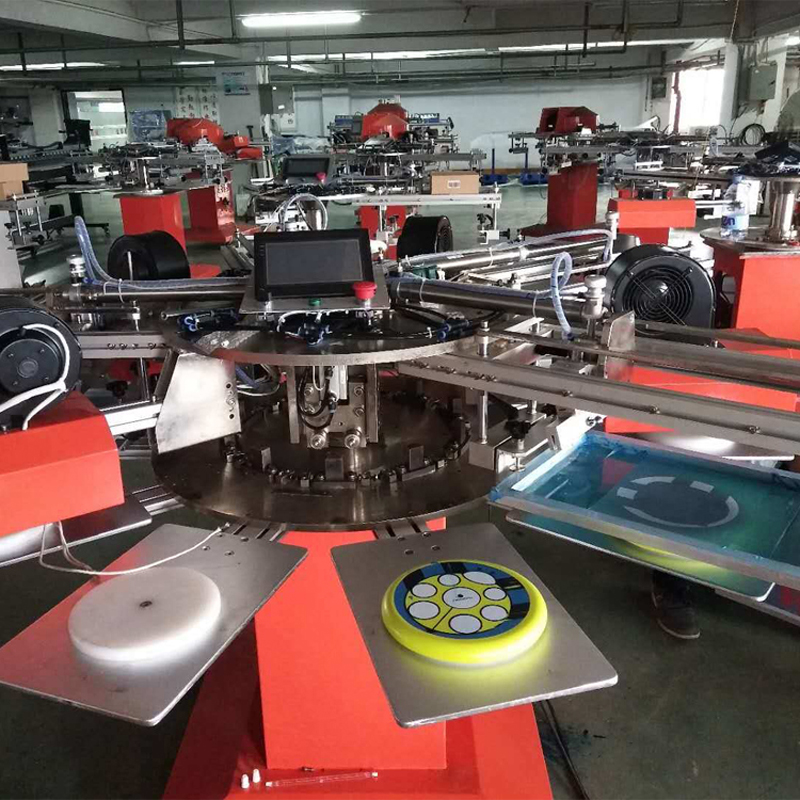

5, 6-station rotary table, place one workpiece station, two stations printing, twostations drying, one station takes the workpiece, six stations simultaneously at high speed.
Explanation:
Printing speed and loading and unloading, the print stroke and products and other factors.
Another may be the design and manufacture of special equipment according to customer requirements.
Technical Parameters:
Model
SPF-1/6
SPF-2/6
SPF-3/8
SPF-4/10
Color/Sation
1+1 heat press/6
2/6
3/8
4/10
Max.Printing Area
150x150mm
150x150mm
150x150mm
150x150mm
Dryer
1
2
3
4
Pallet Size
200x320mm
200x320mm
200x320mm
200x320mm
Max.Printing Speed
1800pcs/hr
1800pcs/hr
1800pcs/hr
1600pcs/hr
Total Power
3.0kw
3.8kw
5.25kw
5.0kw
Voltage
AC220v50/60Hz
AC220v50/60Hz
AC220v50/60Hz
AC220v50/60Hz
Air Consumption
10Litre/min
0.6Mpa
20Litre/min
0.6Mpa
25Litre/min
0.6Mpa
42Litre/min
0.6Mpa
Dimension
∅1200x1450mm
∅1500x1500mm
∅1500x1550mm
∅1700x1500mm
Electric spare part list：
Name
Brand
Servo Motor
TAIWAN DELTA
servo drive
TAIWAN DELTA
PLC
Taiwan YONGHONG
Touch Screen
XIAMEN WEIKONG
Power Switch
(MEAN WELL
AC Contactor
CHNT
1 in 4 relay
OMRON
Magnetic Switch
Taiwan AirTAC
Emergency Switch
SCHNEIDER(BE102C)
Spin Switch
SCHNEIDER(BE101C)
Belt
Megadyne(Italy)
Intermediate relay（24V)
OMRON
Solenoid valve（4V210-08B)
Taiwan AirTAC
