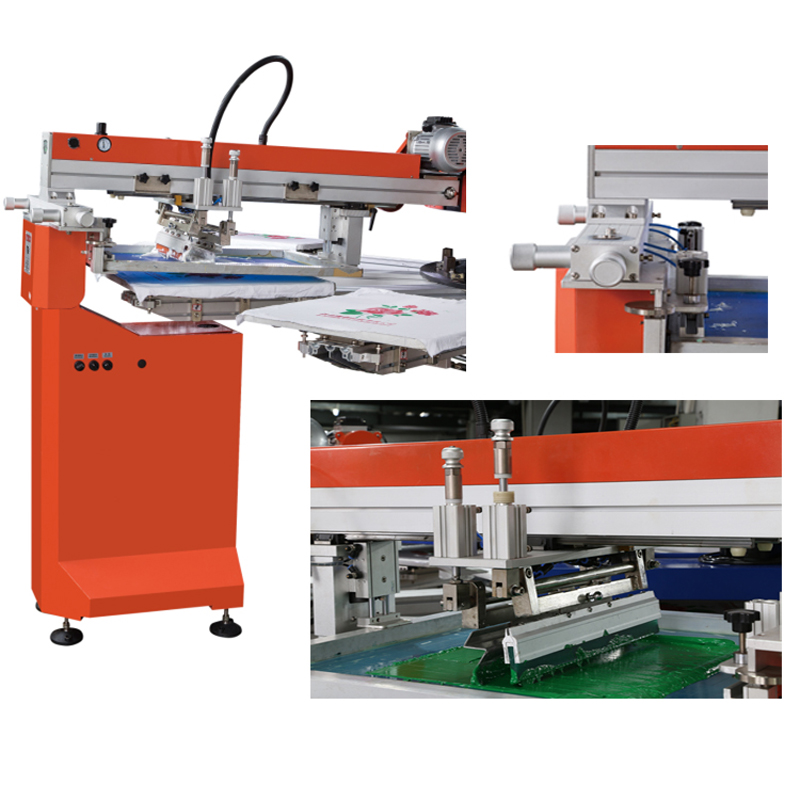

SPG Screen Printing Machine with YZ Digital Printer
WENZHOU CHANGS INTERNATIONAL
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
SPG Screen Printing Machine with YZ Digital Printer
WENZHOU CHANGS INTERNATIONALThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Metal
- Color: Orange
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Color: Orange
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Color | Orange |
Product details
| Materials | Metal |
|---|---|
| Color | Orange |
From the supplier
Introduce：
SPG+YZ digiscreen printing machine is newest mode for printing t-shirt,garment,cloth,
non-woven bag and so on.
Features:
1.SPG adopt servo motor drive system,Mechanical registering,high printing precision(±0.05mm)
2.Micro registering system,pneumatic clamp system ,Off-screen system for cleaning mesh quickly
3.Print pressure,stroke times & length and print angle are set freely and adjustable.
4.YZ adopt Epson 5113 print head and Maintop print software.
5.Environmental protection paint ink(CYMK) greatly reduce environmental pollution.
6.Printing area,number of colors,stations can be customized.
Technical parameter：
Model
SPG2030/10
SPG3040/12
SPG4060/14
SPG5070/16
SPG4060/18
Color/Dryer/Station
4/4/10
6/4/12
6/6/14
8/6/16
8/8/18
Max printing area
200*300mm、300*400mm、400*600mm、500*700mm、600*800mm
Pallet size
300*400mm
400*500mm
500*700mm
600*800mm
700*900mm
Air source
≥0.6Mpa
≥0.6Mpa
≥0.6Mpa
≥0.6Mpa
≥0.6Mpa
Output
600pcs/h
600pcs/h
600pcs/h
600pcs/h
600pcs/h
Main motor power
4.5kw
5.2kw
5.8kw
5.8kw
7.8kw
Each dryer power
9.0kw
9.0kw
13.5kw
13.5kw
13.5kw
Model
YZ-4720-2
YZ-4720-4
Nozzle model
Epson-4720
Number of nozzle
2Pcs
4Pcs
Nozzle maintenance
Automatic moisturizing/Automatic cleaning/Automatic scraping system
Print resolution
720*1200dpi，720*1800dpi，720*2400dpi
Ink droplet size
Intelligent controllable ink droplets
Ink type
Water-based paint ink
Print color
KCMY
Ink supply mode
Siphon
Operating language
Chinese/English
Printing speed
120-400pcs/h
Print size
500*700/600*800/700*900mm
Print direction
Horizontal+Vertical
Print height
1-10mm Adjustable
Drive mode
High precision timing belt slide table
USB interface
USB 3.0 high-speed transmission interface
Rip software
Wasatch
Control software
Yili
Temperature/Humidity
20-30℃/40%-70%
Voltage
AC220V，50/60HZ
Power
1Kw
Dimension
1700*1100*1560mm
Weight
800kg
From the supplier
Introduce：
SPG+YZ digiscreen printing machine is newest mode for printing t-shirt,garment,cloth,
non-woven bag and so on.
Features:
1.SPG adopt servo motor drive system,Mechanical registering,high printing precision(±0.05mm)
2.Micro registering system,pneumatic clamp system ,Off-screen system for cleaning mesh quickly
3.Print pressure,stroke times & length and print angle are set freely and adjustable.
4.YZ adopt Epson 5113 print head and Maintop print software.
5.Environmental protection paint ink(CYMK) greatly reduce environmental pollution.
6.Printing area,number of colors,stations can be customized.
Technical parameter：
Model
SPG2030/10
SPG3040/12
SPG4060/14
SPG5070/16
SPG4060/18
Color/Dryer/Station
4/4/10
6/4/12
6/6/14
8/6/16
8/8/18
Max printing area
200*300mm、300*400mm、400*600mm、500*700mm、600*800mm
Pallet size
300*400mm
400*500mm
500*700mm
600*800mm
700*900mm
Air source
≥0.6Mpa
≥0.6Mpa
≥0.6Mpa
≥0.6Mpa
≥0.6Mpa
Output
600pcs/h
600pcs/h
600pcs/h
600pcs/h
600pcs/h
Main motor power
4.5kw
5.2kw
5.8kw
5.8kw
7.8kw
Each dryer power
9.0kw
9.0kw
13.5kw
13.5kw
13.5kw
Model
YZ-4720-2
YZ-4720-4
Nozzle model
Epson-4720
Number of nozzle
2Pcs
4Pcs
Nozzle maintenance
Automatic moisturizing/Automatic cleaning/Automatic scraping system
Print resolution
720*1200dpi，720*1800dpi，720*2400dpi
Ink droplet size
Intelligent controllable ink droplets
Ink type
Water-based paint ink
Print color
KCMY
Ink supply mode
Siphon
Operating language
Chinese/English
Printing speed
120-400pcs/h
Print size
500*700/600*800/700*900mm
Print direction
Horizontal+Vertical
Print height
1-10mm Adjustable
Drive mode
High precision timing belt slide table
USB interface
USB 3.0 high-speed transmission interface
Rip software
Wasatch
Control software
Yili
Temperature/Humidity
20-30℃/40%-70%
Voltage
AC220V，50/60HZ
Power
1Kw
Dimension
1700*1100*1560mm
Weight
800kg
