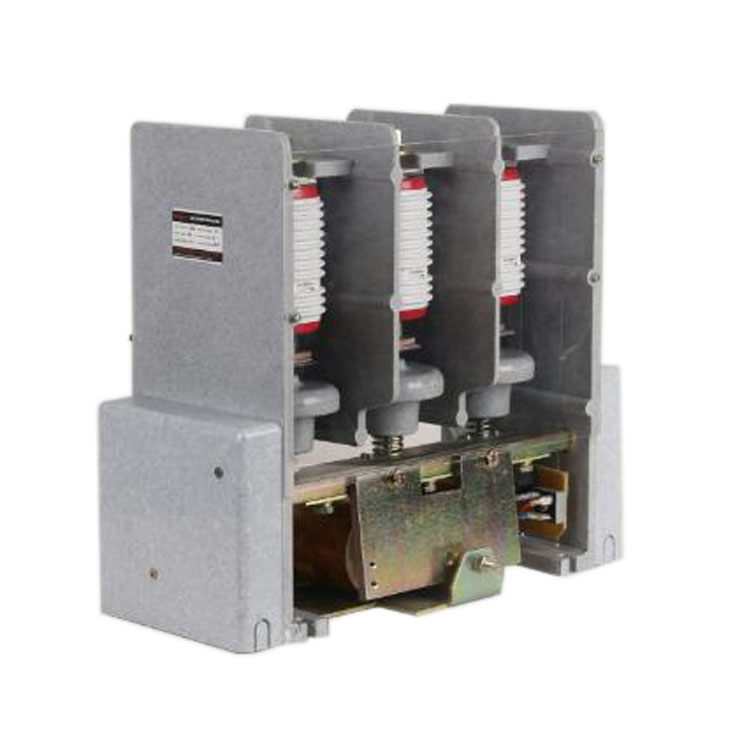

Vacuum Contactor HVJ6-7.2/200 from JUCRO Electric
YICHANG TOP IMP.&EXP. CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Vacuum Contactor HVJ6-7.2/200 from JUCRO Electric
YICHANG TOP IMP.&EXP. CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 55*45*57
- Color: gray
- Certification: CE
- Installation: Insert
- Poles number: 3
- Structure: ELCBOther
- Exports to: Russia, Other European Countries, Japan and South Korea
About this product
- Size: 55*45*57
- Color: gray
- Certification: CE
- Installation: Insert
- Poles number: 3
- Structure: ELCBOther
- Exports to: Russia, Other European Countries, Japan and South Korea
Product details
| Size | 55*45*57 |
|---|---|
| Color | gray |
| Certification | CE |
| Installation | Insert |
| Poles number | 3 |
| Structure | ELCBOther |
| Arc-extinguishing medium | Other |
Product details
| Size | 55*45*57 |
|---|---|
| Color | gray |
| Certification | CE |
| Installation | Insert |
| Poles number | 3 |
| Structure | ELCBOther |
| Arc-extinguishing medium | Other |
From the supplier
Vacuum ContaCTor HVJ6 from JUCRO Electric
1. Introduction
HVJ6-7.2 series indoor high-voltage AC Vacuum Contactor has two types: One is Mechanical holding type, the other is Electromagnetic holding type. It is applicable for three-phase AC 50HZ power system of rated voltage 7.2KV and below and rated current up to 630 A to open and close circuit remotely and control electrical equipment like high-voltage motor, transformer and capacitive load. It is especially suitable for fields operated frequently. The contactor uses the international fashionable up and down structure arrangement and has the advantages of small, light, easy to maintain and form a complete set of F-C circuit equipment.
2. Service condition
a) Ambient air temperature: -25℃- +40℃.
b) Altitude not exceed 2000m
c)Humidity:
-Relative humidity: daily mean not higher than 95℃,monthly mean not higher than 90℃;
-Aqueous vapor pressure: daily mean not exceed 2.2 KP, monthly mean not exceed 1.8 KP
Ambient air should not be obviously polluted by corrosive or flammable gas or vapor;
C)Free of frequent severe vibration; When running, angle of inclination between installation surface and horizontal plane should not exceed 5℃.
2. Main technical parameters
Type
Rated voltage（V）
Rated current
（Main circuit）(A)
Main contact parameter
Power frequency voltage resistance V（Effective value）
Main
circuit
Control
circuit
Contacts separation （mm）
Overtravel（mm）
Main circuit
Auxiliary circuit
Control circuit
HVJ6-7.2/200
7200
110, 220
200
4.5+1-0.5
1.5±0.5
32000
2500
2000
Type
Making capability
Breaking capability
Limit breaking current（A）
Mechanical life times
Weight（KG）
HVJ6-7.2/200
10le,100 times
8le, 25 times
10le
30×104
28
TIPS:1,nut 2,insulation framework 3,arc-extinguish chamber 4,softconnect 5,insulator 6,contact spring 7,connecting level 8,adjusting nut 9,magnet yoke 10,screw 11,baseboard 12,limit bolts 13,Opening spring 14, Iron core 15,coil 16,armature 17, square shaft 18, cover 19, latched device 20,cover 21,Terminal bLock XT
From the supplier
Vacuum ContaCTor HVJ6 from JUCRO Electric
1. Introduction
HVJ6-7.2 series indoor high-voltage AC Vacuum Contactor has two types: One is Mechanical holding type, the other is Electromagnetic holding type. It is applicable for three-phase AC 50HZ power system of rated voltage 7.2KV and below and rated current up to 630 A to open and close circuit remotely and control electrical equipment like high-voltage motor, transformer and capacitive load. It is especially suitable for fields operated frequently. The contactor uses the international fashionable up and down structure arrangement and has the advantages of small, light, easy to maintain and form a complete set of F-C circuit equipment.
2. Service condition
a) Ambient air temperature: -25℃- +40℃.
b) Altitude not exceed 2000m
c)Humidity:
-Relative humidity: daily mean not higher than 95℃,monthly mean not higher than 90℃;
-Aqueous vapor pressure: daily mean not exceed 2.2 KP, monthly mean not exceed 1.8 KP
Ambient air should not be obviously polluted by corrosive or flammable gas or vapor;
C)Free of frequent severe vibration; When running, angle of inclination between installation surface and horizontal plane should not exceed 5℃.
2. Main technical parameters
Type
Rated voltage（V）
Rated current
（Main circuit）(A)
Main contact parameter
Power frequency voltage resistance V（Effective value）
Main
circuit
Control
circuit
Contacts separation （mm）
Overtravel（mm）
Main circuit
Auxiliary circuit
Control circuit
HVJ6-7.2/200
7200
110, 220
200
4.5+1-0.5
1.5±0.5
32000
2500
2000
Type
Making capability
Breaking capability
Limit breaking current（A）
Mechanical life times
Weight（KG）
HVJ6-7.2/200
10le,100 times
8le, 25 times
10le
30×104
28
TIPS:1,nut 2,insulation framework 3,arc-extinguish chamber 4,softconnect 5,insulator 6,contact spring 7,connecting level 8,adjusting nut 9,magnet yoke 10,screw 11,baseboard 12,limit bolts 13,Opening spring 14, Iron core 15,coil 16,armature 17, square shaft 18, cover 19, latched device 20,cover 21,Terminal bLock XT
