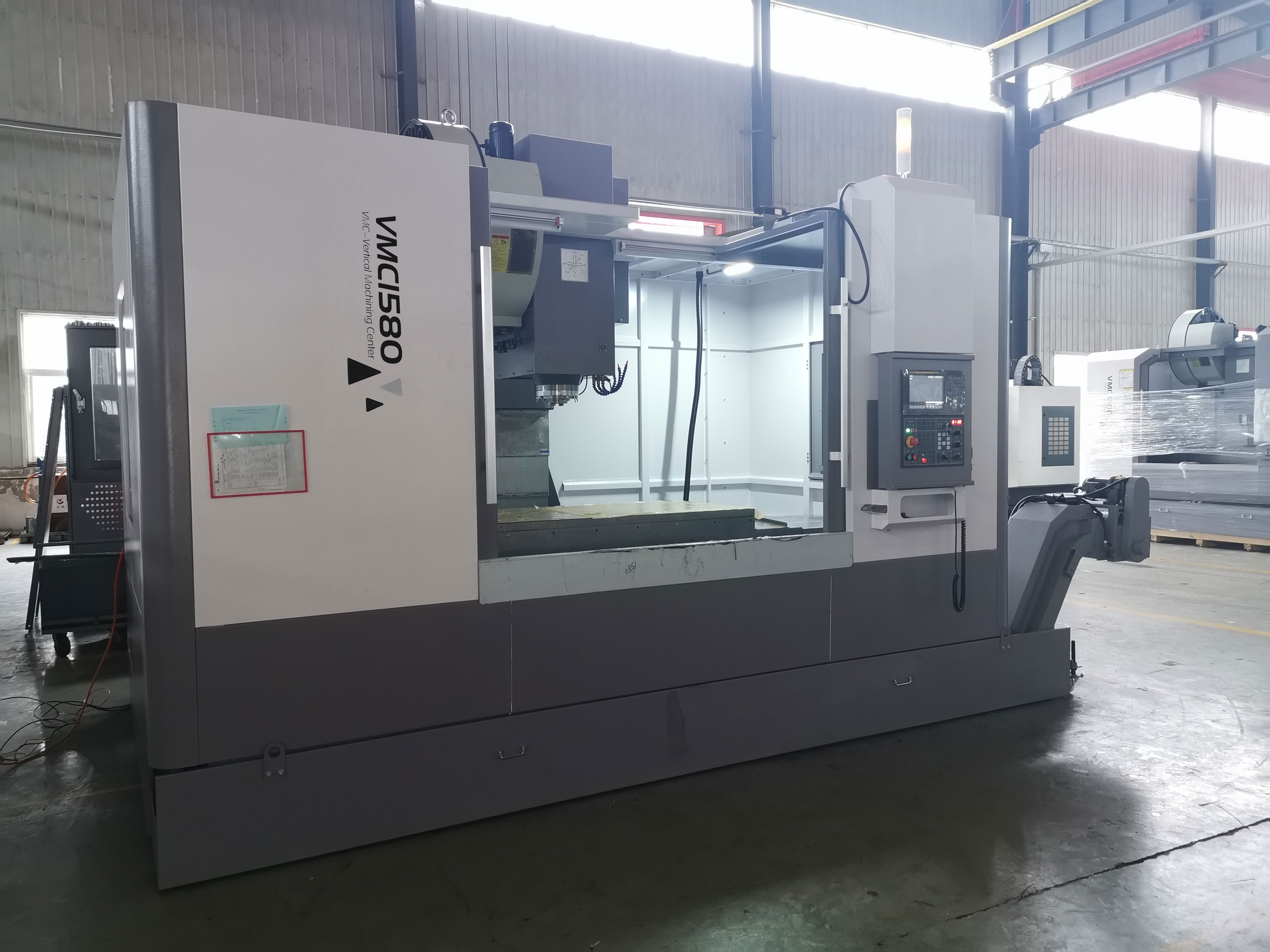

Vertical Machining Center/Linear Guideway
- FOB goods (100)
- $6,468,250
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $226,389
- Section 301 tariff (25.0%)
- $1,617,063
- Customs fees (MPF/HMF)
- $8,720
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Vertical Machining Center/Linear Guideway
- FOB goods (100)
- $6,468,250
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $226,389
- Section 301 tariff (25.0%)
- $1,617,063
- Customs fees (MPF/HMF)
- $8,720
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Metal
- Size: 4300x3600x3200mm
- Color: Grey&White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 4300x3600x3200mm
- Color: Grey&White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 4300x3600x3200mm |
| Color | Grey&White |
From the supplier
All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy. Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.

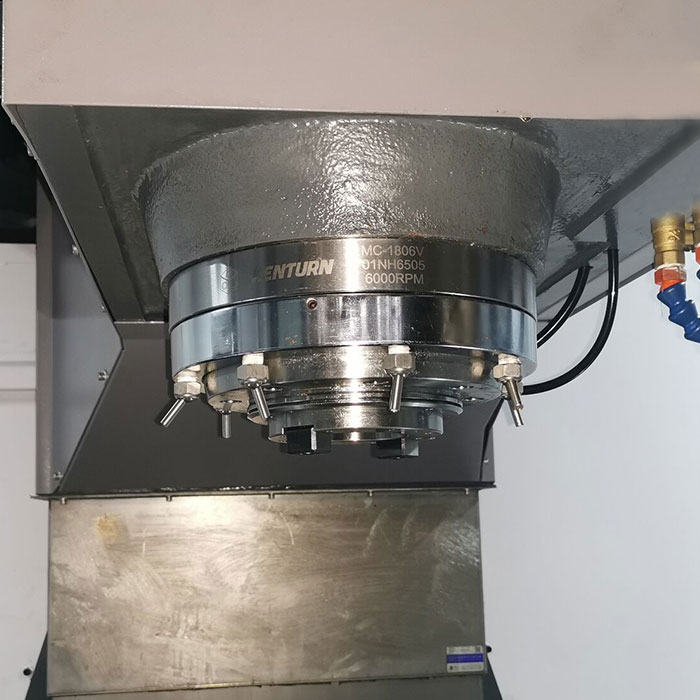

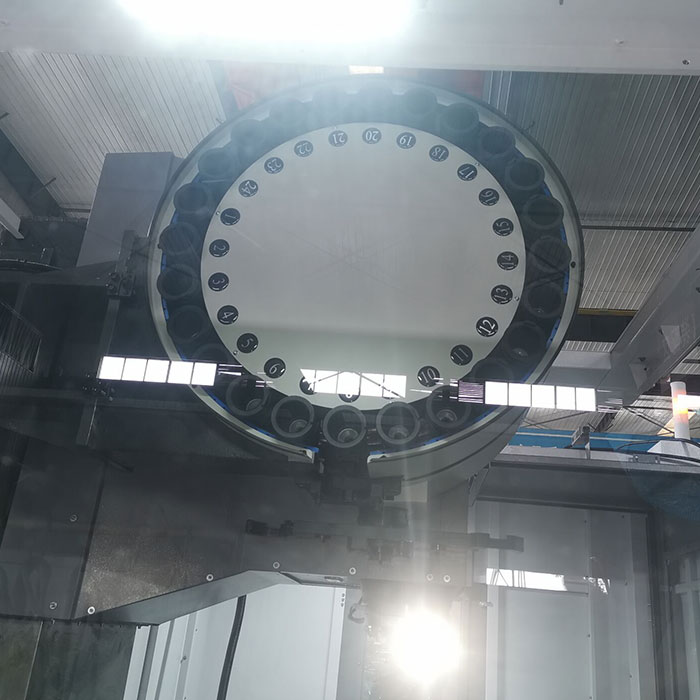

SpecificationVMC1580LWorktable size(LxW)1700x800mmT-slot (NxWx D)5x22x135mmX/Y/Z axis travel1500/800/700mmDistance from spindle center to column810mmDistance from spindle nose to worktable surface170-870mmSpindle taperBT50Spindle power15/18.5kwMax.spindle speed6000rpmMax.feed speed8m/minRapid feed speed(X/Y/Z)12/12/12m/minPositioning accuracy(X/Y/Z)±0.015mmRe-positioning accuracy±0.010mmTool magazine capacity24TTool change time(T-T)2.5sLxWxH4300x3600x3200mmMax.loading of worktable1500kgsMachine weight15000kgsAbout the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
