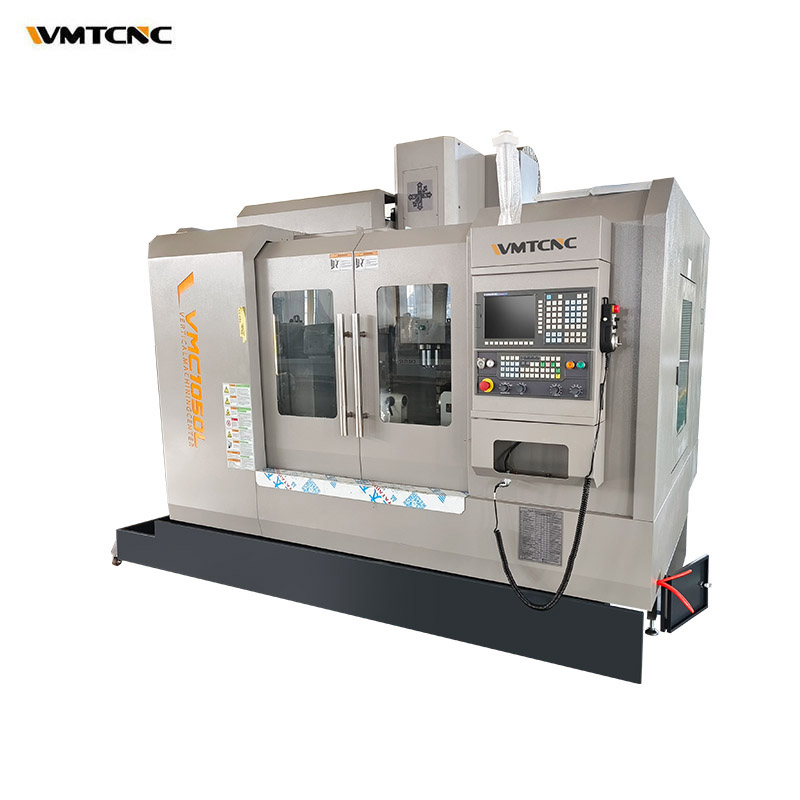

Vertical Machining Center VMC1050L
WMT CNC INDUSTRIAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Vertical Machining Center VMC1050L
WMT CNC INDUSTRIAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: metal
- Size: 2850×2300×2300mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: metal
- Size: 2850×2300×2300mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Size | 2850×2300×2300mm |
| Color | grey |
Product details
| Materials | metal |
|---|---|
| Size | 2850×2300×2300mm |
| Color | grey |
From the supplier
A 3-Axis vertical cnc machining center is used for creating various industrial parts. This is achieved by using a wide range of tooling and cutters depending on the type of material. With advanced international standards of designing, modern structure, high-quality components and spare parts introduced to this machine tool, no matter precise elements machining or mould processing, WMTCNC BRAND vertical cnc machining center VMC1050L will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification Specification VMC1050L Worktable Worktable size (L×W) 1000×500mm T-slots size (N×W×D) 5-18x90mm Travel X/Y/Z axis travel 1000/500/500mm Machining range Distance from spindle center to column 550mm Distance from spindle nose to worktable surface 120-620mm Spindle Spindle taper BT40 Spindle power 7.5kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4012 Tool magazine Tool magazine capacity 16T/24T(optional) Max. length of tool 300mm Tool change time 7s/1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.005mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 2850×2300×2300mm Machine weight Max. loading of worktable 500kg Machine weight 5400kgMachine Details
From the supplier
A 3-Axis vertical cnc machining center is used for creating various industrial parts. This is achieved by using a wide range of tooling and cutters depending on the type of material. With advanced international standards of designing, modern structure, high-quality components and spare parts introduced to this machine tool, no matter precise elements machining or mould processing, WMTCNC BRAND vertical cnc machining center VMC1050L will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification Specification VMC1050L Worktable Worktable size (L×W) 1000×500mm T-slots size (N×W×D) 5-18x90mm Travel X/Y/Z axis travel 1000/500/500mm Machining range Distance from spindle center to column 550mm Distance from spindle nose to worktable surface 120-620mm Spindle Spindle taper BT40 Spindle power 7.5kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4012 Tool magazine Tool magazine capacity 16T/24T(optional) Max. length of tool 300mm Tool change time 7s/1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.005mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 2850×2300×2300mm Machine weight Max. loading of worktable 500kg Machine weight 5400kgMachine Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
