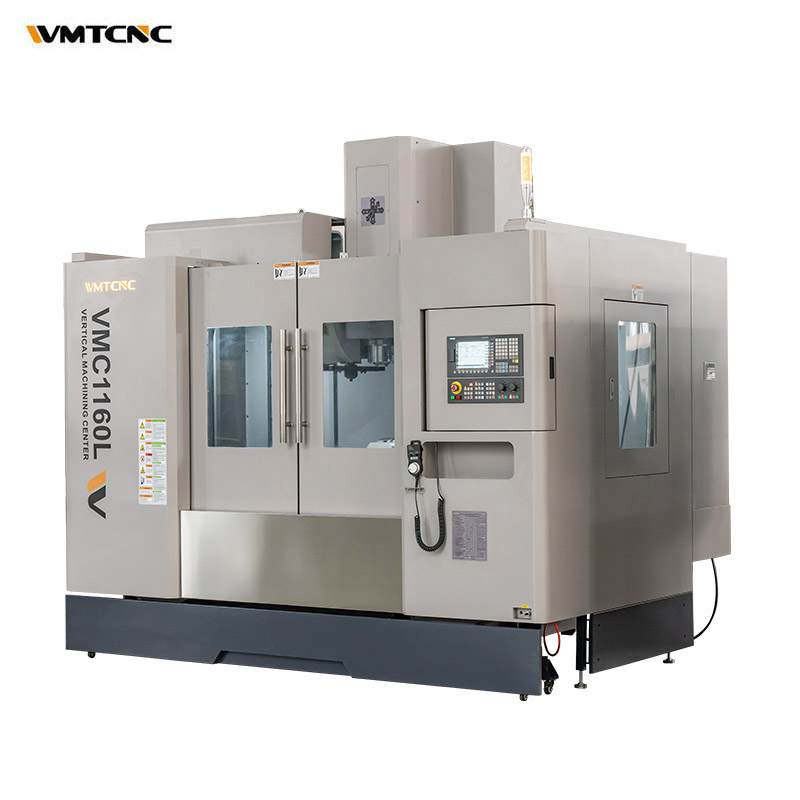

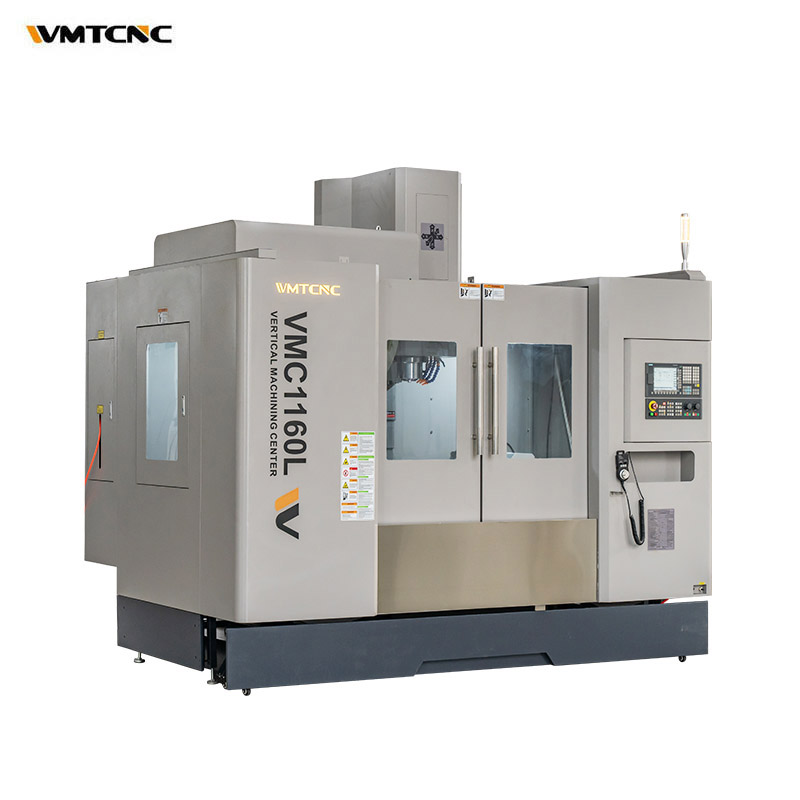

Vertical Machining Center VMC1160L
WMT CNC INDUSTRIAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Vertical Machining Center VMC1160L
WMT CNC INDUSTRIAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: metal
- Size: 3350×2300×2550mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: metal
- Size: 3350×2300×2550mm
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Size | 3350×2300×2550mm |
| Color | grey |
Product details
| Materials | metal |
|---|---|
| Size | 3350×2300×2550mm |
| Color | grey |
From the supplier
The large basic parts are all cast with high-quality resin sand modeling and high-strength cast iron materials so that the machine tool has high rigidity and stable precision. WMTCNC BRAND Vertical Machine Center VMC1160 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification Specification VMC1160L Worktable Worktable size (L×W) 1200×600mm T-slots size (N×W×D) 5-18x100mm Travel X/Y/Z axis travel 1100/600/600mm Machining range Distance from spindle center to column 650mm Distance from spindle nose to worktable surface 120-720mm Spindle Spindle taper BT40 Spindle power 11kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4012 Tool magazine Tool magazine capacity 24T Max. length of tool 300mm Tool change time 1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.005mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 3350×2300×2550mm Machine weight Max. loading of worktable 800kg Machine weight 6200kgMachine Details
From the supplier
The large basic parts are all cast with high-quality resin sand modeling and high-strength cast iron materials so that the machine tool has high rigidity and stable precision. WMTCNC BRAND Vertical Machine Center VMC1160 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Specification Specification VMC1160L Worktable Worktable size (L×W) 1200×600mm T-slots size (N×W×D) 5-18x100mm Travel X/Y/Z axis travel 1100/600/600mm Machining range Distance from spindle center to column 650mm Distance from spindle nose to worktable surface 120-720mm Spindle Spindle taper BT40 Spindle power 11kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4012 Tool magazine Tool magazine capacity 24T Max. length of tool 300mm Tool change time 1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.005mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 3350×2300×2550mm Machine weight Max. loading of worktable 800kg Machine weight 6200kgMachine Details
