Electric equipment
YJLV 4×35 Aluminum Conductor XLPE Insulated PVC Sheathed Low Voltage Power Cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
YJLV 4×35 Aluminum Conductor XLPE Insulated PVC Sheathed Low Voltage Power Cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 4×35
- Color: black
- Certification: ISO9001
- Conductor type: Other
- Rangeof application: Other
- Application: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU
About this product
- Size: 4×35
- Color: black
- Certification: ISO9001
- Conductor type: Other
- Rangeof application: Other
- Application: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU
Product details
| Size | 4×35 |
|---|---|
| Color | black |
| Certification | ISO9001 |
| Conductor type | Other |
| Rangeof application | Other |
| Application | Other |
| Conductor material | Other |
| Sheath material | PVC |
| Brand | Other |
| Material shape | Other |
| Insulation material | XLPE |
Product details
| Size | 4×35 |
|---|---|
| Color | black |
| Certification | ISO9001 |
| Conductor type | Other |
| Rangeof application | Other |
| Application | Other |
| Conductor material | Other |
| Sheath material | PVC |
| Brand | Other |
| Material shape | Other |
| Insulation material | XLPE |
From the supplier
English Introduction

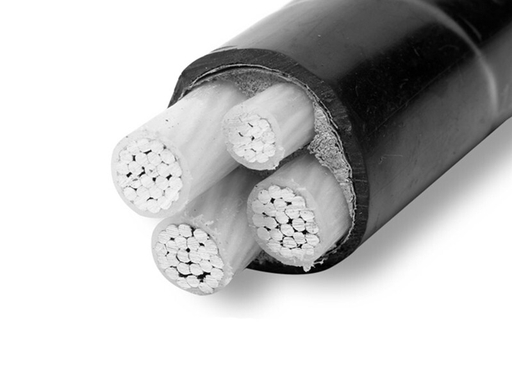

YJLV 4×35 Aluminum Conductor XLPE Insulated PVC Sheathed Low Voltage Power Cable- Model Meaning: YJ (XLPE Insulation) + L (Aluminum Conductor) + V (PVC Sheath), 4 cores with 35mm² nominal cross-section each.
- Rated Voltage: 0.6/1kV, suitable for low-voltage three-phase four-wire distribution systems.
- Structure: 4×35mm² aluminum conductors, XLPE insulation, black PVC outer sheath, non-armored (YJLV22 is armored type for direct burial).
- Key Features:
- Lightweight and cost-effective aluminum conductor, about 1/3 the weight of copper cables of the same specification, easy for transportation and installation.
- XLPE insulation with long-term operating temperature of 90°C and short-circuit (≤5s) temperature resistance of 250°C, excellent heat resistance, aging resistance and insulation performance.
- PVC sheath with wear resistance, moisture resistance and flame retardancy, suitable for fixed installation in indoor, cable ducts and conduits.
- Standards: GB/T 12706, IEC 60502.
- Applications: Factory power distribution, commercial buildings, residential power supply, municipal engineering, fixed outdoor wiring, etc.
From the supplier
English Introduction
YJLV 4×35 Aluminum Conductor XLPE Insulated PVC Sheathed Low Voltage Power Cable- Model Meaning: YJ (XLPE Insulation) + L (Aluminum Conductor) + V (PVC Sheath), 4 cores with 35mm² nominal cross-section each.
- Rated Voltage: 0.6/1kV, suitable for low-voltage three-phase four-wire distribution systems.
- Structure: 4×35mm² aluminum conductors, XLPE insulation, black PVC outer sheath, non-armored (YJLV22 is armored type for direct burial).
- Key Features:
- Lightweight and cost-effective aluminum conductor, about 1/3 the weight of copper cables of the same specification, easy for transportation and installation.
- XLPE insulation with long-term operating temperature of 90°C and short-circuit (≤5s) temperature resistance of 250°C, excellent heat resistance, aging resistance and insulation performance.
- PVC sheath with wear resistance, moisture resistance and flame retardancy, suitable for fixed installation in indoor, cable ducts and conduits.
- Standards: GB/T 12706, IEC 60502.
- Applications: Factory power distribution, commercial buildings, residential power supply, municipal engineering, fixed outdoor wiring, etc.
About the supplier
Huake Zhonglan Cable Co., Ltd.
Main products: Cables, Wires
- ✓Exhibited at 1 recent Canton Fair
- ✓Industry and Trade Company
- ✓Founded 2010
- ✓1 certificate on file
Light & Electrical exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
29
trust
- Exhibited at 1 recent Canton Fair
- Industry and Trade Company
- Founded 2010
- 1 certificate on file
Canton Fair booth: 16.3J10 · Electronic and Electrical Products (139th session)
