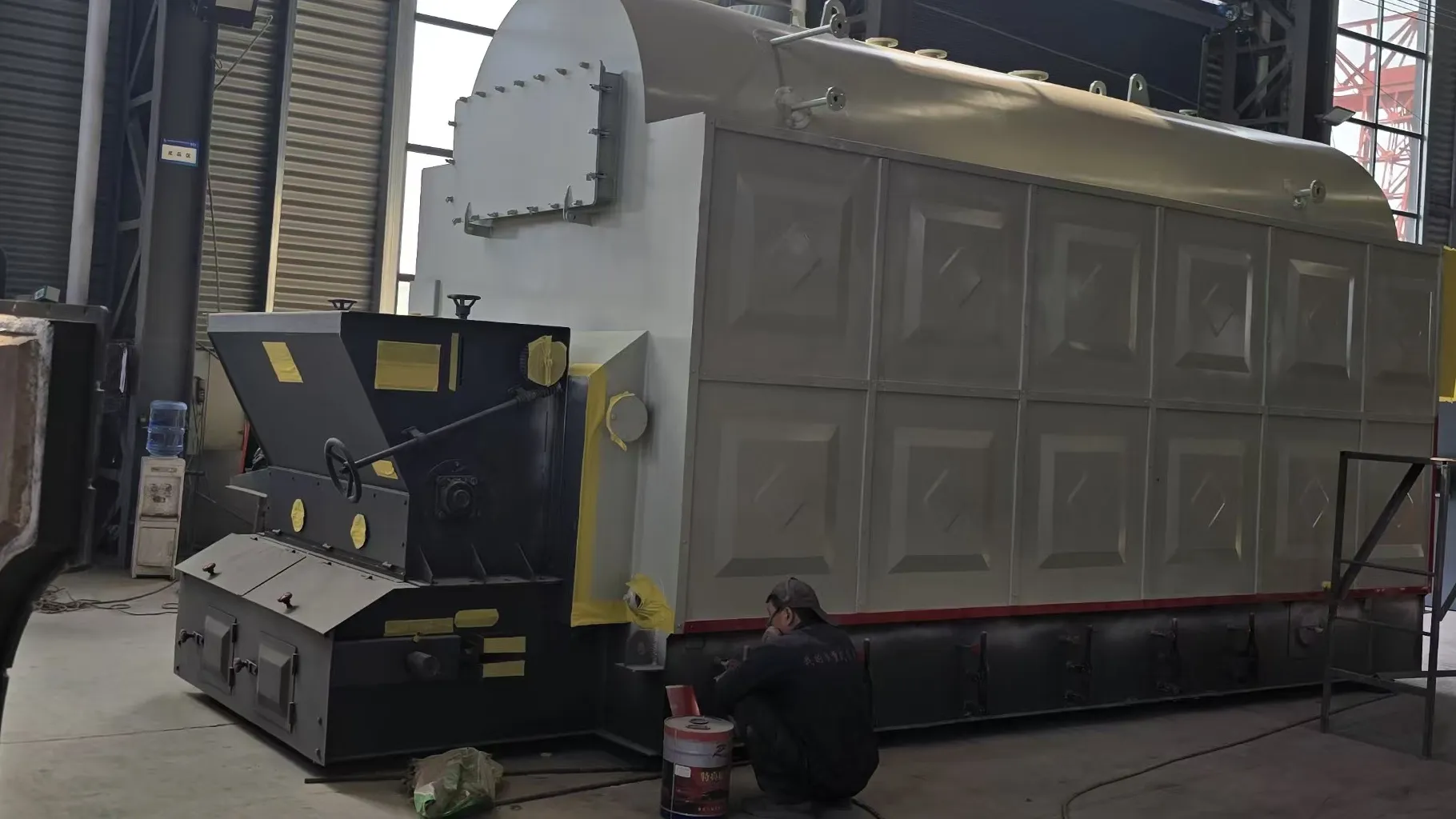

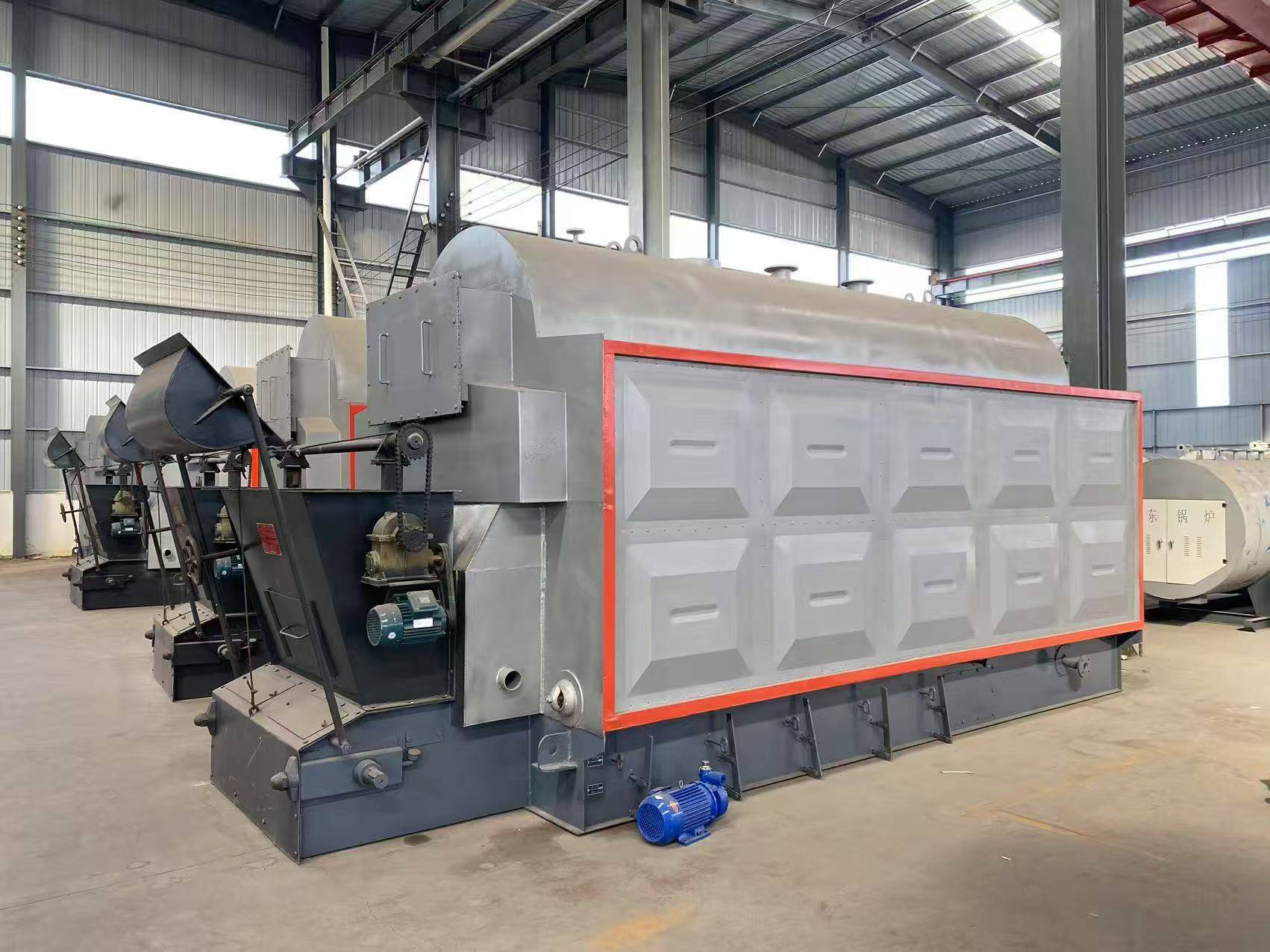

DZL biomass boiler is a single-drum longitudinal chain grate boiler that uses biomass particles as fuel. It is a new generation of high-efficiency and energy-saving boiler products. The fuel biomass it uses is an ideal renewable energy source and produces a large amount of output every year. Using it instead of coal burning can not only reduce costs and bring rich economic returns to enterprises, but also utilize waste and increase farmers 'income has achieved the common development of economic and social benefits. Not only that, this boiler also has the advantages of fast pressure rise, high thermal efficiency, and large heating area.

The DZL biomass boiler is a horizontal three-return water-fire tube boiler. It is designed with high-efficiency and energy-saving enhanced combustion technology to ensure adequate combustion of fuel. What's better is that the volume of the furnace and incineration chamber is very large, which is conducive to the incineration and sedimentation of fly ash. The turning room with rough dust separation is set up at the outlet flue gas window, which achieves the purpose of dust removal in the boiler, reduces the flue gas emission, and makes it meet the targets of national environmental protection regulations.

performance characteristics

1. Using threaded smoke pipes to heat transfer improves thermal efficiency and reduces energy consumption.

2. The application of membrane water wall structure improves heat transfer coefficient and heat transfer effect, and reduces heat loss.

3. The threaded smoke pipe is installed in the pan shell, with less overall air leakage and less heat loss from smoke exhaust.

4. The welds of the boiler adopt advanced submerged arc automatic welding technology to ensure the welding quality.

5. A dust remover is arranged in the tail flue to ensure that smoke and dust emissions meet environmental protection requirements.

6. High level of automation, with functions such as automatic water regulation, low water level interlock protection, high and low water level alarm.

7. The advanced arch design forms an obvious inverted "alpha" flame, which is conducive to the combustion of inferior coal and has strong adaptability to coal types.

8. The control and monitoring instruments are complete, and the boiler operation is safe and reliable.

9. The setting of the two wings of the flue allows the flue gas to smoothly enter the front smoke box, so that the temperature of the previous tube sheet is the same, and tube sheet cracks caused by temperature stress are avoided.

10. The grate adopts a new type of small scale grate plates and adds a unique safety ring to ensure stable and reliable operation of the grate and improve combustion efficiency.
