Household audio video equipment

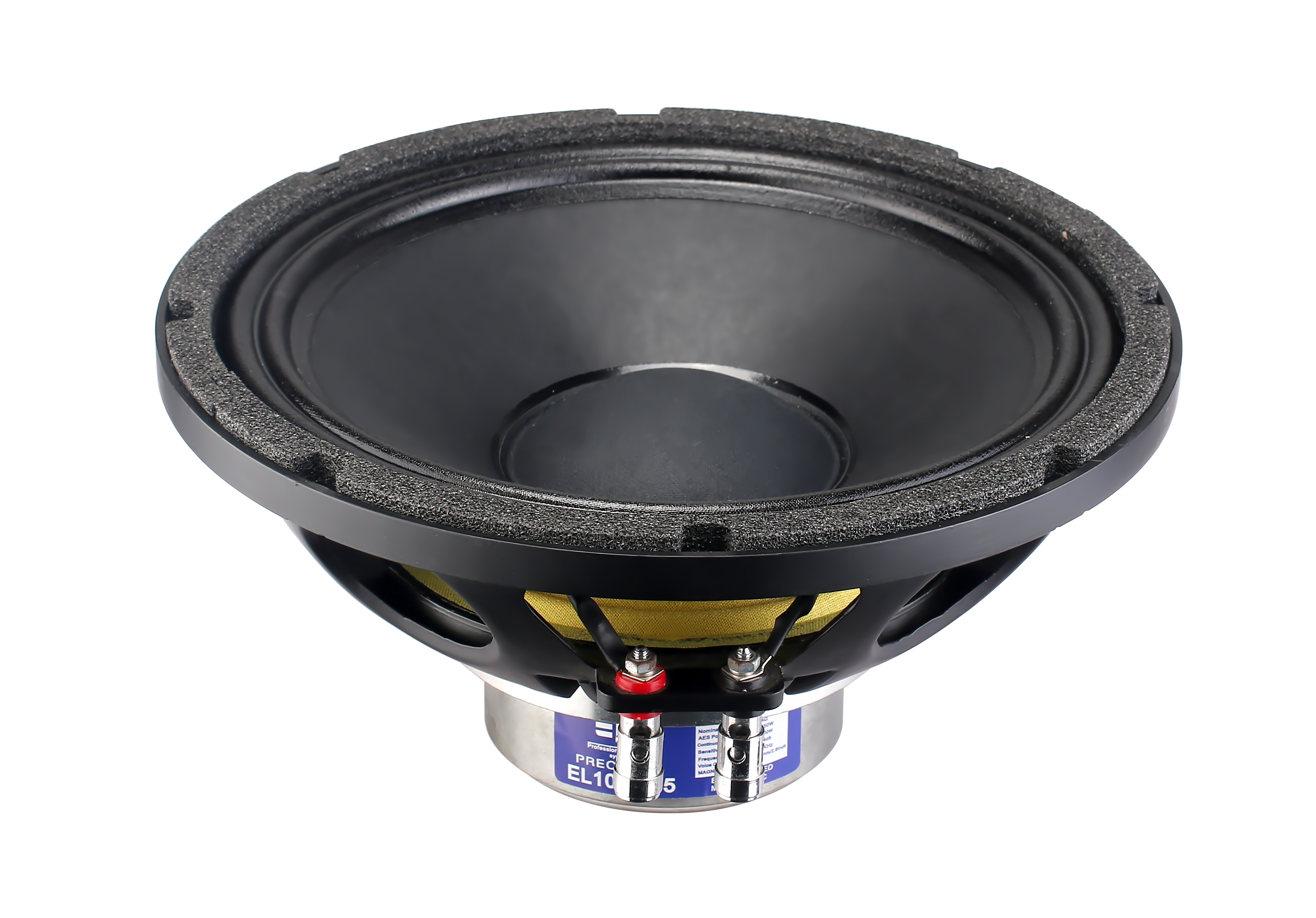

10 inch aluminium basket neodymium speaker karaoke loudspeakers home theather woofer
Meirui (Guangdong) Audio Equipment Co.,Ltd8/10 fairsManufacturerModel EL10NC65
New for the 140th Fair
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
10 inch aluminium basket neodymium speaker karaoke loudspeakers home theather woofer
Meirui (Guangdong) Audio Equipment Co.,Ltd8/10 fairsManufacturerModel EL10NC65
New for the 140th Fair
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: aluminium
- Size: 10"
- Color: black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
About this product
- Materials: aluminium
- Size: 10"
- Color: black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
Product details
| Materials | aluminium |
|---|---|
| Size | 10" |
| Color | black |
Product details
| Materials | aluminium |
|---|---|
| Size | 10" |
| Color | black |
From the supplier
Model: EL10NC65 10-inch aluminum frame neodymium magnet 66-core
General Specifications
Nominal Diameter
Standard Diameter
254mm/10 inch
Nominal Impedance
Rated Impedance
8Ω
AES Power Handing
AES Power
200W
Maximum Power
Maximum Power
300W
Sensitivity 1W/1M
Sensitivity
95dB
Frequency Range
Frequency Response Range
73-7.8KHz
Voice Coil Diameter
Voice Coil Diameter
65.5mm/2.6 inch
Windinig Material
Wire
EICCAW
Former Material
Tube
Kapton
Winding Depth
Roll Width
16.5mm
surround material
Surround Material
Polycotton
surround Design
Surround Design
M-roll
Magnet
Magnet
Neodymium Ring
Thiele & Small Parameters Parameters
Resonance Frequency
Resonance Frequency
Fs
73HZ
DC Resistance
DC Resistance
Re
5.7Ω
Mechanical Factor
Mechanical Quality Factor Value
Qms
8.59
Electrical Factor
Electrical Quality Factor
Qes
0.46
Total Factor
Total Quality Factor
Qts
0.44
BL Factor
Magnetic Force
BL
16T.m
Effective Moving Mass
Effective Moving Mass
Mms
43g
Compliance
Lishun
Cms
111μ M/N
Equivalent Cas Air Load
Effective Volume
Vas
19L
Effettive Piston Area
Vibrating Area (Effective Piston Area)
Sd
346cm2
η(Eta Zero)
Speaker Efficiency
η0
1.52%
From the supplier
Model: EL10NC65 10-inch aluminum frame neodymium magnet 66-core
General Specifications
Nominal Diameter
Standard Diameter
254mm/10 inch
Nominal Impedance
Rated Impedance
8Ω
AES Power Handing
AES Power
200W
Maximum Power
Maximum Power
300W
Sensitivity 1W/1M
Sensitivity
95dB
Frequency Range
Frequency Response Range
73-7.8KHz
Voice Coil Diameter
Voice Coil Diameter
65.5mm/2.6 inch
Windinig Material
Wire
EICCAW
Former Material
Tube
Kapton
Winding Depth
Roll Width
16.5mm
surround material
Surround Material
Polycotton
surround Design
Surround Design
M-roll
Magnet
Magnet
Neodymium Ring
Thiele & Small Parameters Parameters
Resonance Frequency
Resonance Frequency
Fs
73HZ
DC Resistance
DC Resistance
Re
5.7Ω
Mechanical Factor
Mechanical Quality Factor Value
Qms
8.59
Electrical Factor
Electrical Quality Factor
Qes
0.46
Total Factor
Total Quality Factor
Qts
0.44
BL Factor
Magnetic Force
BL
16T.m
Effective Moving Mass
Effective Moving Mass
Mms
43g
Compliance
Lishun
Cms
111μ M/N
Equivalent Cas Air Load
Effective Volume
Vas
19L
Effettive Piston Area
Vibrating Area (Effective Piston Area)
Sd
346cm2
η(Eta Zero)
Speaker Efficiency
η0
1.52%
