Household audio video equipment
10 inch home theather ktv entertainment audio sound system speaker unit
Meirui (Guangdong) Audio Equipment Co.,Ltd8/10 fairsManufacturerModel EL10-75
New for the 140th Fair
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied

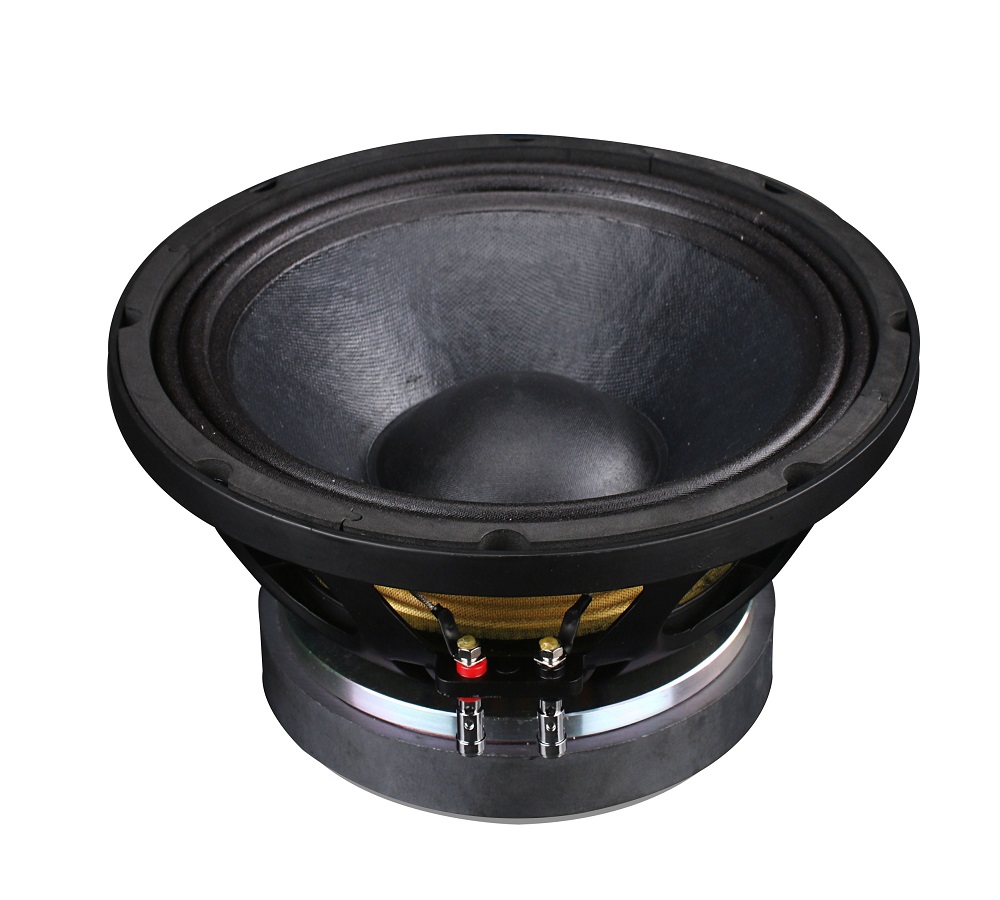

10 inch home theather ktv entertainment audio sound system speaker unit
Meirui (Guangdong) Audio Equipment Co.,Ltd8/10 fairsManufacturerModel EL10-75
New for the 140th Fair
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: aluminium
- Size: 10"
- Color: black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
About this product
- Materials: aluminium
- Size: 10"
- Color: black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
Product details
| Materials | aluminium |
|---|---|
| Size | 10" |
| Color | black |
Product details
| Materials | aluminium |
|---|---|
| Size | 10" |
| Color | black |
From the supplier
Specificatiom
Model: EL10-75 10" Aluminum Frame 170 Magnet 76 Core
General Specifications
Nominal Diameter
Standard Diameter
254mm/10 inch
Nominal Impedance
Rated Impedance
8Ω
AES Power Handing
AES Power
150W
Maximum Power
Maximum Power
200W
Sensitivity 1W/1M
Sensitivity
95dB
Frequency Range
Frequency Response Range
74-5.9KHz
Voice Coil Diameter
Voice Coil Diameter
75.5mm/3 inch
Windinig Material
Wire
Copper
Former Material
Tube
Kapton
Winding Depth
Roll Width
13mm
surround material
Surround Material
Polycotton
surround Design
Surround Design
M-roll
Magnet
Magnet
Φ170
Ferrite Ring
Thiele & Small Parameters Parameters
Resonance Frequency
Resonance Frequency
Fs
74HZ
DC Resistance
DC Resistance
Re
5Ω
Mechanical Factor
Mechanical Quality Factor Value
Qms
20.06
Electrical Factor
Electrical Quality Factor
Qes
0.47
Total Factor
Total Quality Factor
Qts
0.46
BL Factor
Magnetic Force
BL
17T.m
Effective Moving Mass
Effective Moving Mass
Mms
60g
Compliance
Lishun
Cms
77μ M/N
Equivalent Cas Air Load
Effective Volume
Vas
13L
Effettive Piston Area
Vibrating Area (Effective Piston Area)
Sd
346cm2
η(Eta Zero)
Speaker Efficiency
η0
1.10%
Mountiong & Shipping Information
Overall Diameter
Outer Diameter
260mm
Bolt circle diameter
Installation Hole Diameter
244mm
Baffle Cutout Diameter
Panel Opening Diameter
230mm
Depth
Height
115mm
Net Weight
Net Weight
4.8kg
Shipping Weight
Gross Weight
5.3kg
Shipping Box(Single)
Single Pack Dimensions
26.5*26.5*14cm
From the supplier
Specificatiom
Model: EL10-75 10" Aluminum Frame 170 Magnet 76 Core
General Specifications
Nominal Diameter
Standard Diameter
254mm/10 inch
Nominal Impedance
Rated Impedance
8Ω
AES Power Handing
AES Power
150W
Maximum Power
Maximum Power
200W
Sensitivity 1W/1M
Sensitivity
95dB
Frequency Range
Frequency Response Range
74-5.9KHz
Voice Coil Diameter
Voice Coil Diameter
75.5mm/3 inch
Windinig Material
Wire
Copper
Former Material
Tube
Kapton
Winding Depth
Roll Width
13mm
surround material
Surround Material
Polycotton
surround Design
Surround Design
M-roll
Magnet
Magnet
Φ170
Ferrite Ring
Thiele & Small Parameters Parameters
Resonance Frequency
Resonance Frequency
Fs
74HZ
DC Resistance
DC Resistance
Re
5Ω
Mechanical Factor
Mechanical Quality Factor Value
Qms
20.06
Electrical Factor
Electrical Quality Factor
Qes
0.47
Total Factor
Total Quality Factor
Qts
0.46
BL Factor
Magnetic Force
BL
17T.m
Effective Moving Mass
Effective Moving Mass
Mms
60g
Compliance
Lishun
Cms
77μ M/N
Equivalent Cas Air Load
Effective Volume
Vas
13L
Effettive Piston Area
Vibrating Area (Effective Piston Area)
Sd
346cm2
η(Eta Zero)
Speaker Efficiency
η0
1.10%
Mountiong & Shipping Information
Overall Diameter
Outer Diameter
260mm
Bolt circle diameter
Installation Hole Diameter
244mm
Baffle Cutout Diameter
Panel Opening Diameter
230mm
Depth
Height
115mm
Net Weight
Net Weight
4.8kg
Shipping Weight
Gross Weight
5.3kg
Shipping Box(Single)
Single Pack Dimensions
26.5*26.5*14cm
