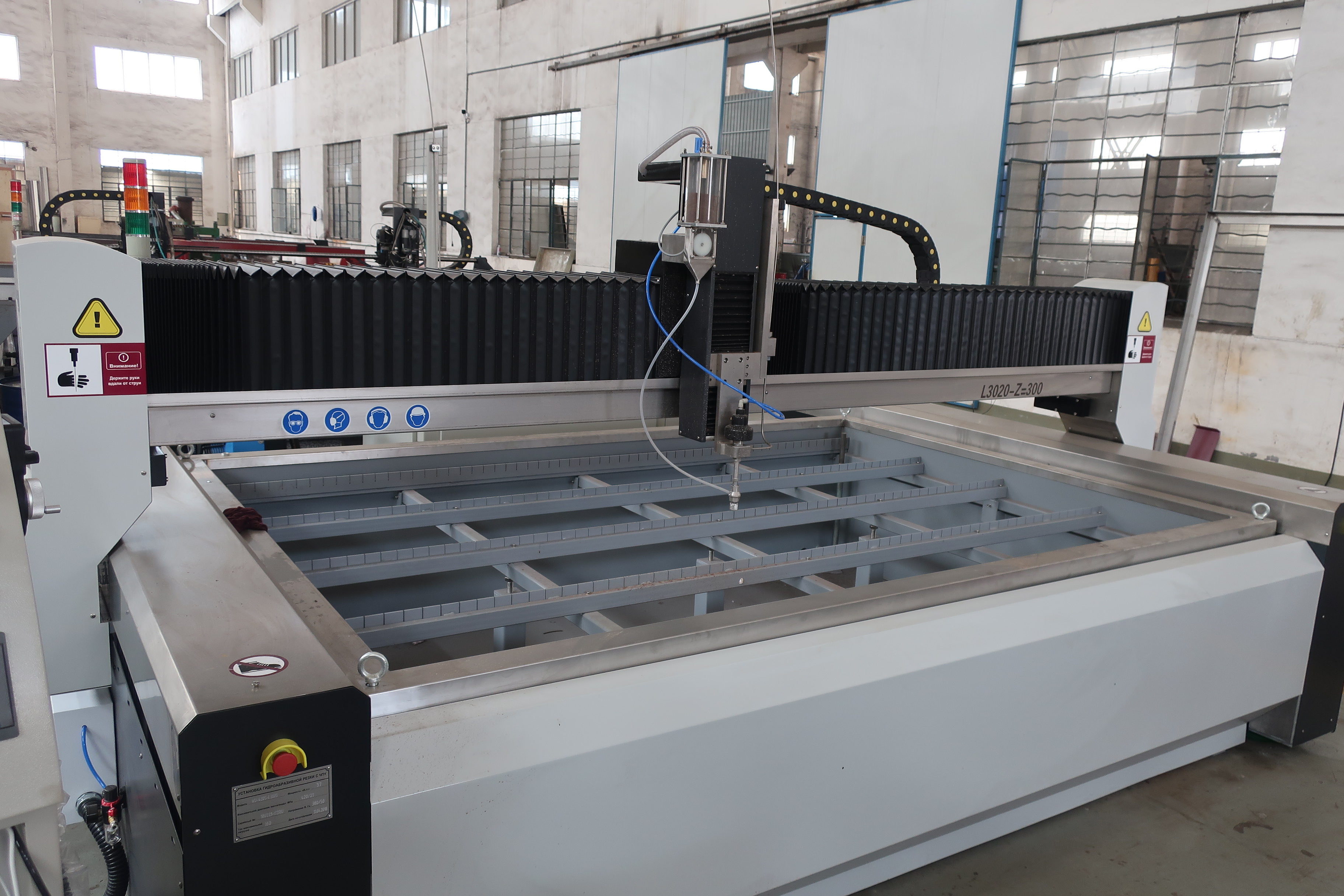

Perfect 3-Axis Waterjet Cutting

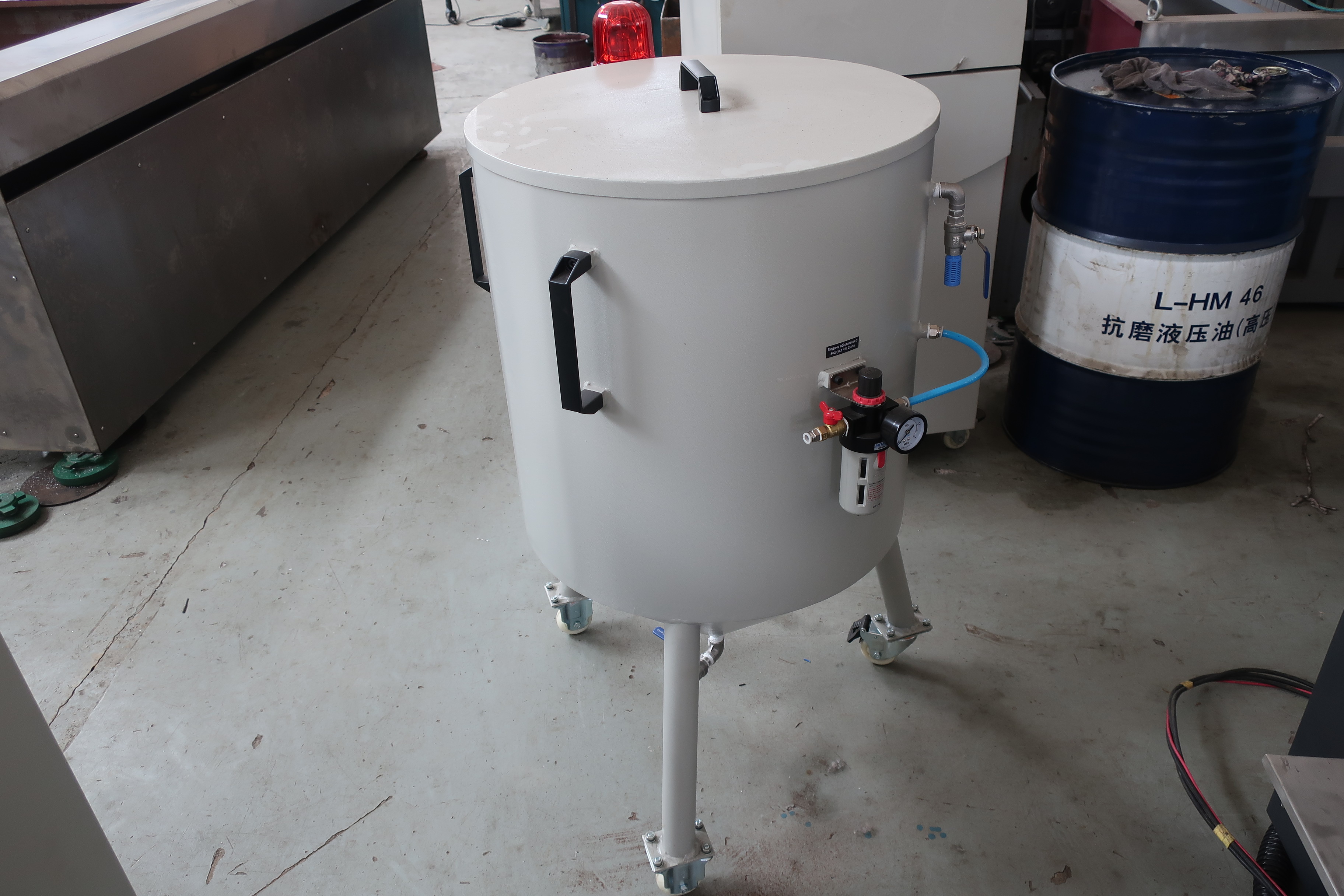

ACCURL® Waterjet machining is achieved by forcing a large volume of water under high pressure through a small orifice in the cutting nozzle. The accelerated steam of water leaving the nozzle impacts the material and starts the cutting process. Kerf from the accelerated stream of water is extremely narrow. This pressure is then concentrated in a small area on the material which starts to erode the material. Softer materials can be cut with water pressure. Harder materials require the use of an abrasive feed system, such as metal cutting. The abrasive is introduced into the high pressure water stream, which then starts the erosion of the harder materials.  The ACCURL® Go beyond cutting bevels on flat stock - 5-Axis water jet cutting opens up 3‑dimensional cutting abilities at angles from 0° to 90°.and will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass, Granite, Leather, Marble, Mild Steel, Plastic, Stainless Steel, Stone, Tile, Titanium. using the water jet high-pressure cutting process to cut material thicknesses from gauge up to 8".

Feature:

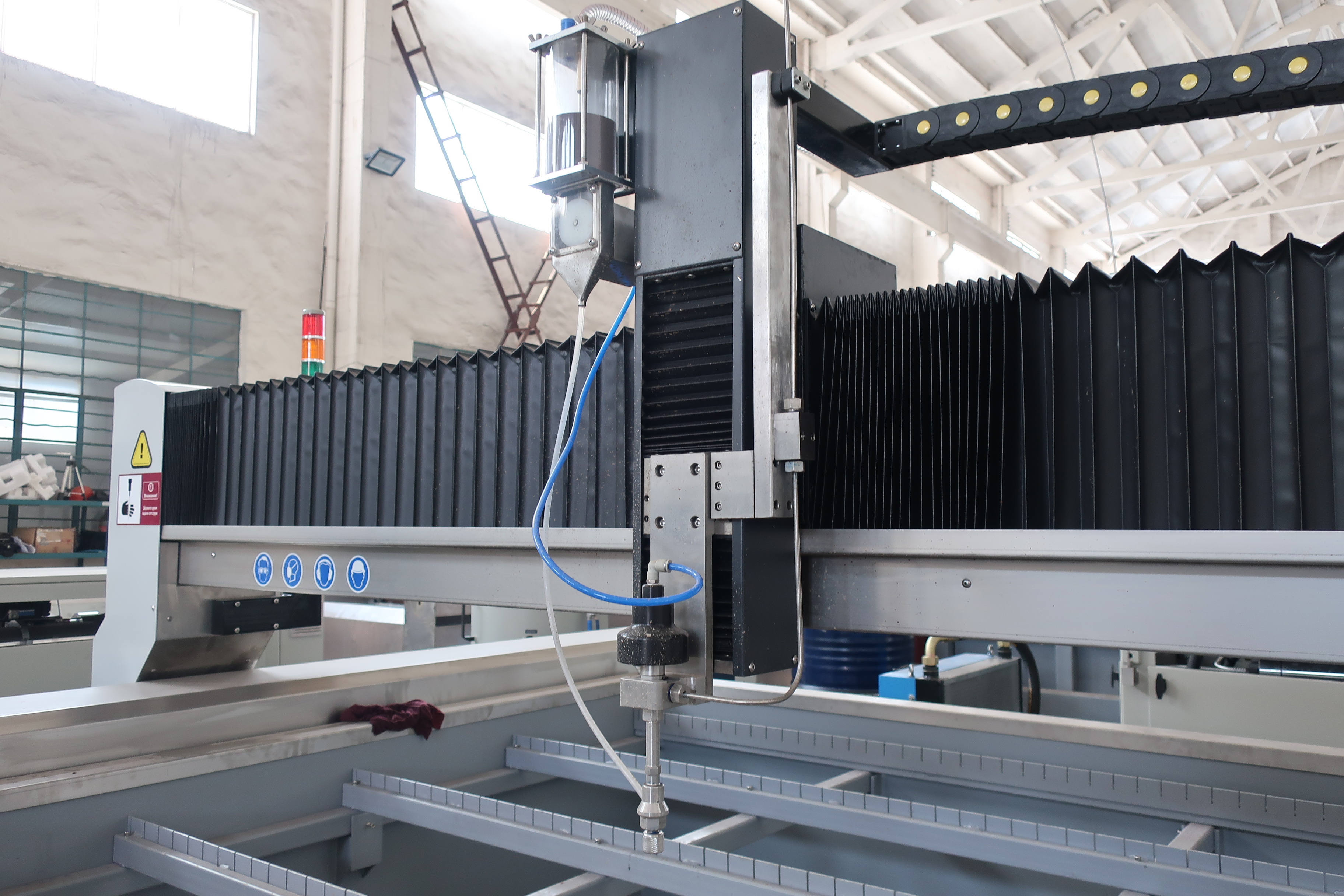

• Precision X-Y Axis rigidly mounted to the cutting table

•No Heat-Affected Zone

•No Mechanical Stresses

• Easy installation

•Very Narrow Kerf

•No need for Secondary Operations

•Smooth Surface

•Can Cut Various Materials

•Can Process Extremely Detailed Parts

•Minimal loss of material

•Environmentally Friendly

• CE safety specifications

• Fastest cutting speeds and best precision compared to any abrasivejet in the industry and is backed by our exclusive WEIHONG ® Software with real world cutting data

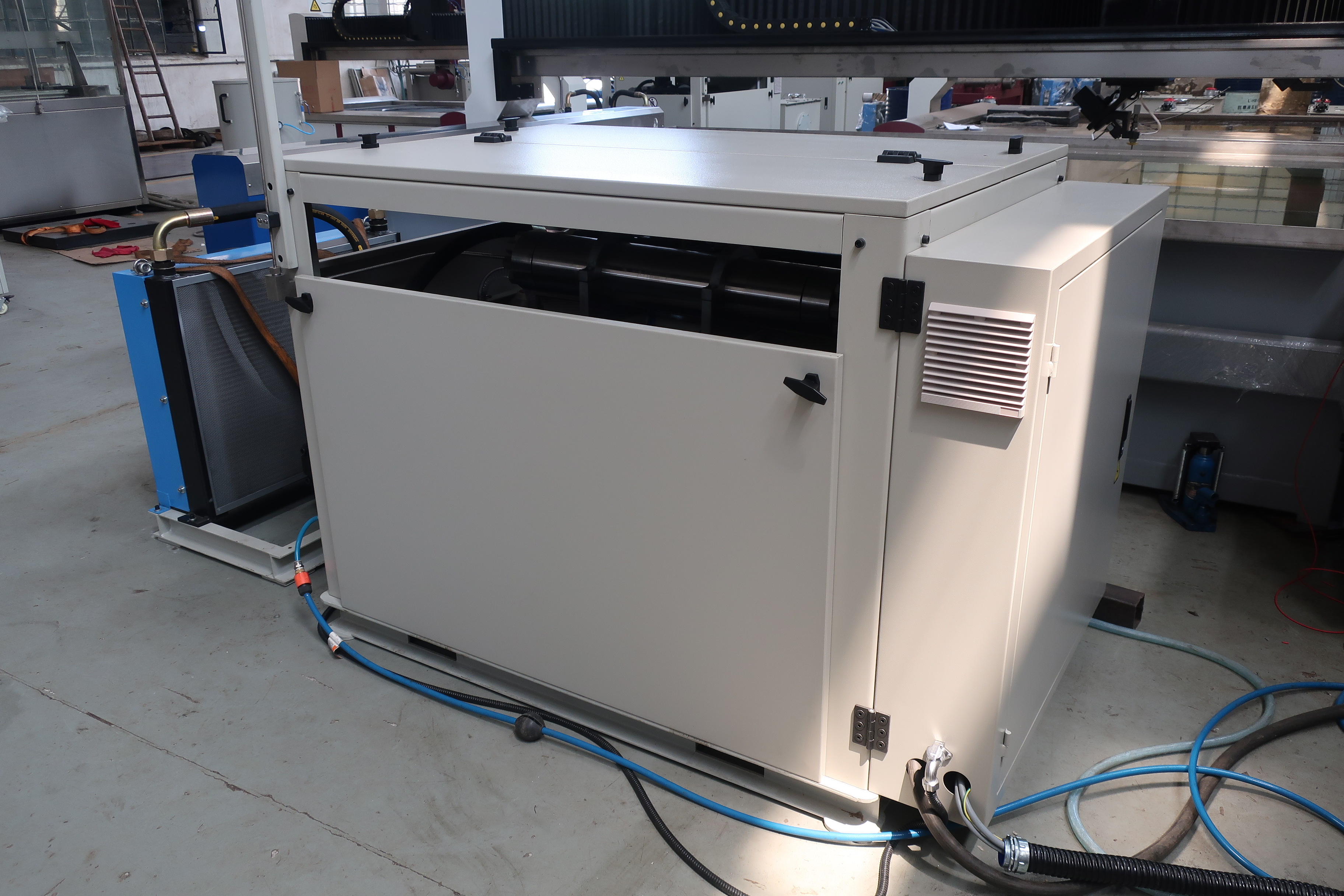

• High efficiency USA Hypertherm pump systems available with operating efficiencies up to 90%.

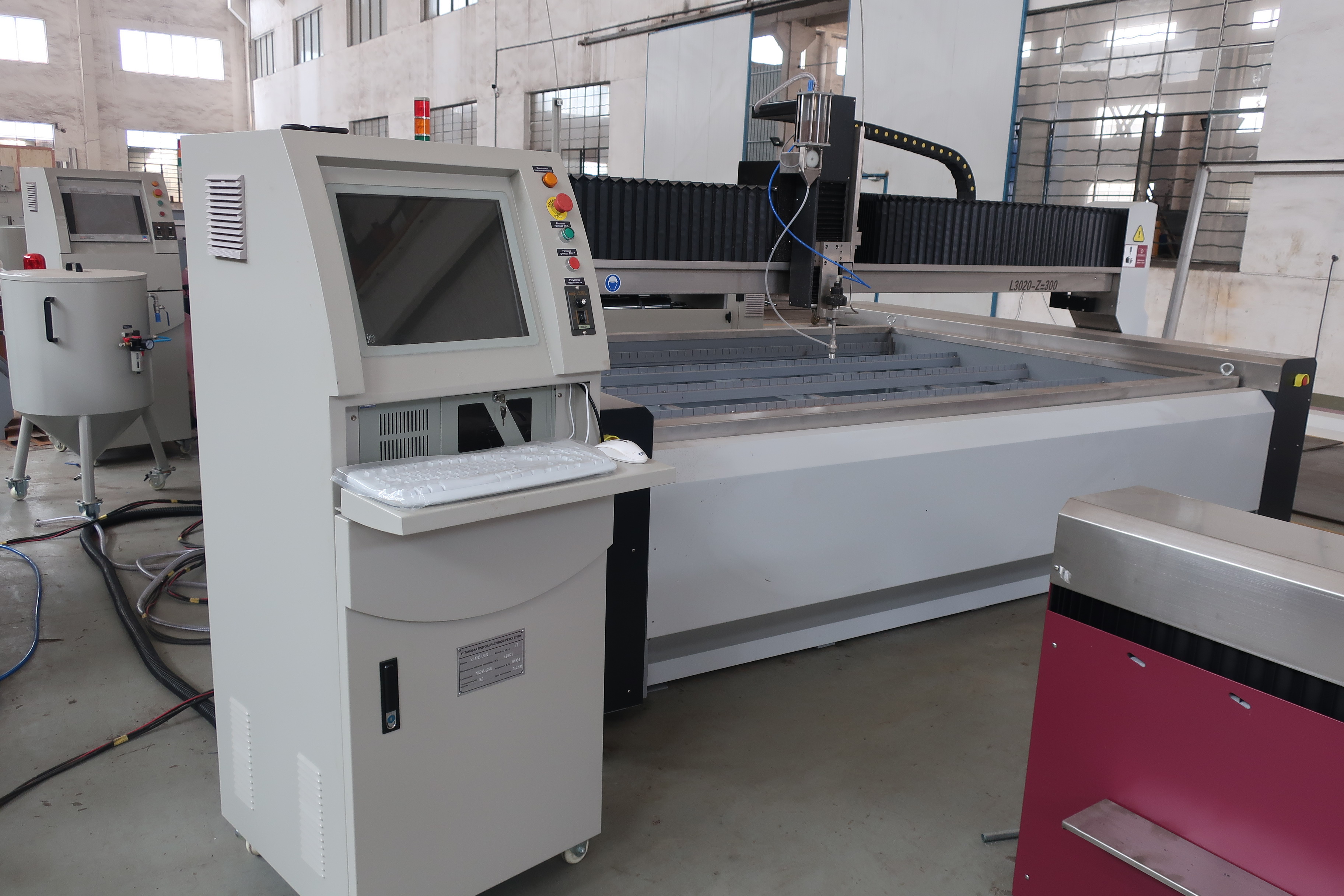

CNC CONTROL SYSTEM:

- 17”LCD liquid crystal display

- DNC on-line working function

- Functions of returning arbitrary point, bending,  .

- Function of cutting figure imitation display.

- 80GB memory hard disk

- MITSUBISHI AC servo driver and motor.

-1GB memory card

- Multilingual function(Chinese English ,etc.,)

- Drive-by-wire and hand-hold controller,(according to requests)

Specifications:

X-Axis Cutting Stroke mm (in)

2032 (80")

2032 (80")

Y-Axis Cutting Stroke mm (in)

3048 (120")

4064 (160")

Z-Axis Stroke mm (in)

203.2 (8")

203.2 (8")

Footprint Width mm (in)

4540 (179")

5540 (218")

Footprint Length mm (in)

2820 (111")

2820 (111")

Accuracy mm (in)

0.05 (0.002")

0.05 (0.002")

Repeatability mm (in)

±0.025 (±0.001")

±0.025 (±0.001")

Drivers

AC Servo Motors

AC Servo Motors

Motion for X-Axis

Ball Screw

Ball Screw

Motion for Y-Axis

Ball Screw

Ball Screw
