0.6/1kV LV Aerial Bundled Conductor (ABC) Cable

APPLICATION

Aerial Bundled Conductor cables can be used to replace bare conductor cables in overhead distribution systems. It is ideal for use in urban areas with congested power distribution and narrow lanes and by-lanes. The flexible system is much easier than conventional overhead power lines to re-route when demanded by changes in urban development plans.

CONSTRUCTION

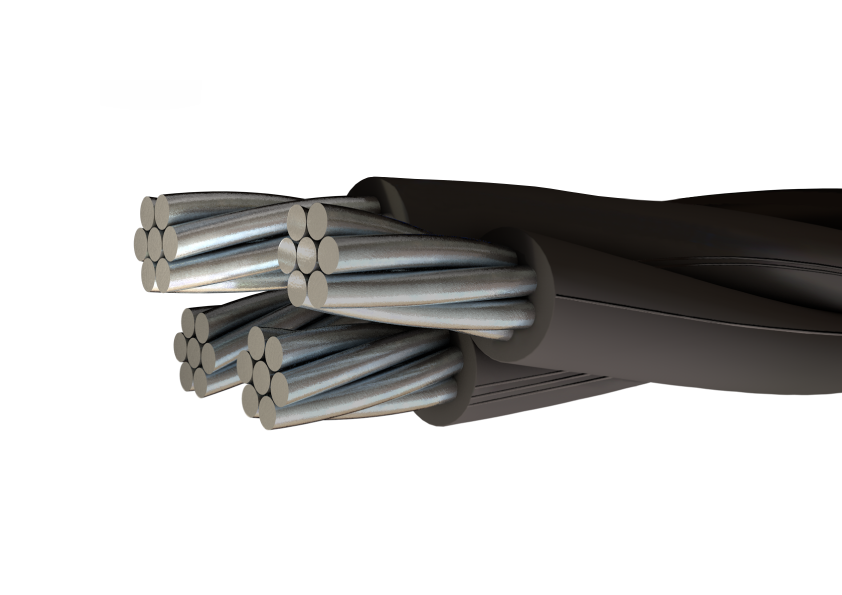

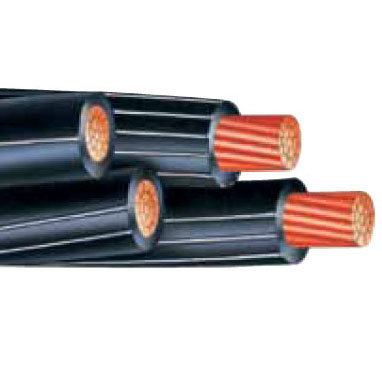

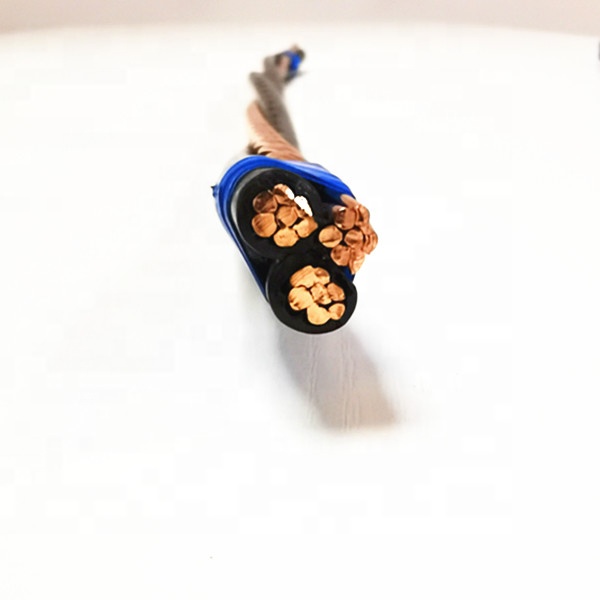

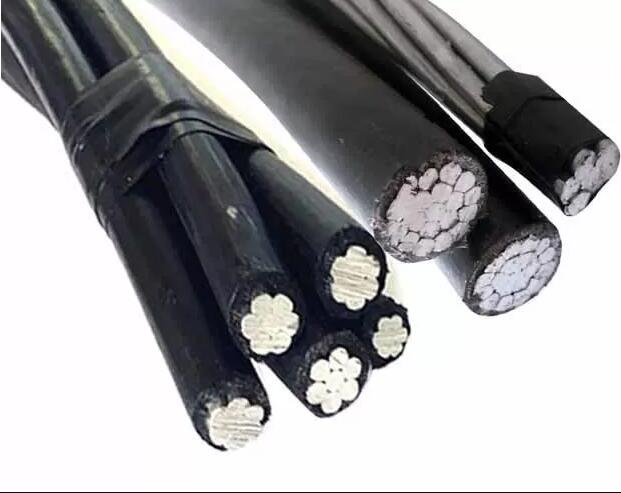

ABC (Aerial Bundled Cables or Aerial Bundled Conductors) are several phase conductors insulated and tightly bundled together with bare neutral conductor for use in overhead power lines. It utilizes the same principles as used for bundled conductors, but are much closer together and each one, except the neutral line, is surrounded by a layer of insulation. This is in direct contrast to the traditional use of uninsulated conductors which are separated by air gaps. LV (Low Voltage) abc aluminum cable are already in use in many countries around the world.

STANDARDS

Basic design to AS/NZS 3560-1 / BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 standards.

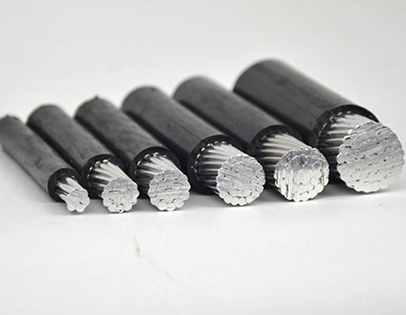

Rated voltage 0.6/1KV ABC Cable Cores 1,2,3, 4, 3+1,4+1 etc. Section 10mm2~120mm2 Phase Conductor Aluminium (AAC) Neutral Conductor AAAC/ACSR Insulation XLPE/ PE/ PVC/ LEPE/ HDPE Standards: NFC 33-209/ BS 7870-5/ IEC 60502/AS/NZS or according to your requirement. Application Overhead power transmission.

6.35/11kV, 12.7/22kV and 19/33kV MV Aerial Bundled Conductor (ABC) Cable

APPLICATION

Aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises.

Standards

Basic design to IEC 60502 / AS/NZS 3599-1 standards.

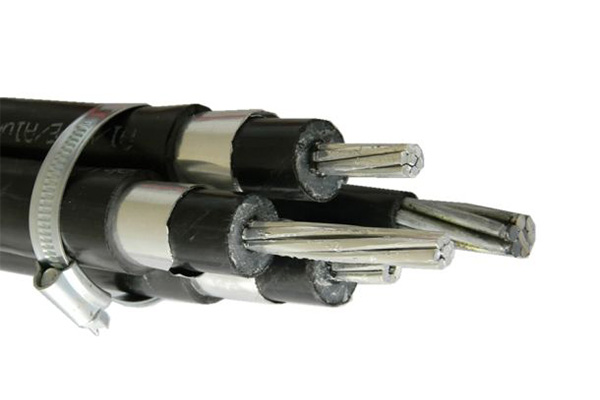

CONSTRUCTION

Phase Conductor: Circular compacted stranded H68 aluminium to BS2627.

Conductor Screen: Extruded semi-conductive layer.

Insulation: XLPE

Insulation Screen: Extruded semi-conductive layer.

Metallic Screen(optional): Copper wire screen or copper tape screen.

Separator: Semi-conductive swellable tape.

Outer Sheath: HDPE

Support Conductor: Galvanized steel wires.

Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

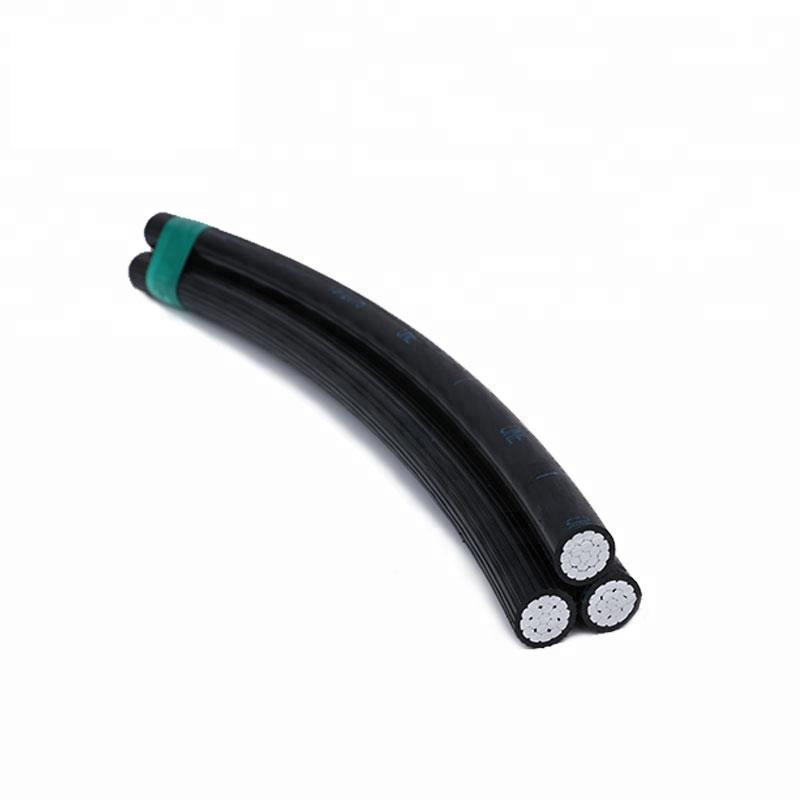

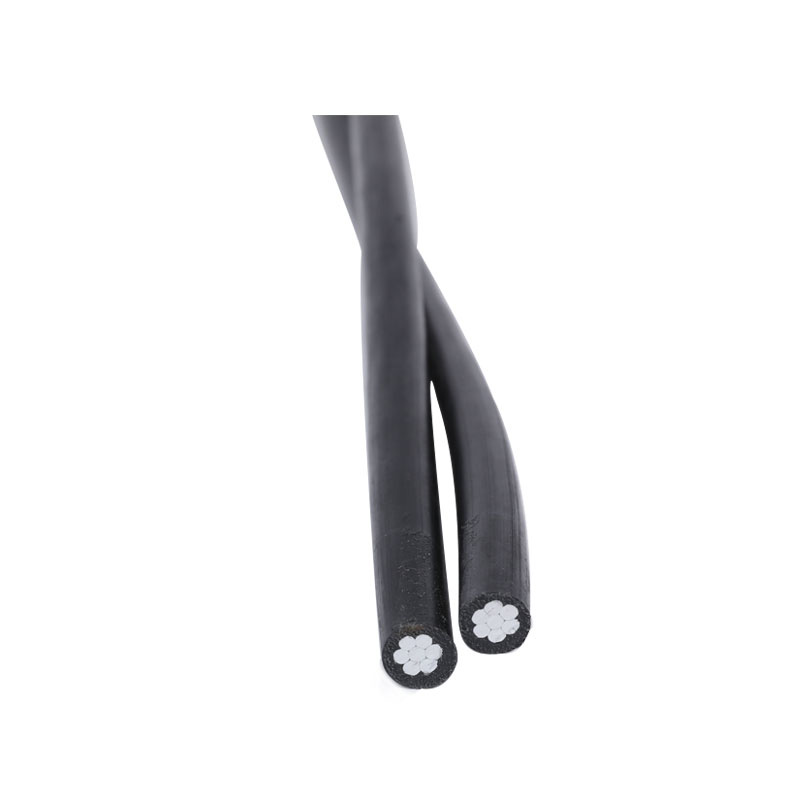

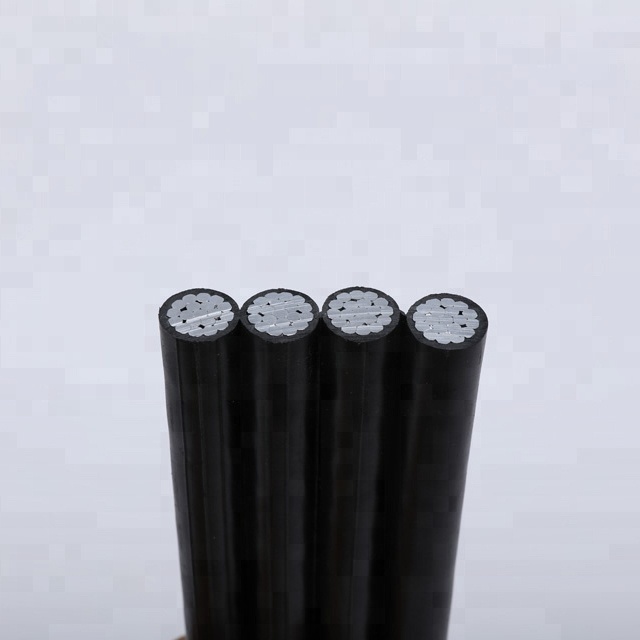

0.6/1 KV ABC (Aerial Bundle) Cable- AS/NZS 3560.1 (AL/XLPE)

Number of Cores x Nominal Cross Section Overall Diameter Weight Minimum Breaking Load Current Rating No.mm^2 mm Kg/Km KN A 2x16 RM 15 140 4.4 78 2x25 RM 17.6 210 7 105 2x35 RM 19.6 270 9.8 125 2x50 RM 22.8 370 11.4 150 2x95 RM 30.6 680 15.3 230 3x25 RM 19 310 8.8 97 3x35 RM 21.1 410 9.8 120 3x50 RM 24.6 550 11.4 140 4x16 RM 18.1 290 8.8 74 4x25 RM 21.2 410 14 97 4x35 RM 23.7 550 19.6 120 4x50 RM 27.5 740 28 140 4x70 RM 31.9 1000 39.2 175 4x95 RM 36.9 1370 53.2 215 4x120 RM 40.6 1690 67.2 250 4x150 RM 43.9 2020 84 280

0.6/1 KV ABC-Aerial Bundled Cable- ES/LVC- IEC 60502-(AL/XLPE)

Number of cores x nominal cross section min. breaking load of conductor strand Current rating in the air Outer diameter Total weight mm^2 kN A mm kg/km 4x25 RM 3.5 84 21.5 420 4x35 RM 4.9 104 23.9 550 4x120+1x25 RM 16.8 246 43.8 1800 4x185+1x25 RM 25.9 332 50.7 2700

0.6/1 KV ABC-Aerial Bundle Cable- IEC 60502 & TNB-(AL/PE)

Number of cores x nominal cross section min. breaking load of conductor strand Current rating in the air Outer diameter Total weight mm^2 kN A mm kg/km 1x16+1x 25 RM 6.4 61 15.3 160 3x16+1x 25 RM 6.4 61 19 290 3x25+1x 25 RM 6.4 84 23.2 400 3x35+1x 25 RM 6.4 104 25.6 500 3x50+1x 35 RM 8.9 129 30 680 3x70+1x 50 RM 12.1 167 34.9 920 3x95+1x 70 RM 18 209 40.6 1270 3x120+1x 70 RM 18 246 44.1 1510 3x150+1x 95 RM 24.2 283 49.2 1870 3x185+1x120 RM 30.8 332 54.9 2340 3x25+1x25+1x16 RM 6.4 84 23.2 470 3x35+1x25+1x16 RM 6.4 104 25.6 560 3x50+1x35+1x16 RM 8.9 129 30 740 3x70+1x50+1x16 RM 12.1 167 34.9 980 3x95+1x70+1x16 RM 18 209 40.6 1330 3x120+1x70+1x16 RM 18 246 44.1 1580 3x150+1x95+1x16 RM 24.2 283 49.2 1940 3x185+1x120+1x16 RM 30.8 332 54.9 2410

0.6/1 KV ABC –Aerial Bundled Cables- BS 7870-5 (AL/XLPE)

Number of Cores x Nominal Cross Section Overall Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating No.mm^2 mm Kg/Km Ω/Km KN A 1x16 RM 8 74 1.91 2.5 72 1x25 RM 9 106 1.2 4 107 1x35 RM 10.5 138 0.868 5.5 132 1x50 RM 11.8 182 0.641 8 165 1x70 RM 13 252 0.443 10.7 205 1x95 RM 15.4 333 0.32 13.7 240 1x120 RM 17 408 0.253 18.6 290 1x150 RM 19 502 0.206 23.2 334 1x185 RM 21 611 0.164 28.7 389 1x240 RM 24 801 0.125 37.2 467 2x16 RM 15.6 147 1.91 2.5 72 2x25 RM 18 208 1.2 4 107 2x35 RM 20 277 0.868 5.5 132 2x50 RM 23.5 361 0.641 8 165 2x70 RM 25.4 505 0.443 10.7 205 2x95 RM 30.3 666 0.32 13.7 240 2x150 RM 38 1004 0.206 23.2 334 4x16 RM 18.8 286 1.91 2.5 72 4x25 RM 21.2 430 1.2 4 107 4x35 RM 24.1 553 0.868 5.5 132 4x50 RM 27.8 746 0.641 8 165 4x70 RM 31.8 1009 0.443 10.7 205 4x95 RM 37.8 1332 0.32 13.7 240 4x120 RM 54.4 1632 0.253 18.6 290 4x50 + 1x25 RM 31.9 814 0.641/1.200 8.0/4.0 165/107 4x50 + 1x35 RM 31.9 845 0.641/0.868 8.5/5.5 165/132 4x70 + 1x25 RM 36 1105 0.443/1.200 10.7/4.0 205/107 4x70 + 2x25 RM 40 1217 0.443/1.200 10.7/4.0 205/107 4x95 + 1x25 RM 41.8 1438 0.320/1.200 13.7/4.0 240/107 4x95 + 2x25 RM 42 1544 0.320/1.200 13.7/4.0 240/107 4x120 + 1x25 RM 59 2050 0.253/1.200 18.6/4.0 290/107

0.6/1 KV ABC –Aerial Bundled Cables – NFC 33-209 (AL/XLPE)

Number of Cores x Nominal Cross Section Overal Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating No.mm^2 mm Kg/Km Ω/Km KN A 2x10 RM 12.8 93 3.08 1.5 38 4x10 RM 15.4 183 3.08 1.5 38 2x16 RM 14.8 129 1.91 2.3 72 2x16 RN + 2x1.5 RE 14.8 176 1.910/12.100 2.3 72 4x16 RM 17.8 257 1.91 2.3 72 4x16 RN + 2x1.5 RE 17.8 304 1.910/12.100 2.3 72 2x25 RM 18 202 1.2 3.8 107 2x25 RM + 2x1.5 RE 18 249 1.200/12.100 3.8 107 4x25 RM 21.7 404 1.2 3.8 107 4x25 RM + 2x1.5 RE 21.7 451 1.200/12.100 3.8 107 2x35 RM 20.8 269 0.868 5.2 132 2x35 RM + 2x1.5 RE 20.8 316 0.868/12.100 5.2 132 4x35 RM 25.1 539 0.868 5.2 132 4x35 RM + 2x1.5 RE 25.1 586 0.868/12.100 5.2 132 2x50 RM 23.4 352 0.641 7.6 165 2x50 RM + 2x1.5 RE 23.4 399 0.641/12.100 7.6 165 1x54.6 RM + 3x25 RM 21.7 507 0.630/1.200 3.8 107 1x54.6 RM + 3x25 RM + 1x16 RM 24.3 573 0.630/1.200/1.910 3.8/2.3 107/72 1x54.6 RM + 3x25 RM + 2x16 RM 29.7 639 0.630/1.200/1.910 3.8/2.3 107/72 1x54.6 RM + 3x25 RM + 3x16 RM 31.1 705 0.630/1.200/1.910 3.8/2.3 107/72 1x54.6 RM + 3x35 RM 25.1 615 0.630/0.868 5.2 132 1x54.6 RM + 3x35 RM + 1x16 RM 28.1 680 0.630/0.868/1.910 5.2/2.3 132/72 1x54.6 RM + 3x35 RM + 2x16 RM 34.3 748 0.630/0.868/1.910 5.2/2.3 132/72 1x54.6 RM + 3x35 RM + 3x16 RM 35.9 814 0.630/0.868/1.910 5.2/2.3 132/72 1x54.6 RM + 3x35 RM + 1x25 RM 28.1 714 0.630/0.868/1.200 5.2/3.8 132/107 1x54.6 RM + 3x50 RM 28.2 741 0.630/0.641 7.6 165 1x54.6 RM + 3x50 RM + 1x16 RM 31.6 806 0.630/0.641/1.910 7.6/2.3 165/72 1x54.6 RM + 3x50 RM + 2x16 RM 38.6 875 0.630/0.641/1.910 7.6/2.3 165/72 1x54.6 RM + 3x50 RM + 3x16 RM 40.4 940 0.630/0.641/1.910 7.6/2.3 165/72 1x54.6 RM + 3x50 RM + 1x25 RM 31.6 841 0.630/0.641/1.200 7.6/3.8 165/107 1x54.6 RM + 3x70 RM 33 950 0.630/0.443 10.2 205 1x54.6 RM + 3x70 RM + 1x16 RM 37 1014 0.630/0.443/1.910 10.2/2.3 205/72 1x54.6 RM + 3x70 RM + 2x16 RM 45.2 1083 0.630/0.443/1.910 10.2/2.3 205/72 1x54.6 RM + 3x70 RM + 3x16 RM 47.3 1148 0.630/0.443/1.910 10.2/2.3 205/72 1x54.6 RM + 3x70 RM + 1x25 RM 37 1048 0.630/0.443/1.200 10.2/3.8 205/107 1x54.6 RM + 3x70 RM + 2x25 RM 45.2 1150 0.630/0.443/1.200 10.2/3.8 205/107 1x54.6 RM + 3x70 RM + 3x25 RM 47.3 1250 0.630/0.443/1.200 10.2/3.8 205/107 1x54.6 RM + 3x95 RM 37.4 1176 0.630/0.320 13.5 240 1x54.6 RM + 3x95 RM + 1x16 RM 41.9 1243 0.630/0.320/1.910 13.5/2.3 240/72
