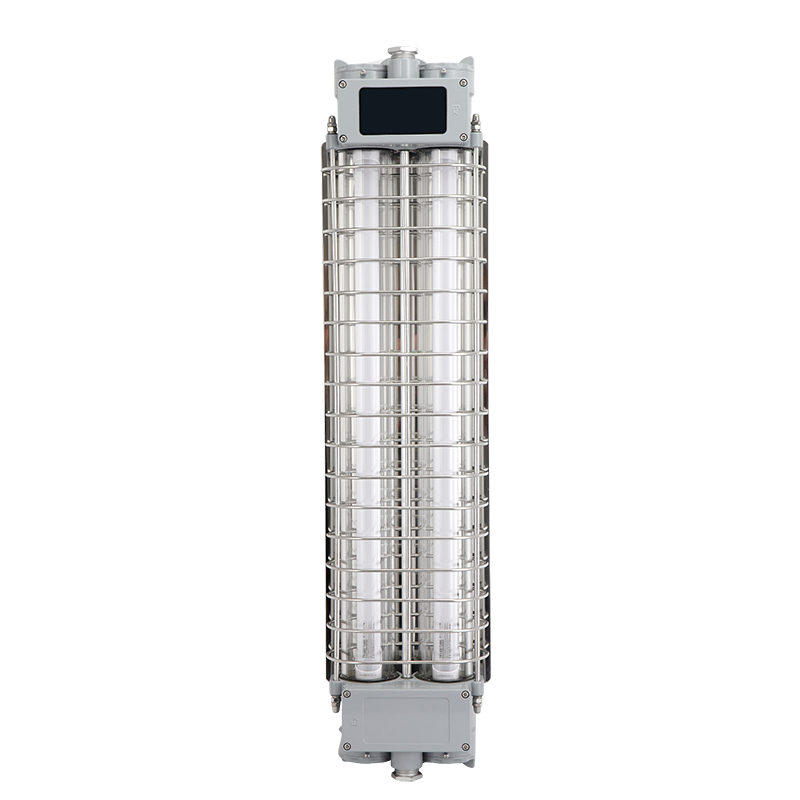

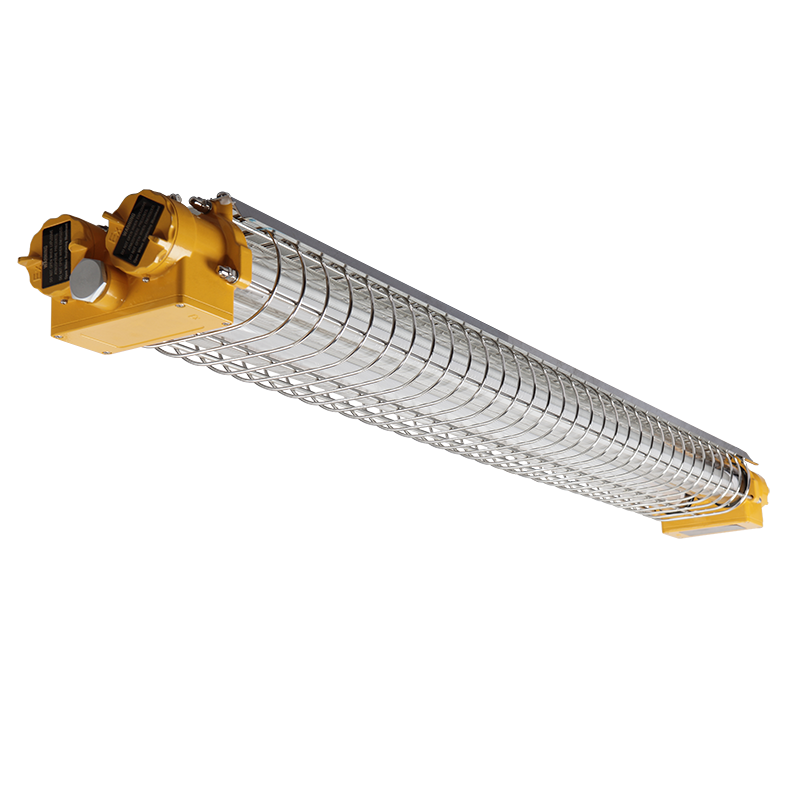

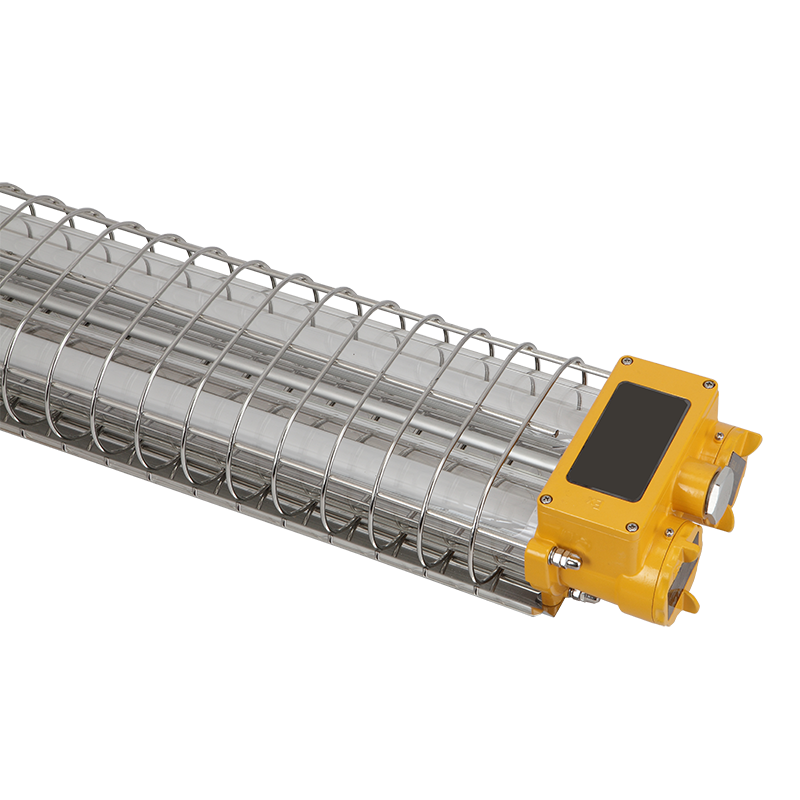

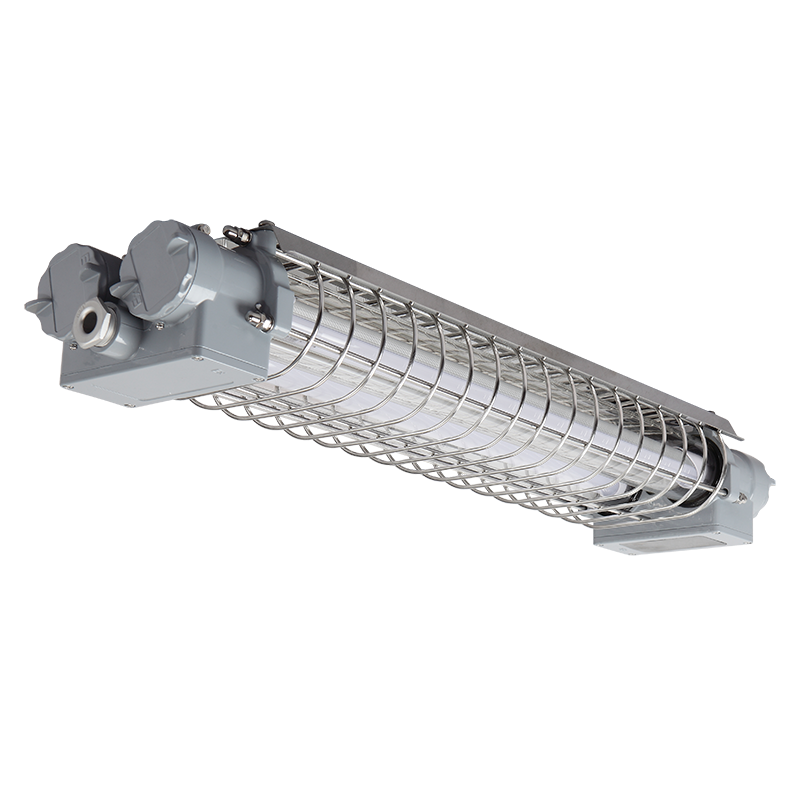

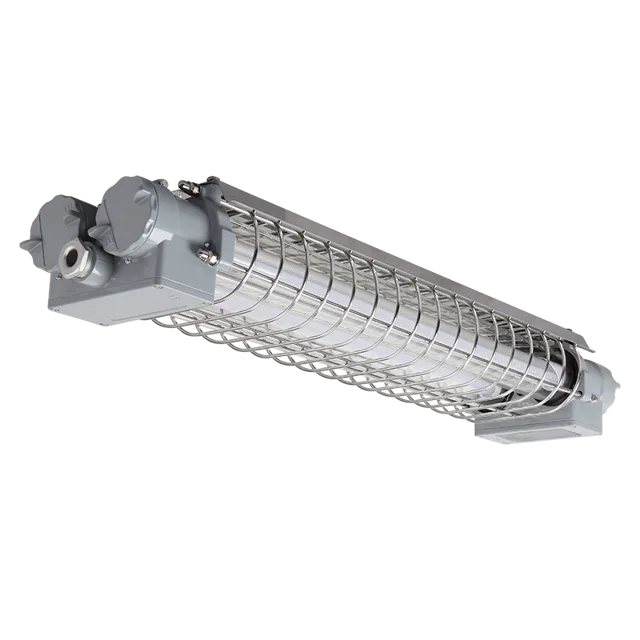

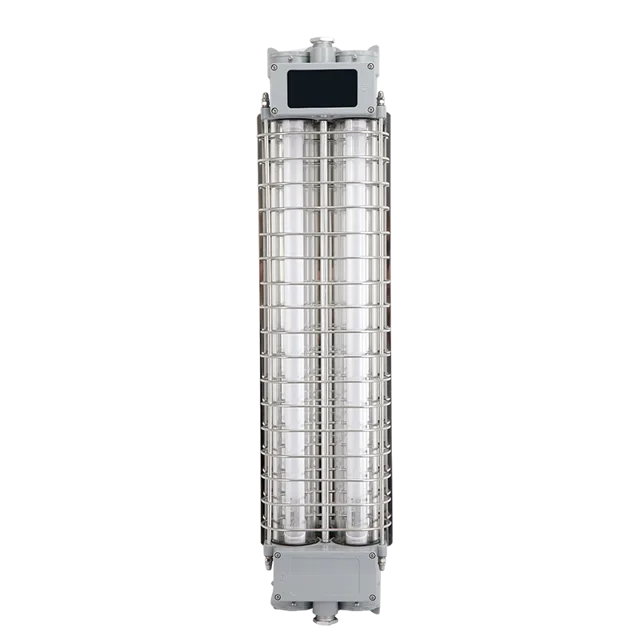

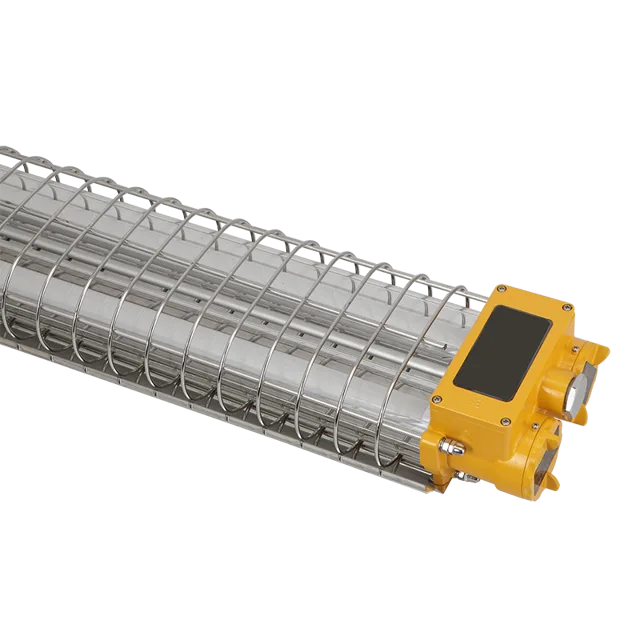

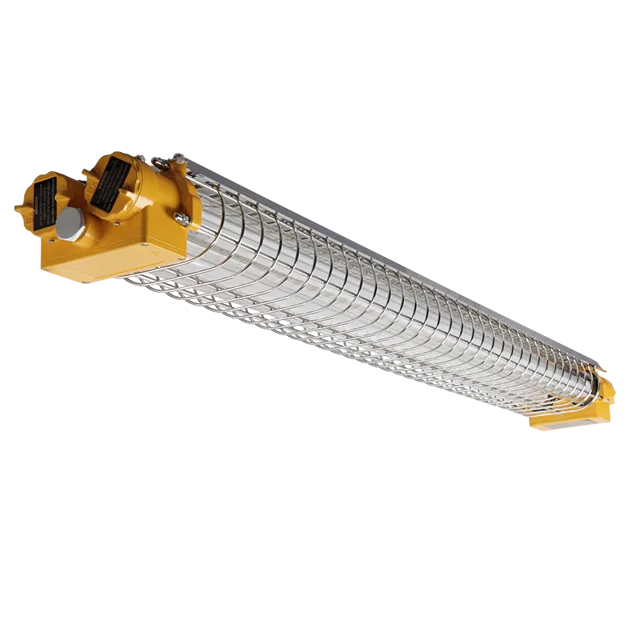

Bc5401 LED Explosion Proof Tube Light Bc5401
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Bc5401 LED Explosion Proof Tube Light Bc5401
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Aluminum alloy, Tempered glass, Stainless steel mesh
- Size: 1390(L)(40W)or 780(L)(20W)×180（W）×110（H）
- Color: Grey or Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Aluminum alloy, Tempered glass, Stainless steel mesh
- Size: 1390(L)(40W)or 780(L)(20W)×180（W）×110（H）
- Color: Grey or Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Aluminum alloy, Tempered glass, Stainless steel mesh |
|---|---|
| Size | 1390(L)(40W)or 780(L)(20W)×180（W）×110（H） |
| Color | Grey or Yellow |
From the supplier
Wattage: 2X10W / 2X20W
ZONE 1/ 2; ZONE 21/ 22
Temperature class: T1 to T5
IP Code: IP66
Ex Marking: Ex d e op is IIC T5 Gb
Ex op is tb IIIC T95 ℃ Db
Ambient temp.: -40℃ to +55℃
ATEX, IECEX, CE, ROHS certification
Application
It can be widely used in petrochemical plants, oil platforms, oil pump housing, transit stations and other flammable and explosive places as fixed lighting.
Characteristics
1. It is made using a special aluminum housing, suitable for long-term highly corrosive environment of offshore platforms, chlor-alkali, hydrogen
sulfide, etc.
2. Derrick mounting fixture adopt high anti-corrosive aluminum and locking angle equipment, can be safely used in drilling platforms and high vibration environment.
3. The shell adopts high-tech surface spraying technology, wear-resistant, and anti-corrosion, waterproof and dustproof, suitable for various harsh environments.
4. Bracket, reflector, guard, and all exposed fasteners adopt 304 stainless steel (customizable 316), can effectively guarantee the strength and strong anti-corrosion performance of lamp.
5. Terminals are provided at both ends, can be directly wired in parallel, eliminating the junction box and installation costs.
6. A variety of installation as optional: ceiling, oil derrick, the side walls, curved rods, boom, etc.
Technical Specification
Item
Technical specification
Rated power
2*20W(T8 led tube)
2*10W(T8 led tube)
Input voltage range
90~264VAC
Input frequency
50Hz/ 60Hz
Light source
LED
Light efficiency flux
3900lm
> 1800lm
CRI
>Ra 70
Service life
50,000h
CCT
5000K
Screw Thread
G3/4", NPT3/4", M25*1.5
Terminals
Multi-core wire：≤2.5mm2
Single-core wire：≤4mm2
Dimension
1390* 180* 110mm
780* 180* 110mm
Net weight
11 Kg
7.5Kg
Drawing of dimension (Dimensions in mm)
