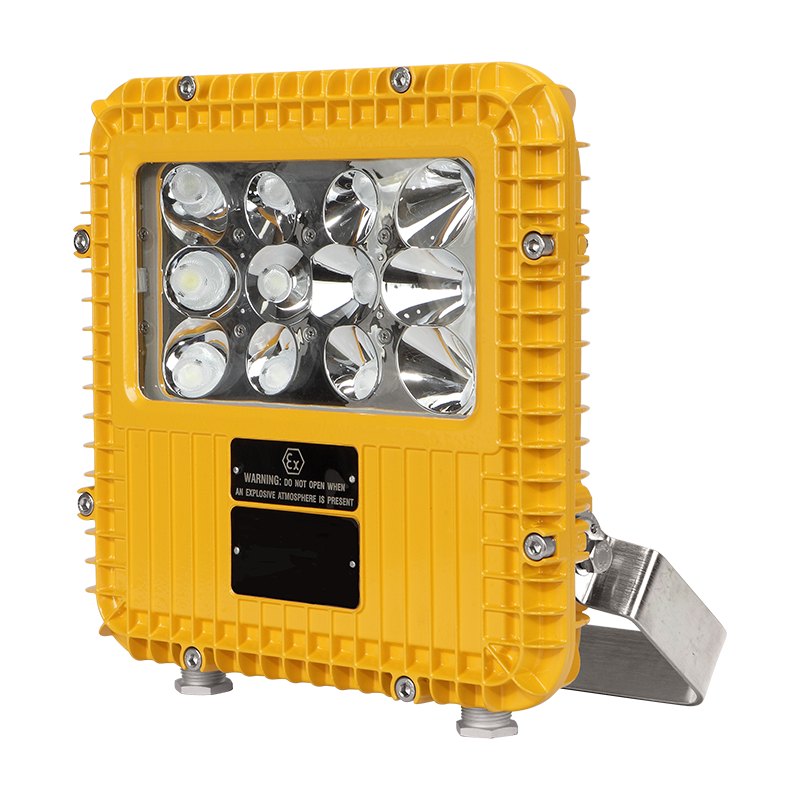

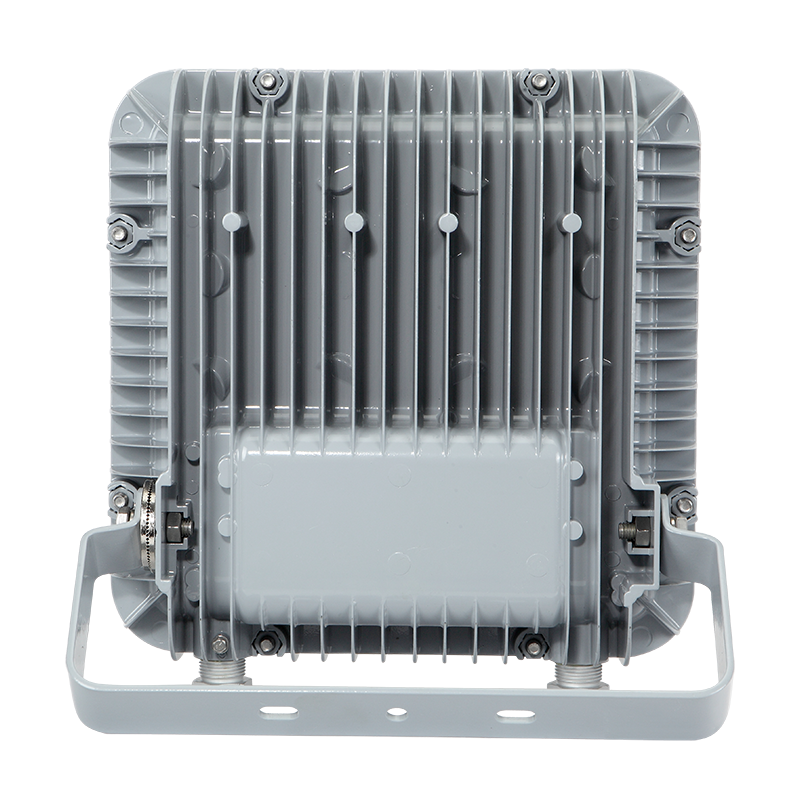

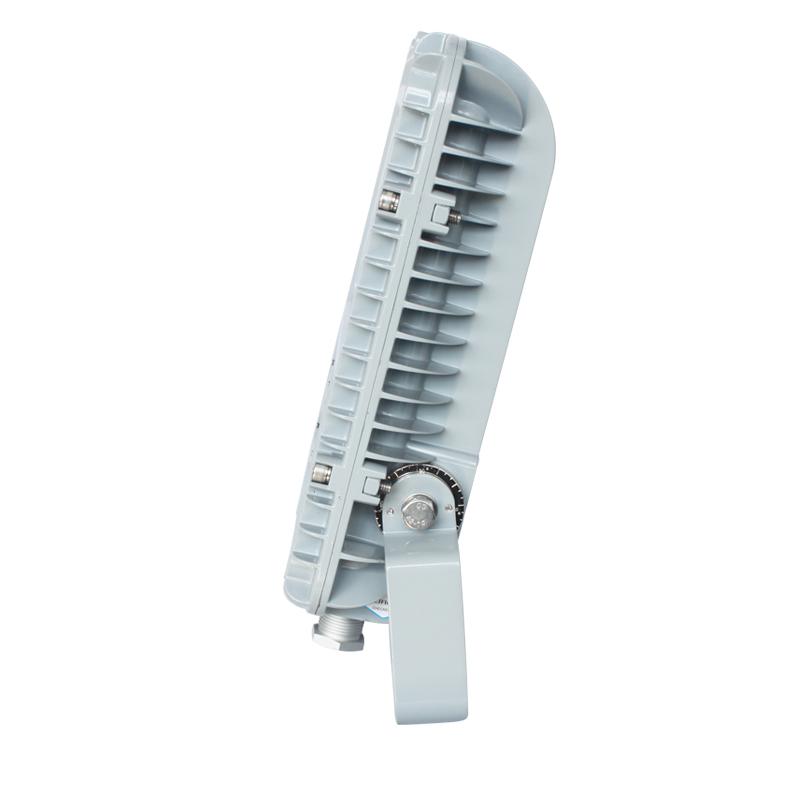

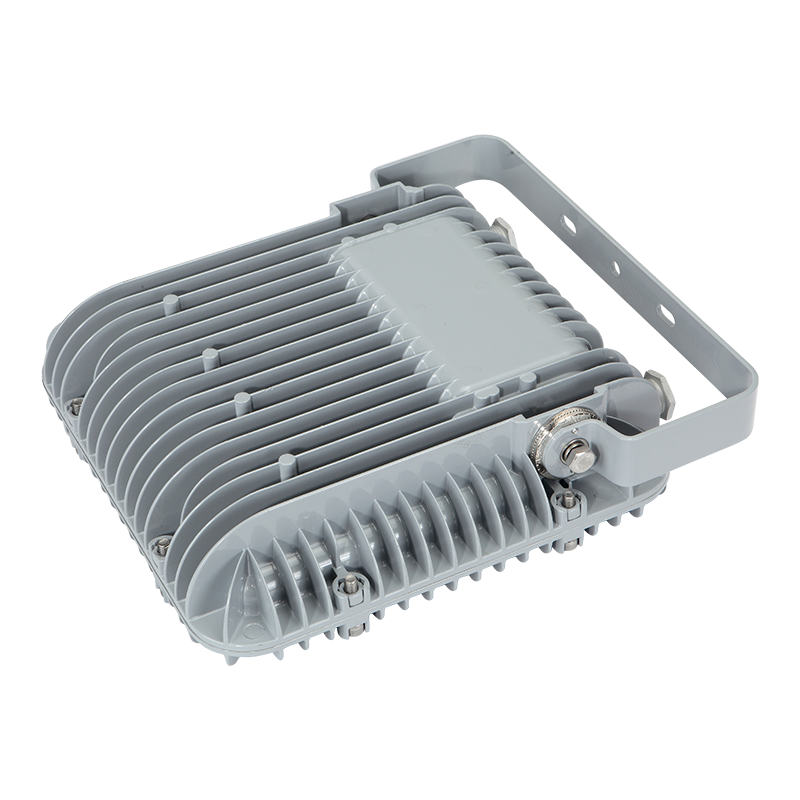

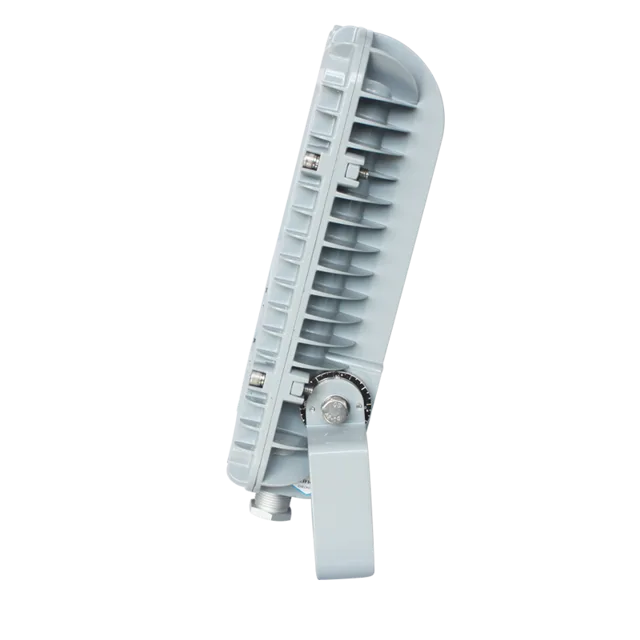

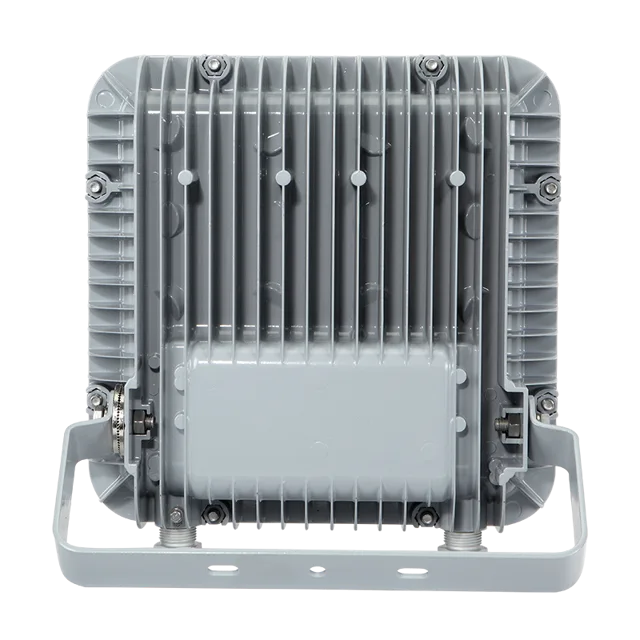

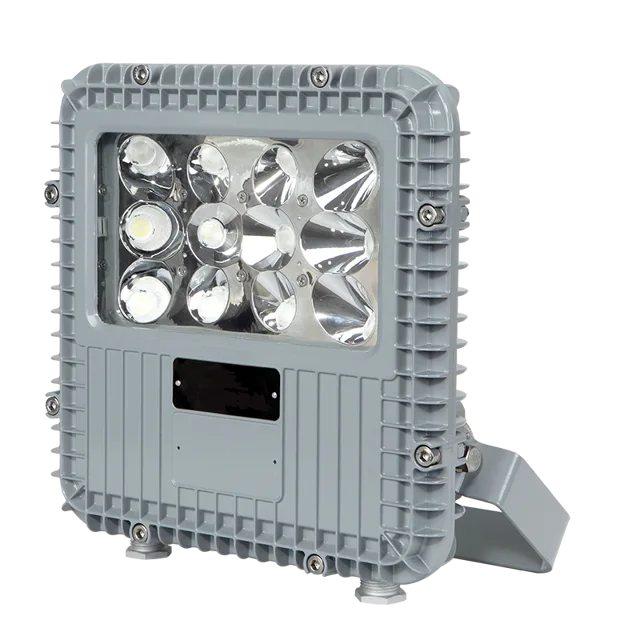

BC9101 Anti glare LED explosion proof light
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
BC9101 Anti glare LED explosion proof light
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Aluminum alloy, Tempered glass
- Size: 326×370×88
- Color: Grey/yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Aluminum alloy, Tempered glass
- Size: 326×370×88
- Color: Grey/yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Aluminum alloy, Tempered glass |
|---|---|
| Size | 326×370×88 |
| Color | Grey/yellow |
From the supplier
Wattage: 25W to 80W
ZONE 1/ 2; ZONE 21/ 22
Temperature class: T1 to T6
IP Code: IP66
Ex marking: Ex d IIB T6 Gb
Ex tb IIIC T80℃ Db
Ambient temp.: -40℃ to +45℃
ATEX IECEX CE CERTIFICATION
Application
1. Ideal to be used in the environment of flammable gas、steam and dust environment, such as Petrochemical Plant、Chemical Plant、Pharmaceutical Factory, etc.
Characteristics
1. With its reflector which have different angles design, it efficiently utilize the light. Have a good performance of illuminance uniformity, glare free, can avoid eyestrain to the worker.
2. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.
3. It adopts CREE LED as light source, no dark spot, can save 60% or more on energy than Metal Halide Lamp.
4. Power factor above 0.98, high reliability and long time service life.
5. The adjustable locking device on the bracket can tightly fix the lamp toany desired angle, making the lamp resist to harsh vibration.
6. It is made using aluminum housing, all exposed fasteners adopt 304 stainless steel. Using high-tech anti-corrosion surface treatment technology, suitable for hazardous working areas.
7. Intelligent control functions can be realized.
Main specification
Item
Technical Parameters
Input voltage range
90~ 305 VAC
18~43 VAC; 18~55VAC/ DC(25W/40W)
Input frequency
50 Hz/ 60 Hz
Light source
LED
Service life
100,000h
CRI
Ra 75
CCT
5000K±250K
Screw Thread
M20×1.5,M25×1.5, G3/4",NPT1/2",NPT3/4"
Leading-in cable diameter
φ9mm~φ14mm
Dimension
326* 370* 88mm
Net weight
9Kg
Ordering reference
Ordering
reference
Input voltage range
Wattage
Light output
Mounting
height
Equivalent to
High Pressure Mercury Lamp
BC9101-L25H
90~ 305VAC
25W
2800lm
3~6m
70W
BC9101-L40H
40W
4200lm
100W
BC9101-L60H
60W
5900lm
4~8m
150W
BC9101-L80H
80W
7200lm
175W
BC9101-L25L
18~43VAC; 18~55VDC
25W
2800lm
3~6m
70W
BC9101-L40L
40W
4200lm
100W
BC9101 explosion proof fixed light spec details compressed 2020-4.pdf
