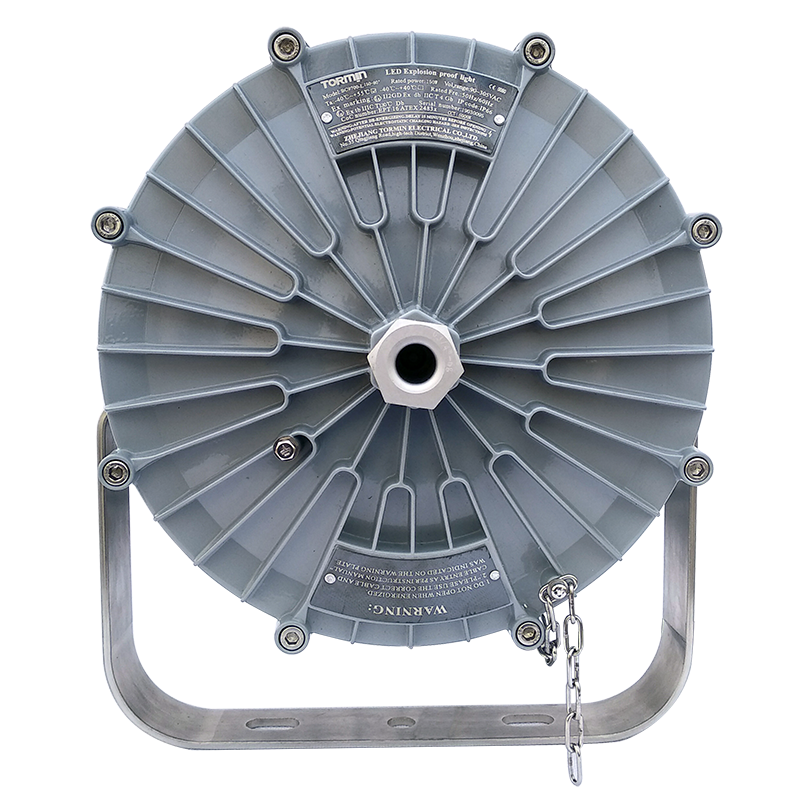

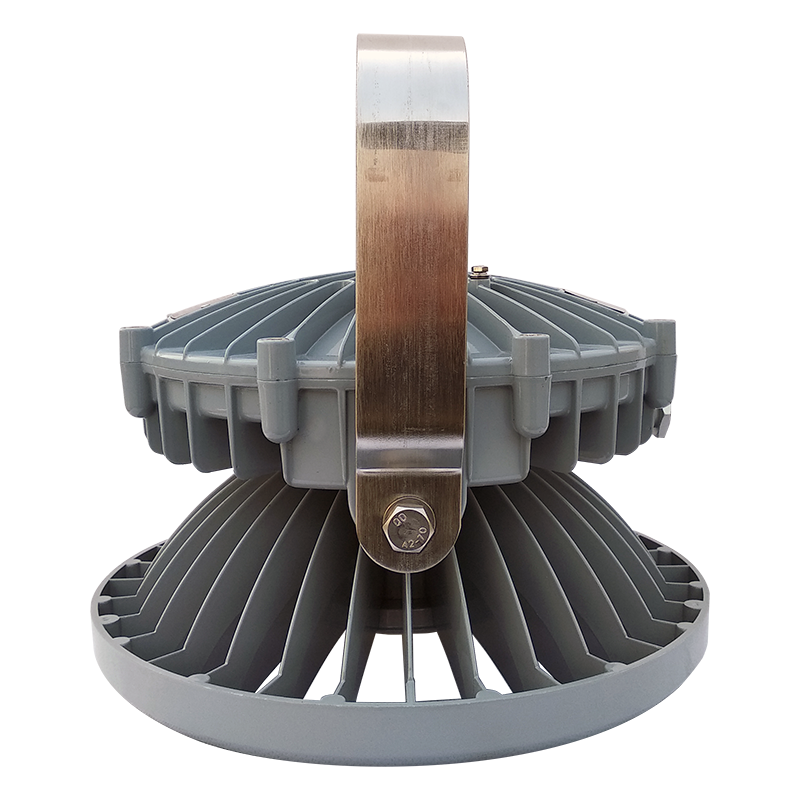

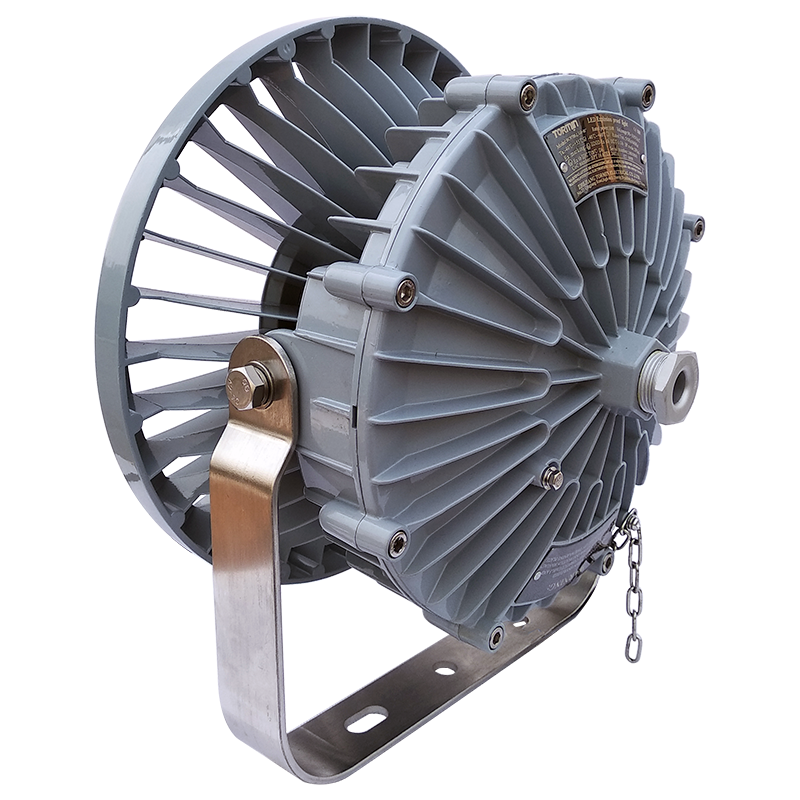

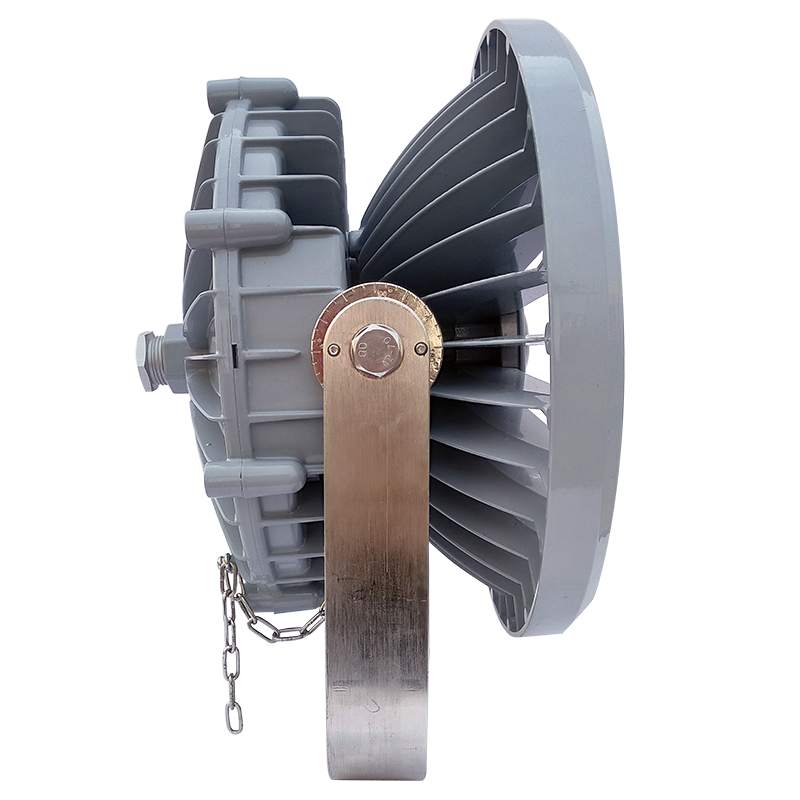

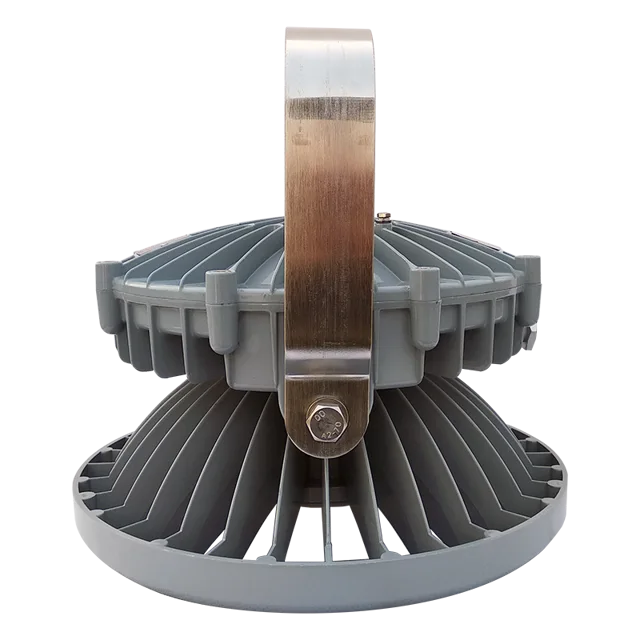

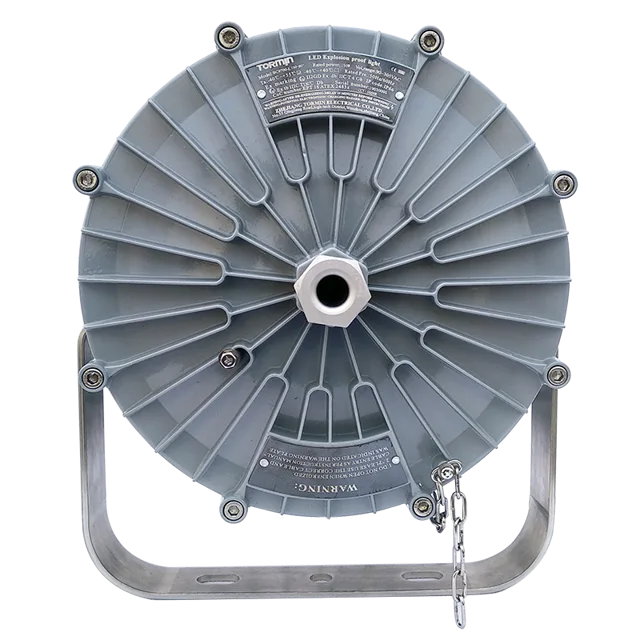

BC9700 LED Explosion Proof Light
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
BC9700 LED Explosion Proof Light
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Aluminium alloy， Tempered glass
- Size: 300×202×332
- Color: Grey/Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Aluminium alloy， Tempered glass
- Size: 300×202×332
- Color: Grey/Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Aluminium alloy， Tempered glass |
|---|---|
| Size | 300×202×332 |
| Color | Grey/Yellow |
From the supplier
Wattage: 60W to 200W
ZONE 1/ 2; ZONE 21/ 22
Temperature class: T1 to T5
IP Code: IP66
Ex marking: d II C T5 or T4 or T3 Gb
tb IIIC T95 ℃ or T130 ℃ or T195 ℃ Db
Ambient temp: -40℃ to +40℃/55℃
ATEX, IECEX, CNEX, CE, ROHS Ceritification.
Application
1. Suitable for Low installation height in Moist corrosive environment ,such as offshore drilling platform, Oil Terminal, etc.
2. Ideal to be used in the environment of flammable gas, steam and dust environment, such as Petrochemical Plant, Chemical Plant, Coal Washery, Pharmaceutical Factory, etc.
3. Areas for high demand of high temperature performance.
Characteristics
1. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.
2. Variety of light distribution, variety of installation types, an effective solution to beautify workshop and device platform.
3. It adopts imported light source, no dark spot, energy-saving is 60% more than Metal Halide Lamp.
4. AC-DC wide voltage driver, power factor above 0.98.
5. The rapid replacement of power without welding can be realized.
6. The adjustable locking device on the bracket can tightly fix the lamp to any desired angle, making the lamp resist to harsh vibration.
7. It is made using aluminum housing, all exposed fasteners adopt 304 stainless steel. Using high-tech anti-corrosion surface treatment technology, suitable for hazardous working areas.
8. Windward area is only 30% of the traditional lamp, suitable for high-altitude winds area.
9. Intelligent control functions can be realized.
Main Specification
Input Voltage
90-305VAC
Frequency
50Hz / 60Hz
Anti corrosion grade
WF2
Insulation Grade
I
Screw Thread
G3/4”, NPT3/4", M20, M25, NPT1/2"
Cable Diameter
Φ9mm-Φ14mm
Dimension
Φ300x202x332mm
Net Weight
6.3Kg
Drawing of dimension (Dimensions in mm)
Ordering reference
Model NumberLight SourceRated wattage Light output Equivalent to(W)(lm) MH LVDHPSBC9700-L60LED606,600150W135W175WBC9700-L80LED808,600175W165W250WBC9700-L100LED10011,200250W200W>250WBC9700-L120LED12012,900>250W>250W>400WBC9700-L150LED15015,500400W400W>400WBC9700-L200LED20022,300>400W>400W>400W
Metal Halide Lamp: MH
Electrodeless Lamp: LVD
High Pressure Mercury Lamp: HP
