About this product
- Materials: PVC. ALLOY
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
About this product
- Materials: PVC. ALLOY
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
Product details
| Materials | PVC. ALLOY |
|---|
From the supplier

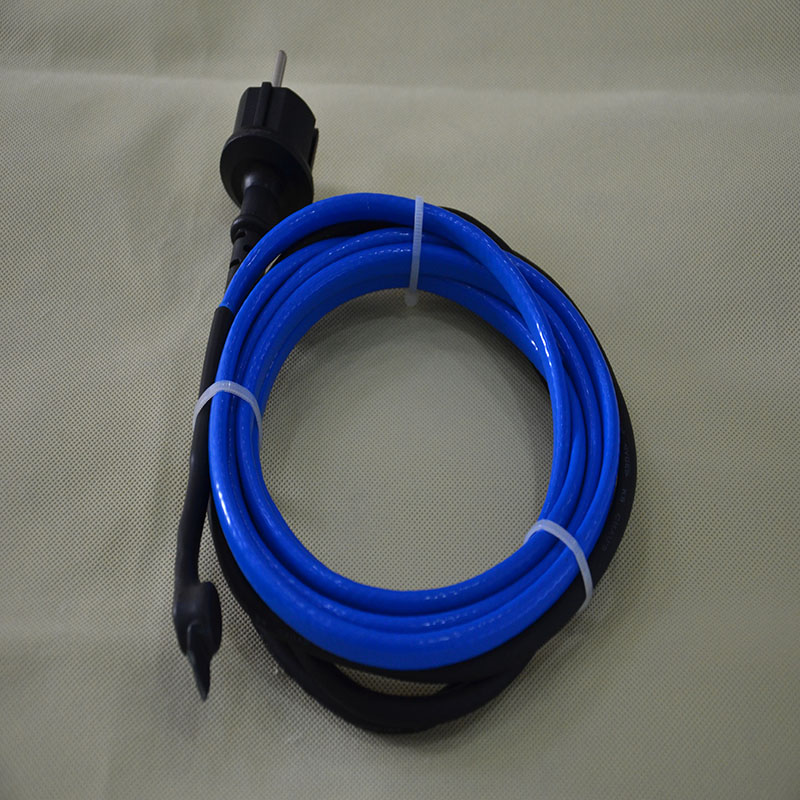

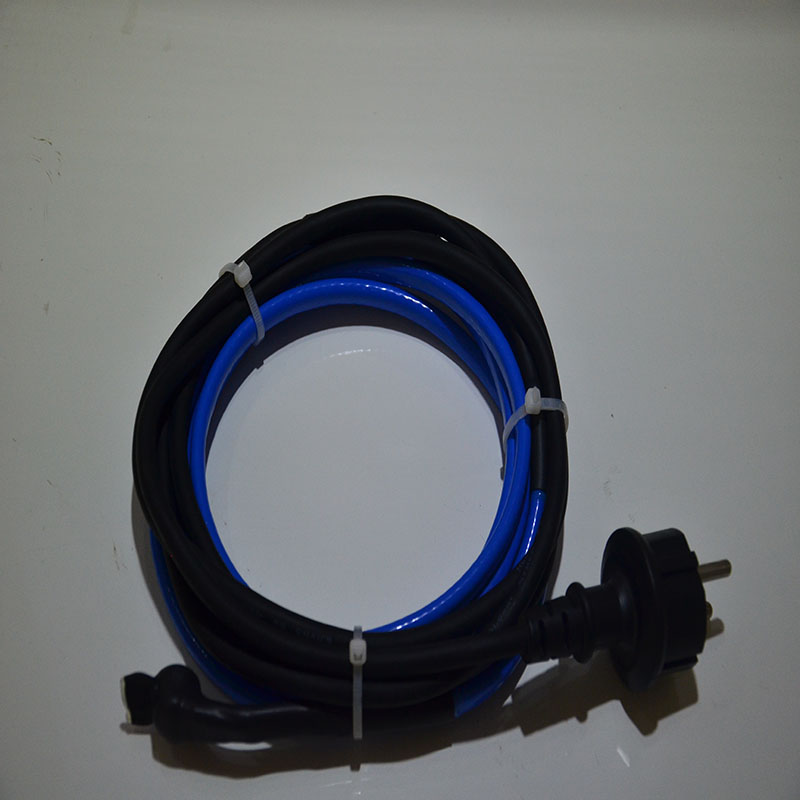

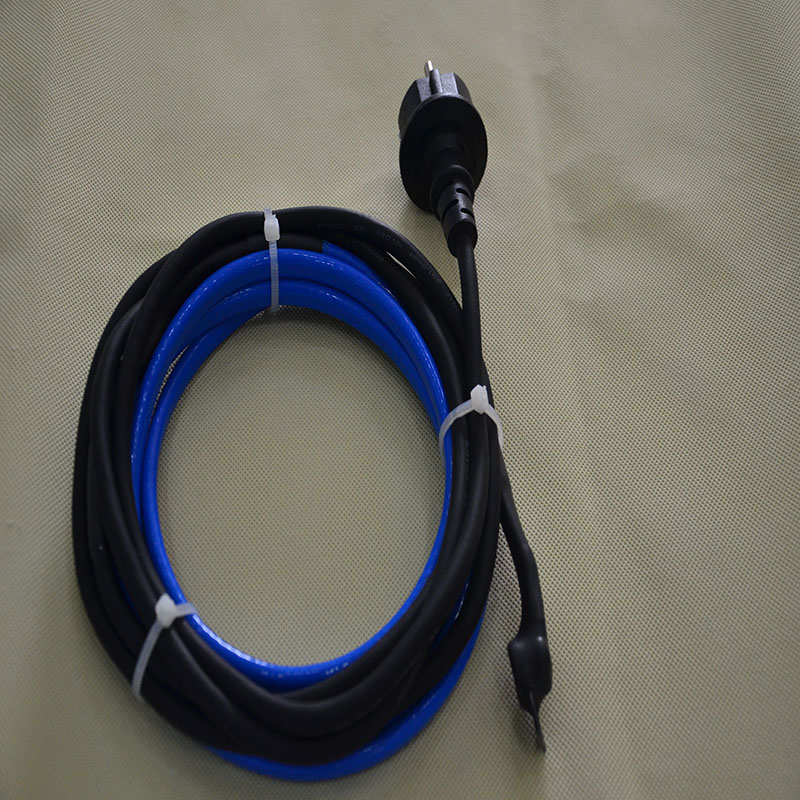

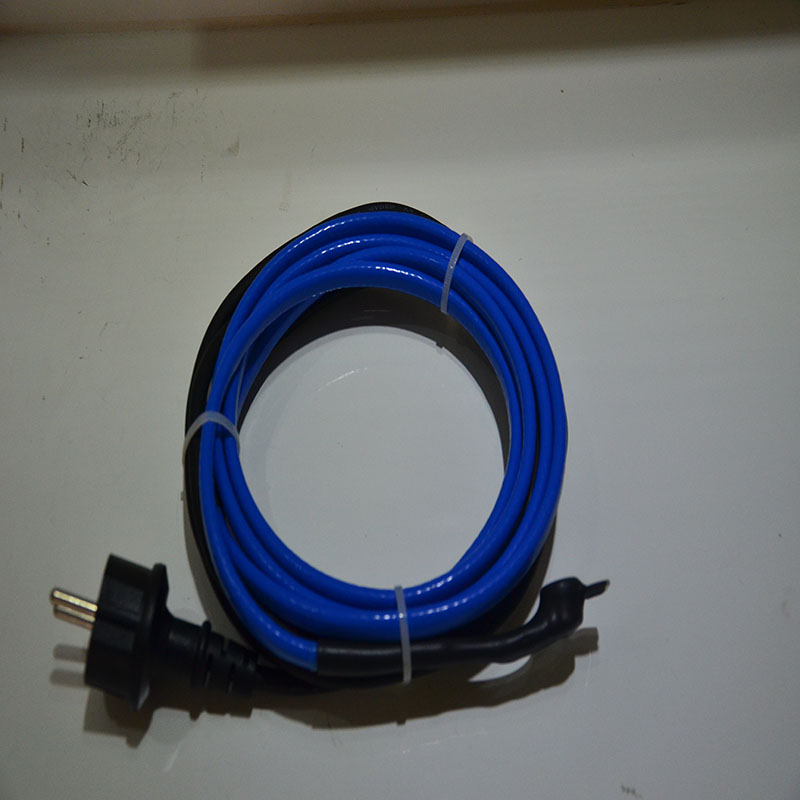

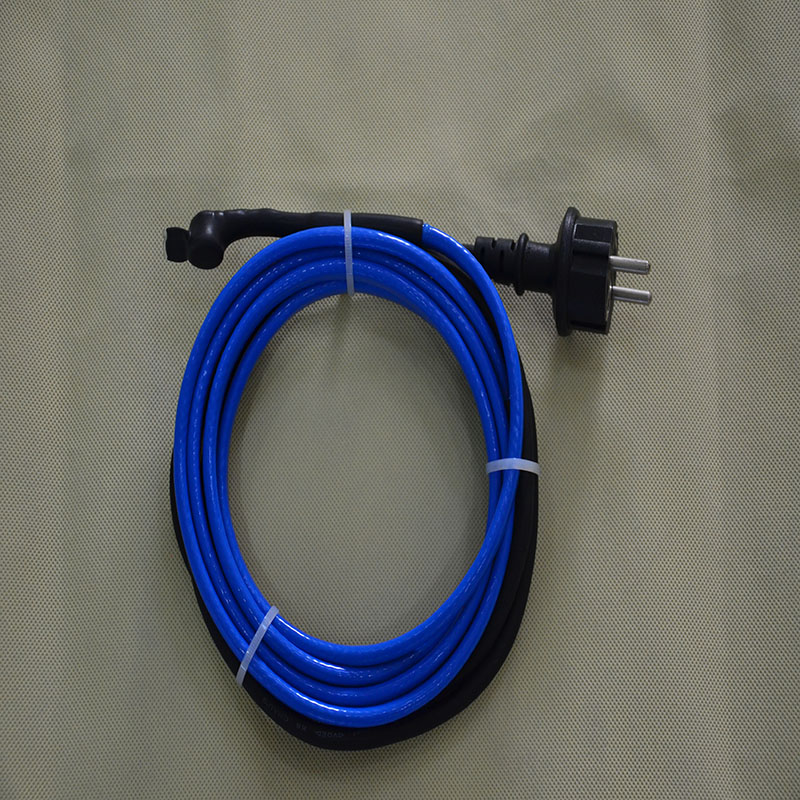

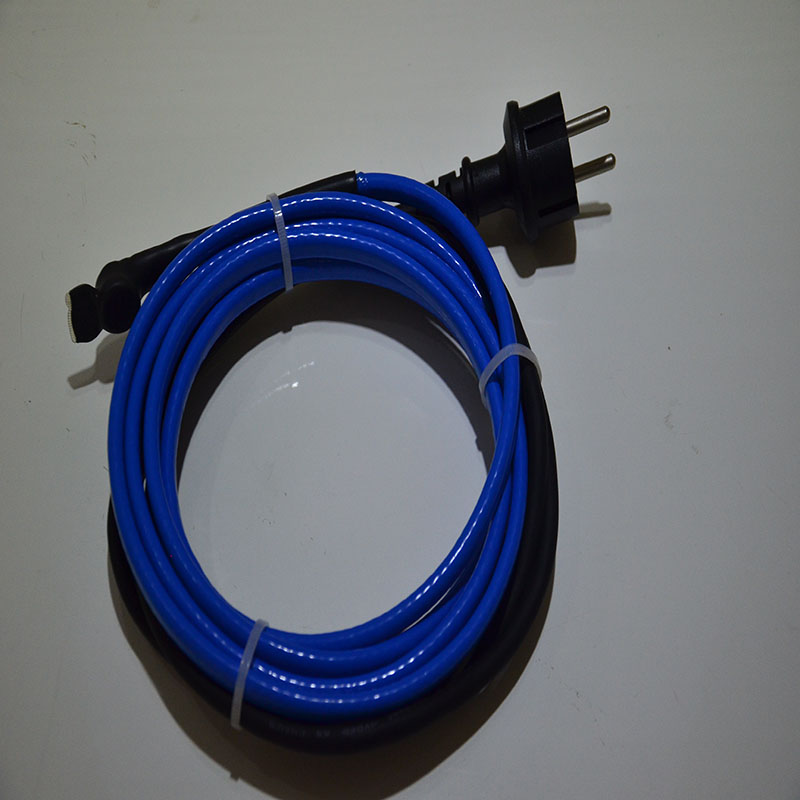

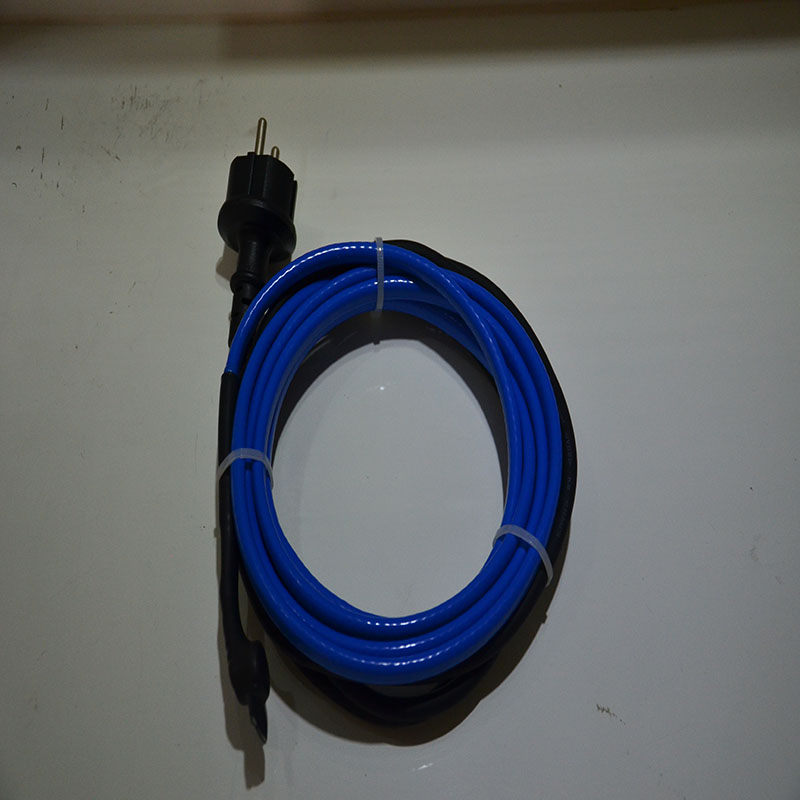

PHC : constant wattage pipe heating cable with thermostat and plug
Pre-assembled and ready to install, the cable prevents pipes from freezing, keeping water flowing to -40°C. Using an energy saving thermostat, PHC cable operate on 230 volts AC and are suitable for use on water filled plastic and metal water pipes.
* Keeps water flowing down to -40°C
* With energy saving thermostat
* Power on: 3°C, Power off: 10°C
* Pre-assembled, ready to install
* 3-year limited warranty against manufacturing defects
Each cable consists of tough XLPE inner insulation, AL foil and a continuous ground braid, and weather resistant PVC (high-low temperature) out jacket
MOQ: 20pcs
PHC Specifications
Technical Data
Applicable areas Europe
Application Residential water pipe antifreeze
Rated voltage 230V
Power output 10W/m, 12W/m, 15W/m
Min. installation temperature -10°C
Min. bending radius 6D
Certifications CE
Rated Voltage
230VAC
230VAC
230VAC
Output
10W/m
12W/m
15W/m
Heating Element length
2-30m
2-40m
2-60m
Bending radius
25mm
25mm
25mm
Conductor insulation
XLPE
XLPE
XLPE
Outer Insulation
PVC
PVC
PVC
Min. Installation Temp
-10℃
-10℃
-10℃
Cold lead
2m length with plug
2m length with plug
2m length with plug
Ordering Information 10w/m
Part Number
Rated Voltage/V
Cable Length/m
Power Output W/m
Total Power/w
Current/
Amps
Resistance
Ω/m
PHC10-2
230
2
10
20
0.09
2645.00
PHC10-4
230
4
10
40
0.17
1322.50
PHC10-6
230
6
10
60
0.26
881.67
PHC10-8
230
8
10
80
0.35
661.25
PHC10-10
230
10
10
100
0.43
529.00
PHC10-15
230
15
10
150
0.65
352.67
PHC10-20
230
20
10
200
0.87
264.50
PHC10-25
230
25
10
250
1.09
211.60
PHC10-30
230
30
10
300
1.30
176.33
Ordering Information 12w/m
Part Number
Rated Voltage/V
Cable Length/m
Power Output W/m
Total Power/w
Current/
Amps
Resistance
Ω/m
PHC12-2
230
2
12
24
0.10
2204.17
PHC12-3
230
3
12
36
0.16
1469.4
PHC12-4
230
4
12
48
0.21
1102.08
PHC12-5
230
5
12
60
0.26
881.7
PHC12-6
230
6
12
72
0.31
734.72
PHC12-8
230
8
12
96
0.42
551.04
PHC12-10
230
10
12
120
0.52
440.83
PHC12-15
230
15
12
180
0.78
293.89
PHC12-20
230
20
12
240
1.04
220.42
PHC12-25
230
25
12
300
1.30
176.33
PHC12-30
230
30
12
360
1.56
146.94
PHC12-40
230
40
12
480
2.09
110.21
Ordering Information 15w/m
Part Number
Rated Voltage/V
Cable Length/m
Power Output W/m
Total Power/w
Current/
Amps
Resistance
Ω/m
PHC15-2
230
2
15
30
0.13
1763.33
PHC15-4
230
4
15
60
0.26
881.67
PHC15-6
230
6
15
90
0.39
587.78
PHC15-8
230
8
15
120
0.52
440.83
PHC15-10
230
10
15
150
0.65
352.67
PHC15-14
230
14
15
210
0.91
251.90
PHC15-16
230
16
15
240
1.04
220.42
PHC15-20
230
20
15
300
1.30
176.33
PHC15-24
230
24
15
360
1.57
146.9
PHC15-25
230
25
15
375
1.63
141.1
PHC15-30
230
30
15
450
1.96
117.6
PHC15-40
230
40
15
600
2.61
88.2
PHC15-50
230
50
15
750
3.26
70.5
PHC15-60
230
60
15
900
3.91
58.8
