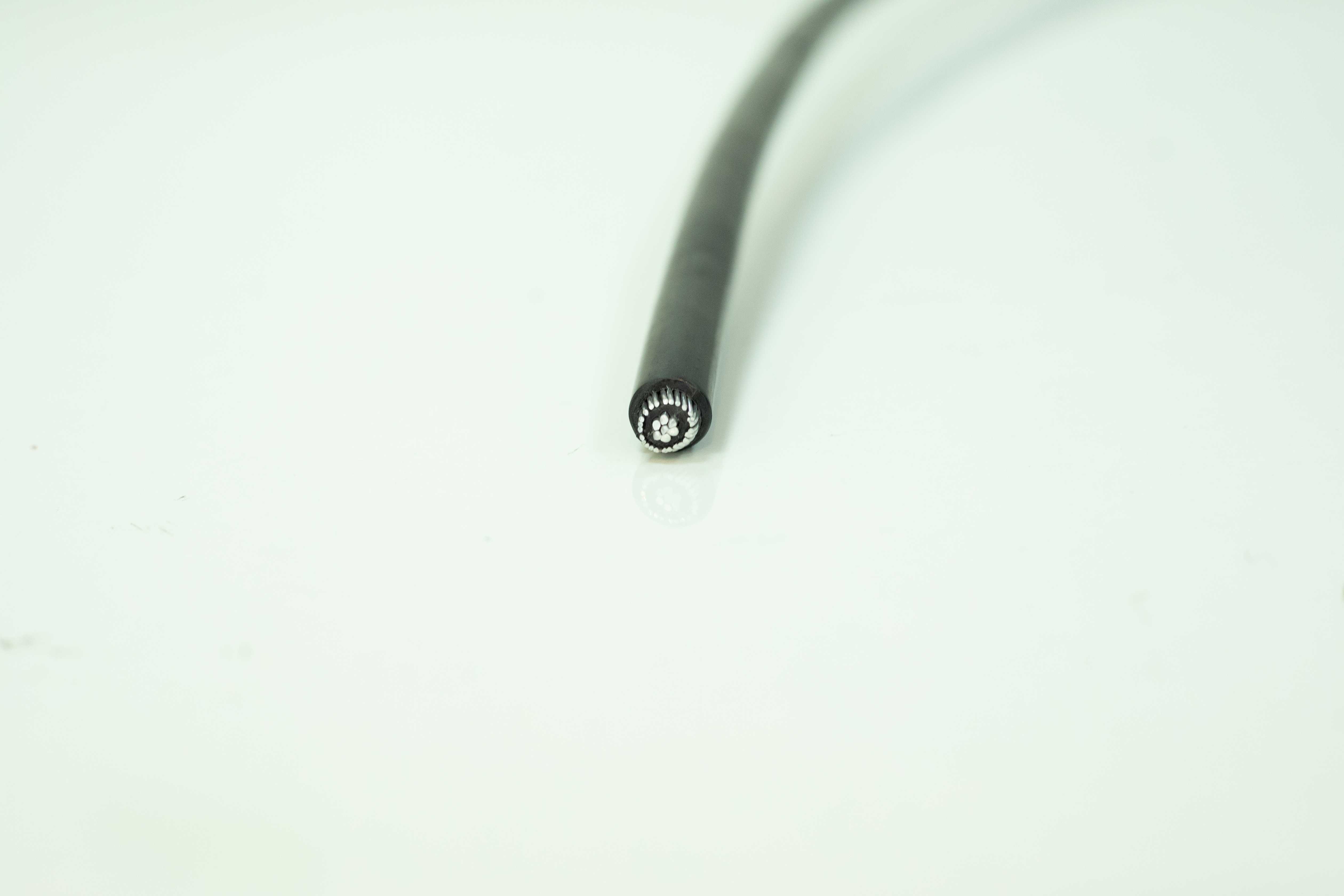

Copper conductor concentric cable
Zhengzhou Jinshui Industry and Commerce Co.,Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Copper conductor concentric cable
Zhengzhou Jinshui Industry and Commerce Co.,Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: copper conductor , XLPE/PVC insulation , XLPE/PVC jacket
- Size: 2*16mm2
- Color: black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Latin America
- Made in: Henan, China
About this product
- Materials: copper conductor , XLPE/PVC insulation , XLPE/PVC jacket
- Size: 2*16mm2
- Color: black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Latin America
- Made in: Henan, China
Product details
| Materials | copper conductor , XLPE/PVC insulation , XLPE/PVC jacket |
|---|---|
| Size | 2*16mm2 |
| Color | black |
Product details
| Materials | copper conductor , XLPE/PVC insulation , XLPE/PVC jacket |
|---|---|
| Size | 2*16mm2 |
| Color | black |
From the supplier
Application
Power cables for energy supply are used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test data. Overall, where increased electrical and also mechanical protection are required. Those cables are installed in open air, in underground, in water, indoors and in cable ducts. The concentric conductor (C) is allowed to use as PE-, PEN-conductor or as shield. due to the typical construction of concentric conductors it is possible to obtain many more cable joints, without cutting any conductor. In that way the operating reliability is guaranteed.
Service conditions:
The cable shall be a service cable for continuous operation outdoors and tropical conditions(temperature range of -1℃ to +40℃, humidity of up to 90% and saline conditions along the coast), suitable for laying in cable ducts and in air, permissible continuous loading operating temperature shall be 70℃ and short circuit temperature of 160℃.
Standard：
BS7870 BS6746 KS04 -1022
Construction：
Rated Voltage: 600/1000V
Conductor: Solid Or Stranded Al Conductor
Insulation: PVC(Black or Red)
Neutral conductor: Helically Al wire with coverage 100% and non -100% coverage
Cable wrapping tape: Non-absorbent material
External coverage: Weather resistant material PVC construction
Type：
Size: 2x8mm2, 2x10mm2, 2x16mm2, 2x25mm2, 2x35mm2
Single core type round with full neutral entrance cable
Single core type round with less neutral entrance cable
Single core type round with full neutral and communication cores entrance cable
Advantages：
1. Factory direct sale
2. Cable manufacturer, ISO, CE
3. Abundant experiences, high quality and cheap price
4. Free cable sample
From the supplier
Application
Power cables for energy supply are used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test data. Overall, where increased electrical and also mechanical protection are required. Those cables are installed in open air, in underground, in water, indoors and in cable ducts. The concentric conductor (C) is allowed to use as PE-, PEN-conductor or as shield. due to the typical construction of concentric conductors it is possible to obtain many more cable joints, without cutting any conductor. In that way the operating reliability is guaranteed.
Service conditions:
The cable shall be a service cable for continuous operation outdoors and tropical conditions(temperature range of -1℃ to +40℃, humidity of up to 90% and saline conditions along the coast), suitable for laying in cable ducts and in air, permissible continuous loading operating temperature shall be 70℃ and short circuit temperature of 160℃.
Standard：
BS7870 BS6746 KS04 -1022
Construction：
Rated Voltage: 600/1000V
Conductor: Solid Or Stranded Al Conductor
Insulation: PVC(Black or Red)
Neutral conductor: Helically Al wire with coverage 100% and non -100% coverage
Cable wrapping tape: Non-absorbent material
External coverage: Weather resistant material PVC construction
Type：
Size: 2x8mm2, 2x10mm2, 2x16mm2, 2x25mm2, 2x35mm2
Single core type round with full neutral entrance cable
Single core type round with less neutral entrance cable
Single core type round with full neutral and communication cores entrance cable
Advantages：
1. Factory direct sale
2. Cable manufacturer, ISO, CE
3. Abundant experiences, high quality and cheap price
4. Free cable sample
