EvoPad GuardTM Evaporative Cooler Pads Anti - Scaling Cleaner Product Introduction

EvoPad Guard is an anti - scaling and cleaning product with a long - term slow - release function, and its effective duration can last for 30 to 60 days. The core components of EvoPad Guard include anti - scaling agents, dispersants, and bactericides. It is manufactured based on the Controlled Release Technology (CRT) with independent intellectual property rights owned by Leap Industry. When EvoPad Guard comes into contact with water, it starts to work and releases active ingredients into the water at a controlled rate. These active ingredients are transported to the entire evaporative wet pads through water circulation, which can inhibit the formation and deposition of scale, disperse and clean the dirt on the surface of the pads, and control the growth of algae and bacteria. The use of EvoPad Guard can significantly improve the efficiency of evaporative cooling, reduce water consumption, lower the cost of pads maintenance and replacement, and ensure air quality and environmental health.

Product Features of EvoPad Guard

• Unique controlled release technology, long - term slow release, with a continuous action of 30 to 60 days;

• Easy to use, ready to use after deployment, no maintenance required;

• Activated when in contact with water, and stops working when there is no water, saving costs;

• Multiple functions of anti - scaling, dispersion, cleaning, and sterilization, providing comprehensive protection;

• Phosphorus - free formula, protecting the environment and reducing algae growth;

• Suitable for all types of evaporative cooling systems and evaporative cooling wet pads of various materials.

Value of Used EvoPad Guard

• Cleans all areas in contact with water;

• Eliminates existing sediments and prevents the formation of future sediments;

• Extends the service life of the cooling wet pad indefinitely;

• Provides a clean and healthy cooling environment;

• Keeps the equipment clean and free from faults;

• Maximizes air circulation to achieve the highest cooling energy efficiency;

• Saves water and reduces maintenance.

Product Specifications and Selection for Use

Based on different dosing methods, EvoPad Guard has two packaging forms:

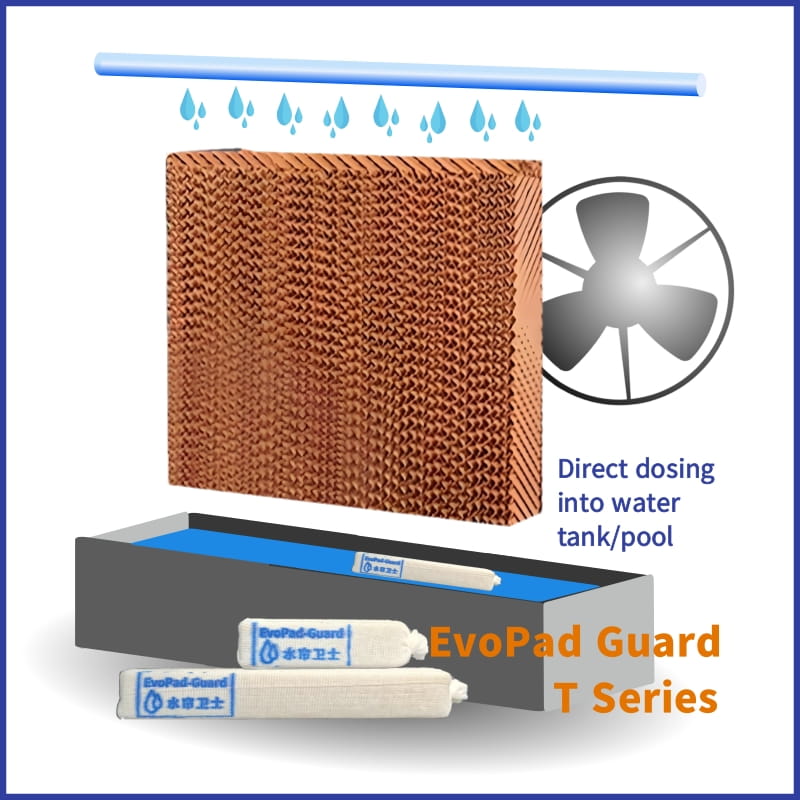

• EvoPad Guard T - Tank dosing type: Put EvoPad Guard into the water tank or pool of the evaporative cooling system.

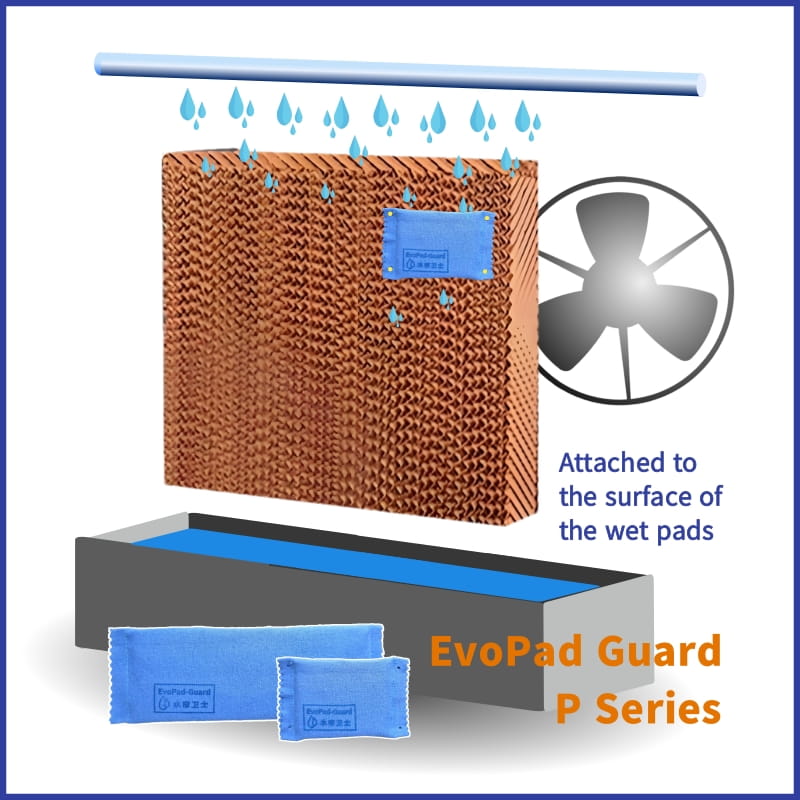

• EvoPad Guard P - Pad surface - attached type: Attach EvoPad Guard to the surface of the wet pad, and realize the release and dosing by wetting EvoPad Guard with the water flow of the wet pads

Product Model

Water Tank Volume (L)

Pads Area (M²)

Quantity Used

Usage Time (Day)

EvoPad Guard T25

20 - 40

1 - 2

1

30 - 60

EvoPad Guard T50

40 - 80

2 - 4

1

30 - 60

EvoPad Guard T100

80 - 120

4 - 6

1

30 - 60

EvoPad Guard P25

20 - 40

1 - 2

1

30 - 60

EvoPad Guard P50

40 - 80

2 - 4

1

30 - 60

EvoPad Guard P100

80 - 120

4 - 6

1

30 - 60

Select the corresponding EvoPad Guard model according to the parameters of your evaporative cooling system. The service life of EvoPad Guard may vary depending on the usage of the cooler, water quality, and other environmental factors.

Usage Method

Take EvoPad Guard out of the plastic bag. Keep the blue woven fabric shell intact. When using EvoPad Guard T, put it into the water in the water tank/sump, away from the suction port of the circulation pump (see Figure a below). When using EvoPad Guard P, fix it at the appropriate position of the pads with a special plug (ensure that the water flow wets EvoPad Guard P). Replace EvoPad Guard within the specified service life interval
