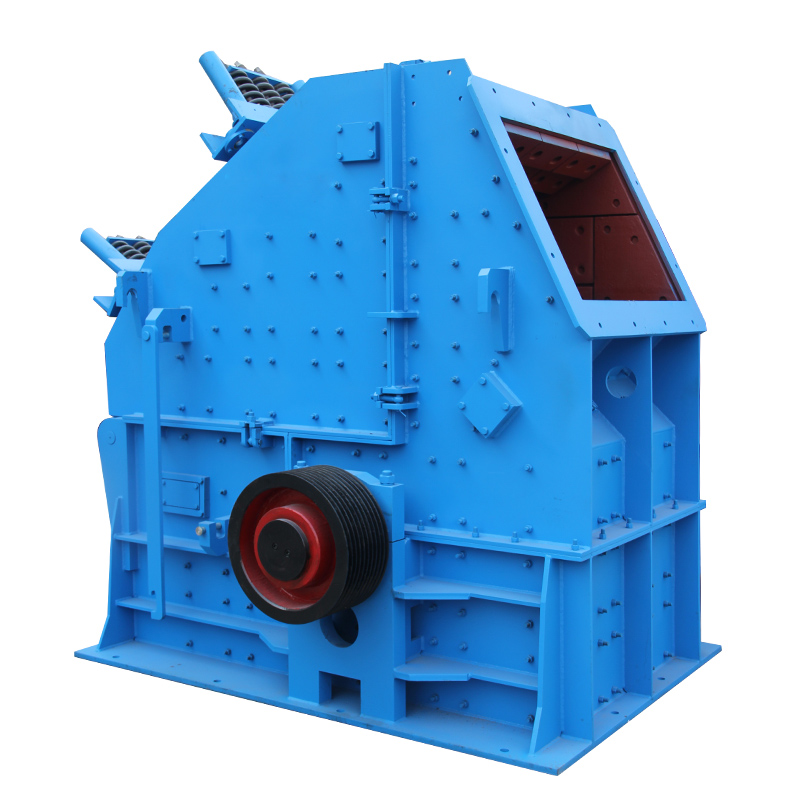

By many years experience, Sanme has developed the CH Series lmpact Crusher with advanced level. The crushing chamber is optimized, the rotor is designed in heavy duty, and the fixing device of blow bar is improved to provide a higher reliablity degree. Humanized design makes the maintenance more convenient.The CH Series Impact Crusher can be used in primary, secondary and tertiary crushing stages.

CAPACITY

50-1900t/h

MAX FEEDING SIZE

300mm-1600mm

RAW MATERIALS

limestone, construction waste

APPLICATION

Aggregates, cement and recycling industry

FEATURES AND TECHNOLOGY ADVANTAGES OF CH SERIES IMPACT CRUSHER

Optimized crushing chamber, higher capacity

The crushing chamber of CH series impact crushers is optimized, which obtains extra capacity, improves crushing reduction and lower your capital costs.

Bigger feed opening design, bigger material crushed

By optimization, CH series impact crushers use enlarged feed opening design, which can crush bigger material. When crushing medium hard material eg. Limestone, they can replace jaw crusher. Especially in crushing oversized concrete in the construction waste, they have more advantges.

Adding grinding cavity design (Optional), wide application

With the design of grinding cavity, CH series impact crusher achieves bigger crushing ratio, lower discharge opening and excellent product shape. More choice for customers makes more application.

Heavy rotor design and unique blow bar fixing system provide reliability

CH series impact crushers adopt heavy rotor design, which not only improves reliability, but also increases moment of inertia of rotor and capacity. The fixing of blow bar is improved to make the exchange easy and fixing reliable.

Reliable overload and tramp iron protection device

For the protection of the rotor body and blow bars, the CH series impact crushers optimize overload and tramp iron protection device. The impact aprons retract under excessive load. As soon as the load value returns to normal, the impact aprons resumes its pre-set position, and operation continues without interruption.

Easy to maintain, high reliability and safety

The hydraulic power unit is used by CH series impact crusher for easy adjustment of setting. It is convenient for checking, maintaining and changing wear parts.

PRODUCT USAGE OF CH SERIES IMPACT CRUSHER

CH Series Impact Crusher can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical industries, etc.

PRODUCT DATA

Technical Data of CH Series Impact Crusher:

Model Max Feed Size(mm) Throughput(t/h) Motor Power(kw) Overall Dimension(L×W×H)(mm)
( the biggest size ) Weight(Motor not included)(t) CH128 300 40-70 37-55 3115*1600*2932 11.8 CH139 400 50-80 55-75 3060*2048*2935 14.6 CH239 500 100-180 110-132 3095*2048*2970 14.7 CH255 500 100-290 132-160 3095*2398*2970 17.4 CH359Ⅱ 700 180-350 200-250 3415*2666*3127 22.2 CH459 750 220-450 250-315 3717*3020*3301 27 CH579 800 250-550 400-500 3552*3547*3231 36.2 CH679 1000 400-700 560-630 4019*4064*3652 53.2 CH779 1300 500-850 630-800 4785*4338*4849 79 CH798 1300 750-1100 800-1250 4825*4838*4849 90.8 CH898 1500 1000-1500 1000-1600 5382*5445*5454 112.8 CH8118 1600 1500-2000 1400-2000 5382*5945*5454 135.5 CH8138 1600 1800-2500 1600-2100 5348*6527*5454 158.8 CH10158 1900 3600-4000 2800-3150 6120*7210*6250 212.3

Technical Data of CHS Series Impact Crusher:

Model Max Feed Size(mm) Throughput(t/h) Motor Power(kw) Overall Dimension(L×W×H)(mm)
( the biggest size ) Weight(Motor not included)(t) CHS379 350 240-460 250-280 3271*3527*2730 23.23 CHS 498 400 275-560 280-355 3755*3522*2833 27.2 CHS 5118 450 375-825 500-710 3552*4547*2746 36.2 CHS 6118 500 600-900 800-900 3733*5272*3306 56.2 CHS 7138 500 875-1490 900-1250 4785*5838*4120 78
