ACCURL CNC Turret Punching Machine MAX-T-50 ton for Sheet Metal CNC Punch Press Manufacturers
ACCURL CNC MACHINE (ANHUI) MANUFACTORY CO.LTDSee what’s includedHide breakdown
- FOB goods (100)
- $7,352,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $257,338
- Section 301 tariff (25.0%)
- $1,838,125
- Customs fees (MPF/HMF)
- $9,825
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $7,352,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $257,338
- Section 301 tariff (25.0%)
- $1,838,125
- Customs fees (MPF/HMF)
- $9,825
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: stainless steel
- Size: 5190*3250*2550
- Color: customizable
- Exports to: Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Anhui, China
About this product
- Materials: stainless steel
- Size: 5190*3250*2550
- Color: customizable
- Exports to: Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Anhui, China
Product details
| Materials | stainless steel |
|---|---|
| Size | 5190*3250*2550 |
| Color | customizable |
Product details
| Materials | stainless steel |
|---|---|
| Size | 5190*3250*2550 |
| Color | customizable |
From the supplier
CNC Servo Driven Ram Turret Punch Press MAX-SF- 50 ton for Superior Performance Servo CNC Punching Machine
MAX SF Series for
Complex Multi-Tools Auto Index Technology.
ACCURL®MAX-T Series punch press offers an O-frame and is characterized by rigidity and high geometric precision. It features a capacity of 30 metric tons and is able to work in mild steel thicknesses up to 6,5 mm.
Advanced Hydraulic System
●The well engineered mechanical parts in the H+L Hydraulic ram are manufactured according to high precision standards. The HS3 electronic stoke control is controlling the speed and stroke of the 30 tons hydraulic punching head.
●Uniquely designed Machine structure ensures less preventive maintenance.
Standard Equipments：

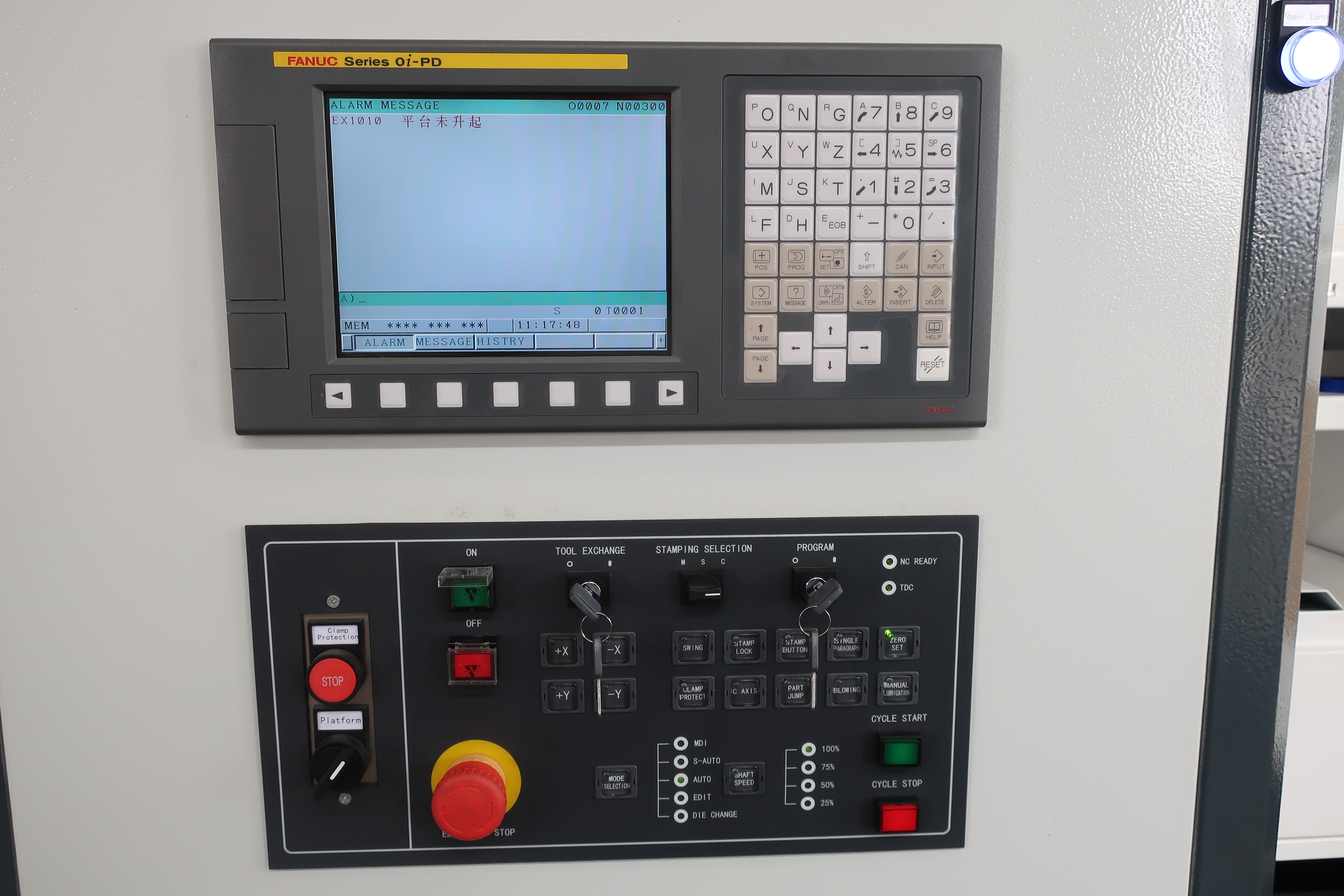

●FANUC Series Oi-PO CNC Control System
●automatic repositioning clamps and loading switches.
●Tool lubricating system (Airblow).
●Free standing control panel.
●Control with foot pedal.
●1 software (Lantek or RADAN software).
●User manual and maintenance catalogue.
●15 x A station 1/2’’ fixed 1,6-12,7 mm round
●12 x B station 1-1/4’’ fixed 12,8-31,7 mm round
●2 x C station 2’’ fixed 31,8-50,8 mm round
●1 x D station 3-1/2’’ fixed 50,9-88,9 mm round
●3 x D station 3-1/2’’ index 50,9-88,9 mm round
●Digital oil temperature indicator.
●Software for using wheel and forming tools.
●Scrap box.
●Chain protection around the machine (safety system).
●Hydraulic oil cooling system.
Specifications:
Item
Unit
MAX-SF-50T
Punching Capacity
Ton
50
X Traverse Length
mm
2500±10
Y Traverse Length
mm
1250±10
Max Sheet Size
mm
1250x4980
Max Sheet Thickness
mm
8.35
Max Sheet Weight
kg
110
X Axis Traverse Speed
m/min
100
Y Axis Traverse Speed
m/min
80
Max Traverse Speed
m/min
128
Punching Speed at 25mm pitch*
hist/min
450
Nibbling Speed
hist/min
1200
Tools Type
Thick turret
Max Punching Diameter
mm
88.9
Number of Tool Stations
32 / 42 / 52
Number of Auto Index Stations
pcs(type)
4(2B+2C) / 3(2B+1C) / 2(1B+1C)
Turret Rotating Speed
rpm
33
Auto Index Rotationg Speed
rpm
100
Ram Stroke Distance
mm
0~31
Working Tables Size
Brush
Number of Sheet Clamps
pcs
3
Air Supply
NL/min
250
Air Supply
bar
6
Oil Tank Volume
Litre
275
Machine Dimension (L x W x H)
mm
5940x5220x2420
Net Weight (approx.)
kgf
15,000
Size of Control Cabinet
mm
1350x700x2185
CNC Controller
FANUC Oi-PD
Number of Controllable Axes
Axis
4
RAM Memory
KB
512
Serial Interface
RS232/RJ45/PCMCIA
Punching Precision*
mm
±0.1
From the supplier
CNC Servo Driven Ram Turret Punch Press MAX-SF- 50 ton for Superior Performance Servo CNC Punching Machine
MAX SF Series for
Complex Multi-Tools Auto Index Technology.
ACCURL®MAX-T Series punch press offers an O-frame and is characterized by rigidity and high geometric precision. It features a capacity of 30 metric tons and is able to work in mild steel thicknesses up to 6,5 mm.
Advanced Hydraulic System
●The well engineered mechanical parts in the H+L Hydraulic ram are manufactured according to high precision standards. The HS3 electronic stoke control is controlling the speed and stroke of the 30 tons hydraulic punching head.
●Uniquely designed Machine structure ensures less preventive maintenance.
Standard Equipments：
●FANUC Series Oi-PO CNC Control System
●automatic repositioning clamps and loading switches.
●Tool lubricating system (Airblow).
●Free standing control panel.
●Control with foot pedal.
●1 software (Lantek or RADAN software).
●User manual and maintenance catalogue.
●15 x A station 1/2’’ fixed 1,6-12,7 mm round
●12 x B station 1-1/4’’ fixed 12,8-31,7 mm round
●2 x C station 2’’ fixed 31,8-50,8 mm round
●1 x D station 3-1/2’’ fixed 50,9-88,9 mm round
●3 x D station 3-1/2’’ index 50,9-88,9 mm round
●Digital oil temperature indicator.
●Software for using wheel and forming tools.
●Scrap box.
●Chain protection around the machine (safety system).
●Hydraulic oil cooling system.
Specifications:
Item
Unit
MAX-SF-50T
Punching Capacity
Ton
50
X Traverse Length
mm
2500±10
Y Traverse Length
mm
1250±10
Max Sheet Size
mm
1250x4980
Max Sheet Thickness
mm
8.35
Max Sheet Weight
kg
110
X Axis Traverse Speed
m/min
100
Y Axis Traverse Speed
m/min
80
Max Traverse Speed
m/min
128
Punching Speed at 25mm pitch*
hist/min
450
Nibbling Speed
hist/min
1200
Tools Type
Thick turret
Max Punching Diameter
mm
88.9
Number of Tool Stations
32 / 42 / 52
Number of Auto Index Stations
pcs(type)
4(2B+2C) / 3(2B+1C) / 2(1B+1C)
Turret Rotating Speed
rpm
33
Auto Index Rotationg Speed
rpm
100
Ram Stroke Distance
mm
0~31
Working Tables Size
Brush
Number of Sheet Clamps
pcs
3
Air Supply
NL/min
250
Air Supply
bar
6
Oil Tank Volume
Litre
275
Machine Dimension (L x W x H)
mm
5940x5220x2420
Net Weight (approx.)
kgf
15,000
Size of Control Cabinet
mm
1350x700x2185
CNC Controller
FANUC Oi-PD
Number of Controllable Axes
Axis
4
RAM Memory
KB
512
Serial Interface
RS232/RJ45/PCMCIA
Punching Precision*
mm
±0.1
